BPMD50G1P24C13/16KQG datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BPMD50G1P24C13/16KQG

BPMD50G1P24C13/16KQG: DescriptionRotary Position Encoder; CategoryLED optoelectronic/LED photoelectric; File Size168KB，4 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

BPMD50G1P24C13/16KQG Overview

Rotary Position Encoder

BPMD50G1P24C13/16KQG Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	ROTARY POSITION ENCODER
Base Number Matches	1

Preview

Download Datasheet

View All

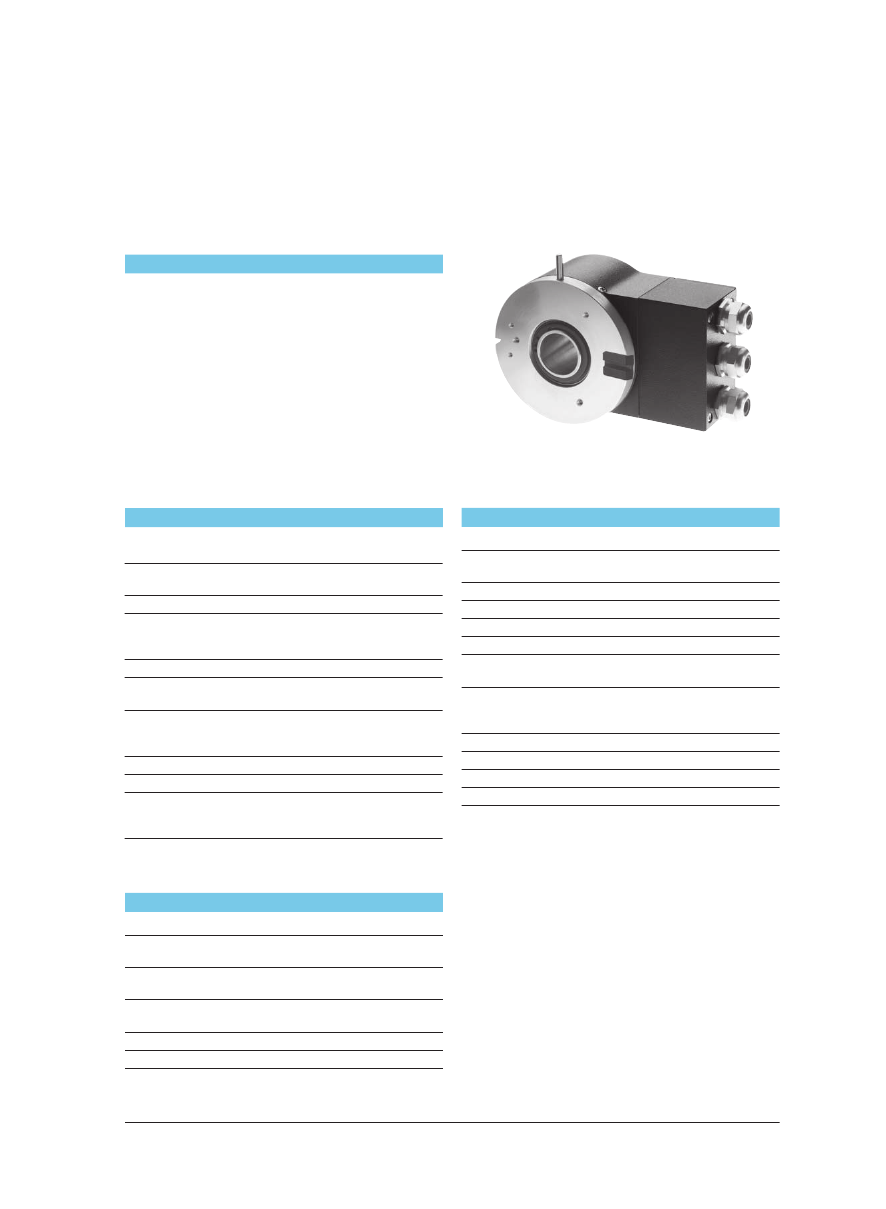

Absolute multi-turn hollow shaft encoder

BPMD ﬂexible

Proﬁbus-DP, CANopen, DeviceNet

features

• multi-turn encoder up to

- 13 bit single-turn

- 16 bit multi-turn

• modular bus cover

• programmable operating modes

• programmable bus parameters

• programmable resolution and preset values

• hollow shaft ø 25,4...50,8 mm

general data

voltage supply

max. supply current

no load

signal coding

max. resolution

single-turn

multi-turn

max. error limit

preset

10 - 30 VDC

with reverse polarity protection

100 mA (at 24 VDC)

mechanical data

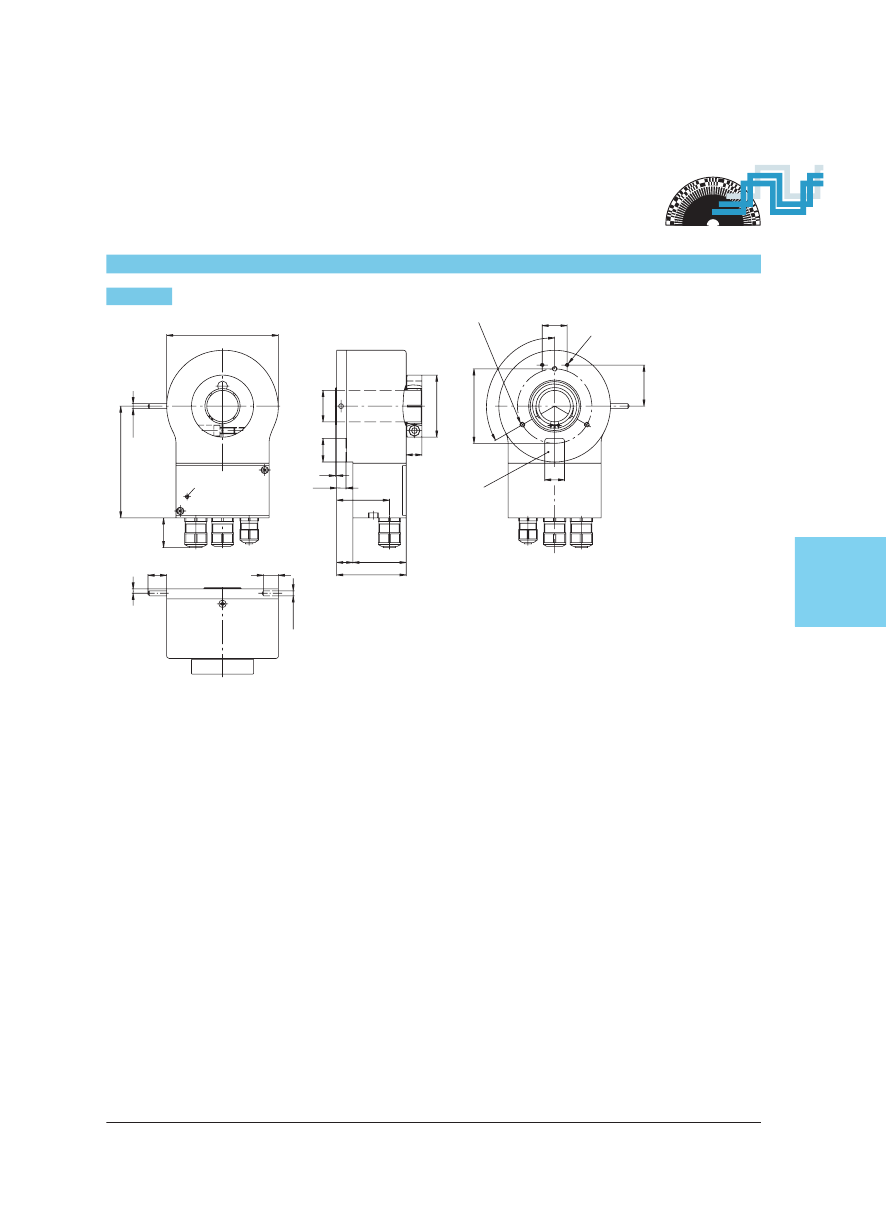

BPMD 25

max. revolutions

moment of interia

binary code

13 bit (1 step = 2' 38")

16 bit (65'536 rev.)

±0,025° at 400 kHz

±0,05° at 800 kHz

in state data-exchange encoder

can be set to a predeﬁned

position

adjustable via jog-dial

selectable via dip switches

looking at the ﬂange, position

counts up as the shaft rotates

clockwise (CW), programmable

max. protection class

material

weight

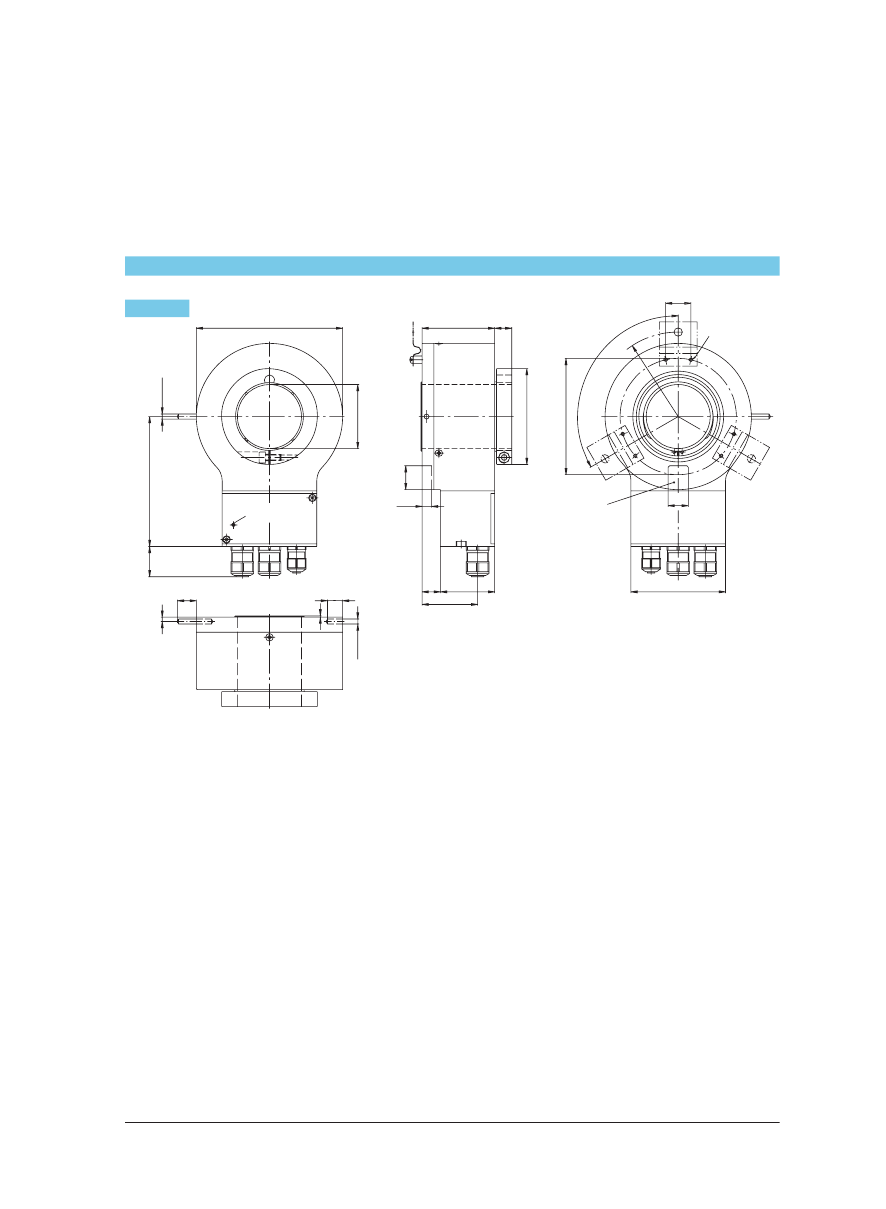

BPMD 50

max. revolutions

mech. 2'000 rpm

higher on request

electr. 6'000 rpm

1'100 x 10

-6

kgm

IP 54

housing: aluminum

approx. 1'200 g

mech. 3'800 rpm

electr. 6'000 rpm

200 x 10

-6

kgm

IP 54

housing: aluminum

approx. 830 g

max. switching frequency 800 kHz

moment of interia

max. protection class

material

weight

address

baud rate

direction of rotation

ambient conditions

temperature range

relative humidity

vibration

shock

noise immunity

emitted interference

-20...+85 °C

max. 95%

non condensing

DIN EN 60068-2-6

(≤ 100 m/s

/ 16 - 2'000 Hz)

DIN EN 60068-2-27

(≤ 2'000 m/s

/ 6 ms)

DIN EN 61000-6-2

DIN EN 61000-6-4

3. 30

www.baumerelectric.com

BPMD50G1P24C13/16KQG Related Products

	BPMD50G1P24C13/16KQG	BPMD50G1P24P13/16KQD	BPMD50G1P24B13/16KQD	BPMD25G1P24C13/16KFG	BPMD25G1P24P13/16KFD	BPMD25G1P24B13/16KFD	BPMD25G1P24D13/16KFD
Description	Rotary Position Encoder	Rotary Position Encoder	Rotary Position Encoder	Rotary Position Encoder	Rotary Position Encoder	Rotary Position Encoder	Rotary Position Encoder
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER
Maker	Baumer Electric Ag	-	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag
