PQ3218-6R0-50-T datasheet, PDF

Datasheet> All Categories > Passive components> PQ3218-6R0-50-T

PQ3218-6R0-50-T: Descriptionplanar inductor 6.0 MH WW pq32; CategoryPassive components; File Size626KB，2 Pages; ManufacturerStandex; Environmental Compliance

Download Datasheet Parametric View All

PQ3218-6R0-50-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PQ3218-6R0-50-T	-	-	View	Buy Now

PQ3218-6R0-50-T Overview

planar inductor 6.0 MH WW pq32

PQ3218-6R0-50-T Parametric

Parameter Name	Attribute value
Datasheets
PQ20,26,32 Series
Product Photos
PQ3218-6R0-50-T
Featured Produc
Standex-Meder - Planar Transformers
Standard Package	25
Category	Inductors, Coils, Chokes
Family	Fixed Inductors
Packaging	Bulk
Type	-
Material - Core	-
Inductance	6µH
Tolerance	-
Current Rating	50A
Current - Saturati	57A
Shielding	Unshielded
DC Resistance (DCR)	1.5 mOhm
Q @ Freq	-
Frequency - Self Res	-
Operating Temperature	-30°C ~ 125°C
Frequency - Tes	-
Mounting Type	Surface Mou
Package / Case	Non Standard
Size / Dimensi	1.260" L x 0.885" W (32.00mm x 22.50mm)
Height - Seated (Max)	0.728" (18.50mm)
Supplier Device Package	-
Dynamic Catalog	PQ Series
Other Names	374-1377

Preview

Download Datasheet

View All

A Global Leader in the Design, Development, and

Manufacture of Sensors and Magnetic Components

Product Solutions

www.standexmeder.com

Planar Inductors

for the PQ20,26,32 Sizes

0.4‐6.0µH, 80A max

Contact Information:

World Headquarters

4538 Camberwell Road

Cincinnati, OH 45209 USA

Standex Americas (OH)

+1.866.STANDEX

(+1.866.782.6339)

Standex‐Meder Electronics

Planar magnetics have a better power density and performance compared to equivalent

wire wound transformer designs.



Standex‐Meder has multiple manufacturing facilities around the world including TS16949

and AS9100 certified and ITAR registered sites.



Standex‐Meder specializes in customizing designs to specific customer needs for a wide

power range. Please contact us to provide the optimal solution for your application.



Applications include but are not limited to: switching power supplies, DC/DC converters in

distributed power systems, FIGA and low‐profile high‐current, high current POL converters,

feedback control, overload sensing, load drop and shut down detection



Markets include Electronics, Telecommunications, Medical, Aerospace, Industrial,

Automotive, Appliance and many others



info@standexelectronics.com

Meder Americas (MA)

+1.800.870.5385

salesusa@standexmeder.com

Standex‐Meder Asia (Shanghai)

+86.21.37820625

salesasia@standexmeder.com

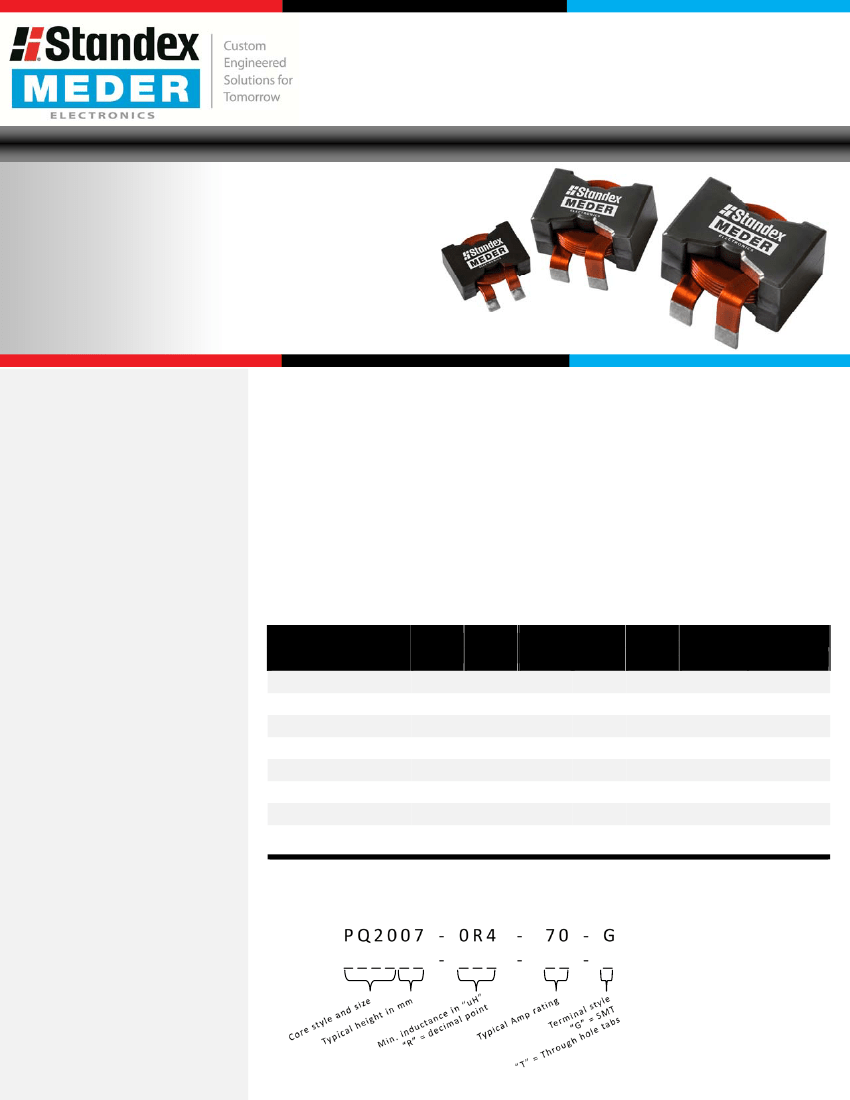

Standard PN Datasheet

Catalog Part Number

Core

Style

PQ20

PQ26

PQ32

Height

(mm)

DCR

Nom.

Inductance

(mΩ)

(µH)

Amps

Nom.

0.4

1.0

2.2

4.4

1.0

0.9

3.3

6.0

0.7

1.0

3.5

3.6

1.2

1.0

1.1

1.5

Isat (A) typ

10% drop

110

100

20% drop

120

110

PQ2007-0R4-70-G or T

PQ2006-1R0-30-G or T

PQ2007-2R2-25-G or T

PQ2007-4R4-15-G or T

PQ2613-1R0-80-G or T

PQ3213-0R9-70-G or T

PQ3218-3R3-70-G or T

Standex‐Meder Europe (Germany)

+49.7731.8399.0

info@standexmeder.com

PQ3218-6R0-50-G or T

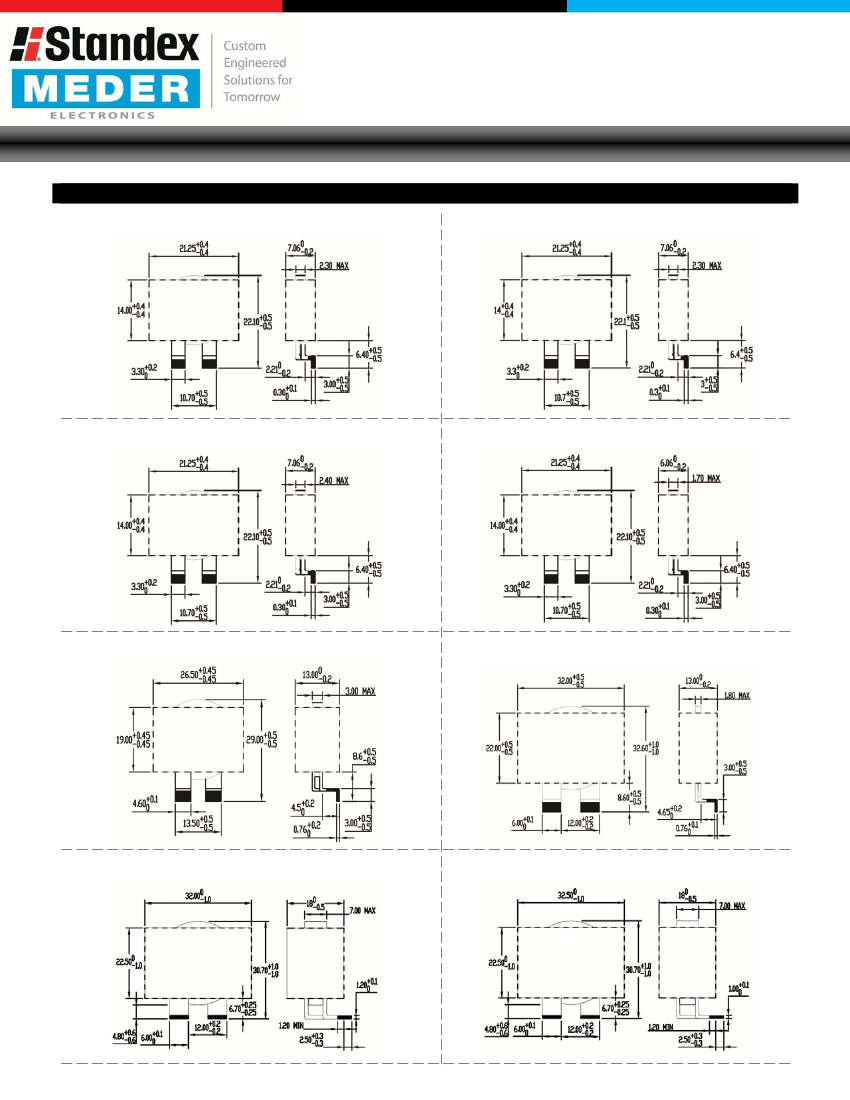

Notes: All Electrical Values at 25°C | Pri: Sec’y: Core Isolation 300 Vrms | Maximum Non‐Operating Temperatures : ‐55°C to

+180°C | Maximum Operating Rated Temperatures: ‐30°C to +125°C
