Data and signal line chokes
SIMDAD 1812, common-mode chokes
42 V AC/80 V DC, 11 … 100
μH,
150 … 300 mA
Series/Type:
B82789C0/S0
October 2008
7f
fÁRspp
Date:
©
EPCOS AG 2008. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
Data and signal line chokes
SIMDAD 1812, common-mode chokes
Rated voltage 42 V AC/80 V DC
Rated inductance 11
N
H to 100
N
H
Rated current 150 mA to 300 mA
Construction
■
■
■
■
■
■
B82789C0/S0
Current-compensated double choke
Ferrite I core
Winding: enamel copper wire
Winding welded to terminals
Bifilar winding (B82789C0…)
Sector winding (B82789S0…)
Features
■
■
■
■
■
Temperature range up to 150 °C (B82789C0/S0*H)
Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020C
For gold-plated terminals conductive adhesion possible
Qualified to AEC-Q200
RoHS-compatible
Function
■
B82789C0:
Suppression of asymmetrical interference coupled in on lines,
whereas data signals up to some MHz can pass unaffectedly.
■
B82789S0:
Suppression of asymmetrical (by L
R
) and symmetrical interference (by L
stray
)
coupled in on lines. The high-frequency portions of the symmetrical data
signal are decreased so far that EMC problems can be significantly reduced.
Applications
■
Automotive applications, e.g. CAN and FlexRay bus
■
Industrial field bus systems
■
Line cards for telecom
Terminals
Tinned terminals (B82789C0/S0*002)
■
Base material CuSn6
■
Layer composition Ni, Ag, Sn
1)
■
Lead-free tinned
Gold-plated terminals (B82789C0/S0*001)
■
Base material CuSn6
■
Layer composition Ni, Ag, Au
■
Gold plated
1) Ni-barrier-plated terminals (NiSn) on request (B82789C0/S0*H052).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
10/08
Data and signal line chokes
SIMDAD 1812, common-mode chokes
Marking
■
Marking on component:
B82789C0/S0
Manufacturer, bifilar or sector winding (coded),
L value (in nH; for version B82789C0/S0*H052 underlined),
date of manufacture (YWWD), two last digits of production order
■
Minimum data on reel:
Manufacturer, ordering code, L value (in nH), quantity, date of packing
Delivery mode and packing unit
■
12-mm blister tape, wound on 330-mm
∅
reel
■
Packing unit: 2500 pcs./reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
10/08
Data and signal line chokes
SIMDAD 1812, common-mode chokes

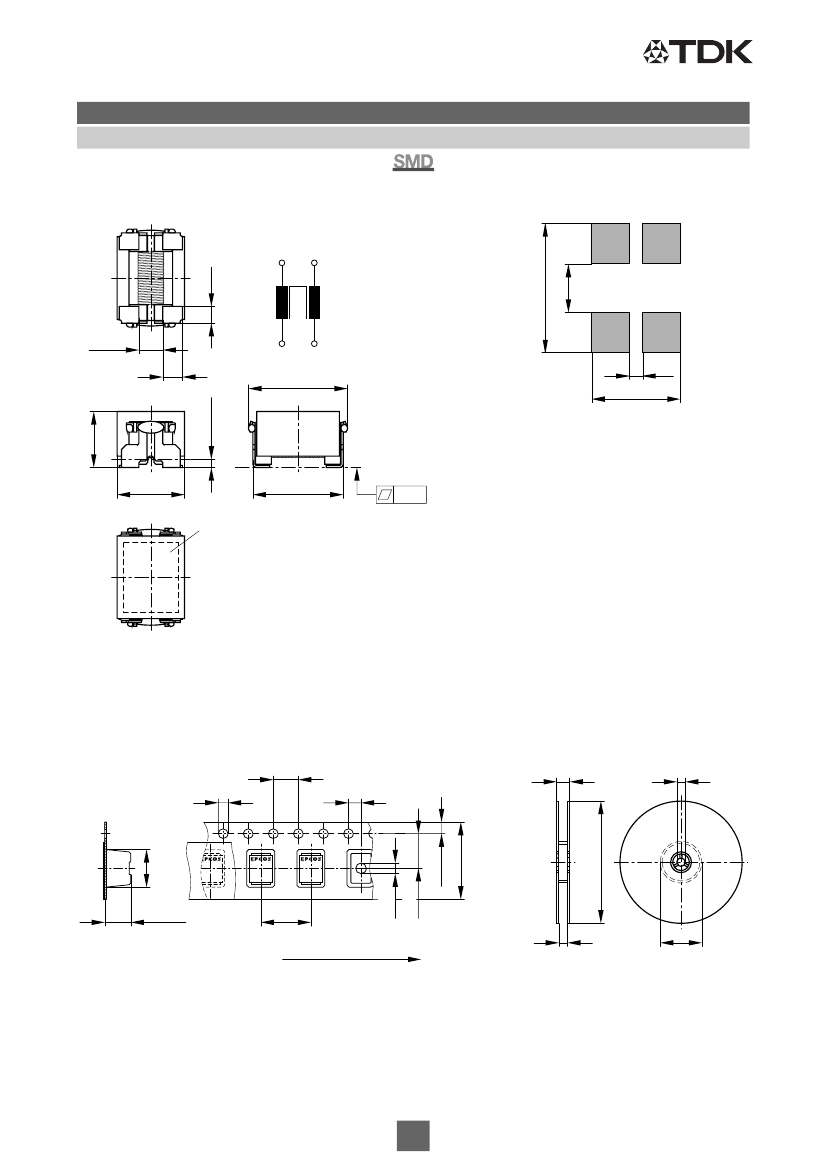

Dimensional drawing and layout recommendation
B82789C0/S0
0.86
1)
1.2±0.1
1
1)
5.2 max.
3 max.
0.4 min.
1)
4.0
0.6
IND0309-C
3.2+0.3
Marking
4.5±0.2
0.03
1)
Soldering area
IND0303-W-E
Dimensions in mm
Taping and packing
Blister tape
4±0.1
1.5±0.1
2±0.05
5.9
Reel
18.4 max.
13±0.25
5.9 max.
1.75±0.1
12±0.3
2.2
_
2
330
+0
4.1 max.
8±0.1
Direction of unreeling
IND0416-9-E
1.6±0.1
5.5±0.1
_
0
12.4
+2
_
0
60
+2
IND0421-C
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
10/08
Data and signal line chokes
SIMDAD 1812, common-mode chokes
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
Inductance tolerance
Inductance decrease
ΔL/L
0
Stray inductance L
stray,typ
DC resistance R
max
Solderability (lead-free)
42 V AC (50/60 Hz) / 80 V DC
250 V DC, 2 s (line/line)
85 °C / 110 °C
Referred to 50 Hz and rated temperature
B82789C0/S0
Measured with Agilent 4284A at 100 kHz, 0.1 mA, 20 °C
Inductance is specified per winding.
–30/+50% at 20 °C
Common mode < 10% at DC magnetic bias with I
R
, 20 °C
Measured with Agilent 4284A at 100 kHz, 5 mA, 20 °C,
typical values
Measured at 20 °C, specified per winding
Dip and look method Sn95.5Ag3.8Cu0.7: (245
±5)
°C, (3
±0.3)
s
Wetting of soldering area
≥
90%
(based on IEC 60068-2-58)
260 °C, 40 s as referenced in JEDEC J-STD 020C
55/125/56 (B82789*N)
55/150/56 (B82789*H)
(to IEC 60068-1)
Mounted: –55 °C … +125 °C (B82789C0/S0*N)
–55 °C … +150 °C (B82789C0/S0*H)
Packaged: –25 °C … +40 °C,
≤
75% RH
Approx. 0.16 g
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
10/08
