LEADED COMMON MODE CHOKE COILS FOR AC LINES
LEADED COMMON MODE CHOKE COILS FOR AC LINES

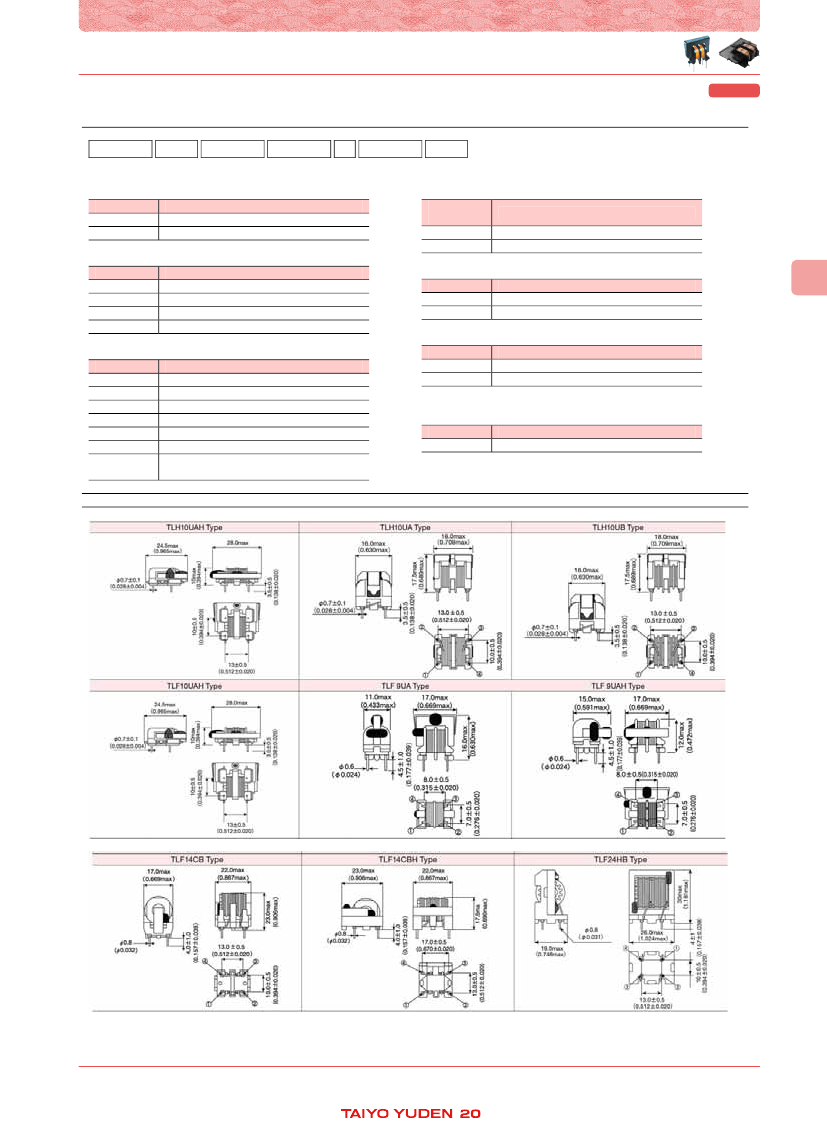

■PARTS
NUMBER
*Operating Temp. : -25½+105℃（Including self-generated heat）
WAVE
T
L F
①
1
②
4
C
B △
③
1
0 3
④
△
⑤
0
R 7
⑥
K
⑦
1
△＝Blank space
①Series name
Code
TLF
TLH
②Dimensions of core
Code
△9
10
14
24
③Shape
Code
UA△
UAH
UB△
CB△
CBH
HB△
HBH
Series name
Common mode choke
Hybrid choke
④Nominal Inductance
Code
（example）
102
103
⑤Inductance tolerance
Code
△
W
⑥Rated current
Code
R54
0R8
※R＝Decimal point
⑦Internal code
Code
K1
Nominal Inductance［μH½
1000
10000
Dimensions of core［½½½
9
10
14
24
Inductance tolerance
Nominal Values or higher
＋100/－10％
NOISE SUPPRESSION COMPONENTS COMMON MODE CHOKE COILS
Shape
U core, vertical type
U core, horizontal type
U core, vertically split wound
Square type core vertically split wound
Square type core horizontally split wound
Double-square type core vertically split wound
Double-square type core horizontally split
wound
Rated current［A½
0.54
0.8
Internal code
Adhesive fixation
■STANDARD

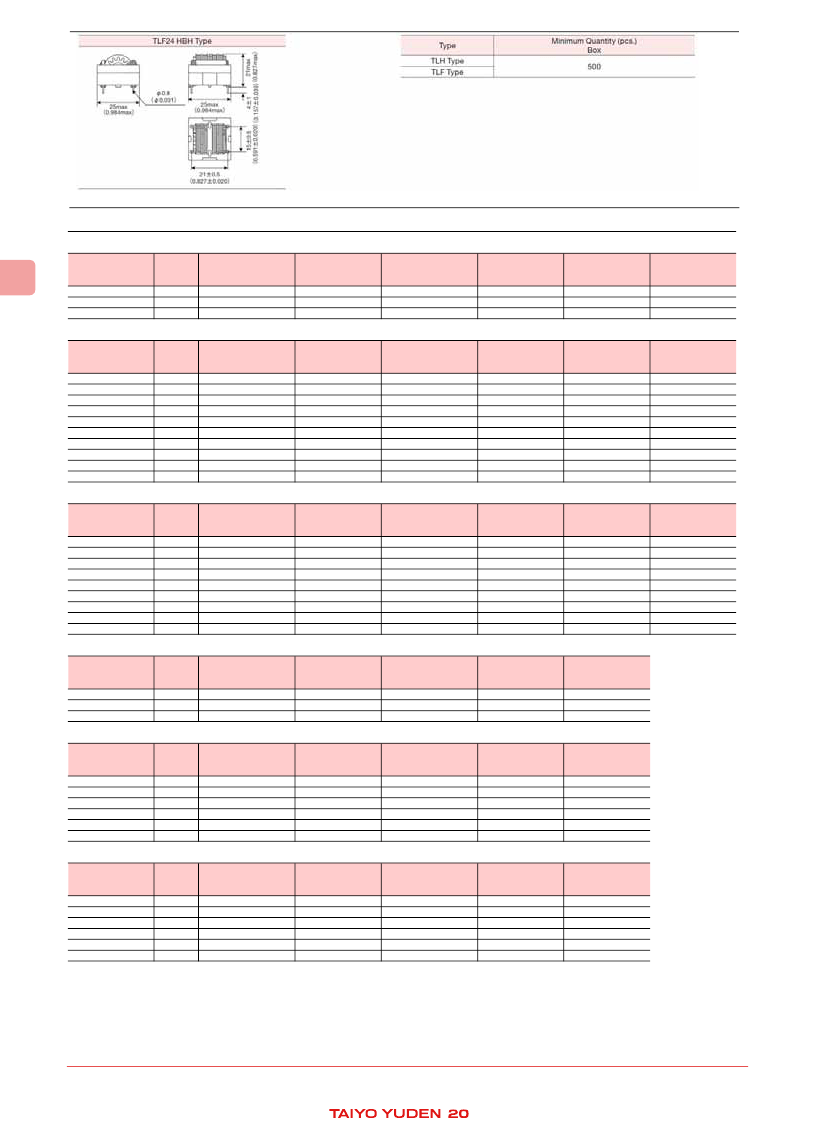

EXTERNAL DIMENSIONS / MINIMUM QUANTITY
／
Unit：mm（inch）
Unit：mm（inch）
coil_leaded_acline_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
