PE7744DW-325.0M-T1K

Description
PECL Output Clock Oscillator, 40MHz Min, 325MHz Max, 325MHz Nom,
CategoryPassive components    oscillator
File Size1MB,8 Pages
ManufacturerPletronics
Environmental Compliance
Download Datasheet Parametric View All

PE7744DW-325.0M-T1K Overview

PECL Output Clock Oscillator, 40MHz Min, 325MHz Max, 325MHz Nom,

PE7744DW-325.0M-T1K Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7190712656
Reach Compliance Codecompliant
JESD-609 codee4
Installation featuresSURFACE MOUNT
Number of terminals6
Maximum operating frequency325 MHz
Minimum operating frequency40 MHz
Nominal operating frequency325 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Oscillator typePECL
Package body materialCERAMIC
Encapsulate equivalent codeDILCC6,.2
power supply2.5 V
Certification statusNot Qualified
Maximum slew rate90 mA
Nominal supply voltage2.5 V
surface mountYES
Terminal surfaceNickel/Gold (Ni/Au)

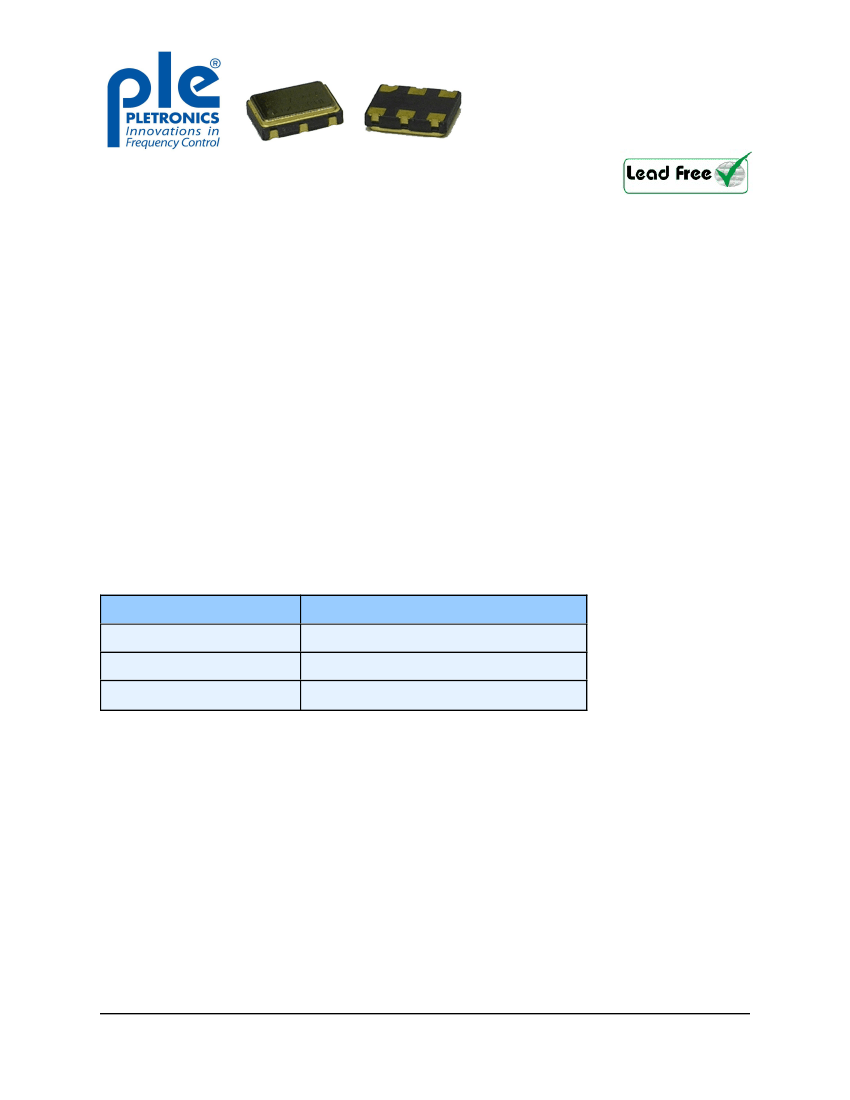

PE77D Series 2.5 V
PECL Clock Oscillators
November 2018
• Pletronics’ PE77D Series is a quartz crystal
controlled precision square wave generator with a
PECL output.
• The package is designed for high density surface
m ount designs.
• Low cost m ass produced oscillator.
• Tape and Reel or cut tape packaging is available.
• 5 x 7 m m LCC Ceram ic Package
• Enable/Disable Function on pad 1
• Disable function includes low standby power
m ode
• 3
rd
Overtone Crystals used
• Im proved circuit to m inim ize oscillator issues
such as m ulti-m ode output signal.
• Low Jitter
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2011/65/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadm ium , Hexavalent Chrom ium , Lead, Mercury, PBB’s, PBDE’s
W eight of the Device: 0.16 gram s
Moisture Sensitivity Level: 1 As defined in J-STD-020D.1
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Input Voltage
Output Voltage
Unit
-0.5V to +7.0V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
Thermal Characteristics
The m axim um die or junction tem perature is 155
o
C
The therm al resistance junction to board is 30 to 50
o
C/W att depending on the solder pads, ground plane
and construction of the PCB.
P roduct inform ation is current as of publication date. T he product conform s
to specifications per the term s of the P letronics standard warranty. Production
processsing does not necessarily include testing of all param eters.
Copyright © 2018, Pletronics Inc.
