5962-9084703MYA datasheet, PDF

Datasheet> All Categories > storage> storage> 5962-9084703MYA

5962-9084703MYA: DescriptionFast Page DRAM, 1MX4, 80ns, CMOS, CQCC20, CERAMIC, LCC-20; Categorystorage storage; File Size445KB，13 Pages; ManufacturerMicross; Websitehttps://www.micross.com

Download Datasheet Parametric Compare View All

5962-9084703MYA Overview

Fast Page DRAM, 1MX4, 80ns, CMOS, CQCC20, CERAMIC, LCC-20

5962-9084703MYA Parametric

Parameter Name	Attribute value
Maker	Micross
Parts packaging code	QLCC
package instruction	QCCN, SOLCC20/26,.4
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-CQCC-N20
JESD-609 code	e0
length	17.775 mm
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	20
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1MX4
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	SOLCC20/26,.4
Package shape	RECTANGULAR
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
self refresh	NO
Maximum standby current	0.004 A
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	10.16 mm
Base Number Matches	1

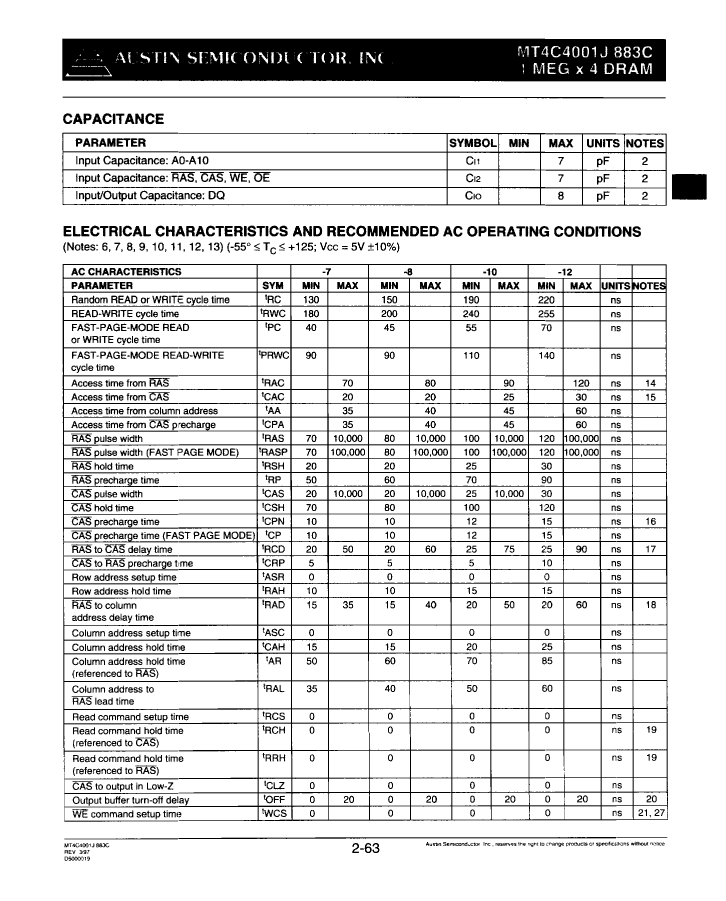

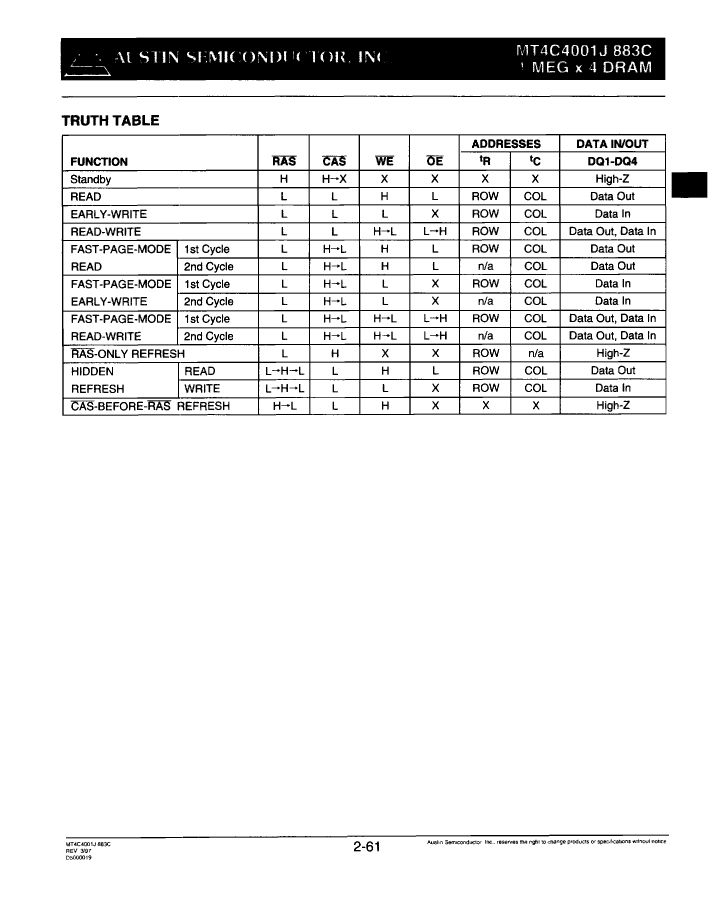

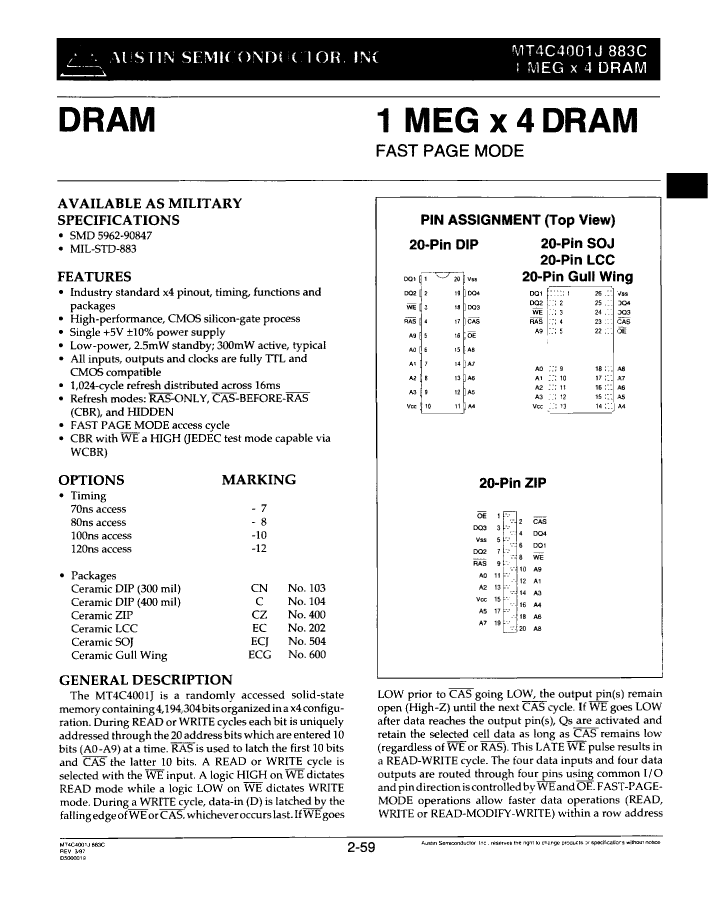

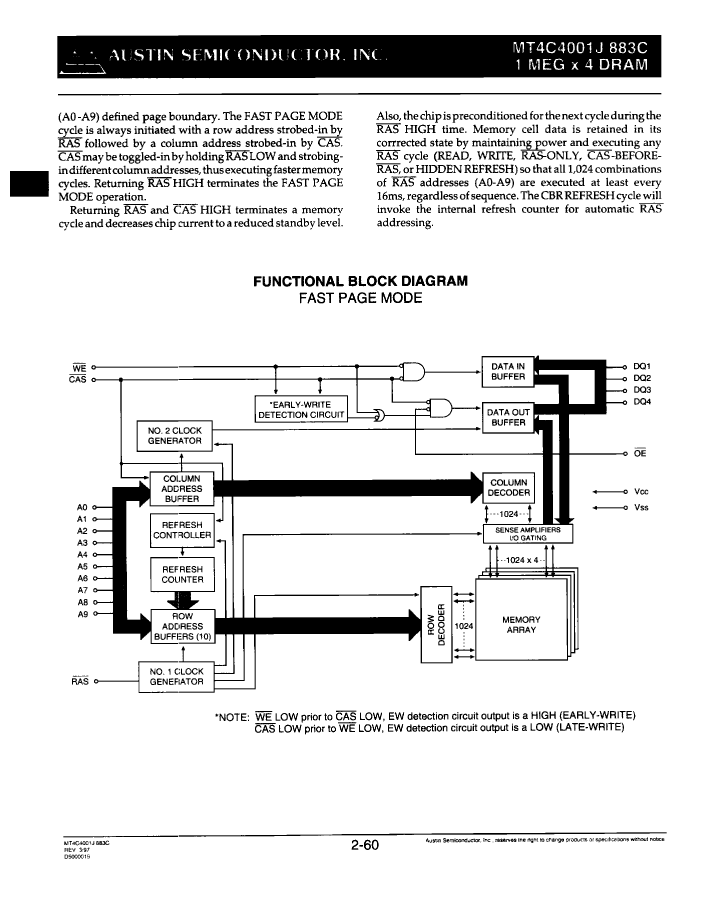

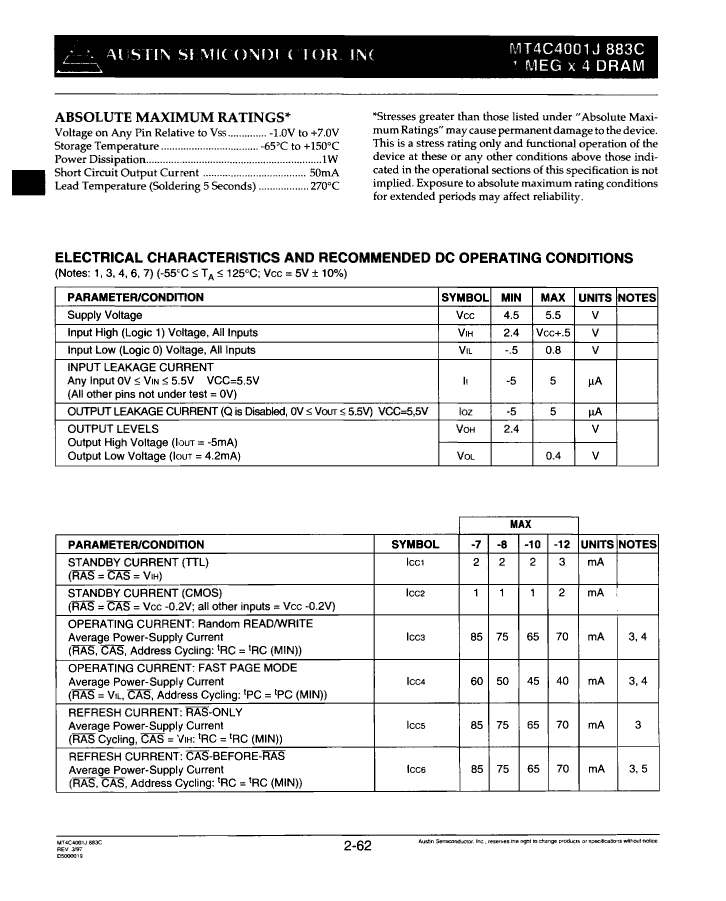

Preview

Download Datasheet

View All

5962-9084703MYA Related Products

	5962-9084703MYA	5962-9084701MYA	5962-9084701MYX	5962-9084703MYX	5962-9084702MYX	MT4C4001JEC-7/883C	MT4C4001JEC-8/883C	MT4C4001JEC-12/883C	MT4C4001JEC-10/883C
Description	Fast Page DRAM, 1MX4, 80ns, CMOS, CQCC20, CERAMIC, LCC-20	Fast Page DRAM, 1MX4, 120ns, CMOS, CQCC20, CERAMIC, LCC-20	Fast Page DRAM, 1MX4, 120ns, CMOS, CDSO20, CERAMIC, LCC-20	Fast Page DRAM, 1MX4, 80ns, CMOS, CDSO20, CERAMIC, LCC-20	Fast Page DRAM, 1MX4, 100ns, CMOS, CDSO20, CERAMIC, LCC-20	Fast Page DRAM, 1MX4, 70ns, CMOS, CDSO20, CERAMIC, LCC-20	Fast Page DRAM, 1MX4, 80ns, CMOS, CDSO20, CERAMIC, LCC-20	Fast Page DRAM, 1MX4, 120ns, CMOS, CDSO20, CERAMIC, LCC-20	Fast Page DRAM, 1MX4, 100ns, CMOS, CDSO20, CERAMIC, LCC-20
Parts packaging code	QLCC	QLCC	DLCC	DLCC	DLCC	DLCC	DLCC	DLCC	DLCC
package instruction	QCCN, SOLCC20/26,.4	QCCN, SOLCC20/26,.4	SON,	SON,	SON,	SON,	SON,	SON,	SON,
Contacts	20	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	120 ns	120 ns	80 ns	100 ns	70 ns	80 ns	120 ns	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-CQCC-N20	R-CQCC-N20	R-CDSO-N20	R-CDSO-N20	R-CDSO-N20	R-CDSO-N20	R-CDSO-N20	R-CDSO-N20	R-CDSO-N20
JESD-609 code	e0	e0	e4	e4	e4	e0	e4	e4	e4
length	17.775 mm	17.775 mm	17.145 mm	17.145 mm	17.145 mm	17.145 mm	17.145 mm	17.145 mm	17.145 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20	20
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	SON	SON	SON	SON	SON	SON	SON
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	2.54 mm	1.93 mm	1.93 mm	1.93 mm	1.93 mm	1.93 mm	1.93 mm	1.93 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	PALLADIUM GOLD	PALLADIUM GOLD	PALLADIUM GOLD	TIN LEAD	PALLADIUM GOLD	PALLADIUM GOLD	PALLADIUM GOLD
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm
Maker	Micross	Micross	-	Micross	Micross	Micross	Micross	Micross	Micross
Output characteristics	3-STATE	3-STATE	-	-	-	-	3-STATE	3-STATE	3-STATE
refresh cycle	1024	1024	-	-	-	-	1024	1024	1024
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	-	-	-	-
