Look-Ahead Carry Generator, 10K Series, 4-Bit, ECL, PDIP16, PLASTIC, DIP-16
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | DIP |
| package instruction | DIP, FL16,.3 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Other features | WITH HIGHER ORDER LOOKAHEAD |
| series | 10K |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e0 |
| length | 19.05 mm |

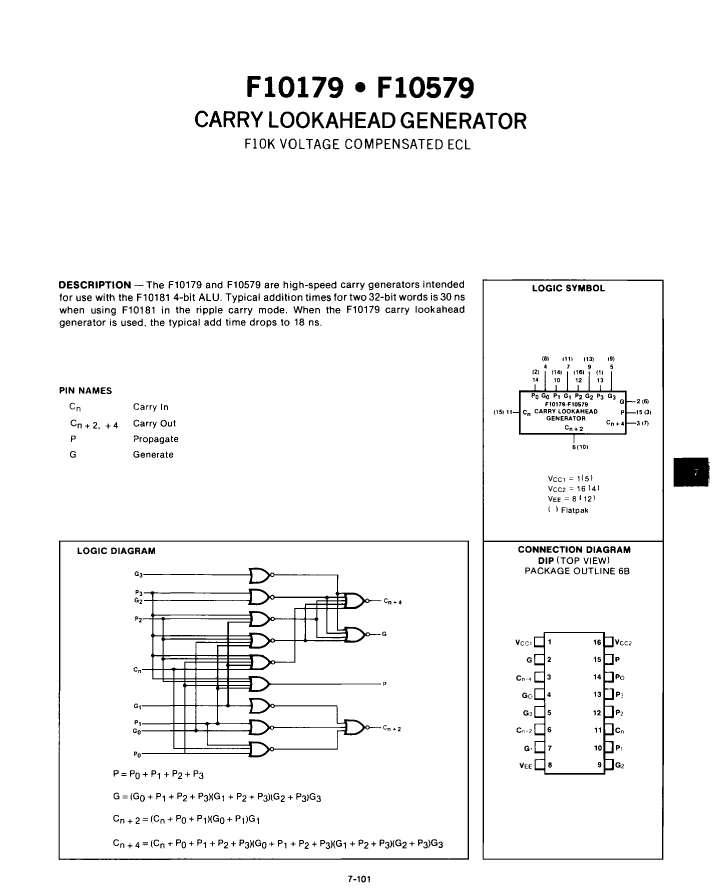

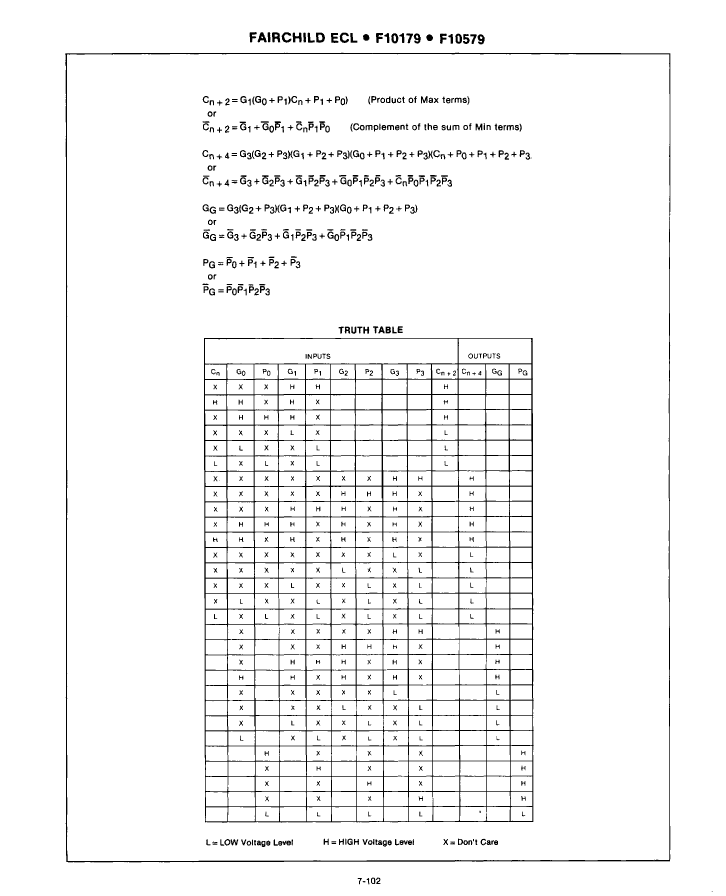

| Logic integrated circuit type | LOOK-AHEAD CARRY GENERATOR |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| Output characteristics | OPEN-EMITTER |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | -5.2 V |
| Maximum supply current (ICC) | 72 mA |

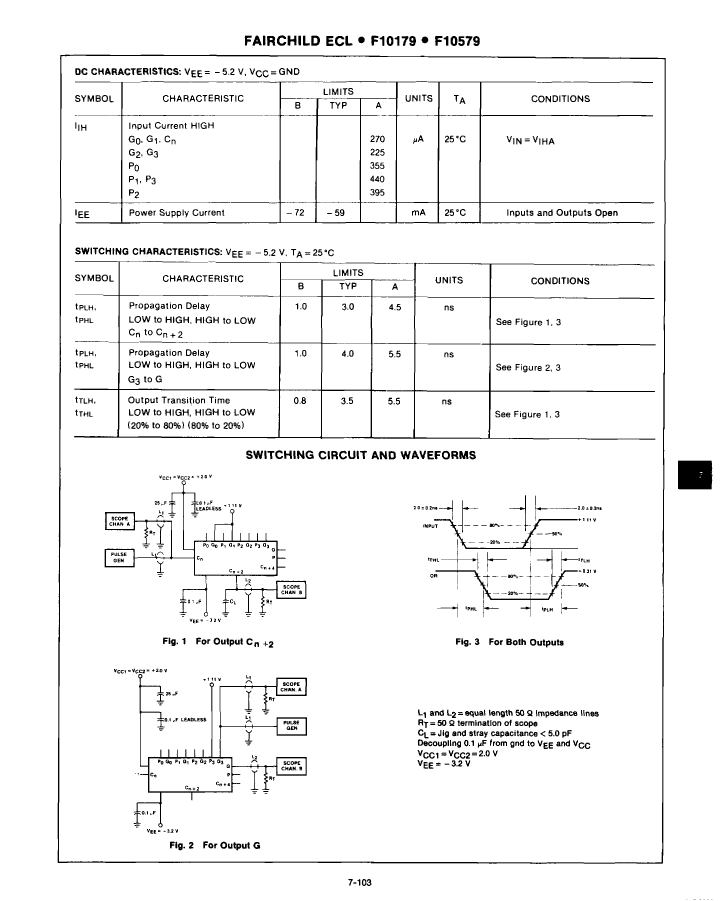

| propagation delay (tpd) | 4.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| surface mount | NO |
| technology | ECL |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| F10179PC | S0603CA2641DHW-TR | F10579FM | F10179DC | F10579DM | |
|---|---|---|---|---|---|
| Description | Look-Ahead Carry Generator, 10K Series, 4-Bit, ECL, PDIP16, PLASTIC, DIP-16 | Fixed Resistor, Thin Film, 0.1W, 2640ohm, 40V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP | Look-Ahead Carry Generator, 10K Series, 4-Bit, ECL, CDFP16, CERPACK-16 | Look-Ahead Carry Generator, 10K Series, 4-Bit, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16 | Look-Ahead Carry Generator, 10K Series, 4-Bit, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16 |
| Is it Rohs certified? | incompatible | conform to | incompatible | incompatible | incompatible |
| package instruction | DIP, FL16,.3 | SMT, 0603 | DFP, FL16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | unknown | compliant | unknown | unknown | unknown |
| Other features | WITH HIGHER ORDER LOOKAHEAD | PRECISION, REFERENCE STANDARD: MIL-PRF-55342 | WITH HIGHER ORDER LOOKAHEAD | WITH HIGHER ORDER LOOKAHEAD | WITH HIGHER ORDER LOOKAHEAD |
| series | 10K | 0603(STD)-THINFILM | 10K | 10K | 10K |
| JESD-609 code | e0 | e4 | e0 | e0 | e0 |
| Number of terminals | 16 | 2 | 16 | 16 | 16 |
| Maximum operating temperature | 75 °C | 150 °C | 125 °C | 75 °C | 125 °C |
| Minimum operating temperature | - | -65 °C | -55 °C | - | -55 °C |
| Package shape | RECTANGULAR | RECTANGULAR PACKAGE | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMT | FLATPACK | IN-LINE | IN-LINE |
| surface mount | NO | YES | YES | NO | NO |
| technology | ECL | THIN FILM | ECL | ECL | ECL |
| Terminal surface | Tin/Lead (Sn/Pb) | Gold (Au) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Maker | Fairchild | - | Fairchild | Fairchild | Fairchild |
| Parts packaging code | DIP | - | DFP | DIP | DIP |
| Contacts | 16 | - | 16 | 16 | 16 |
| JESD-30 code | R-PDIP-T16 | - | R-CDFP-F16 | R-GDIP-T16 | R-GDIP-T16 |
| length | 19.05 mm | - | 9.906 mm | 19.558 mm | 19.558 mm |
| Logic integrated circuit type | LOOK-AHEAD CARRY GENERATOR | - | LOOK-AHEAD CARRY GENERATOR | LOOK-AHEAD CARRY GENERATOR | LOOK-AHEAD CARRY GENERATOR |
| Number of digits | 4 | - | 4 | 4 | 4 |
| Number of functions | 1 | - | 1 | 1 | 1 |
| Output characteristics | OPEN-EMITTER | - | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER |
| Package body material | PLASTIC/EPOXY | - | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | - | DFP | DIP | DIP |
| Encapsulate equivalent code | FL16,.3 | - | FL16,.3 | DIP16,.3 | DIP16,.3 |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | -5.2 V | - | -5.2 V | -5.2 V | -5.2 V |
| Maximum supply current (ICC) | 72 mA | - | 72 mA | 72 mA | 72 mA |
| propagation delay (tpd) | 4.5 ns | - | 4.5 ns | 4.5 ns | 4.5 ns |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | - | 1.905 mm | 5.08 mm | 5.08 mm |
| Temperature level | COMMERCIAL EXTENDED | - | MILITARY | COMMERCIAL EXTENDED | MILITARY |
| Terminal form | THROUGH-HOLE | - | FLAT | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | - | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | - | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.62 mm | - | 6.731 mm | 7.62 mm | 7.62 mm |
