APH-2-42-SDB-TN datasheet, PDF

Datasheet> All Categories > The connector> The connector> APH-2-42-SDB-TN

APH-2-42-SDB-TN: DescriptionBoard Connector, 42 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

APH-2-42-SDB-TN Overview

Board Connector, 42 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

APH-2-42-SDB-TN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166965899
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.1 inch
body length	2.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	42

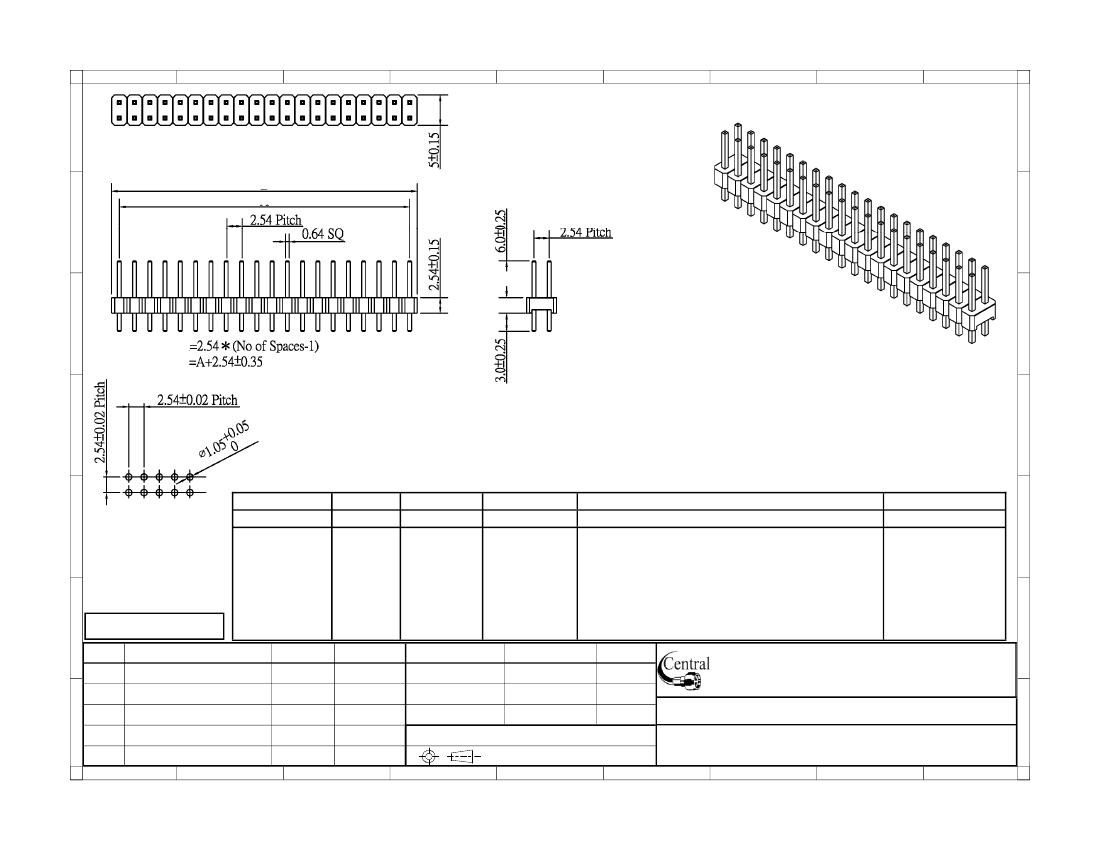

APH-2-42-SDB-TN Preview

SPECIFICATIONS

Contact material:

Contact plating:

Insulator material:

Processing temperature:

Operating Temp:

Series

Rows

APH-X

Pin header,

2=2 rows

2.54mm pitch

Blank=.100”

(2.54mm)

C=.059” (1.5mm)

D=.067” (1.7mm)

Date

Approved

Brass

Gold flash over nickel

Nylon 6T

260°C for 10 sec.

-65C to +125C

Plating

TN=Tin

SGXX=Selective Gold

GDXX=Gold

XX=Flash if blank,

5,10,15,30u”

PC Board Layout

Positions

Type

Contact Length

SDA

2-80 positions RA=Right Angle SDA=Standard contact A (A length=.240”, B length=.120”)

Blank=Straight SDB=Standard contact B (A length=.318”, B length=.120”)

CSL=Customer specified length

(A=mating length/C=tail offset length/E=overall length

[A+C+Insulator+B])

RoHS compliant

Rev.

Description

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

09/26/07

09/26/07 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

APH-2-XX-SDA-GD

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Pin header, dual row, straight, 2.54mm pitch

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
