PH4MR-219GABR3-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PH4MR-219GABR3-U

PH4MR-219GABR3-U: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size271KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PH4MR-219GABR3-U Overview

Board Connector, 38 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

PH4MR-219GABR3-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164577330
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.302 inch
body length	0.95 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (5)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PH4
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6068 mm
Plating thickness	5u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	38

Preview

Download Datasheet

View All

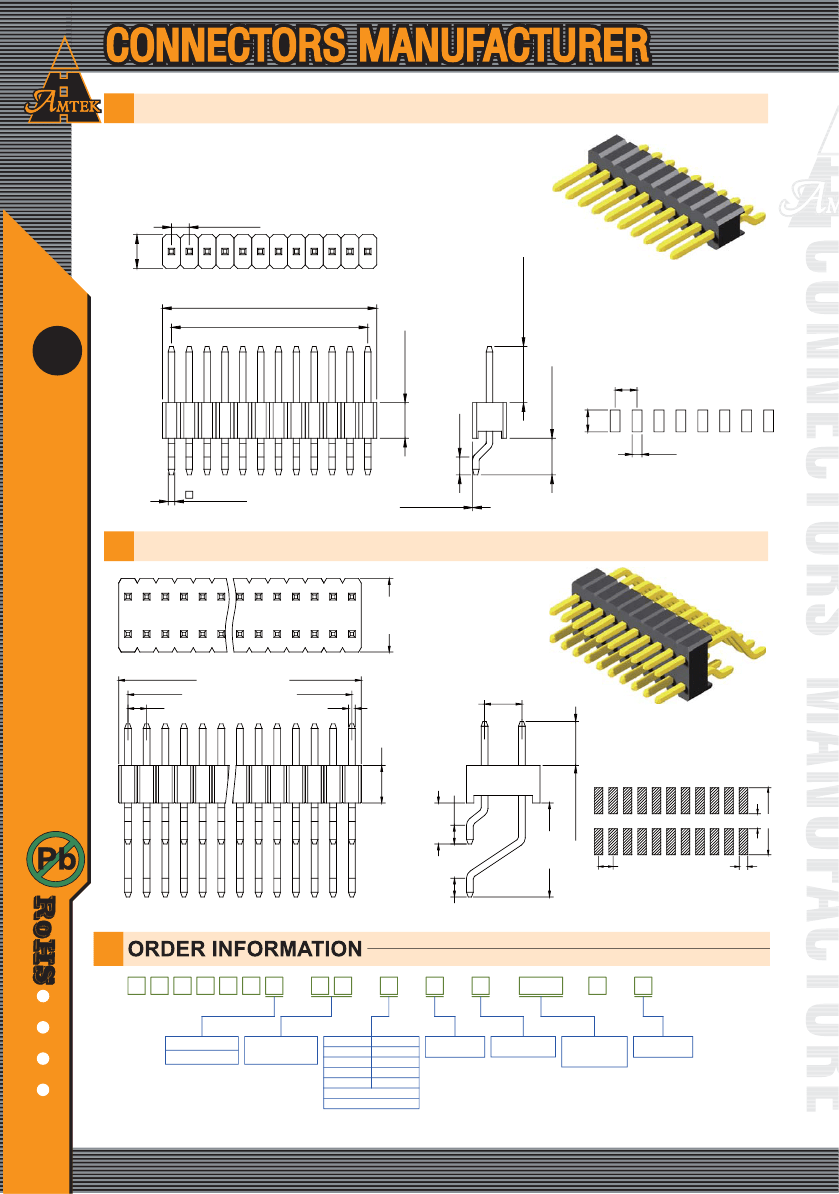

Pin Header 1.27mm SQ Pin=0.46mm 1 Row H=2.54mm SMT R/A Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

in Header 1.27mm

Part No.:PH4MR-1XX-U

Pin Header 1.27mm SQ Pin=0.46mm 2 Row H=2.54mm SMT R/A Type

Part No.:PH4MR-2XX-U

P H 4 M R - X

X X

1:Single Row

2:Dual Row

No. of contacts per row

(02~40)

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

B:Black insulator

T:Tube

R:Taping & Reel

Fill in Dimension For

Special Design

U:RoHS + Nylon 6T

T:Tin Plated

TE:Tin 200u"

Standard Recommended

2-21

www.amtek-co.com.tw
