A3002-120-010-21-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A3002-120-010-21-Z

A3002-120-010-21-Z: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size243KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

A3002-120-010-21-Z Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle

A3002-120-010-21-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.65 inch
subject depth	0.646 inch
body length	0.551 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	A3002
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

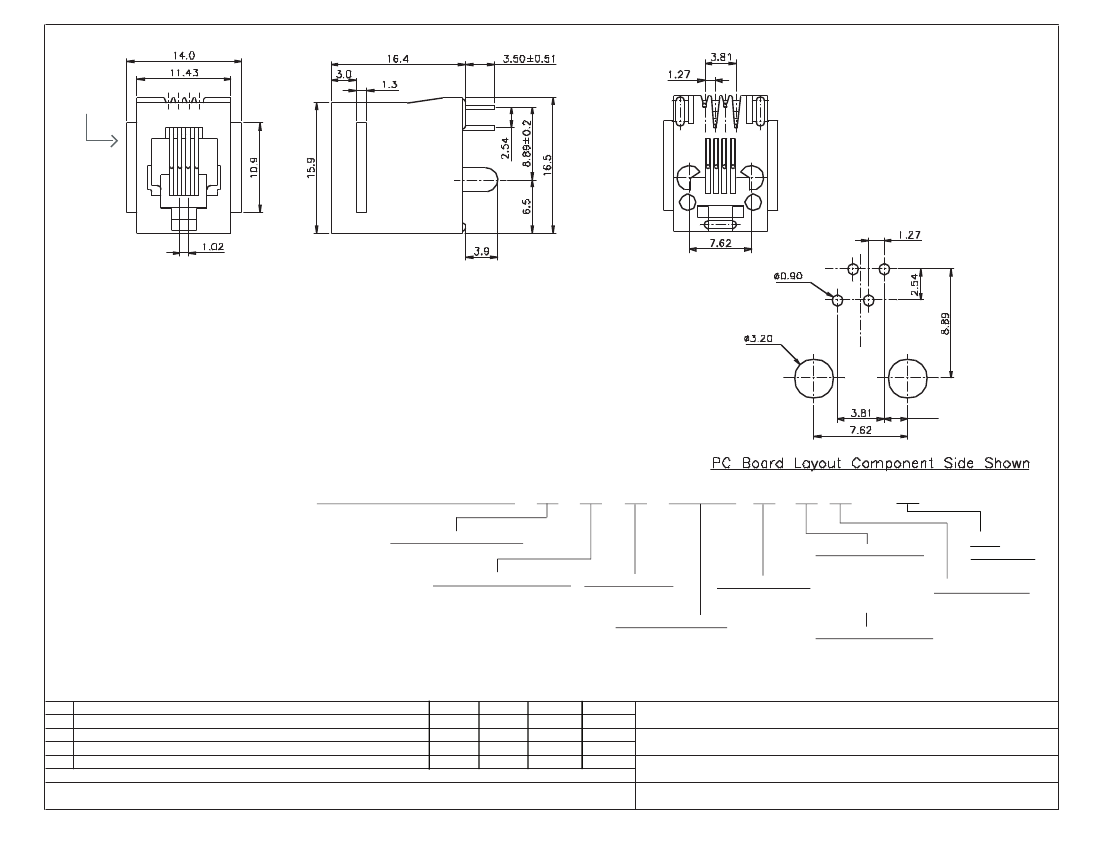

FLANGE

OPTION

1.90

ENVIRONMENTAL:

STORAGE TEMP: - 40

C TO +85

OPERATING TEMP: 0

C TO +70

HOW TO ORDER:

ELECTRICAL:

VOLTAGE RATING: 125 VAC RMS

CURRENT RATING: 1.5 AMP

CONTACT RESISTANCE: 30 MINIOHMS MAX.

INSULATION RESISTANCE: 500 MEGOHMS MIN @ 500 VDC

DIELECTRIC STRENGTH: 1000 VAC RMS 60Hz, 1 MIN

NUMBER OF POSITIONS

1 - 4 Pos

NUMBER OF CONTACTS:

2 - 4 CONTACTS

MATERIAL:

CONTACTS: Phosphor Bronze

PLASTIC HOUSING: Thermoplastic (UL94V-0)

PLATING: Gold Plating Over Nickel in Contact.

Tin Plating Over Nickel in Solder Area

Rev

Issued

A Revision

B Revised for RoHS Compliance

SCALE: N/A

TOL. DEC.

.X +/- 0.2

.XX +/- 0.15

.XXX +/- 0.075

ANGLE +/- 0°.5'

RoHS

PLATING OVERALL:

COMPLIANT

0 - FULL Au FLASH

SHIELD OPTION:

KEYING OPTION:

1 - 10u" Au

FLANGE OPTION:

0 - NON SHIELDED

0 - NON KEYED 2 - 30u" Au

1 - WITH FLANGE

3 - 50u" Au

NUMBER OF PORTS:

SELECTIVE PLATING:

01 - SINGLE PORT

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn

A.M.

D.H.

WHS

Checked Approved

Date

10/10/03

S.M.

05/19/04

10/6/06

S.M.

SMP TECHNOLOGY, INC.

RJ11 (4P4C) Jack, Top Entry, Non-Shielded

UNIT: mm

P/N: A3002-120-01X-X1-Z

Pg: 1

A3002-120-010-21-Z Related Products

	A3002-120-010-21-Z	A3002-120-010-61-Z	A3002-120-010-31-Z	A3002-120-010-01-Z	A3002-120-010-11-Z
Description	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle
Maker	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	PEG	PEG	PEG	PEG	PEG
body width	0.65 inch	0.65 inch	0.65 inch	0.65 inch	0.65 inch
subject depth	0.646 inch	0.646 inch	0.646 inch	0.646 inch	0.646 inch
body length	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	A3002	A3002	A3002	A3002	A3002
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	30u inch	FLASH inch	50u inch	FLASH inch	10u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4	4
Base Number Matches	1	1	1	-	-
