TM
SUSSEX
.25 TO 16 AMP STANDARD
RECOVERY RECTIFIER FLIP-DIE
12251 TOWNE LAKE DRIVE, FORT MYERS, FLORIDA, 33913 TEL: (941) 768-6800 FAX: (941) 768-6868
SEMICONDUCTOR, INC.
GLASS PASSIVATED STANDARD RECOVERY FLIP-DIE
REVERSE VOLTAGES - 50 TO 1000 VOLTS
FORWARD CURRENT - .25 TO 16 AMPS
.25 TO 16 AMP STANDARD
RECOVERY FLIP-DIE
SPECIFICATIONS
♦
Standard Recovery Greater Than 500 nanocec.
♦
Exclusive Sussex Semiconductor Flip-Die Technology
♦
Each Die Fully Glass Passivated; Needs No
Encapsulation
♦
Each Die Individually Tested
♦
Unipolar
♦
Operating Temperature: -65 to 150ºC
♦
Storage Temperature: -65 to 175ºC
♦
Standard Metallization Ni-Ni-Au
♦
Polarity:
A-Anode
B-Cathode
CUSTOM ORDERING SPECIFIER
DIE SPECIFICATIONS
SFD
UNIPOLAR
RECTIFIER
FLIP DIE
-
PEAK INVERSE
VOLTAGE (PIV)
‘A’-SIDE METALLIZATION
CODE
MATERIAL
A
ALUMINUM
E
GOLD
BLANK NI-NI-AU
FOR ELECTRICAL
SPECIFICATIONS
REFER TO STANDARD
RECOVERY
UNIPOLAR RECTIFIER
DIE ON PAGE 7-21
CONTACT FACTORY FOR ELECTRICAL
SPECIFICATIONS ON CUSTOM PARTS

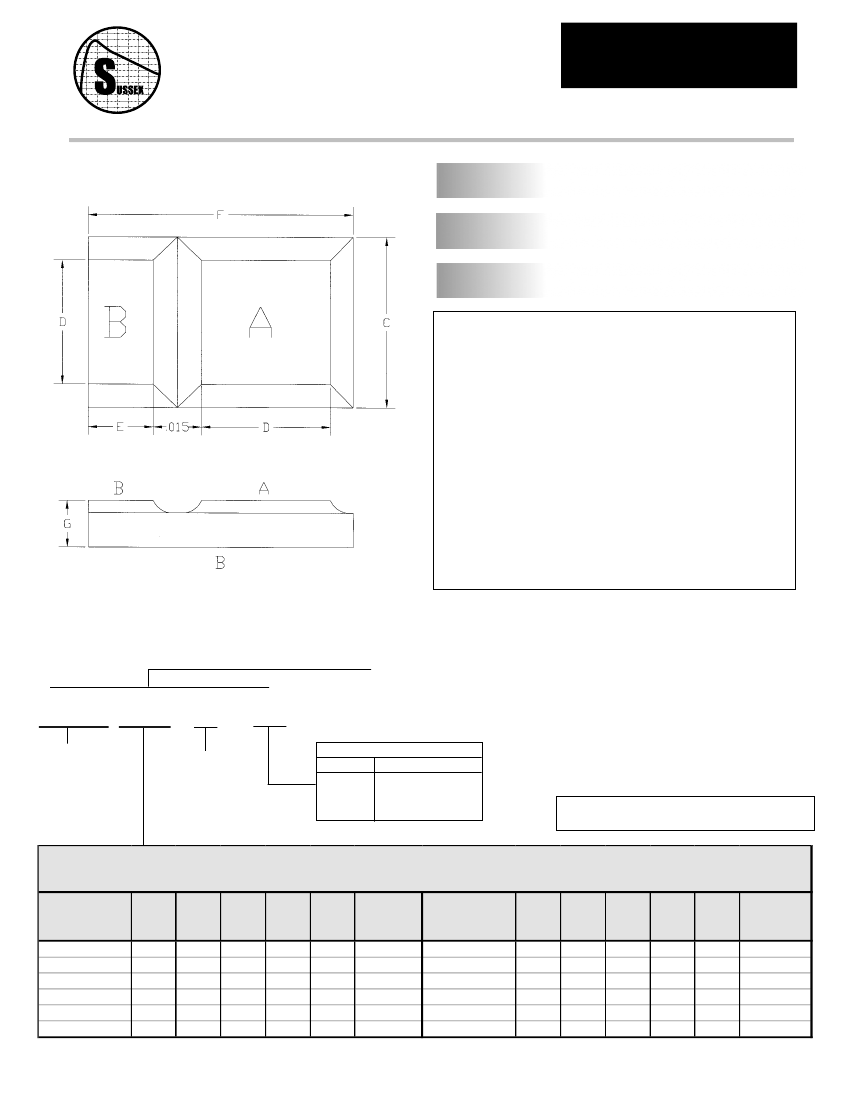

TABLE 6B - FLIP-DIE DIMENSION SPECIFICATIONS
♦
AL L T OLE R ANCE S AR E ± .005"
♦
AL L DIME NS IONS AR E IN INCH E S
SIZE CODE
0.25
0.75
1
1.5
2
3
C
0.018
0.030
0.040
0.055
0.070
0.085
D
0.010
0.020
0.028
0.040
0.055
0.070
E
0.005
0.010
0.014
0.020
0.027
0.033
F
0.027
0.045
0.060
0.082
0.105
0.120
G
0.011
0.011
0.011
0.011
0.011
0.011
FORWARD
CURRENT
.25 AMPS
.75 AMPS
1 AMP
1.5 AMPS
2 AMPS
3 AMPS
SIZE CODE
5
8
16
C
0.095
0.100
0.115
D
0.080
0.085
0.100
E
0.040
0.042
0.051
F
0.143
0.150
0.173
G
FORWARD
CURRENT
0.011 5 AMPS
0.011 8 AMPS
0.011 16 AMPS
7-21
BIG NEKKI BILLYFISH!
BOOYA!
TM
SUSSEX
MAX.
AVERAGE
.25 TO 100 AMP STANDARD
RECOVERY RECTIFIER DIE
CONTINUED
12251 TOWNE LAKE DRIVE, FORT MYERS, FLORIDA, 33913 TEL: (941) 768-6800 FAX: (941) 768-6868
SEMICONDUCTOR, INC.
TABLE 2B - STANDARD RECOVERY RECTIFIER DIE ELECTRICAL SPECIFICATIONS
(NOTE 1)
M AX . INS TANTANEO US
FO RW ARD V O LTAG E
PEAK
FORWARD
FORWARD
VOLTAGE TEST
VOLTAGE @ I
F
CURRENT (I
F
)
VOLTS
AMPS
0.75
1.0
0.75
1.0
0.75
1.0
0.75
1.1
0.75
1.1
1
1.2
1
1.2
1
1.2
1
1.2
1
1.2
1
1.2
1
1.2
1.5
1.2
1.5
1.2
1.5
1.2
1.5
1.2
1.5
1.2
3.0
1.2
3.0
1.2
3.0
1.2
3.0
1.2
3.0
1.2
16
1.2
16
1.2
16
1.2
16
1.3
16
1.3
25
1.0
25
1.2
25
1.4
30
1.0
30
1.2
30
1.4
35
1.0
35
1.2
35
1.4
40
1.0
40
1.2
40
1.4
70
1.0
70
1.2
70
1.4
100
1.0
100
1.2
100
1.4
M AX . LEAKAG E
CURRENT
(I
R
)@ V
D C
PEAK
FORWARD
SURGE
CURRENT
V
DC
VOLTS
200
400
600
800
1000
50
100
200
400
600
800
1000
20
400
600
800
1000
200
400
600
800
1000
200
400
600
800
1000
200
600
1000
200
600
1000
200
600
1000
200
600
1000
200
600
1000
200
600
1000
I
R
µ
A
0.2
0.2
0.2
5
5
5
5
5
5
5
5
5
5
5
5
5
10
10
10
10
10
10
10
10
10
10
10
20
20
20
20
20
20
20
20
20
20
20
25
20
20
25
20
20
25
(NOTE 3)
AMPS
30
30
30
30
30
40
40
40
40
40
40
40
50
50
50
50
50
200
200
200
200
200
300
300
300
300
300
500
500
500
600
600
600
700
700
700
1000
1000
1000
1200
1200
1200
1800
1800
1800
(PIV)
VOLTS
200
400
600
800
1000
50
100
200
400
600
800
1000
200
400
600
800
1000
200
400
600
800
1000
200
400
600
800
1000
200
600
1000
200
600
1000
200
600
1000
200
600
1000
200
600
1000
200
600
1000
V
RMS
VOLTS
PEAK
INVERSE
VOLTAGE
MAX. RMS
INPUT
VOLTAGE
JEDEC
PART
NUMBER
(NOTE 2)
1N645
1N647
1N649
N/A
N/A
1N4001
1N4002
1N4003
1N4004
1N4005
1N4006
1N4007
N/A
N/A
N/A
N/A
N/A
1N5402
1N5404
1N5406
1N5407
1N5408
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
SUSSEX
PART
NUMBER
FORWARD
RECTIFIED
OUTPUT
CURRENT
AMPS
0.75
0.75
0.75
0.75
0.75
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
1.5
3.0
3.0
3.0
3.0
3.0
16
16
16
16
16
25
25
25
30
30
30
35
35
35
40
40
40
70
70
70
100
100
100
S.75-200
S.75-400
S.75-600
S.75-800
S.75-1000
S1-50
S1-100
S1-200
S1-400
S1-600
S1-800
S1-1000
S1.5-200
S1.5-400
S1.5-600
S1.5-800
S1.5-1000
S3-200
S3-400
S3-600
S3-800
S3-1000
S16-200
S16-400
S16-600
S16-800
S16-1000
S25-200
S25-600
S25-1000
S30-200
S30-600
S30-1000
S35-200
S35-600
S35-1000
S40-200
S40-600
S40-1000
S70-200
S70-600
S70-1000
S100-200
S100-600
S100-1000
140
280
420
560
700
35
70
140
280
420
560
700
140
280
420
560
700
140
280
420
560
700
140
280
420
560
700
140
420
700
140
420
700
140
420
700
140
420
700
140
420
700
140
420
700
NOTE 1:
:
NOTE 2:
♦ELECTRICAL
CHARACTERISTICS MEASURED AT A JUNCTION TEMPERATURE
(T
J
) OF 25°C UNLESS OTHERWISE STATED
♦JEDEC
PART NUMBERS REFER TO PACKAGED DEVICES. THE DIES
INDICATED BY THESE NUMBERS, IF PROPERLY PACKAGED, WILL OPERATE
WITH THE SAME PERFORMANCE
NOTES
3:
NOTE
♦
PEAK FORWARD SURGE CURRENT MEASURED FROM A
SINGLE SINE-WAVE BEING SUPERIMPOSED ON A RATED LOAD
(JEDEC METHOD)
7-22
TM
SUSSEX
.25 TO 100 AMP STANDARD
RECOVERY RECTIFIER DIE
CONTINUED
12251 TOWNE LAKE DRIVE, FORT MYERS, FLORIDA, 33913 TEL: (941) 768-6800 FAX: (941) 768-6868
SEMICONDUCTOR, INC.
FIGURE 1B - TYPICAL FORWARD
CHARACTERISTICS
100
10
FIGURE 2B - TYPICAL REVERSE
CHARACTERISTICS @25°C
INSTANTANEOUS FORWARD
CURRENT (Amps)
S40-600
10
S16-600
INSTANTANEOUS REVERSE
CURRENT (µA)
S40
1
S5-600
1
T =25°C
J
S16
Pulse W idth = 300µS
1% Duty Cycle
0.1
0.7
0.75
0.8
0.85
0.9
0.95
1
1.05
1.1
0.1
20
40
60
80
100
120
140
INSTANTANEOUS FORWARD VOLTAGE
(Volts)
% OF RATED REVERSE VOLTAGE (Volts)
7-23
TM
SUSSEX
.25 TO 16 AMP FAST AND ULTRA
FAST RECOVERY RECTIFIER
FLIP-DIE
12251 TOWNE LAKE DRIVE, FORT MYERS, FLORIDA, 33913 TEL: (941) 768-6800 FAX: (941) 768-6868
SEMICONDUCTOR, INC.
GLASS PASSIVATED FAST AND ULTRA FAST
RECOVERY FLIP DIE
REVERSE VOLTAGES - 50 TO 1000 VOLTS
FORWARD CURRENT - .25 TO 16 AMPS
.25 TO 16 AMP FAST AND ULTRA
FAST RECOVERY FLIP-DIE
SPECIFICATIONS
♦
Exclusive Sussex Semiconductor Flip-Die Technology
♦
Each Die Fully Glass Passivated; Needs No
Encapsulation
♦
Each Die Individually Tested
♦
Unipolar
♦
Operating Temperature: -65 to 150ºC
♦
Storage Temperature: -65 to 175ºC
♦
Standard Metallization Ni-Ni-Au
♦
Polarity:
A-Anode
B-Cathode
CUSTOM ORDERING SPECIFIER
DIE SPECIFICATIONS
SFD
UNIPOLAR
RECTIFIER
FLIP DIE
-
PEAK INVERSE
VOLTAGE (PIV)
-
NOTE 1:
♦T
RR
REVERSE RECOVERY TEST
CONDITIONS: FORWARD CURRENT
(I
F
) = 1 AMP, REVERSE CURRENT (I
R
)
= 1 AMP, REVERSE CURRENT
RECOVERY (I
RR
) = .5 AMP
♦BREAKDOWN
VOLTAGES GREATER
THAN 400 VOLTS ON ULTRA-FAST
RECOVERY DIE WILL RESULT IN A
HIGHER FORWARD VOLTAGE
NOTES
TIME OF REVERSE
RECOVERY IN
nanoseconds (T
RR
)
(NOTE 1)
‘A’-SIDE METALLIZATION
CODE
MATERIAL
A
ALUMINUM
E
GOLD
BLANK NI-NI-AU
FOR ELECTRICAL
SPECIFICATIONS
REFER TO FAST AND
ULTRA FAST
UNIPOLAR
RECTIFIER DIE
ON PAGES 7-24
AND 7-25
CONTACT FACTORY FOR ELECTRICAL
SPECIFICATIONS ON CUSTOM PARTS

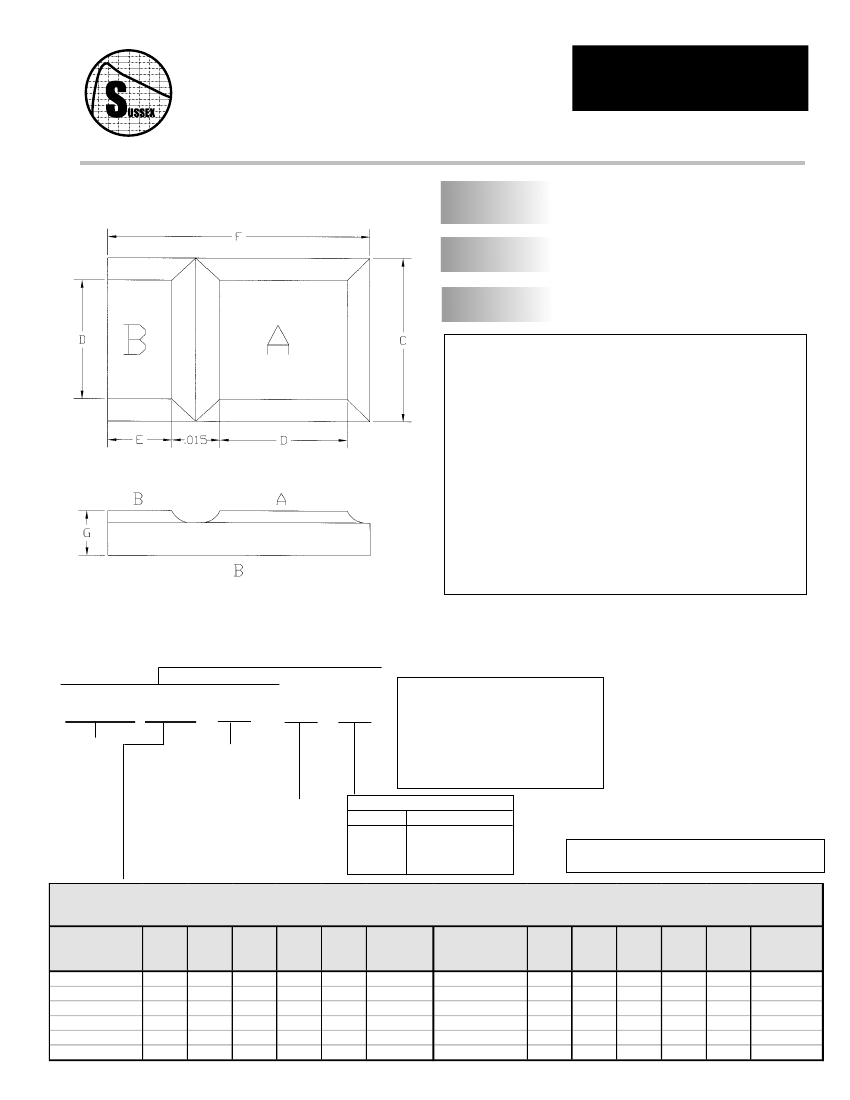

TABLE 7B - FLIP-DIE DIMENSION SPECIFICATIONS
♦
AL L T OLE R ANCE S AR E ± .005"
♦
AL L DIME NS IONS AR E IN INCHE S
SIZE CODE
0.25
0.75
1
1.5
2
3
C
0.018
0.030
0.040
0.055
0.070
0.085
D
0.010
0.020
0.028
0.040
0.055
0.070
E
0.005
0.010
0.014
0.020
0.027
0.033
F
0.027
0.045
0.060
0.082
0.105
0.120
G
0.011
0.011
0.011
0.011
0.011
0.011
FORWARD
CURRENT
.25 AMPS
.75 AMPS
1 AMP
1.5 AMPS
2 AMPS
3 AMPS
SIZE CODE
5
8
16
C
0.095
0.100
0.115
D
0.080
0.085
0.100
E
0.040
0.042
0.051
F
0.143
0.150
0.173
G
FORWARD
CURRENT
0.011 5 AMPS
0.011 8 AMPS
0.011 16 AMPS
7-25
TM
SUSSEX
MAX.
AVERAGE
FORWARD
SUSSEX PART
RECTIFIED
OUTPUT
NUMBER
CURRENT
T
J
=25 °C
AMPS
S1-200-150
S1-400-150
S1-600-150
S1-800-150
S1-1000-150
S1.5-200-150
S1.5-400-150
S1.5-600-200
S1.5-800-200
S1.5-1000-200
S3-50-150
S3-100-150
S3-200-150
S3-400-150
S3-500-150
S3-600-200
S3-800-200
S3-1000-300
S16-200-150
S16-400-150
S16-600-200
S16-800-200
S16-1000-300
1.0
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
1.5
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
16.0
16.0
16.0
16.0
16.0
.25 TO 100 AMP FAST
RECOVERY RECTIFIER DIE
ELECTRICAL SPECIFICATIONS
12251 TOWNE LAKE DRIVE, FORT MYERS, FLORIDA, 33913 TEL: (941) 768-6800 FAX: (941) 768-6868
SEMICONDUCTOR, INC.
TABLE 4B - FAST RECOVERY RECTIFIER DIE ELECTRICAL SPECIFICATIONS
(NOTE 1)
MAX. INSTANTANEOUS
FORWARD VOLTAGE
MAX. LEAKAGE
CURRENT
(I
R
) @ V
DC
PEAK
FORWARD
SURGE
FORWARD
VOLTAGE TEST PEAK FORWARD
V
DC
CURRENT (I
F
)
VOLTAGE @ I
F
VOLTS
VOLTS
AMPS
1.0
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
1.5
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
16.0
16.0
16.0
16.0
16.0
1.6
1.6
1.6
1.6
1.6
1.4
1.4
1.4
1.4
1.4
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
200
400
600
800
1000
200
400
600
800
1000
50
100
200
400
500
600
800
1000
200
400
600
800
1000
PEAK
INVERSE
VOLTAGE
MAX. RMS
INPUT
VOLTAGE
V
RMS
VOLTS
140
280
420
560
700
140
280
420
560
700
35
70
140
280
350
420
560
700
140
280
420
560
700
TIME OF
RECOVERY
(T
RR
)
(NOTE 4)
nanosec
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
200
200
300
150
150
200
200
300
JEDEC
PART
NUMBER
(NOTE 2)
CURRENT
I
R
µA
1
1
1
1
5
5
5
5
5
5
1
1
1
1
1
1
5
10
10
10
10
10
10
(NOTE 3)
AMPS
40
40
40
40
40
50
50
50
50
50
200
200
200
200
200
200
200
200
300
300
300
300
300
(PIV)
VOLTS
200
400
600
800
1000
200
400
600
800
1000
50
100
200
400
500
600
800
1000
200
400
600
800
1000
1N5615
1N5617
1N5619
1N5621
1N5623
N/A
N/A
N/A
N/A
N/A
1N5415
1N5416
1N5417
1N5418
1N5419
1N5420
N/A
N/A
N/A
N/A
N/A
N/A
N/A
NOTES
NOTE 1:
♦
ELECTRICAL CHARACTERISTICS MEASURED AT A JUNCTION
TEMPERATURE (T
J
) OF 25°C UNLESS OTHERWISE STATED
♦
JEDEC PART NUMBERS REFER TO PACKAGED DEVICES. THE
DIES INDICATED BY THESE NUMBERS, IF PROPERLY PACKAGED,
WILL OPERATE WITH THE SAME PERFORMANCE
NOTE 3:
♦
PEAK FORWARD SURGE CURRENT MEASURED FROM A
SINGLE SINE-WAVE BEING SUPERIMPOSED ON A RATED LOAD
(JEDEC METHOD)
♦
TRR - REVERSE RECOVERY TEST CONDITIONS:
FORWARD CURRENT (I
F
) = 1AMP, REVERSE CURRENT (I
R
) = 1 AMP, REVERSE
CURRENT RECOVERY (I
RR
) = .5 AMP
NOTE 2:
NOTE 4:
7-26
京公网安备 11010802033920号
EEWORLD
