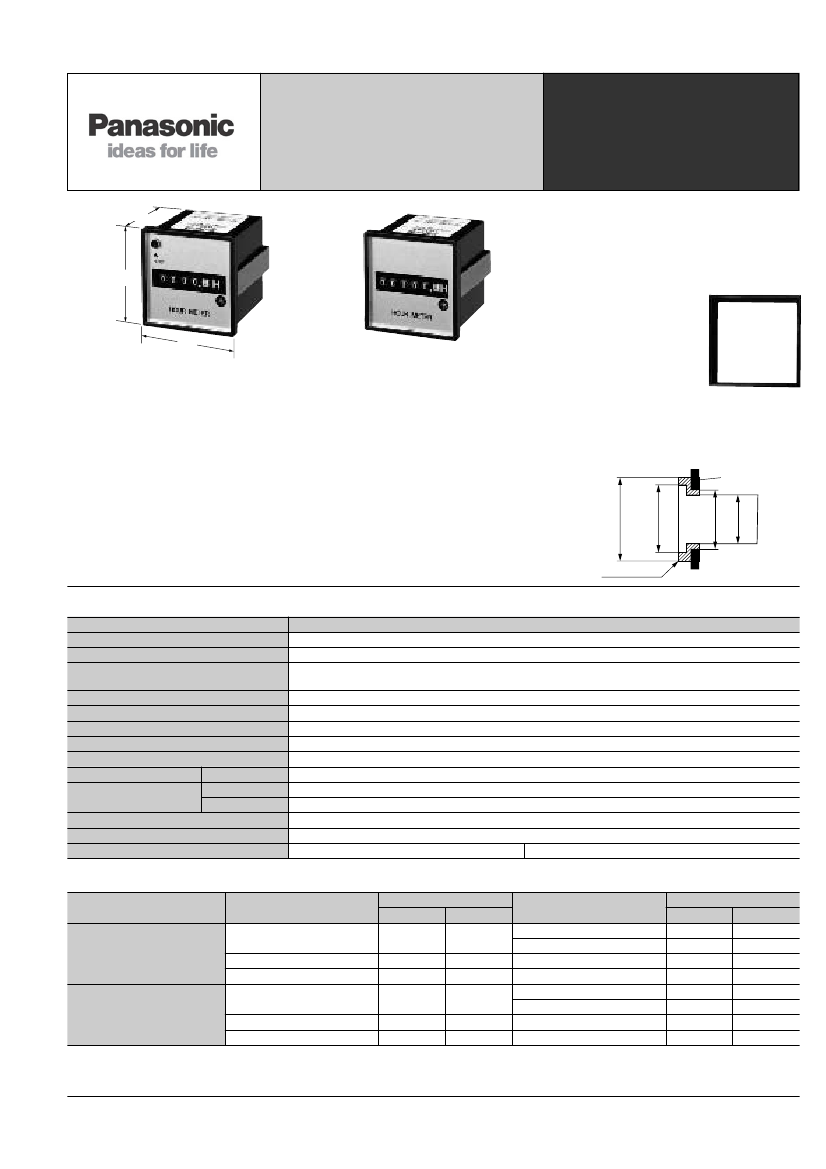

TH13·TH23
HOUR METER
TH13·TH23
Replacing the TH13/23
series unit with the
TH14/24 series unit
The TH13/TH23 series
units are interchange-
able with the TH14/24
series units. Use the
specified mounting
frame because of a dif-
ferent setup method. It
is advisable to introduce
the TH14/23 series
units for the first time.
DIN48 size and mount-
ing frame setup
52
2.047
52
2.047
54
2.126
mm
inch
TH13 (without reset function)
TH23 (with reset function)
FEATURES
1. High-performance compact sync motor
The accurately turning motor is employed
to provide for longer period of measure-
ment.
2. Compact and stylish
3. Easier wiring
The flat terminals (#187) are quick and
easy to connect.
4. Rotary indicator
The rotary indicator makes one turn every
2 minutes for quick monitoring.
5. CE marking
The hour meters satisfy EMC directives
(EN50081-2/EN50082-2) and low-volt-
age directives (EN61010-1).
Mounting frame
(sold separately):
TH1400020
TYPICAL
APPLICATIONS
Maintenance management of machine
tools, automated machines, control pan-
els, forming machines, medical equip-
ment, generators, compressors, water
treatment facilities, presses, motors, etc.
Panel
48
52
Mounting flame
SPECIFICATIONS
Rated operating voltage
Operating voltage range
Rated frequency
Counting range
Minimum time display
Rated power consumption
Initial insulation resistance (At 500 V DC)
Initial breakdown voltage
Max. temperature rise
Vibration resistance
Functional
Functional
Shock resistance
Destructive
Ambient temperature
Ambient humidity
Weight
100V, 200V, 110V, 115 to 120V, 220V, 240V
85 to 115% of rated operating voltage
50 Hz, 60 Hz (other model)
0 to 99999.9 hours (TH13 series)
0 to 9999.9 hours (TH23 series)
0.1 hours (6 min)
Approx. 1.5 W
Min. 100 MΩ Between live and dead metal parts
2,000 Vrms Between live and dead metal parts
55°C
131°F
10 to 55 Hz: 1 cycle/min double amplitude of 0.5 mm (10 min on 3 axes)
Min. 98 m/s
2
{10 G} (4 times on 3 axes)
Min. 980 m/s
2
{100 G} (5 times on 3 axes)
–10 to +50°C
+14 to 122°F
Max. 85% RH
135 g
4.76 oz
130 g
4.59 oz
PRODUCT TYPE
Part No.
50Hz
60Hz
24V AC
TH1325
TH1326
100V AC
TH1345
TH1346
115V AC (115 to 120V AC)
TH1375
TH1376
TH13 types (without reset)
200V AC
TH1355
TH1356
220V AC
TH1385
TH1386
110V AC
TH1365
TH1366
240V AC
TH1395
TH1396
24V AC
TH2325
TH2326
100V AC
TH2345
TH2346
115V AC (115 to 120V AC)
TH2375
TH2376
TH23 types (with reset)
200V AC
TH2355
TH2356
220V AC
TH2385
TH2386
110V AC
TH2365
TH2366
240V AC
TH2395
TH2396
Notes: 1. The AC 115-120V, AC 220V and AC 240V types are UL-recognized and CSA-certified. For those products, specify “U” at the end of the part No. when ordering.
2. If you want the CE marking on your products, specify “CE” at the end of the part No. when ordering.
3. When ordering a UL-listed/CSA-certified, CE-marked product, specify “TH2376UCE” for example (in the case of TH13 series AC 115-120V, 60Hz type).
Type
Rated operating voltage
50Hz
60Hz
Rated operating voltage
Part No.
47
45
115
02/2003

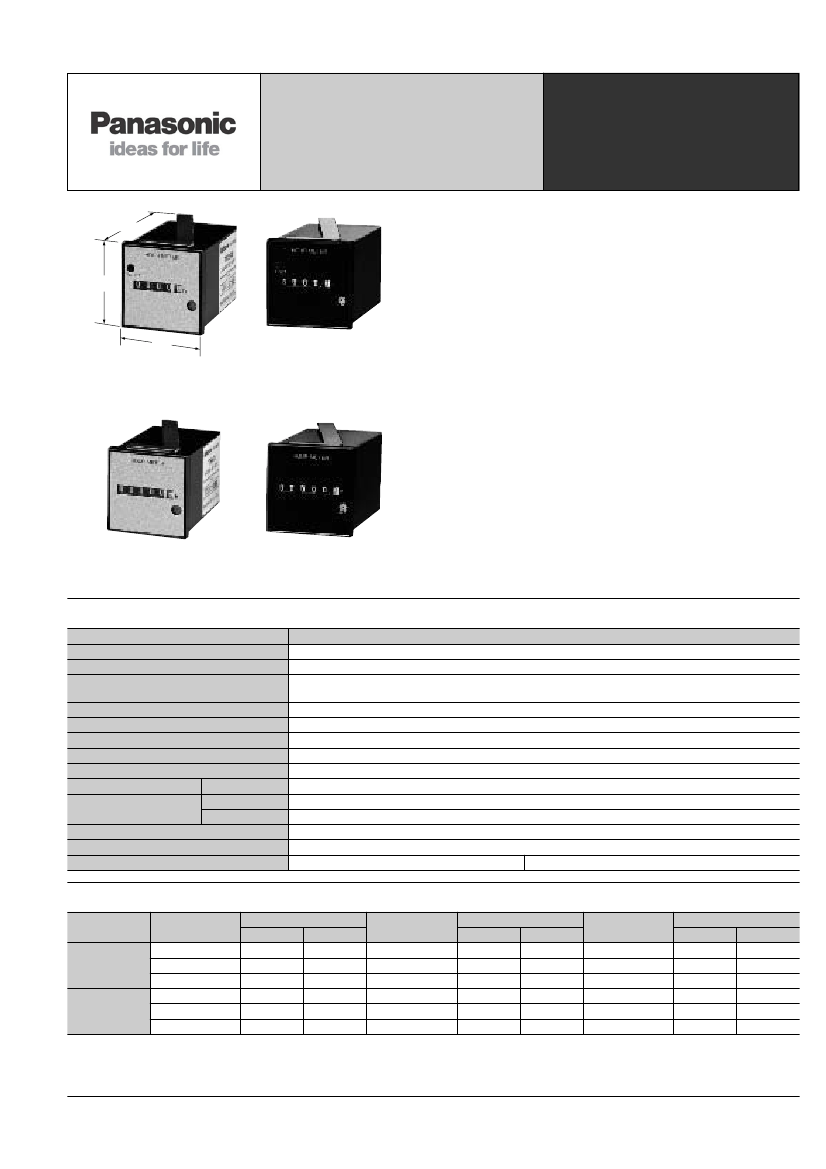

TH14·TH24
DIN48 SIZE HOUR METER
TH14·TH24
80.5
3.169
FEATURES
1. High-performance compact sync motor
The accurately turning motor is employed to provide for longer
period of measurement.
2. Common for 50/60 Hz power frequency
A lever is used to select 50 Hz or 60 Hz. There is no need to
rearrange the control panel and other signal destinations.
3. Dimensions as per DIN 43700 standard
The units are in the 48
×
48 DIN standard size. They can be fit-
ted in panels and give refined metallic appearance.
4. Easier wiring
The flat terminals (#187) are quick and easy to connect.
5. Rotary indicator
The rotary indicator makes one turn every 2 minutes for quick
monitoring.
6. CE marking
The hour meters satisfy EMC directives (EN50081-2/
EN50082-2) and low-voltage directives (EN61010-1).
48
1.890
48
1.890
mm
inch
Black panel
TH24 (with reset function)
Silver panel
TYPICAL APPLICATIONS
Silver panel
Black panel
TH14 (without reset function)
Maintenance management of machine tools, automated
machines, control panels, forming machines, medical equip-
ment, generators, compressors, water treatment facilities,
presses, motors, etc.
SPECIFICATIONS
Rated operating voltage
Operating voltage range
Rated frequency
Counting range
Minimum time display
Rated power consumption
Initial insulation resistance (At 500 V DC)
Initial breakdown voltage
Max. temperature rise
Vibration resistance
Functional
Functional
Shock resistance
Destructive
Ambient temperature
Ambient humidity
Weight
12 V AC, 24 V AC, 48 V AC, 100 V AC, 110 V AC, 115 to 120 V AC, 200 V AC, 220 V AC, 240 V AC
85 to 115% of rated operating voltage
50/60 Hz (selectable by switch)
0 to 99999.9 hours (TH14 series)
0 to 9999.9 hours (TH24 series)
0.1 hours (6 min)
Approx. 1.5 W
Min. 100 MΩ; Between live and dead metal parts
2,000 Vrms Between live and dead metal parts
55°C
131°F
10 to 55 Hz: 1 cycle/min double amplitude of 0.5 mm (10 min on 3 axes)
Min 98 m/s
2
{10 G} (4 times on 3 axes)
Min 980 m/s
2
{100 G} (5 times on 3 axes)
–10 to +50°C
+14 to +122°F
Max. 85% RH
145 g
5.11 oz
(TH14 series)
150 g
5.29 oz
(TH24 series)
PRODUCT TYPE
Part No.
Part No.
Part No.
Rated operating
Rated operating
Rated operating
voltage
voltage
voltage
Silver panel Black panel
Silver panel Black panel
Silver panel Black panel
100V AC
TH141S
TH141
24V AC
TH144S
TH144
115 to 120V AC
TH147S
TH147
TH14 types
200V AC
TH142S
TH142
48V AC
TH145S
TH145
220V AC
TH148S
TH148
(without reset)
12V AC
TH143S
TH143
110V AC
TH146S
TH146
240V AC
TH149S
TH149
100V AC
TH241S
TH241
24V AC
TH244S
TH244
115 to 120V AC
TH247S
TH247
TH24 types
200V AC
TH242S
TH242
48V AC
TH245S
TH245
220V AC
TH248S
TH248
(with reset)
12V AC
TH243S
TH243
110V AC
TH246S
TH246
240V AC
TH249S
TH249
Notes: 1. Only the black-panel type is UL-recognized and CSA-certified. For this type, specify “U” at the end of the part No. when ordering.
2. If you want the CE marking on your products, specify “CE” at the end of the part No. when ordering.
3. When ordering a UL-listed/CSA-certified, CE-marked product, specify “TH147UCE” for example (in the case of TH14 series, AC 115-120V
type).
Type
117
02/2003
