FN321-1/05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FN321-1/05

FN321-1/05: Description1A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size181KB，2 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric Compare View All

FN321-1/05 Overview

1A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, ROHS COMPLIANT

FN321-1/05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Schaffner
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC 60939; EN 133200; UL; CSA; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	1A, 250VAC
Manufacturer's serial number	FN321
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

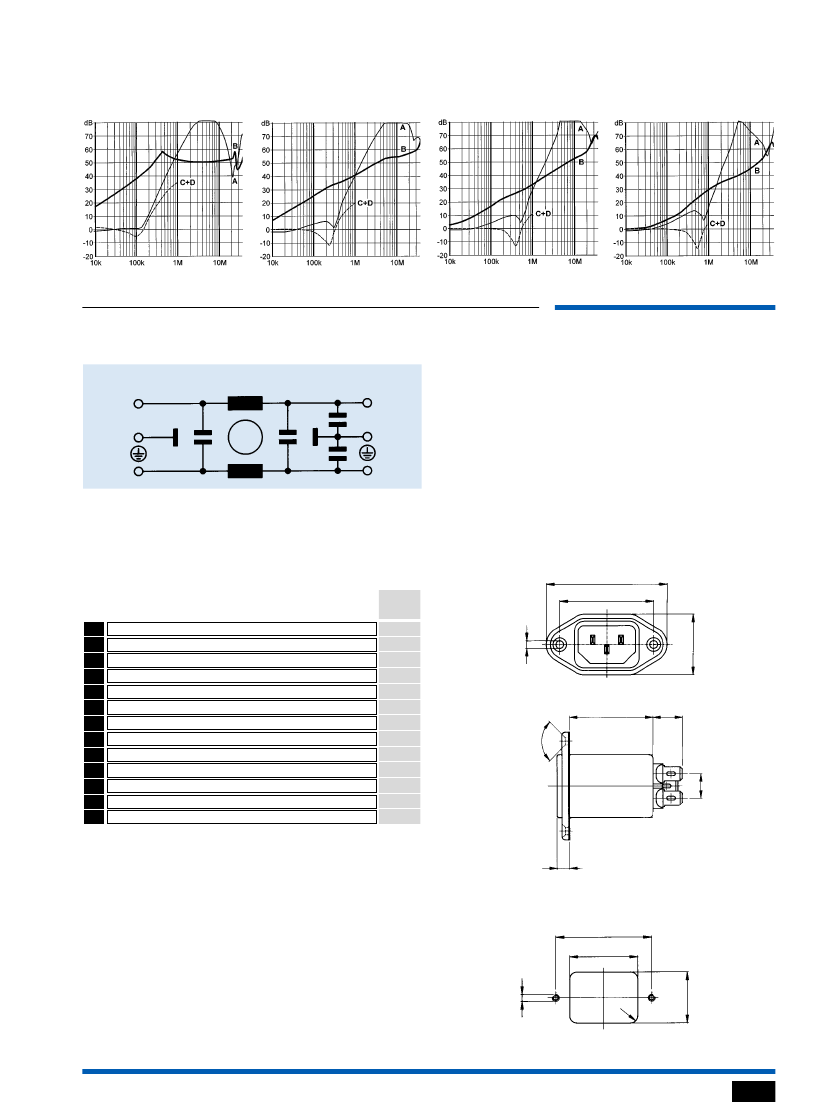

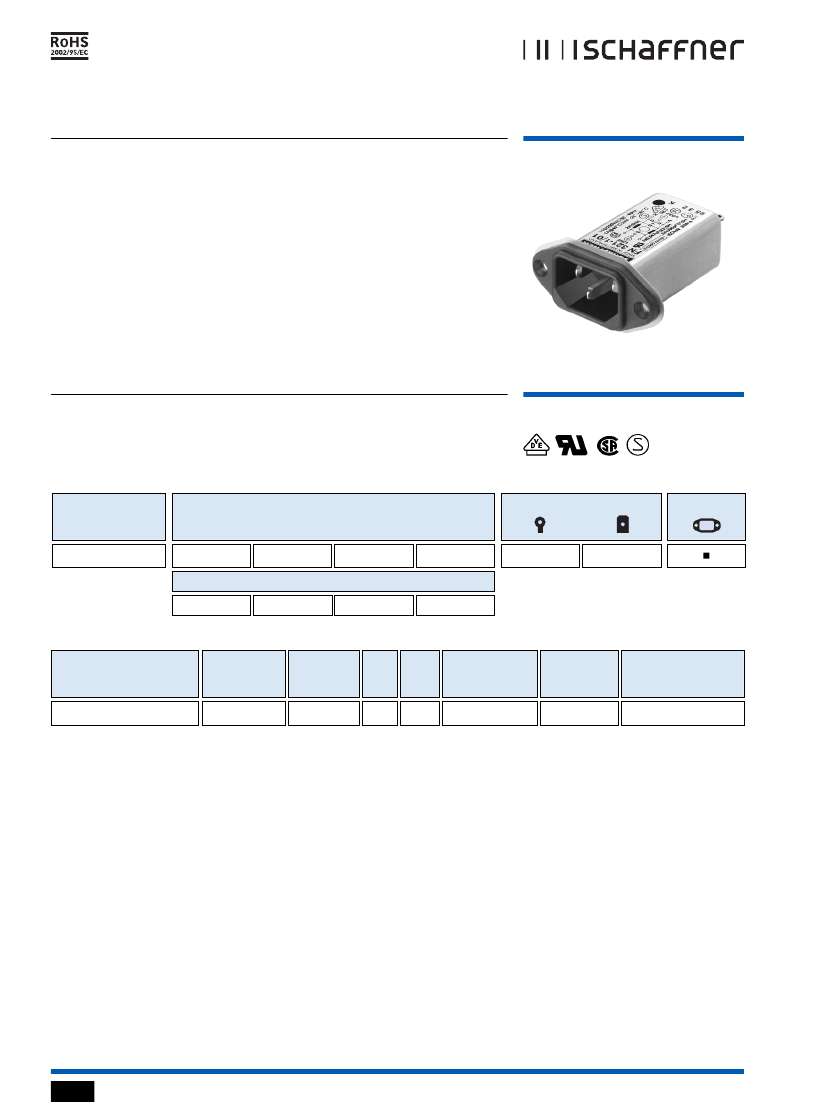

Compact power entry module

• Up to 10A current ratings

• IEC 950-compliant

• Reduces interference susceptibility

• Nennstrom bis 10A

• IEC 950 konform

• Hohe Immunität

• Courants de service pouvant atteindre 10A

• Conforme à CEI 950

• Réduit la sensibilité aux perturbations

FN 321

Filter selection table

Choose the family

FN xxx

with the required body style and features, and add

-??

determine current rating, and

/??

for output connections. Example: FN 321-1/05 is a

horizontal screw-mounting filter, rated for 1A, with fast-on outputs.

Family

Current ratings

Approvals

EN133200

IEC60939

Output connection

Housing

1 (1.2)

FN 321

-??

/??

-1

A at 40°C (25°)

3 (3.6)

6 (7.3)

-3

Inductance L

10 (10)

-10

/01

/05

-6

3.1

1.2

0.36

Additional specifications

Filter type

Capacitance

All standard types

3.3

Maximum

leakage

Res.

Weight

μA/phase

290

MΩ

Maximum

operating voltage

Operating

frequency

Hipot test voltage

VAC

DC to 400

PN E

VAC

2000

P N

VAC

760

250 50/60

MTBF at 40°C, 230V, per Mil-HB-217F: 800,000 hours

FN321-1/05 Related Products

	FN321-1/05	FN321-1/01	FN321-3/01	FN321-3/05	FN321-6/01	FN321-6/05
Description	1A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, ROHS COMPLIANT	1A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, ROHS COMPLIANT	3A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, ROHS COMPLIANT	3A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, ROHS COMPLIANT	6A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, ROHS COMPLIANT	6A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARDS: IEC 60939; EN 133200; UL; CSA; VDE	STANDARDS: IEC 60939; EN 133200; UL; CSA; VDE	STANDARDS: IEC 60939; EN 133200; UL; CSA; VDE	STANDARDS: IEC 60939; EN 133200; UL; CSA; VDE	STANDARDS: IEC 60939; EN 133200; UL; CSA; VDE	STANDARDS: IEC 60939; EN 133200; UL; CSA; VDE
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO	NO
Power Connector Ratings	1A, 250VAC	1A, 250VAC	3A, 250VAC	3A, 250VAC	6A, 250VAC	6A, 250VAC
Manufacturer's serial number	FN321	FN321	FN321	FN321	FN321	FN321
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	3	3	3	3	3
Base Number Matches	1	1	1	1	1	1
