ECS-500-20-30-H-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-500-20-30-H-TR

ECS-500-20-30-H-TR: DescriptionParallel - Fundamental Quartz Crystal, 50MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size531KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-500-20-30-H-TR Overview

Parallel - Fundamental Quartz Crystal, 50MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN

ECS-500-20-30-H-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1308755661
package instruction	ROHS COMPLIANT, MINIATURE, SMD, 2 PIN
Reach Compliance Code	compliant
YTEOL	7.2
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0025%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	5mm x 3.2mm x 1.2mm
Series resistance	30 Ω
surface mount	YES
Terminal surface	GOLD OVER NICKEL

Preview

Download Datasheet

View All

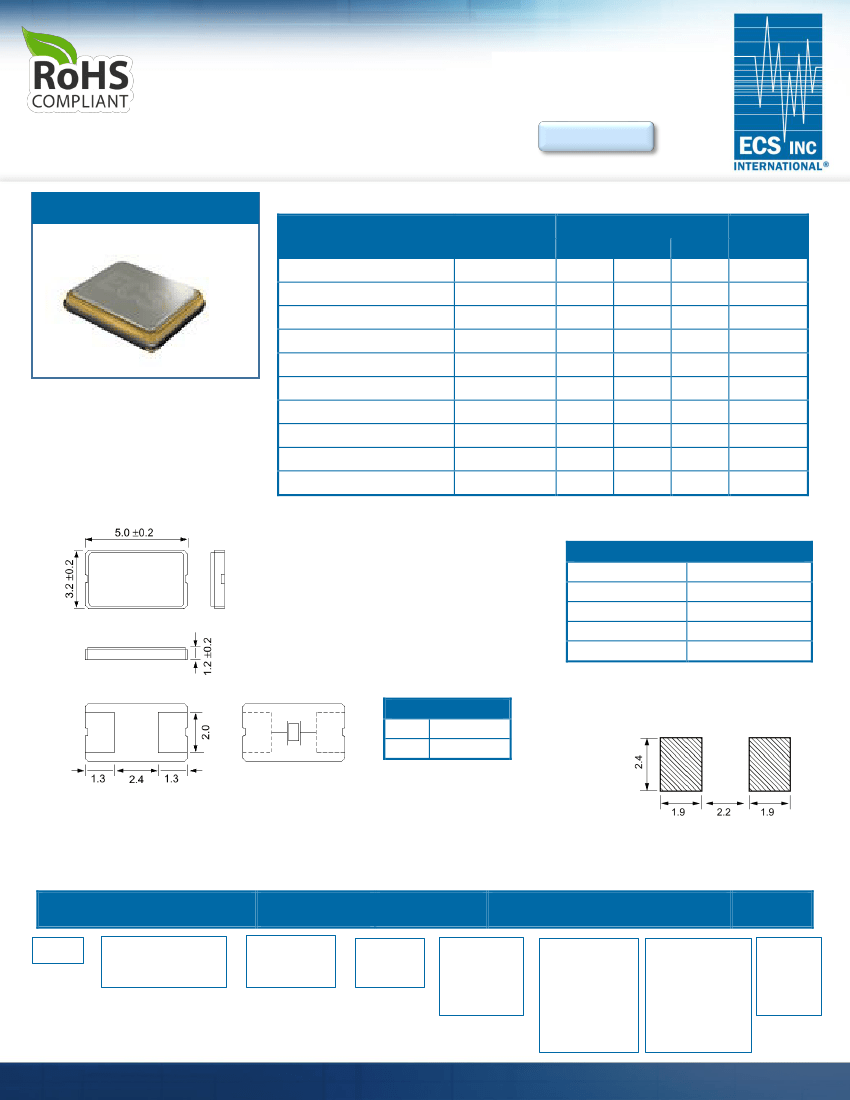

ECX-53

SMD CRYSTAL

The ECX-53 is a miniature SMD Crystal with a 3.2 x 5 mm

footprint. This package is ideal for todays compact wireless

applications where board space is critical.

ECX-53 SMD CRYSTAL

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Mode of Oscillation

Frequency Tolerance*

Frequency Stability*

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature*

Storage Temperature

Aging (First Year)

Fundamental

@ +25°C

-10 ~ +70°C

CONDITIONS

MIN

ECX-53

TYP

MAX

UNITS

50.000

± 30

± 50

MHz

ppm

μW

°C

ppm

8.000

Specify in P/N

opr

stg

@ +25°C ±3°C

-10

-55

•

Compact and low profile

Extended Temp. Range Option

RoHS Compliant

2 Pad Option

Series

100

+70

+125

±5

DIMENSIONS (mm)

Frequency (MHz)

8.000 ~ 9.999

10.000 ~ 15.999

16.000 ~ 19.999

20.000 ~ 23.999

24.000 ~ 50.000

ESR Ω Max.

100

Pad Connections

In/Out

Out/In

Figure 1)

Top, Side, and Bottom

Crystal is symmetrical, pad 1 & 2 are interchangeable.

Chamfer on the bottom pad has no electrical

significance.

PART NUMBERING GUIDE: Example ECS-200-20-30-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

20 = 20 pF

S = Series

Figure 2)

Suggested land

pattern

PACKAGING

Temp Range

Blank= Std

L = -10 ~ +70°C

M = -20 ~ +70°C

Y = -30 ~ +85°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

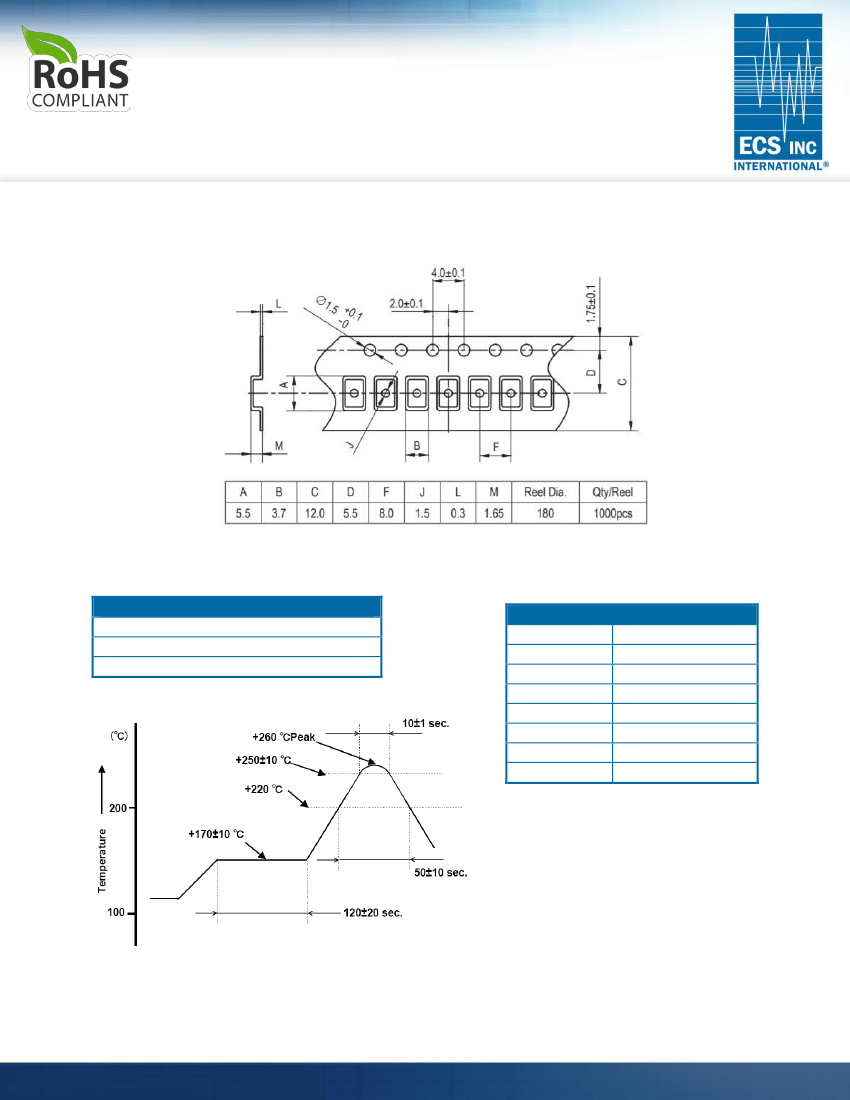

TR =

Tape

& Reel

1K/Reel

PACKAGE

Tolerance

30 =

ECX-53

Blank = Std

A = ± 25

ppm

J = ± 20

ppm

R = ± 15

ppm

C = ± 10

ppm

AVAILABLE OPTIONS

Stability

Blank= Std

D= ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

†

W = ±15 ppm

†

K = ± 10 ppm

†

ECS

200 = 20.000 MHz

See P/N Guide

* Specify available options in P/N.

†

Contact ECS for availability over extended temp range.

Rev.2017
