10 x 4.5mm SMD Crystal
(former FQ1045A)
C8AQ
Page
1
of
2
DATASHEET
•
Tolerances down to 20 PPM
•
Stabilities down to 20 PPM
•
Temperature ranges as wide as -40°C to +85°C

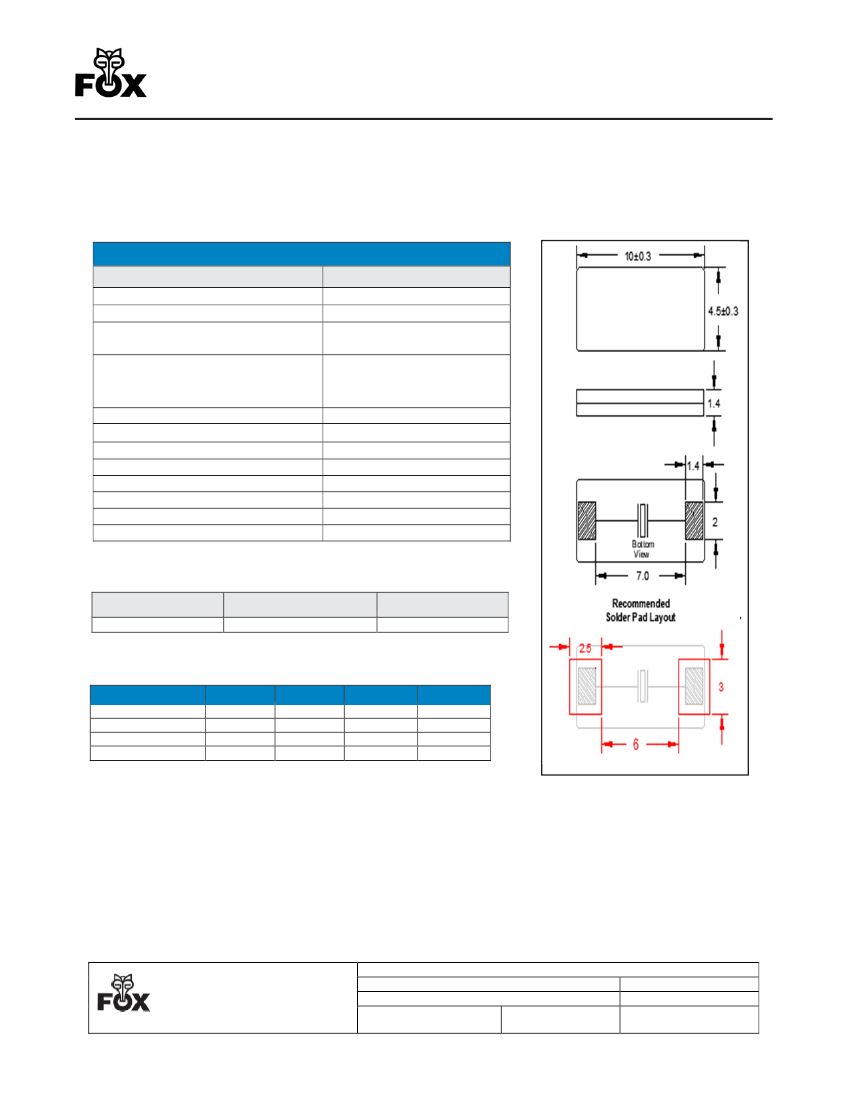

• STANDARD SPECIFICATIONS
PARAMETERS
Frequency Range
(Fo)
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
(T
OPR
)
Operating
Storage
(T
STG
)
Shunt Capacitance (Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
Termination Finish
Seal Method
Lead (Pb) Free
RoHS / REACH Compliant
MAX
(unless otherwise noted)
3.200 ~ 7.000 MHz
(See options on page 2)
(See options below)
(See options on page 2)
-40ºC ~ +85ºC
5 pF
(See options on page 2)
0.5 mW
±5 PPM
Ag
Resin
YES
YES
Frequency
Range
3.200 ~ 7.000
Operating Mode
Fundamental
Max ESR
150
• Available Operating Temperatures and Stabilities*
Stability Temperature
±20 PPM
±25 PPM
±30 PPM
±50 PPM
O
O
O
O
O
O
O
0 ~+70ºC
O
O
O
-20 ~+70ºC
O
X
X
-30 ~+85ºC
X
X
X
-40 ~+85ºC
Key: O=Available, X=Not Available, ∆=Consult Fox Technical Support
*Does not imply a stocked part.
© Copyright 2019 Fox Electronics. All rights reserved
Title / Description:
C8AQ STANDARD SPECIFICATIONS
Drawing Number:
101169
Size: A
Part Number:
Cage:
61429
Revision Date:
Draftsperson: BEC
Approved: MAJ
04/16/2019
10 x 4.5mm SMD Crystal
(former FQ1045A)
C8AQ
Page
2
of
2
DATASHEET

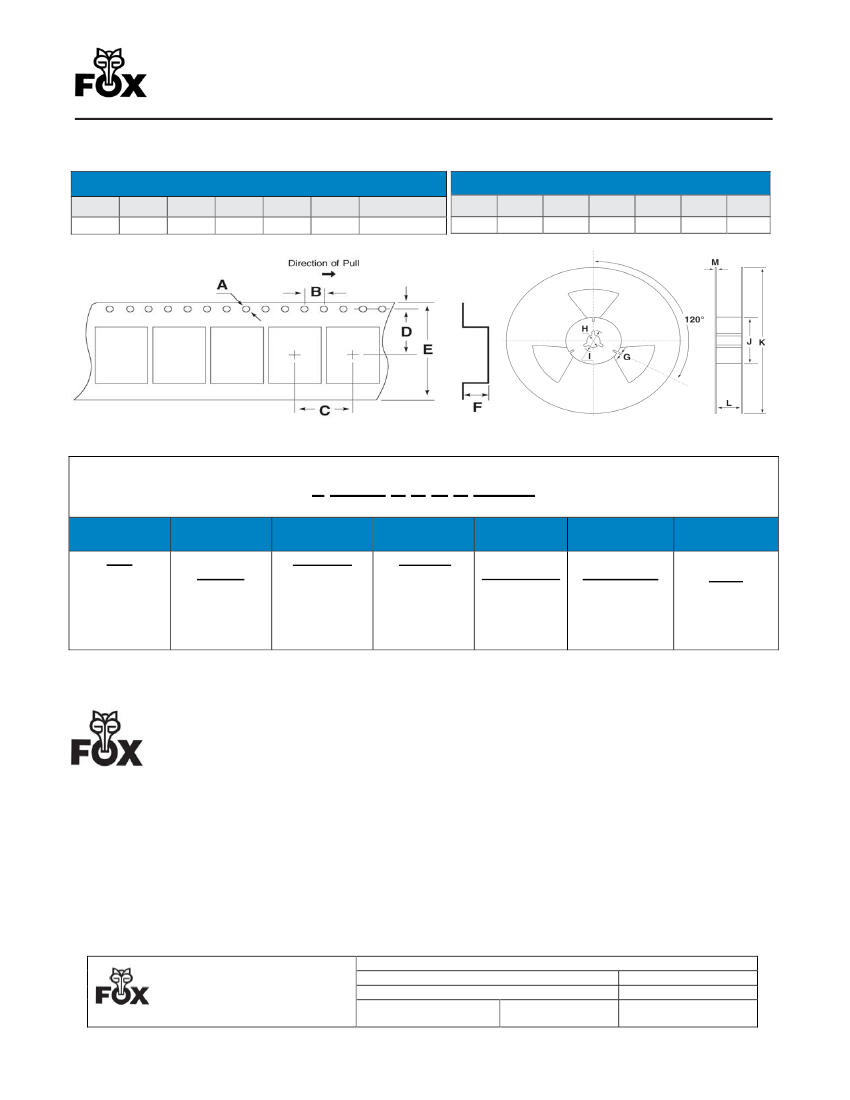

• TAPE SPECIFICATIONS
(millimeters)
A
1.5
B
4.0
C
8.0
D
11.5
E
24.0
F
2.0
STD Reel QTY
• REEL SPECIFICATIONS
(millimeters)
-T1 =1,000
G
2.0
H
13
I
J
K
21 100 330
L
24.4
M
2.0
Available Options & Part Identification for SMD Crystal C8AQ
1
F C8AQ C C M C 3.6864
F
FOX
C8AQ
Model
Number
C
Tolerance
B=50ppm
C=30ppm
D=25ppm
E=20ppm
C
Stability
B=50ppm
C=30ppm
D=25ppm
E=20ppm
M
Load
Capacitance
2
E=10pF
K=16pF
L=18pF
M=20pF
C
Operating
Temperature
C=0 to +70C
F=-20 to +70C
K=-30 to +85C
M=-40 to +85C
3.6464
Frequency
(MHz)
1
2
Not all frequency, tolerance, stability, load, and operating temperature combinations may be available.
Listed load capacitances represent the most commonly used. Other load capacitances are available. Contact Fox Technical Support for assistance
Corporate
Headquarters
Sales
Tech Support
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
http://www.FOXONLINE.com/email
PRODUCT USE: Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics' sole discretion. All
information in this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the
operating parameters of the described products are determined in the independent state and are not guaranteed to perform the same way when installed in customer
products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of Fox Electronics' products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others.
This document is presented only as a guide and does not convey any license under intellectual property rights of Fox Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the
failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or safety of users. Anyone using a Fox Electronics
product in such a manner does so at their own risk, absent an express, written agreement by Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice. Other trademarks and service
marks used herein, including protected names, logos and designs, are the property of Fox Electronics or their respective third-party owners.
For datasheet type definitions and a glossary of common terms, visit http://www.foxonline.com/tgcrystals.html .
© Copyright 2019 Fox Electronics. All rights reserved
Title / Description:
C8AQ STANDARD SPECIFICATIONS
Drawing Number:
101169
Size: A
Part Number:
Cage:
61429
Revision Date:
Draftsperson: BEC
Approved: MAJ
04/16/2019
