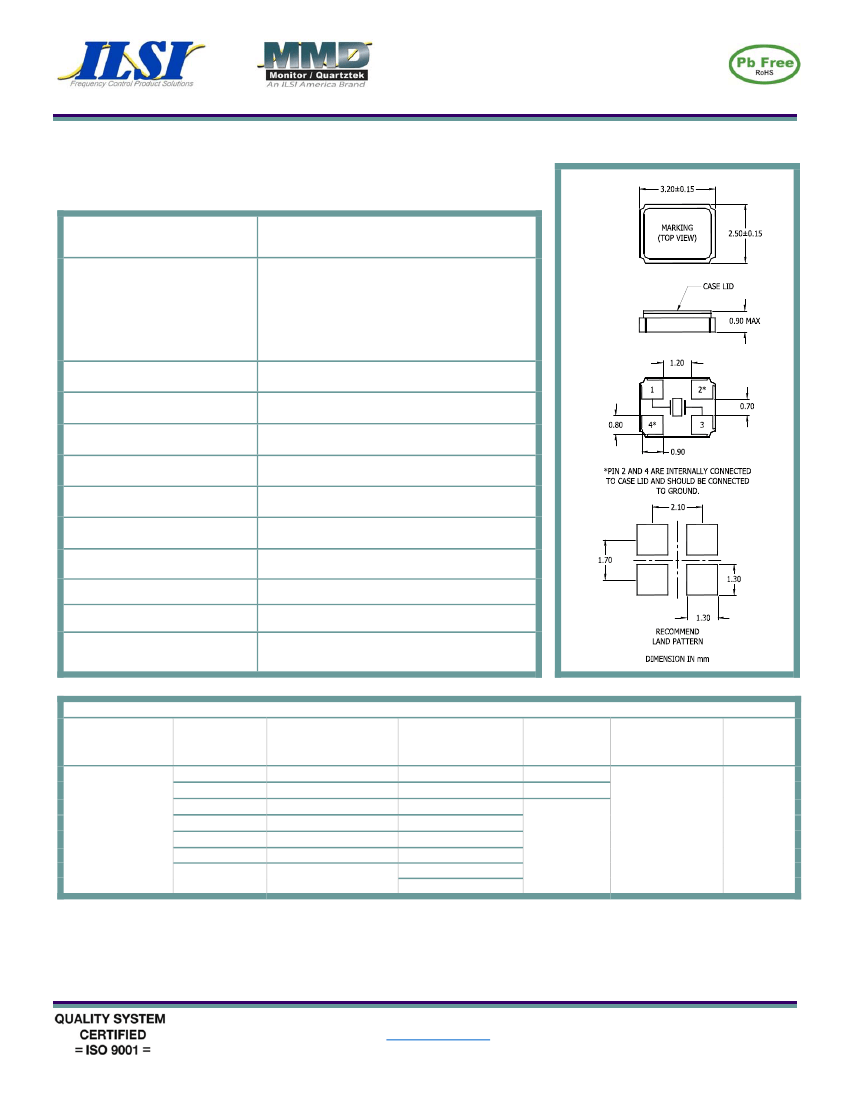

4 Pad Ceramic Crystal, 2.5 mm x 3.2 mm
Product Feature:
SMD Package
Small package Foot Print
Supplied in Tape and Reel
Compatible with Leadfree Processing
ILCX13 Series
Applications:
PCMCIA Cards
Storage
PC’s
Wireless Lan
Frequency
ESR (Equivalent Series Resistance)
10.0 MHz – 11.9 MHz
12.0 MHz – 15.6 MHz
16.0 MHz – 19.9 MHz
20.0 MHz – 23.9 MHz
24.0 MHz – 60.0 MHz
rd
60.0 MHz – 150.0 MHz (3 O/T)
Shunt Capacitance (C0)
Frequency Tolerance @ 25
C
Frequency Stability over
Temperature
Crystal Cut
Load Capacitance
Drive Level
Aging
Temperature
Operating
Storage
10 MHz to 150 MHz
200
Ω
Max.
100
Ω
Max
80
Ω
Max.
60
Ω
Max.
40
Ω
Max.
100
Max.
3.5 pF Max.
30
ppm Standard (see Part Number Guide for more
options)
50
ppm Standard (see Part Number Guide for more
options)
AT Cut
18 pF Standard (see Part Number Guide for more
options)
100 µW Max.
3
ppm Max. / Year Standard
0 C to +70 C Standard (see Part Number Guide for
more options)
-40 C to +85 C Standard
Part Number Guide
Package
Tolerance
(ppm) at Room
Temperature
B = ±50 ppm
F = ±30 ppm
G = ±25 ppm
ILCX13 -
H = ±20 ppm
I = ±15 ppm
J = ±10 ppm*
Sample Part Number:
Stability
(ppm) over Operating
Temperature
B = ±50 ppm
F = ±30 ppm
G = ±25 ppm
H = ±20 ppm
I = ±15 ppm**
J = ±10 ppm**
ILCX13 - FB1F18 - 20.000000M
Operating
Temperature Range
0 = 0°C to +50°C
1 = 0°C to +70°C
2 = -10°C to +60°C
3 = -20°C to +70°C
5 = -40°C to +85°C
9 = -10°C to +50°C
D = -10°C to +105°C*
E = -40°C to +105°C*
18 pF Standard
Or Specify
- 20.000 MHz
Mode
(overtone)
F = Fundamental
3 = 3
rd
overtone
Load Capacitance
(pF)
Frequency
* Not available at all frequencies. ** Not available for all temperature ranges.
ILSI America Phone 775-851-8880
●
Fax 775-851-8882
●email:
e-mail@ilsiamerica.com
●
www.ilsiamerica.com
Specifications subject to change without notice
Rev: 05/16/16_J
Page 1 of 2

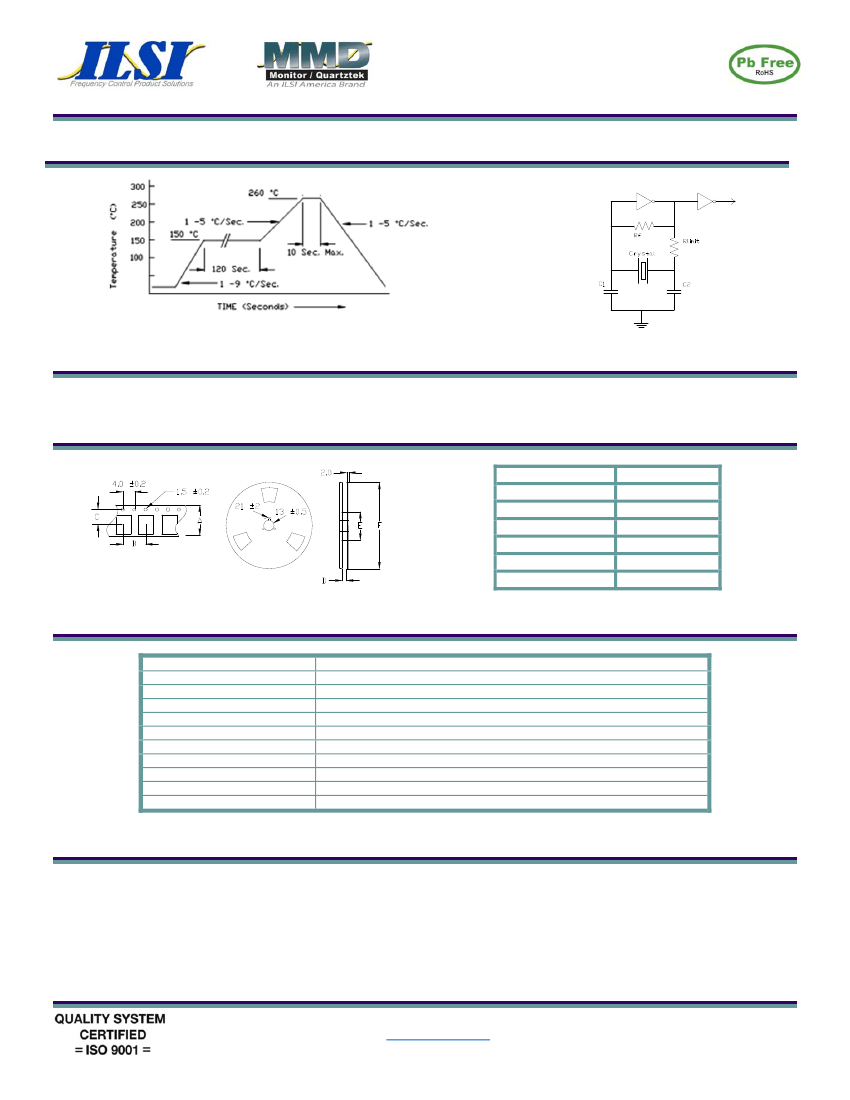

4 Pad Ceramic Crystal, 2.5 mm x 3.2 mm
Pb Free Solder Reflow Profile:
Typical Application:
ILCX13 Series
Units are backward compatible with 240C reflow processes
Package Information:
MSL = 1
Termination = e4 (Au over Ni over W base metal).
Tape and Reel Information:
Quantity per Reel
A
B
C
D
E
F
Environmental Specifications:
Thermal Shock
Moisture Resistance
Mechanical Shock
Mechanical Vibration
Resistance to Soldering Heat
Hazardous Substance
Solderability
Terminal Strength
Gross Leak
Fine Leak
Solvent Resistance
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2007, Condition A
J-STD-020C, Table 5-2 Pb-free devices (except 2 cycles max)
Pb-Free / RoHS / Green Compliant
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 2004, Test Condition D
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s
MIL-STD-202, Method 215
3000
8.0 ±0.2
4.0 ±0.2
3.5 ±0.2
12.0 ±3.0
60 / 80
180
Marking:
Line 1: I-Date Code (yww)
Line 2: Frequency
ILSI America Phone 775-851-8880
●
Fax 775-851-8882
●email:
e-mail@ilsiamerica.com
●
www.ilsiamerica.com
Specifications subject to change without notice
Rev: 05/16/16_J
Page 2 of 2
