EL3063S1(TA)-V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> EL3063S1(TA)-V

EL3063S1(TA)-V: Descriptionoptocoupler triac 600v 6smd ZC; CategoryLED optoelectronic/LED photoelectric; File Size656KB，13 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

EL3063S1(TA)-V Overview

optocoupler triac 600v 6smd ZC

EL3063S1(TA)-V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-6
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, VDE APPROVED
Configuration	SINGLE
Maximum forward current	0.06 A
Maximum input trigger current	0.005 A
Nominal input trigger current	5 mA
Maximum insulation voltage	5000 V
Installation features	SURFACE MOUNT
Number of components	1
Maximum on-state voltage	3 V
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Minimum off-state peak voltage	600 V
Peak surge current	1 A
Off-state repetitive peak voltage	600 V
Maximum reverse leakage current	0.00001 A
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

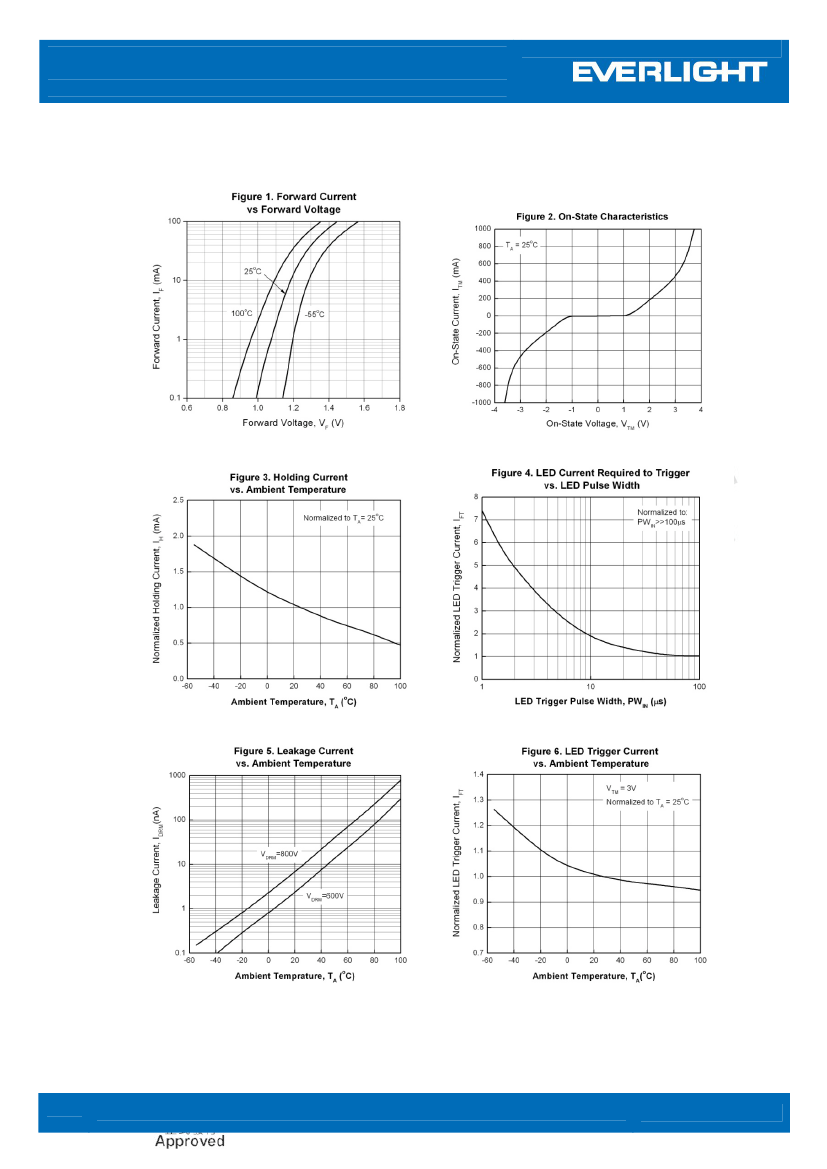

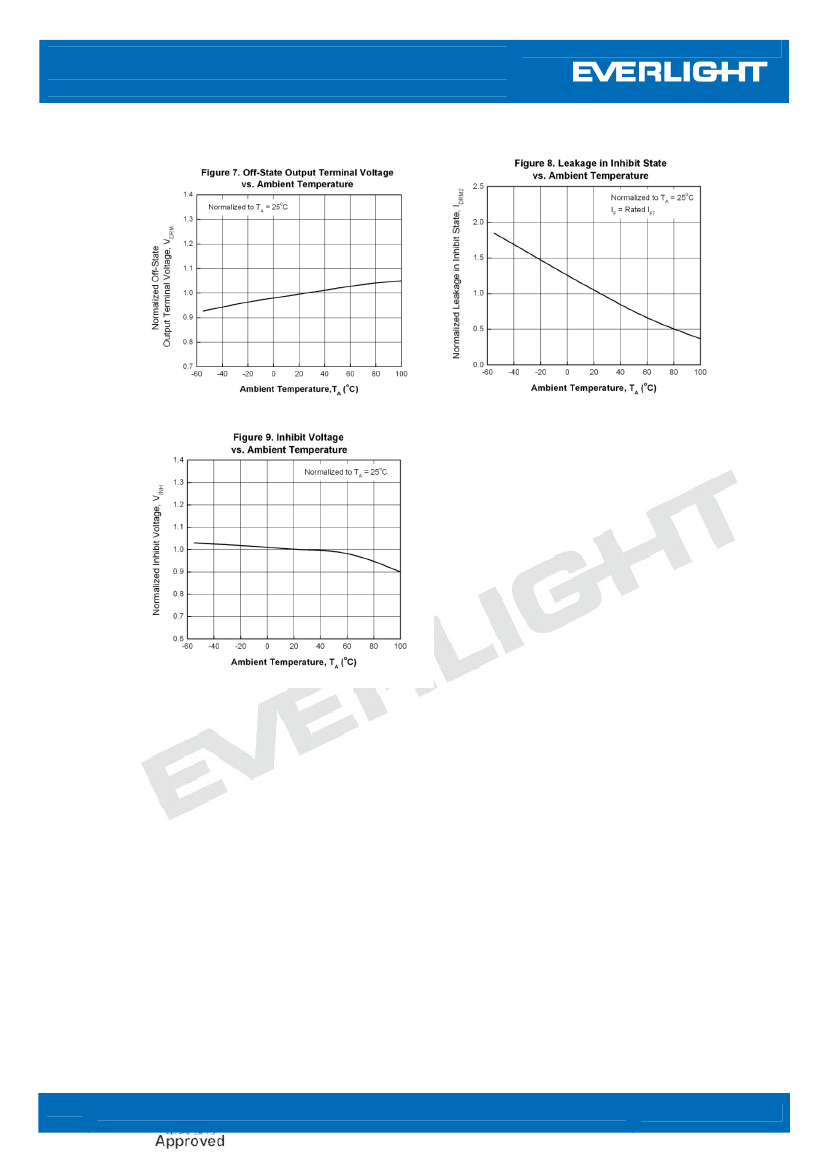

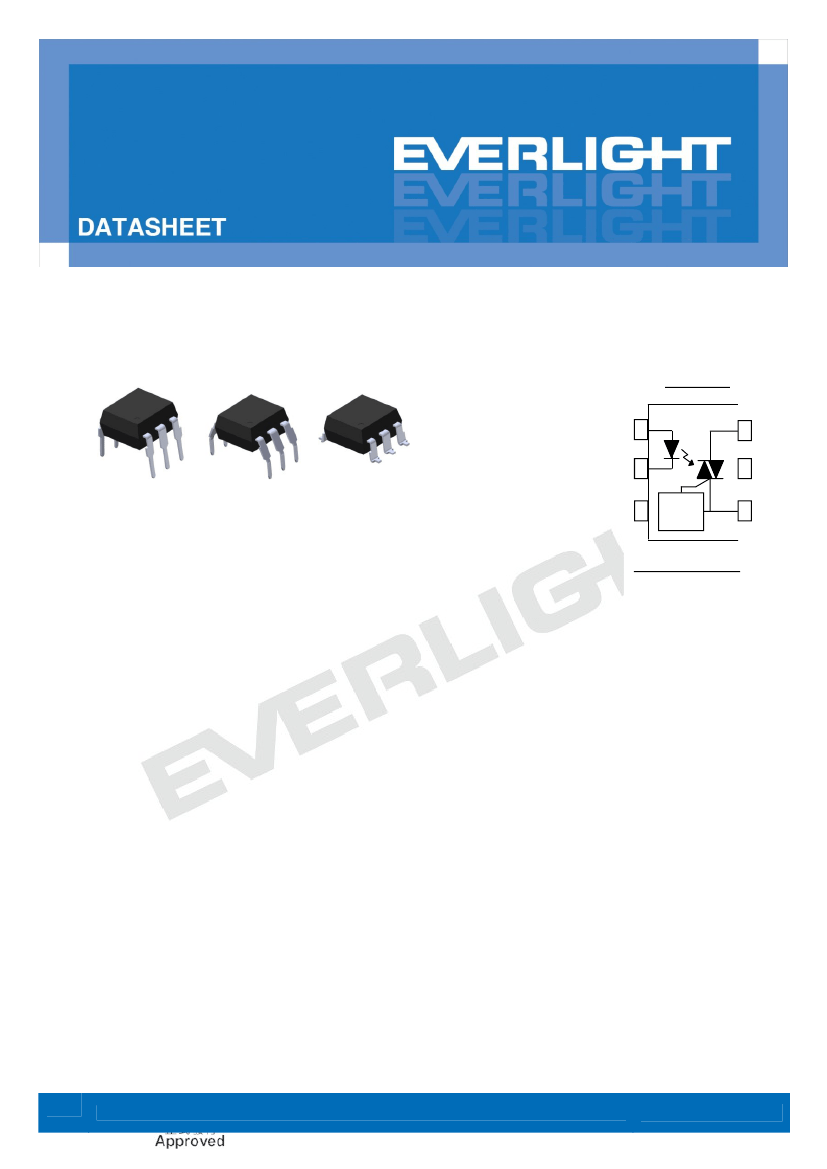

6 PIN DIP ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

EL303X, EL304X, EL306X, EL308X Series

Schematic

Zero

Crossing

Circuit

Features:

•

Peak breakdown voltage

- 250V: EL303X

- 400V: EL304X

- 600V: EL306X

- 800V: EL308X

•

High isolation voltage between input and output

•

Zero voltage crossing

•

Pb free and RoHS compliant.

•

UL approved (No. E214129)

•

VDE approved (No.132249)

•

SEMKO approved

•

NEMKO approved

•

DEMKO approved

•

FIMKO approved

•

CSA approved

(Viso=5000 V rms )

Pin Configuration

1. Anode

2. Cathode

3. No Connection

4. Terminal

5. Substrate

(do not connect)

6. Terminal

Description

The EL303X, EL304X, EL306X and EL308X series of devices each consist of a GaAs infrared emitting diode

optically coupled to a monolithic silicon zero voltage crossing photo triac.

They are designed for use with a discrete power triac in the interface of logic systems to equipment powered from

110 to 380 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances.

Applications



Solenoid/valve controls

Light controls

Static power switch

AC motor drivers

E.M. contactors

Temperature controls

AC Motor starters

Revision

LifecyclePhase:

Release Date:2013-12-11 15:48:54.0

No: DPC-0000208 Rev.4

www.everlight.com

Expired Period: Forever
