2M6.8Z thru 2M200Z
Taiwan Semiconductor
CREAT BY ART
Glass Passivated Junction Silicon Zener Diodes
FEATURES
- Glass passivated chip junction
- Typical IR less than 1μA
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
MECHANICAL DATA
Case:
DO-204AC (DO-15)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Weight:
0.4g (approximately)
DO-204AC (DO-15)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Steady state power dissipation at T
L
=75℃
Lead lengths .375", 9.55mm (Note 1)
Peak forward surge current, 8.3ms single half
sine-wave superimposed on rated load
Operating junction temperature range
Storage temperature range
Note 1: Mounted on Cu-Pad size 10mm x 10mm x 1.6mm on PCB
SYMBOL
P
D
I
FSM
T
J
T
STG
VALUE
2.0
15
- 55 to +175
- 55 to +175
UNIT
Watts
A
O
O
C
C
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
2MxxxZ
(Note 1)
A0
Prefix "H"
R0
B0
Suffix "G"
PACKING CODE
GREEN COMPOUND
CODE
DO-15
DO-15
DO-15
1,500 / Ammo box
3,500 / 13" Paper reel
1,000 / Bulk packing
PACKAGE
PACKING
Note 1: "xxx" defines voltage from 6.8V (2M6.8Z) to 200V (2M200Z)
EXAMPLE
PREFERRED P/N
2M6.8Z A0
2M6.8Z A0G
2M6.8ZHA0
PART NO.
2M6.8Z
2M6.8Z
2M6.8Z
H
AEC-Q101
QUALIFIED
PACKING CODE
A0
A0
A0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION
Document Number: DS_D1405019
Version: K14
2M6.8Z thru 2M200Z
Taiwan Semiconductor
CREAT BY ART
RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
Device
(Notes 1)
2M6.8Z
2M11Z
2M12Z
2M13Z
2M14Z
2M15Z
2M16Z
2M17Z
2M18Z
2M19Z
2M20Z
2M22Z
2M24Z
2M27Z
2M30Z
2M33Z
2M36Z
2M39Z
2M43Z
2M47Z
2M51Z
2M56Z
2M62Z
2M68Z
2M75Z
2M82Z
2M91Z
2M100Z
2M110Z
2M120Z
2M130Z
2M140Z
2M150Z
2M160Z
2M170Z
2M180Z
2M190Z
2M200Z
Nominal Zener
Voltage (Notes 2)
V
Z
@ I
ZT
V
6.8
11
12
13
14
15
16
17
18
19
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
140
150
160
170
180
190
200
Test
Current
I
ZT
mA
100
45.5
41.5
38.5
35.7
33.4
31.2
29.4
27.8
26.3
25.0
22.8
20.8
18.5
16.6
15.1
13.9
12.8
11.6
10.6
9.8
9.0
8.1
7.4
6.7
6.1
5.5
5.0
4.5
4.2
3.8
3.6
3.3
3.1
2.9
2.8
2.6
2.5
Maximum Zener Impedance (Notes 3)
Z
ZT
@ I
ZT
Ω
1.5
4.0
4.5
5.0
5.5
7.0
8.0
9.0
10
11
11
12
13
18
20
23
25
30
35
40
48
55
60
75
90
100
125
175
250
325
400
500
575
650
675
725
825
900
Z
ZK
@ I
ZK
Ω
200
700
700
700
700
700
700
750
750
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
5500
6000
6500
7000
7000
8000
8000
I
ZK
mA
1.00
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
μA
1000
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Leakage Current
I
R
@ V
R
V
5.5
8.4
9.1
9.9
10.6
11.4
12.2
13.0
13.7
14.4
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
106.4
114.0
121.6
130.4
136.8
144.8
152.0
Maximum
Zener
Current
I
ZM
mA
246
166
152
138
130
122
114
107
100
95
90
82
76
68
60
55
50
47
43
39
36
32
29
27
24
22
20
18
17
15
14
13
12
11
11
10
10
9
Notes:
1. TOLERANCES - Standard Voltage tolerance = ±5%, tolerances may be considered as a special device
2. ZENER VOLTAGE(V
Z
) MEASUREMENT - Zener voltage guaranteed when measured at 0.375"(9.5mm) from the
body under 40ms ±10ms current pulse and ambient temperature of 25℃
3. ZENER IMPEDANCE (Z
Z
) DERIVATION - The zener impedance is derived from 60 cycles AC voltage, which results when
an current having an rms value eqal to 10% of the DC zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
4. MAXIMUM ZENER CURRENT (I
ZM
) NON-REPETITIVE - The rating listed in the electrical characteristics table is maximum peak
non - repetitive reverse surge current of 1/2 sine wave of 1/120 second duration or equivalent square wave, superimposed
on the test current I
ZT
, per JEDEC standard.
Document Number: DS_D1405019
Version: K14
2M6.8Z thru 2M200Z
Taiwan Semiconductor
CREAT BY ART

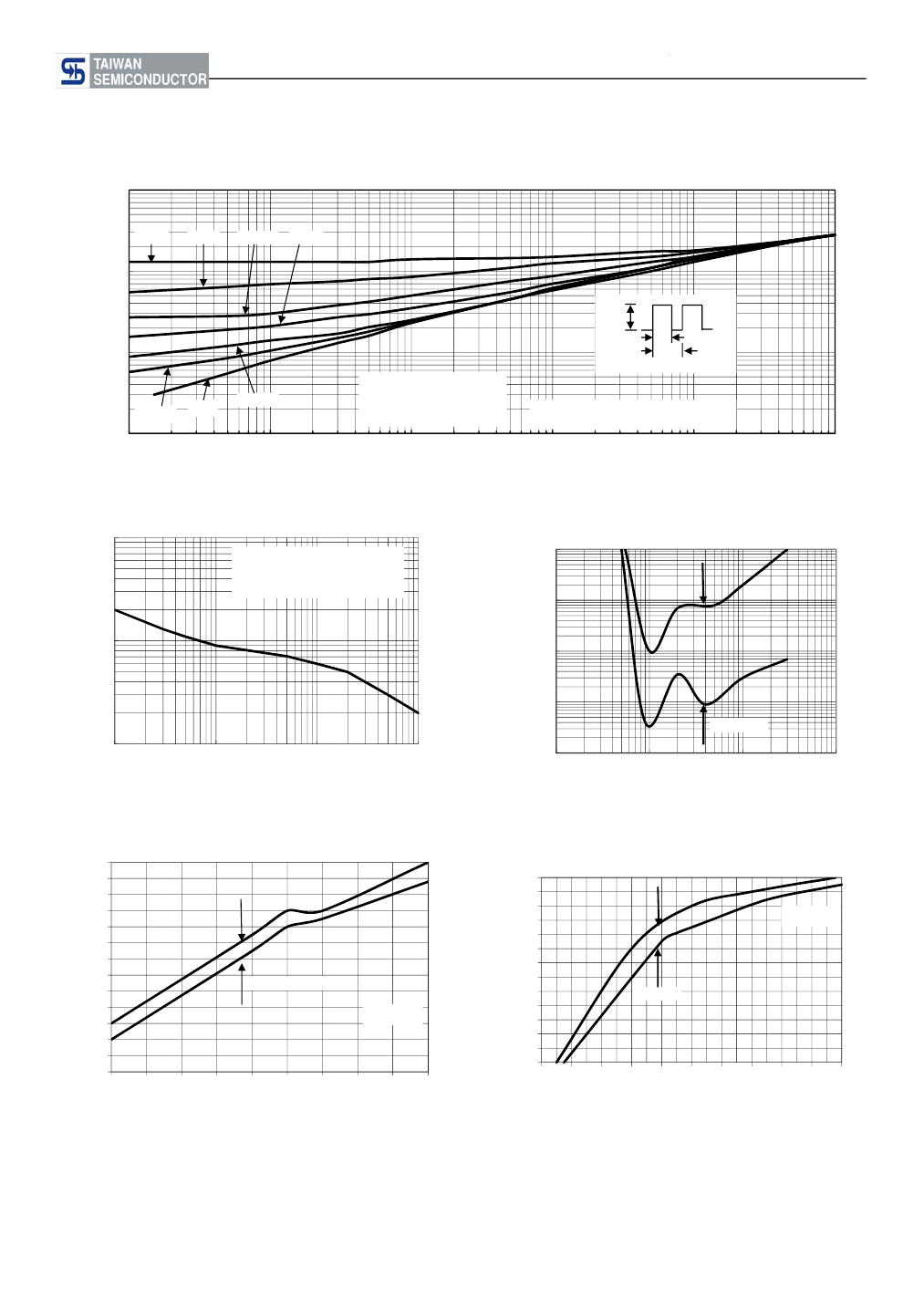

FIG. 1- TYPICAL THERMAL RESPONSE
100
ΘJL(t,D)TRANSIENT
THERMAL RESISTANCE
JUNCTION-TO-LEAD(℃/W)
D=0.5
10
D=0.2
D=0.05
D=0.1
PPK
1
NOTE BELOW 0.1 SECOND,
THERMAL RESPONSE
CURVE IS APPLICABLE TO
ANY LEAD LENGTH(L)
1
PW, PULSE WIDTH, (ms)
t1
t2
D=0.01
0.1
0.01
D=0
D=0.02
SINGLE PULSE
△TJL=ΘJL(1)PPK
0.1
10
100
1000
FIG. 2- MAXIMUM SURGE POWER
1000
IR, REVERSE LEAKAGE (uAdc)
@VR AS SPECIFIED IN ELEC.CHAR, TABLE
A
FIG. 3- TYPICAL REVERSE LEAKAGE
1
Ppk, PEAKSURGE POWER(WATTS)
RECTANGULAR NONREPETITIVE
WAVEFORM T
A
=25℃ PRIOR TO
INITIAL PULSE
0.1
100
0.01
0.001
RANGE
10
0.1
1
10
100
PW, PULSE WIDTH (ms)
0.0001
1
10
100
1000
NORMAL Vz (VOLTS)
FIG.4- UNIT 6.8 TO 12 VOLTS
8
7
8
7
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
0
20
40
FIG.5 UNIT 13 TO 200 VOLTS
Vz, TEMPERATURE COEFFICIENT
(mC/℃) @Izt
5
4
3
2
1
0
-1
-2
-3
-4
-5
3
4
5
6
7
8
9
10
11
12
V
z
, ZENER VOLTAGE @IZT (VOLTS)
RANGE
V
Z
@ I
ZT
Vz, TEMPERATURE COEFFICIENT
(mC/℃) @Izt
6
V
Z
@ I
ZT
RANGE
60
80
100
120
140
160
180
200
V
z
, ZENER VOLTAGE @IZT (VOLTS)
Document Number: DS_D1405019
Version: K14
2M6.8Z thru 2M200Z
Taiwan Semiconductor
CREAT BY ART

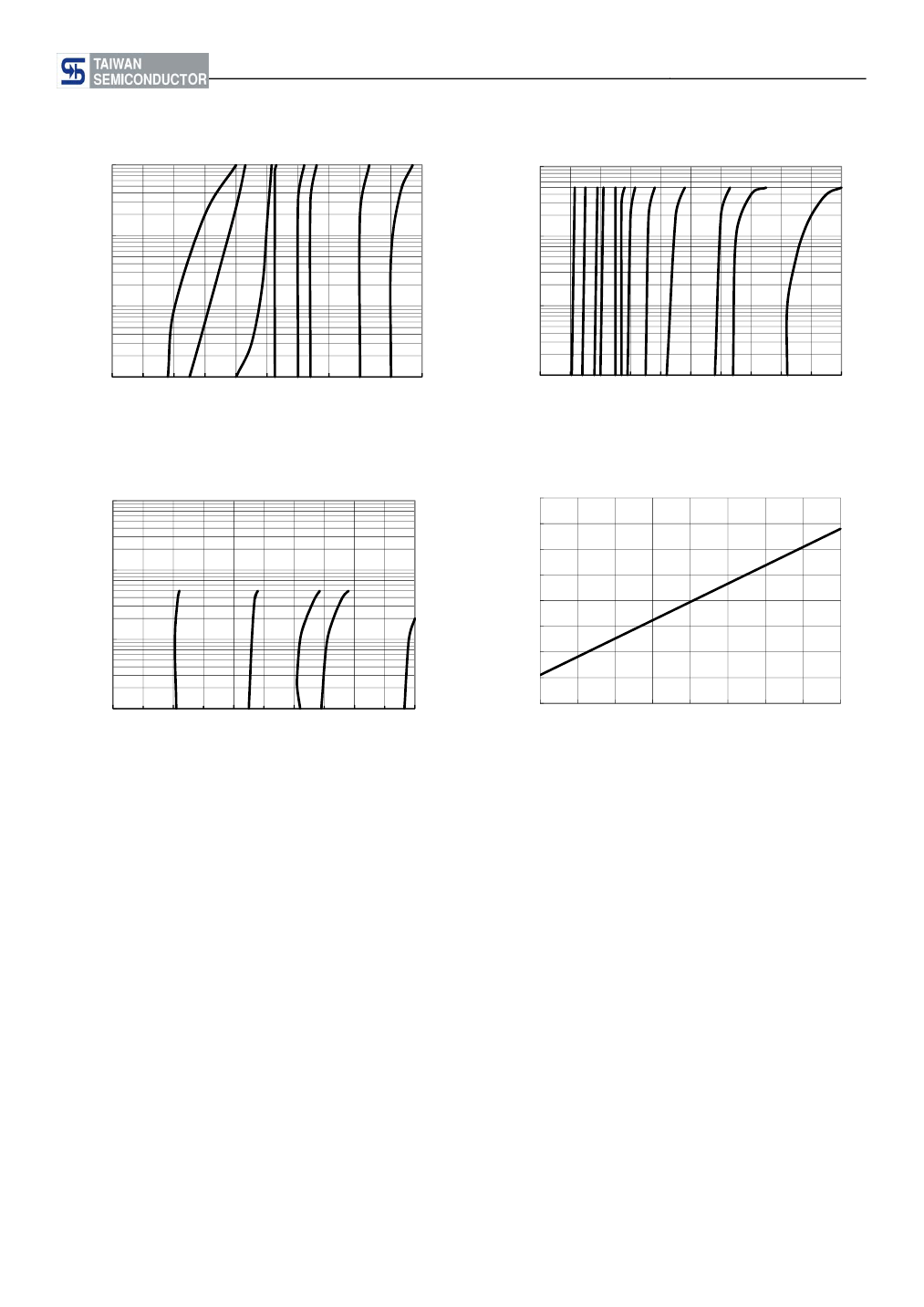

FIG. 6- Vz = 6.8 THRU 10 VOLTS
100
100
FIG. 7- Vz = 11 THRU 91 VOLTS
I
Z
, ZENER CURRENT (mA)
10
I
Z
, ZENER CURRENT (mA)
10
1
1
0.1
0
1
2
3
4
5
6
7
8
9
10
Vz, ZENER VOLTAGE (VOLTS)
0.1
0
10
20
30
40
50
60
70
80
90
100
Vz, ZENER VOLTAGE (VOLTS)
FIG. 8- Vz = 100 THRU 200 VOLTS
100
80
70
JL, JUNCTION-LEAD THERMAL
RESISTANCE(℃/W)
I
Z
, ZENER CURRENT (mA)
60
50
40
30
20
10
0
0
0.125
FIG. 9- TYPICAL THERMAL RESISTANCE
10
1
0.1
100
120
140
160
180
200
Vz, ZENER VOLTAGE (VOLTS)
0.25
0.375
0.5
0.625
0.75
0.875
1
L, LEAD LENGTH TO HEAT SINK (INCH)
Document Number: DS_D1405019
Version: K14
2M6.8Z thru 2M200Z
Taiwan Semiconductor
CREAT BY ART
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.60
0.70
25.40
5.80
25.40
Max
3.60
0.90
-
7.60
-
Unit (inch)
Min
0.102
0.028
1.000
0.228
1.000
Max
0.142
0.035
-
0.299
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Document Number: DS_D1405019
Version: K14
