DLT626PR

Description
Data Line Filter, 1 Function(s), 175V, 15A,
CategoryAnalog mixed-signal IC    filter
File Size33KB，1 Pages
ManufacturerOxley Group Ltd
Websitehttps://www.oxleygroup.com
Environmental Compliance
Download Datasheet Parametric Compare View All

DLT626PR Overview

Data Line Filter, 1 Function(s), 175V, 15A,

DLT626PR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerOxley Group Ltd
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresUNF THREAD; TIN FINISH; WAVY WASHER AND NUT
capacitance100000 µF
Maximum DC resistance0.005 Ω
diameter9.78 mm
filter typeDATA LINE FILTER
Maximum insertion loss60 dB
Minimum insulation resistance1000 MΩ
JESD-609 codee3
Installation typePANEL MOUNT
Number of functions1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
physical sizeD9.78XL10.83 (mm)
Rated current15 A
Rated voltage175 V
Terminal surfaceTin (Sn)
Base Number Matches1

Preview

Download Datasheet

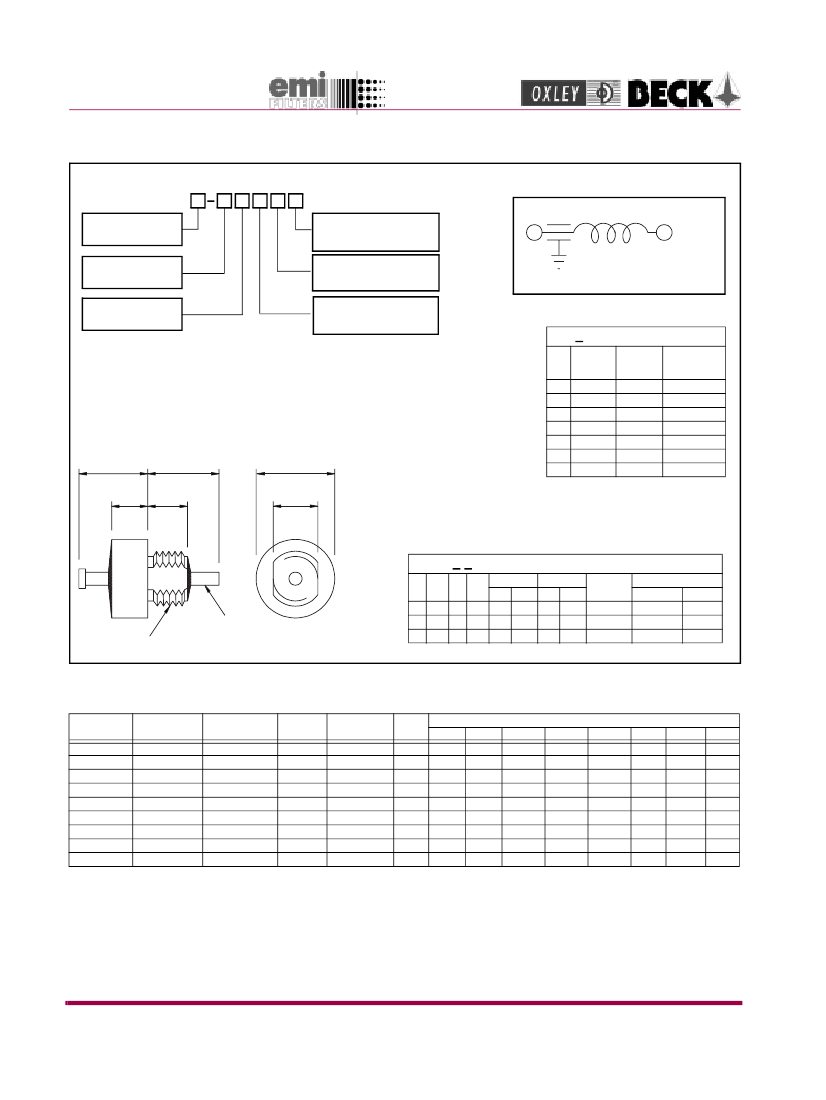

Panel Mounted
Panel Mounted L Circuit Filters
Ordering Information
e.g.
DLT326PR
Blank - UNF thread
M - Metric thread
Blank - No special conditioning
Bu - Standard burn in
Bx - Burn in to cust. req.
Blank - Wavy washer & nut
T - Toothed washer & nut
N - No hardware
Blank - Tin finish
G - Gold
S - Silver
DLT
Circuit Diagram
THD
END
Blank - Standard thread
L - Long thread
Blank - Standard pin
P1-P6 - Consult factory
Voltage Rating
DLT# _ _ _ —
#
3
-55°C to
+85°C
V d.c.
80
100
150
200
300
450
600
-55°C to
+125°C
V d.c.
70
87
130
175
260
400
530
-55°C to
+125°C
V a.c. 400 Hz
50
62
90
125
185
280
325
For Test Conditions see page63
Environmental Classification
55/125/56 Non-Hermetic
4
5
6
7
8
L3 + 0 - 1.5
L4 + 0 - 1.5
D1
9
L1
L2 – 0.3
5.08
Case Dimensions
All dimensions maximum unless otherwise stated, in millimetres.
DLT _ # # _ —
##
D1
L1
L3
Mounting Max Panel Thickness
Style
Std. Long Std. Long
Std
Long
7.95
7.95
7.95
8.9
8.9
9.3
12
12
12.4
B or C
B or C
B or C
1.5
1.5
1.5
3.0
3.0
3.0
L2
L4
25 9.78 4.6 8.25 4.83
Lead 1.0
Thread
1
/
4
"-28 UNF 2A
M6 x 0.75
26 9.78 6.0 10.1 4.83
50 9.78 4.6 8.25 4.83
Characteristics
Part Number
DLT326PR
DLT425PR
DLT426PR
DLT526PR
DLT626PR
DLT726PR
DLT826PR
DLT926PR
DLT050B*
Rated Current
(Amps)
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
Typical Weight
(g)
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
Min. Cap.
(µF)
1.4
0.7
0.7
0.3
0.1
0.06
0.02
0.01
1.2
Max Series R
(Ω)
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.008
Min IR
(MΩ)
100
500
500
1000
1000
1000
1000
1000
100
Min. Insertion Loss (db) at Full Load Current -55°C to +125°C
15 kHz
-
-
-
-
-
-
-
-
-
30 kHz
15
9
9
4
-
-
-
-
15
100 kHz
25
20
20
12
5
2
-
-
25
150 kHz
27
23
23
16
8
4
-
-
28
300 kHz
34
29
29
21
13
8
-
-
34
1 MHz
44
39
39
31
23
18
9
5
44
10 MHz
54
52
52
48
38
33
23
19
60
1 GHz
70
70
70
70
60
50
45
40
70
*Voltage 80 V d.c./85°C, 50 V d.c./125°C. No a.c. rating. Insertion loss at 25°C only.
46
Oxley UK
Electronic Components Division
Email: sales@oxley.co.uk
Tel: +44 (0) 1229 582621
Beck Electronics
Email: sales@beck.co.uk
Tel: +44 (0) 1493 856282
Oxley Inc.
Email: sales@oxleyinc.com
Tel: (203) 488 1033
www.oxleygroup.com/emc
ODC:SMFIL:40489/3 - 1/00
