AD9712BTE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD9712BTE

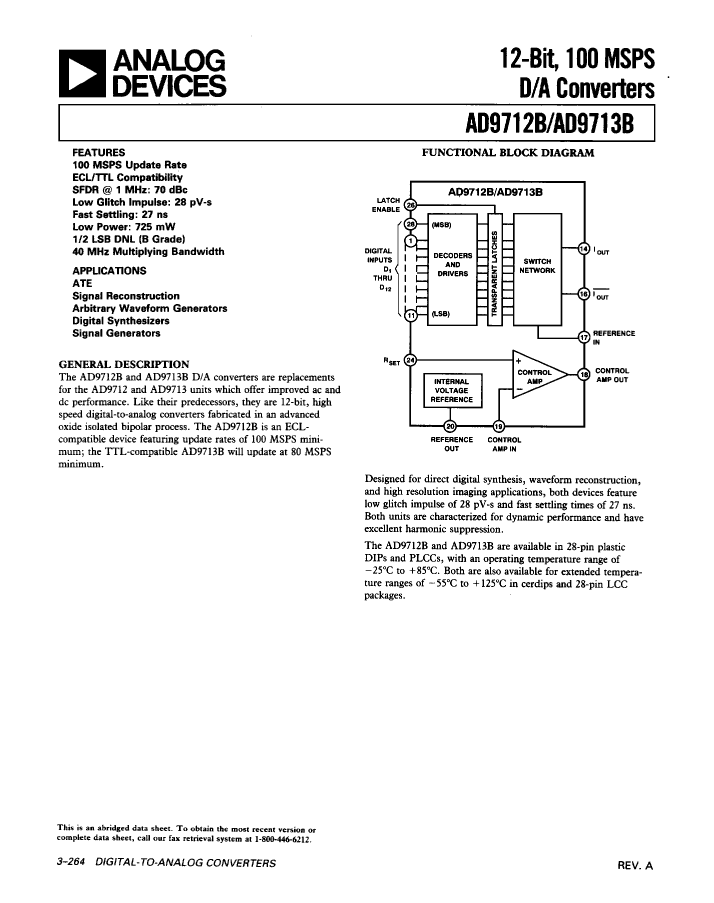

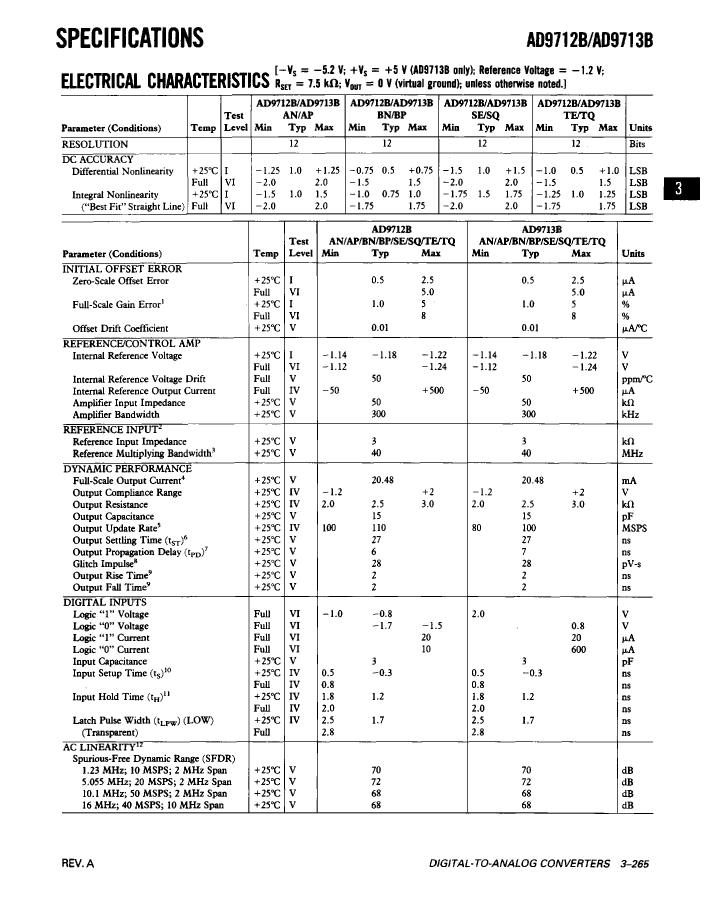

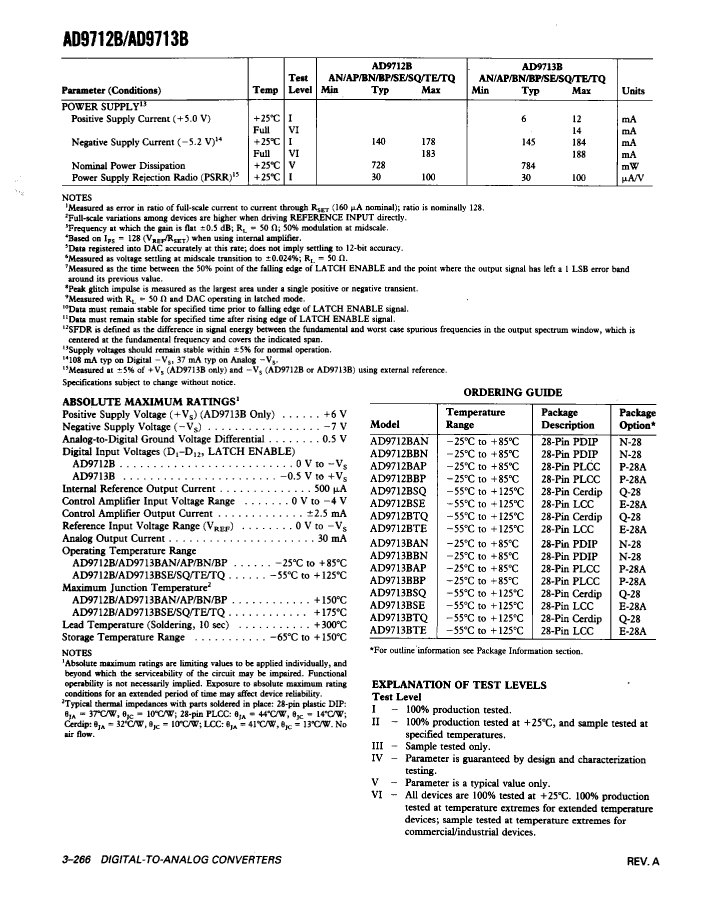

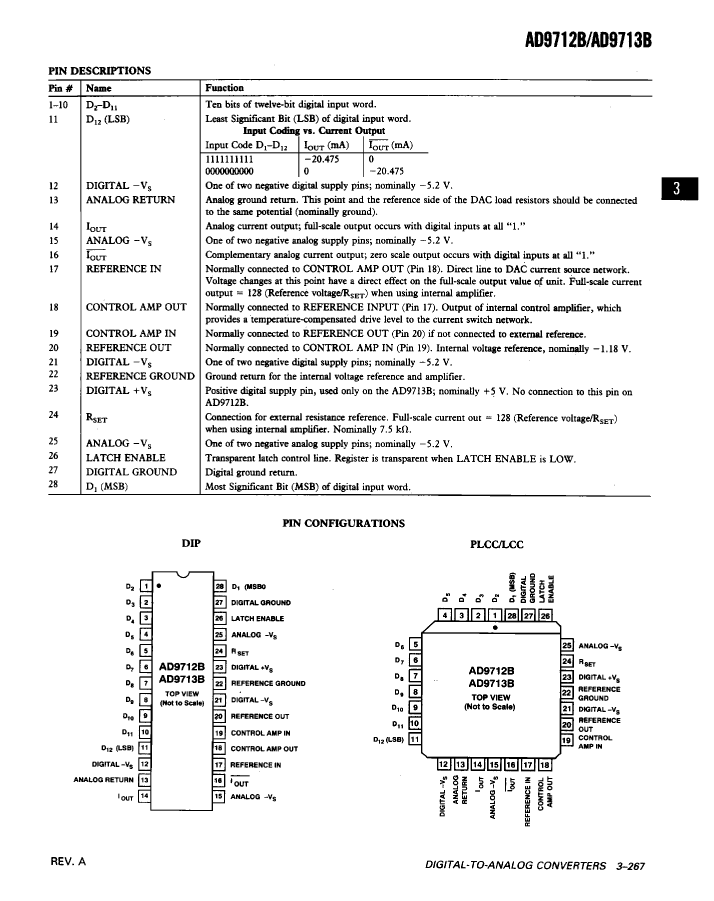

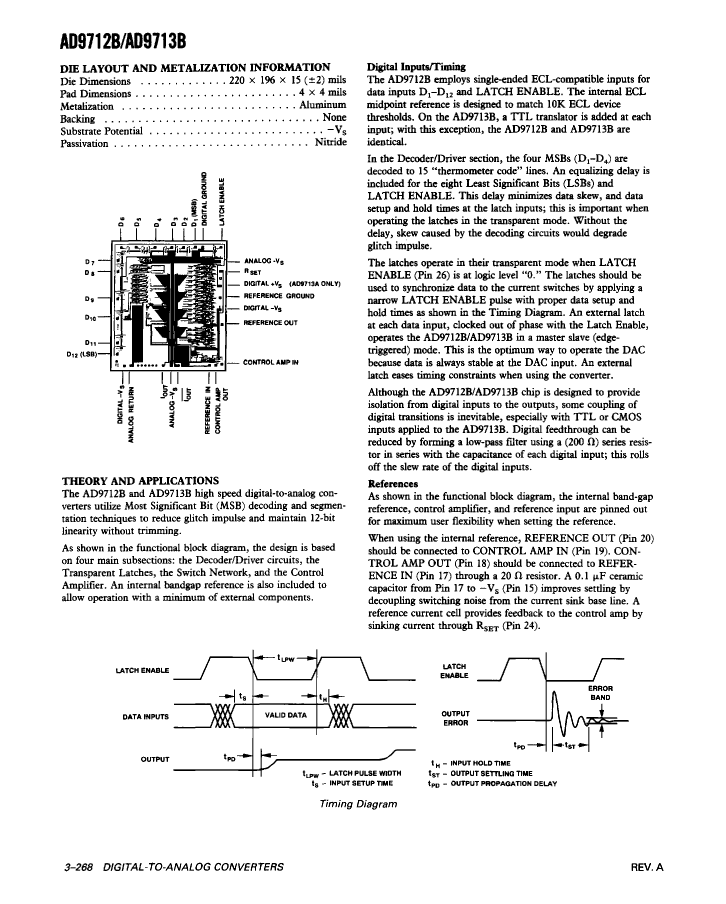

AD9712BTE: DescriptionIC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size367KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

AD9712BTE Overview

IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter

AD9712BTE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-28
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Maximum linear error (EL)	0.0427%
Nominal negative supply voltage	-5.2 V
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	-5.2 V
Certification status	Not Qualified
Maximum seat height	2.54 mm
Nominal settling time (tstl)	0.027 µs
Maximum slew rate	183 mA
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
Base Number Matches	1

Preview

Download Datasheet

View All

AD9712BTE Related Products

	AD9712BTE	AD9712BSQ	AD9712BTQ	AD9713BSE	AD9713BSQ	AD9713BTE	AD9713BTQ	AD9712BSE
Description	IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CDIP28, CERDIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CDIP28, CERDIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CDIP28, CERDIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CDIP28, CERDIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.027 us SETTLING TIME, 12-BIT DAC, CQCC28, CERAMIC, LCC-28, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI	ADI	ADI	ADI	ADI	ADI
Parts packaging code	QLCC	DIP	DIP	QLCC	DIP	QLCC	DIP	QLCC
package instruction	CERAMIC, LCC-28	CERDIP-28	CERDIP-28	CERAMIC, LCC-28	CERDIP-28	CERAMIC, LCC-28	CERDIP-28	CERAMIC, LCC-28
Contacts	28	28	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	S-CQCC-N28	R-GDIP-T28	R-GDIP-T28	S-CQCC-N28	R-GDIP-T28	S-CQCC-N28	R-GDIP-T28	S-CQCC-N28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.0427%	0.0488%	0.0427%	0.0488%	0.0488%	0.0427%	0.0427%	0.0488%
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of digits	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	DIP	QCCN	DIP	QCCN	DIP	QCCN
Encapsulate equivalent code	LCC28,.45SQ	DIP28,.6	DIP28,.6	LCC28,.45SQ	DIP28,.6	LCC28,.45SQ	DIP28,.6	LCC28,.45SQ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	220	NOT SPECIFIED	220	NOT SPECIFIED	NOT SPECIFIED
power supply	-5.2 V	-5.2 V	-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V	-5.2 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	5.72 mm	5.72 mm	2.54 mm	5.72 mm	2.54 mm	5.72 mm	2.54 mm
Nominal settling time (tstl)	0.027 µs	0.027 µs	0.027 µs	0.027 µs	0.027 µs	0.027 µs	0.027 µs	0.027 µs
Maximum slew rate	183 mA	183 mA	183 mA	188 mA	188 mA	188 mA	188 mA	183 mA
surface mount	YES	NO	NO	YES	NO	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED
width	11.43 mm	15.24 mm	15.24 mm	11.43 mm	15.24 mm	11.43 mm	15.24 mm	11.43 mm
