BA-2675-105 datasheet, PDF - EEWORLD Datasheet

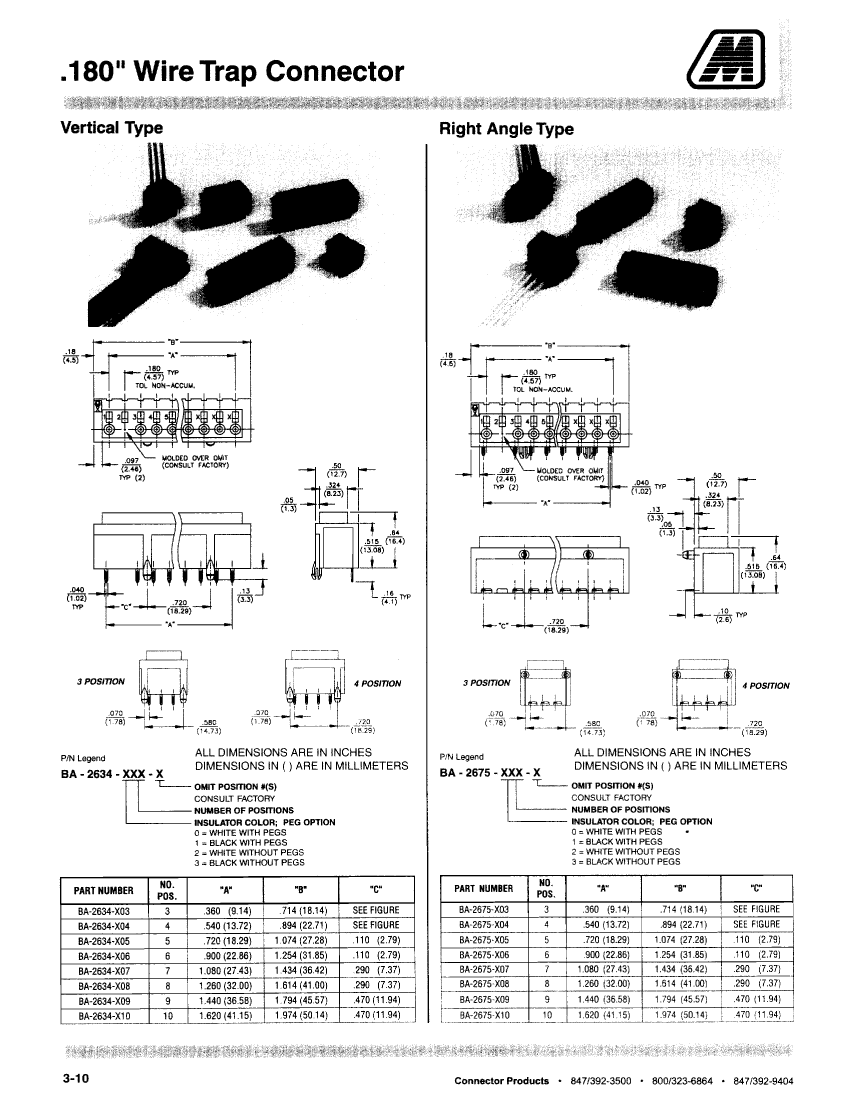

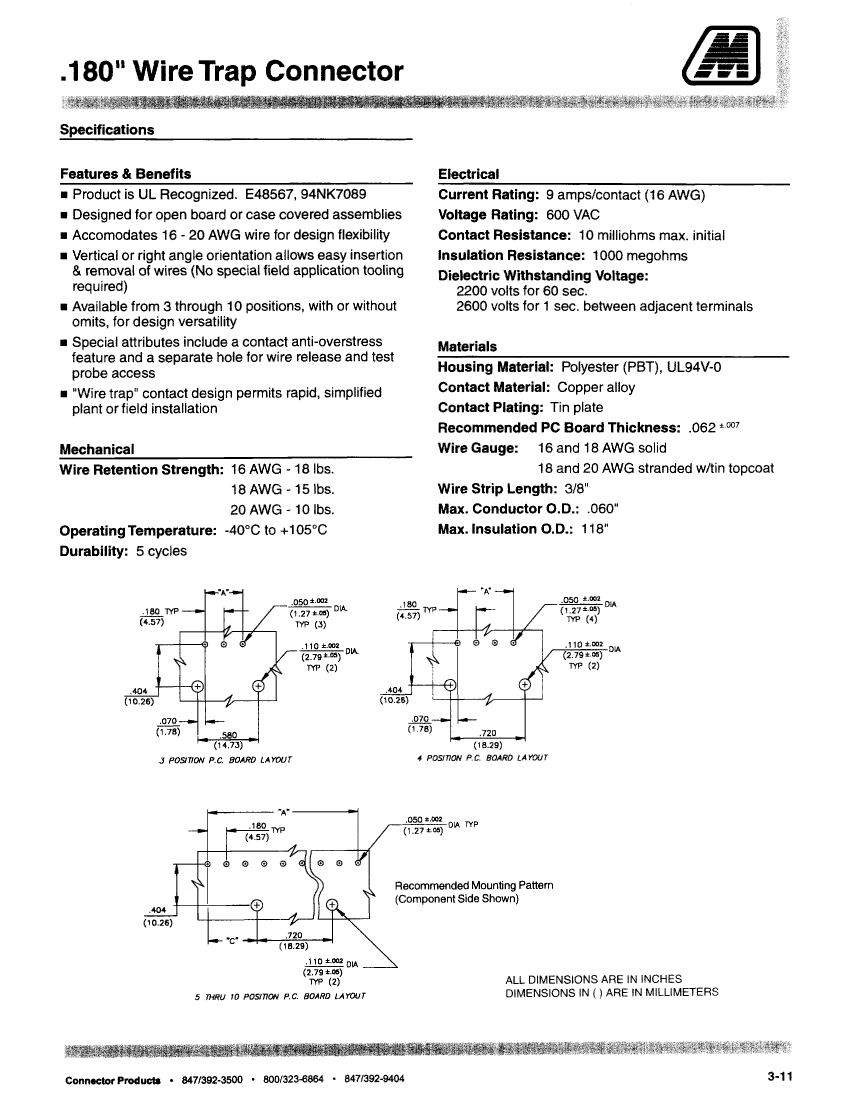

BA-2675-105: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.18 inch Pitch, Solder Terminal, Black Insulator, Plug,; CategoryThe connector The connector; File Size218KB，2 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

BA-2675-105 Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.18 inch Pitch, Solder Terminal, Black Insulator, Plug,

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.5 inch
subject depth	0.64 inch
body length	1.074 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2600VAC V
Durability	5 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.18 inch
Plug information	RIBBON CABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	9 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	4.57 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1
