IS61C64AH-15J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IS61C64AH-15J

IS61C64AH-15J: DescriptionStandard SRAM, 8KX8, 15ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28; Categorystorage storage; File Size195KB，8 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric Compare View All

IS61C64AH-15J Overview

Standard SRAM, 8KX8, 15ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28

IS61C64AH-15J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Integrated Silicon Solution ( ISSI )
Parts packaging code	SOJ
package instruction	0.300 INCH, PLASTIC, SOJ-28
Contacts	28
Reach Compliance Code	compli
ECCN code	EAR99
Maximum access time	15 ns
Other features	AUTOMATIC POWER-DOWN
I/O type	COMMON
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
length	18.161 mm
memory density	65536 bi
Memory IC Type	STANDARD SRAM
memory width	8
Humidity sensitivity level	3
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.556 mm
Maximum standby current	0.006 A
Minimum standby current	4.5 V
Maximum slew rate	0.135 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.59 mm
Base Number Matches	1

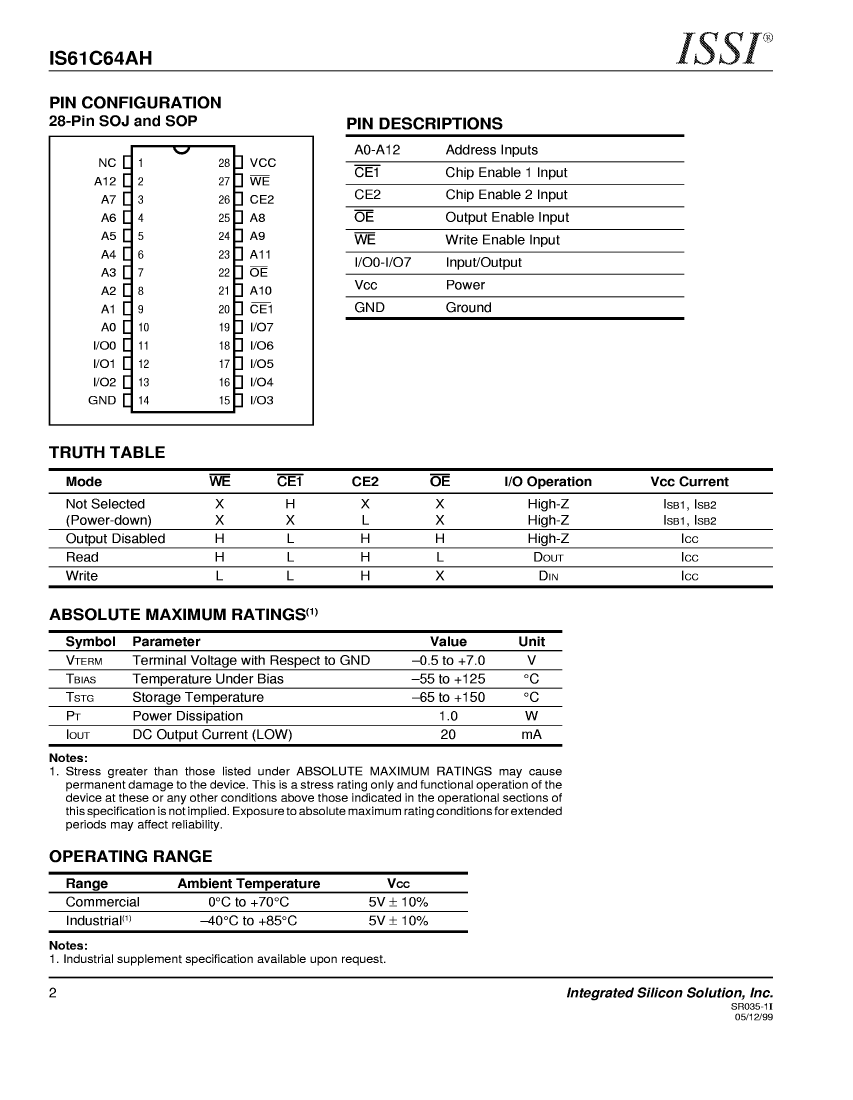

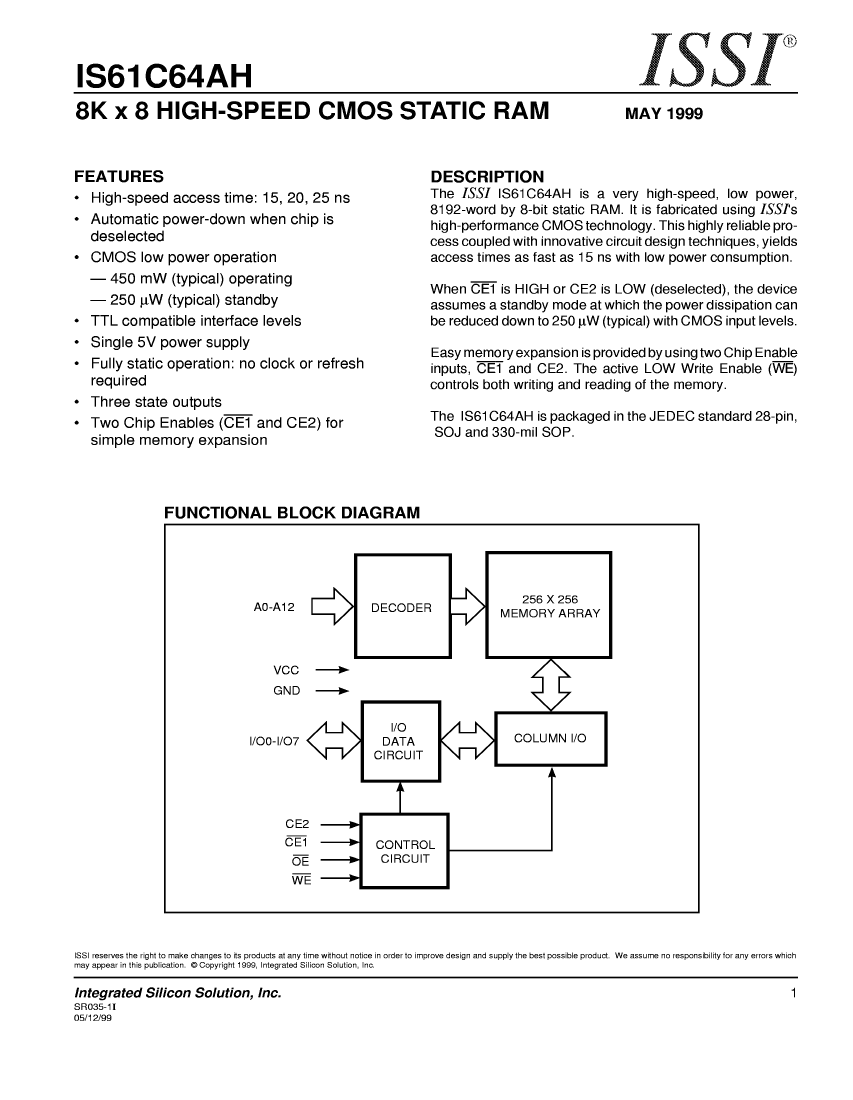

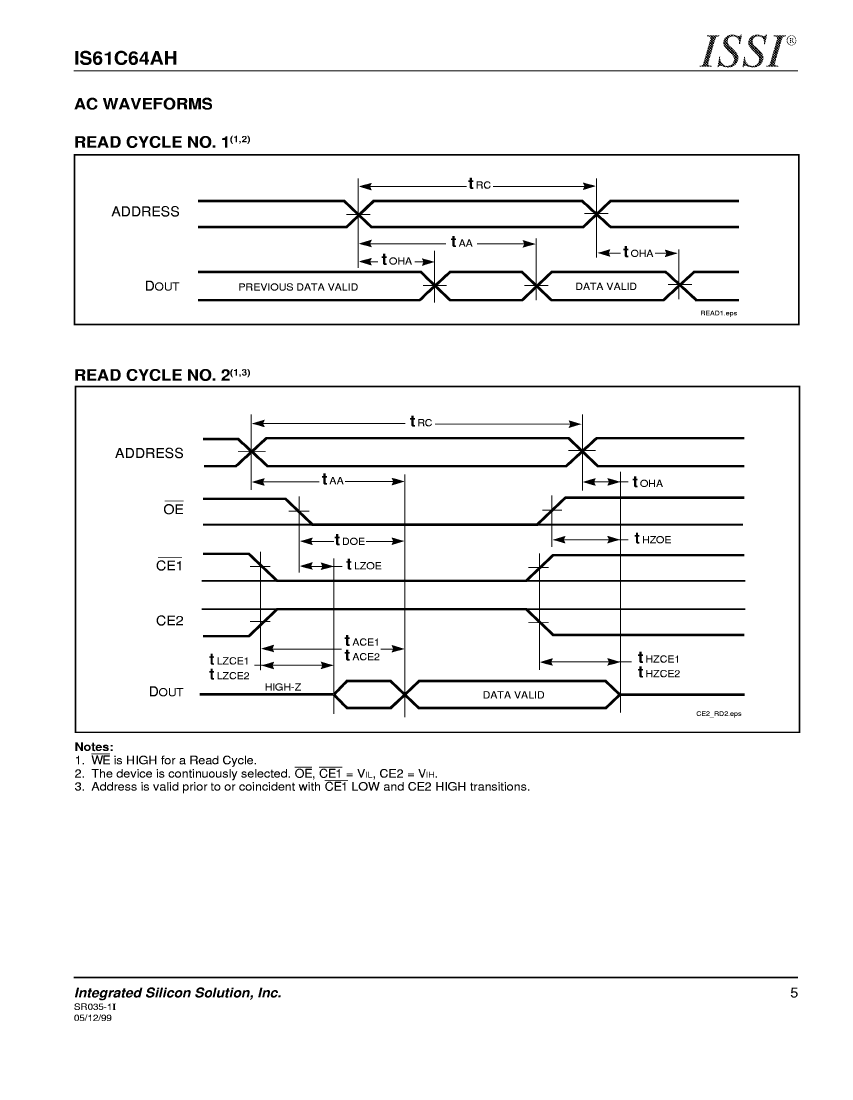

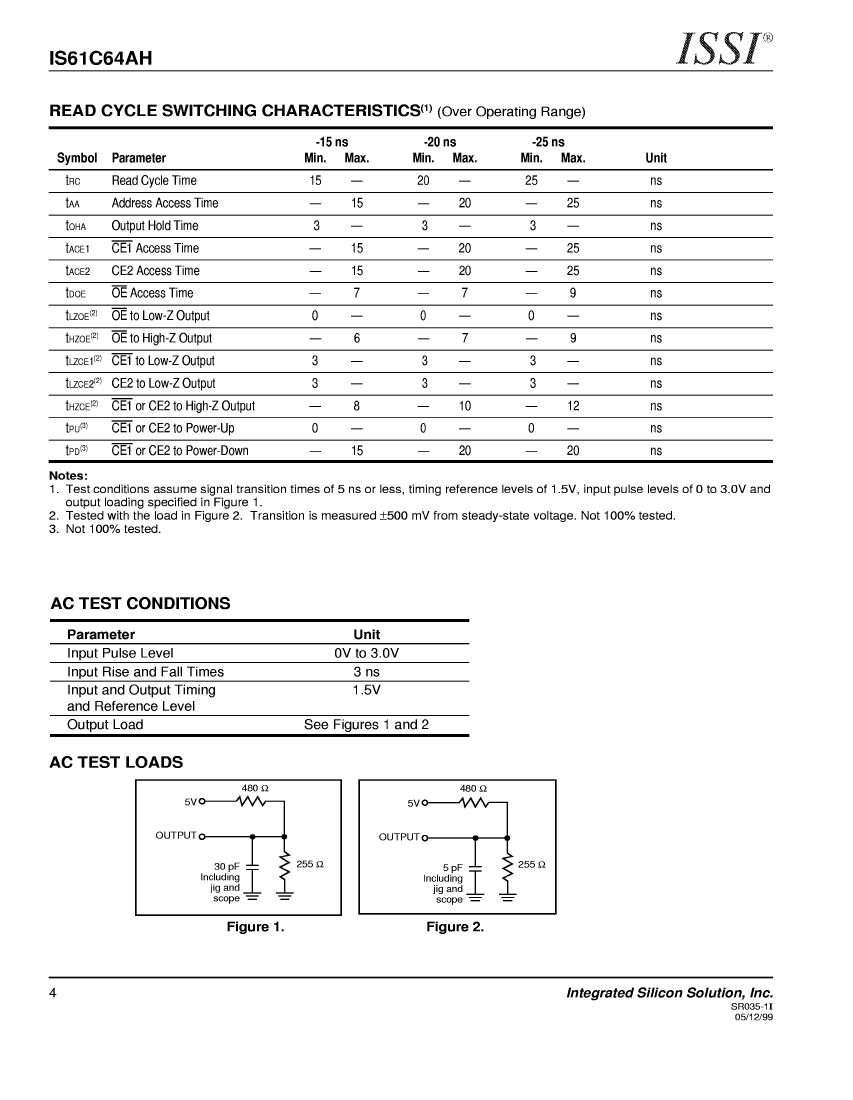

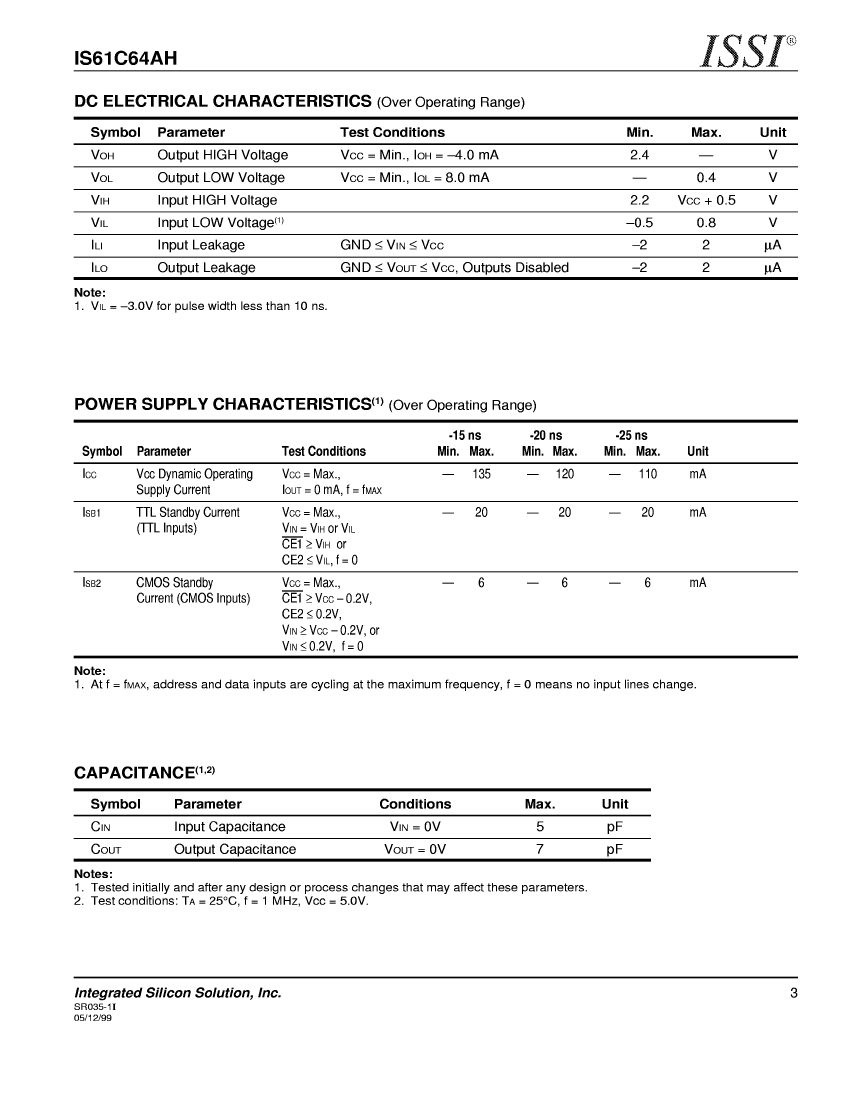

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

IS61C64AH-15J Related Products

	IS61C64AH-15J	IS61C64AH-25U	IS61C64AH-15U	IS61C64AH-20U
Description	Standard SRAM, 8KX8, 15ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 8KX8, 25ns, CMOS, PDSO28, 0.330 INCH, PLASTIC, SOP-28	Standard SRAM, 8KX8, 15ns, CMOS, PDSO28, 0.330 INCH, PLASTIC, SOP-28	Standard SRAM, 8KX8, 20ns, CMOS, PDSO28, 0.330 INCH, PLASTIC, SOP-28
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )
Parts packaging code	SOJ	SOIC	SOIC	SOIC
package instruction	0.300 INCH, PLASTIC, SOJ-28	0.330 INCH, PLASTIC, SOP-28	0.330 INCH, PLASTIC, SOP-28	0.330 INCH, PLASTIC, SOP-28
Contacts	28	28	28	28
Reach Compliance Code	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	15 ns	25 ns	15 ns	20 ns
Other features	AUTOMATIC POWER-DOWN	LOW POWER STANDBY MODE; AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0
length	18.161 mm	18.1 mm	18.1 mm	18.1 mm
memory density	65536 bi	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8
Humidity sensitivity level	3	3	3	3
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	8KX8	8KX8	8KX8	8KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOP	SOP	SOP
Encapsulate equivalent code	SOJ28,.34	SOP28,.5	SOP28,.5	SOP28,.5
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.556 mm	2.8448 mm	2.8448 mm	2.8448 mm
Maximum standby current	0.006 A	0.006 A	0.006 A	0.006 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.135 mA	0.11 mA	0.135 mA	0.12 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.59 mm	8.4 mm	8.4 mm	8.4 mm
