JTC0424S05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> JTC0424S05

JTC0424S05: DescriptionDC/DC converter 5V 4W; CategoryPower/power management The power supply circuit; File Size256KB，2 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/; Environmental Compliance

Download Datasheet Parametric View All

JTC0424S05 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JTC0424S05	-	-	View	Buy Now

JTC0424S05 Overview

DC/DC converter 5V 4W

JTC0424S05 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	XP Power
Parts packaging code	DIP
package instruction	, DIP7/24,.6
Contacts	24/8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	R-MDMA-P24
length	31.75 mm
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.8 A
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	METAL
Encapsulate equivalent code	DIP7/24,.6
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	10.9 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	4 W
Fine-tuning/adjustable output	NO
width	20.32 mm
Base Number Matches	1

Preview

Download Datasheet

View All

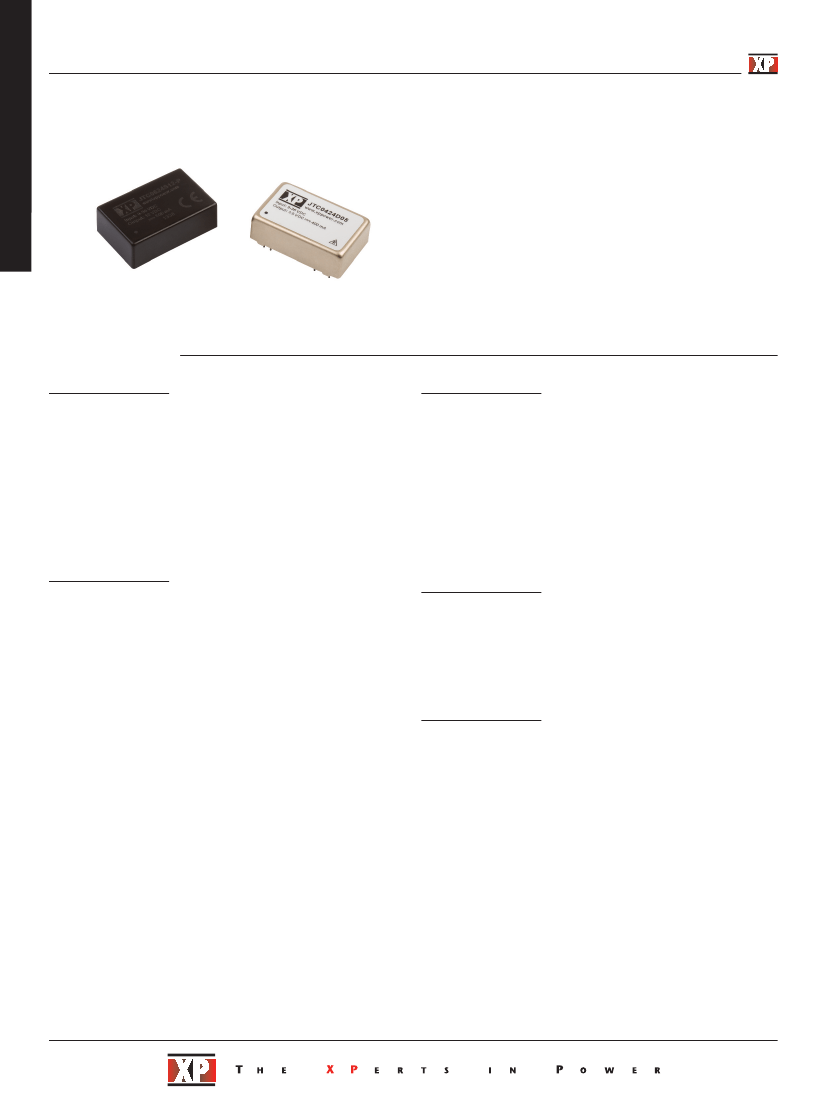

DC DC

4/6 Watts

JTC Series

•

4:1 Input Range

DIP 24 Metal Package

xppower.com

Operating Temperature 40 °C to +100 °C

Single & Dual Outputs

Continuous Short Circuit Protection

1500 VDC Isolation, 3500 VDC Option

3 Year Warranty

Specification

Input

• 24 V (9-36 VDC)

48 V (18-72 VDC)

Input Current

• See table

Input Filter

• Pi network

Input Reflected Ripple

• 35 mA pk-pk through 12 µH inductor

Input Surge

• 24 V models 40 VDC for 100 ms

48 V models 80 VDC for 100 ms

Undervoltage Lockout

• None

Input Reverse Voltage

• None

Protection

Input Voltage Range

General

Efficiency

Isolation Voltage

• See tables

• 1500 VDC Input to Output, for optional

high isolation version 3500 VDC input to

output add suffix ‘-H’ to model number

1000 VDC Input to Case

1000 VDC Output to Case

•

Ω

266 kHz typical

JTC04: 10 W/in

, JTC06: 15 W/in

>1.0 MHrs to MIL-HDBK-217F

at 25 °C, GB

Isolation Resistance

Switching Frequency

Power Density

MTBF

Output

Output Voltage

Output Voltage Balance

Minimum Load

Initial Set Accuracy

Start Up Delay

Start Up Rise Time

Line Regulation

Load Regulation

Cross Regulation

Transient Response

Ripple & Noise

•

See table

±1% max, dual output models

No minimum load required

±1% max

<800 ms

<10 ms

±0.5% max

±0.5% max, ±1.5% max for 3.3 V and

±3.3 V models

±5% on dual output models (see note 4)

<1.5% max deviation, recovery to within

1% in 200 µs for a 50% load change

60 mV pk-pk for 3.3 V to 15 V models,

100 mV pk-pk for 18 V models,

150 mV pk-pk for 24 V models,

20 MHz bandwidth

Trip & restart (Hiccup mode),

auto recovery

See tables

Environmental

Operating Temperature

• -40 °C to +100 °C, derate from 100% load

at +85 °C to no load at +100 °C

Case Temperature

• +100 °C max

Storage Temperature

• -40 °C to +125 °C

Humidity

• Up to 95%, non-condensing

Cooling

• Natural convection

EMC

Emissions

ESD Immunity

• EN55022 class A conducted with external

components - see application note

• EN61000-4-2,

8 kV air discharge Perf Criteria A,

4 kV contact discharge Perf Criteria A

• EN61000-4-4, level 1, Perf Criteria A

• EN61000-4-6, 3 Vrms, Perf Criteria A

• EN61000-4-8, 1 A/m, Perf Criteria A

Short Circuit Protection

•

Maximum Capacitive

Load

Temperature

Coefficient

•

EFT/Burst

Conducted Immunity

Magnetic Fields
