8419-16-40-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8419-16-40-1

Preview

8419-16-40-1: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8419-16-40-1 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

8419-16-40-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307762325
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.2 inch
subject depth	0.126 inch
body length	2.016 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8419
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40

Preview

Download Datasheet

View All

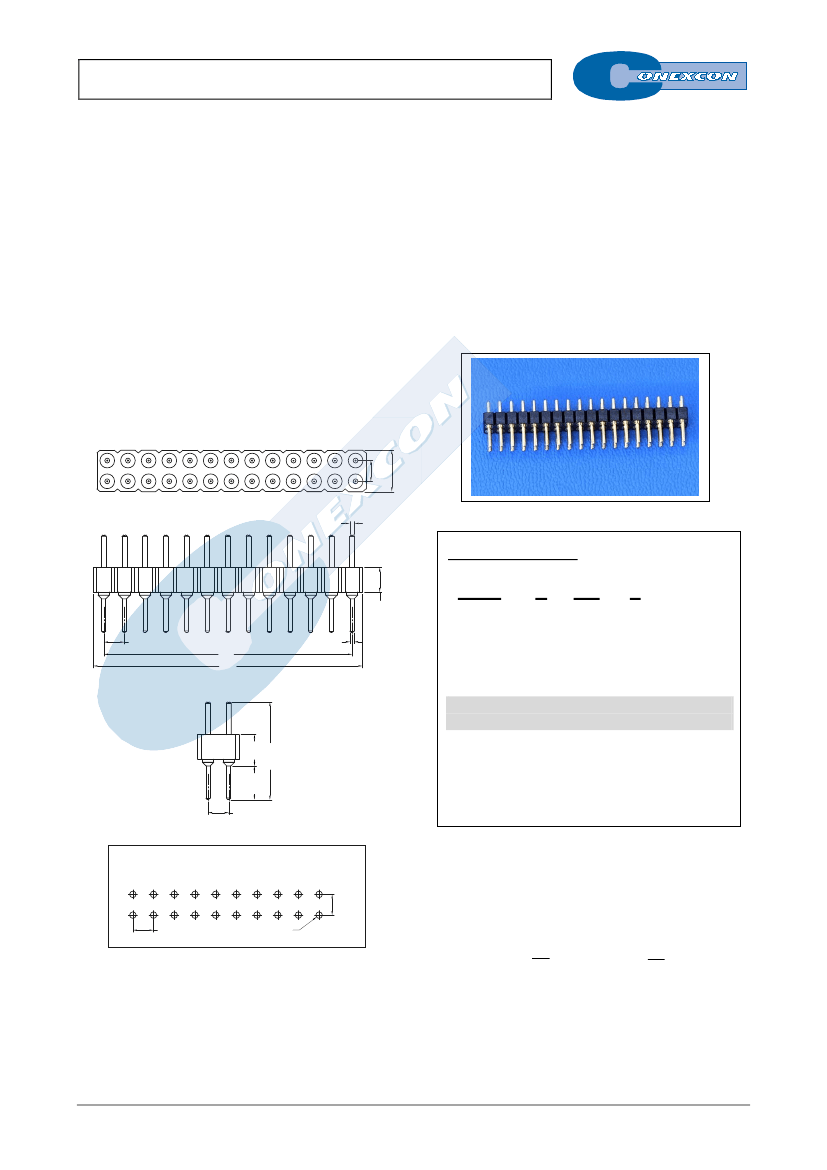

DUAL ROW VERTICAL PIN HEADER

8419 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch. Machined contact.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with sockets 2.54 mm pitch 8411, 8415 and

8417 series



0.76 mm round in pin contact area with different

plating and 0.60 mm in solder Pcb area

Materials



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 0.80 Kgf



Durability: 500 Cycles

Dimension Information

2

4

1

3

ø0.76

5.08±0.15

2.54±0.15

Ordering Information:

8419 -

3.00±0.15

T-

2

XX-

3

1

4

1

2.54±0.10

A

B

ø0.60

1. Connector Series

2. (T) Contact Plating



T =

3.

gold flash over 30-50µ" Ni overall

Recommended Finish

11.20



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

3.00

3.20

2.54±0.10



Available in 4 through 80 circuits

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)

2.54±0.15

DIMENSIONS:

2.54

ø0.80



XX



A

=

2.54



2

−

1







XX

= Number of circuits

B

=

2.54







XX





+

0.40

2





A-XX

FULL LINE CATALOGUE

Recommended Resources

GPS RF front-end circuit diagram composed of MX2740

MB3731 power amplifier circuit diagram

Stator winding series resistance starting control

AN7178 power amplifier circuit

555 refrigerator power off protector circuit
