DINSS-M3216ASDW2-1-L datasheet, PDF

Datasheet> All Categories > The connector> The connector> DINSS-M3216ASDW2-1-L

DINSS-M3216ASDW2-1-L: DescriptionBoard Euro Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle; CategoryThe connector The connector; File Size424KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

DINSS-M3216ASDW2-1-L Overview

Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle

DINSS-M3216ASDW2-1-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305259359
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.433 inch
subject depth	0.457 inch
body length	2.14 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	CENTRONIC
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	IVORY
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DINS
Plug contact pitch	0.2 inch
Match contact row spacing	0.2 inch
Installation option 1	LOCKING
Installation option 2	BOARDLOCK
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.157 inch
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

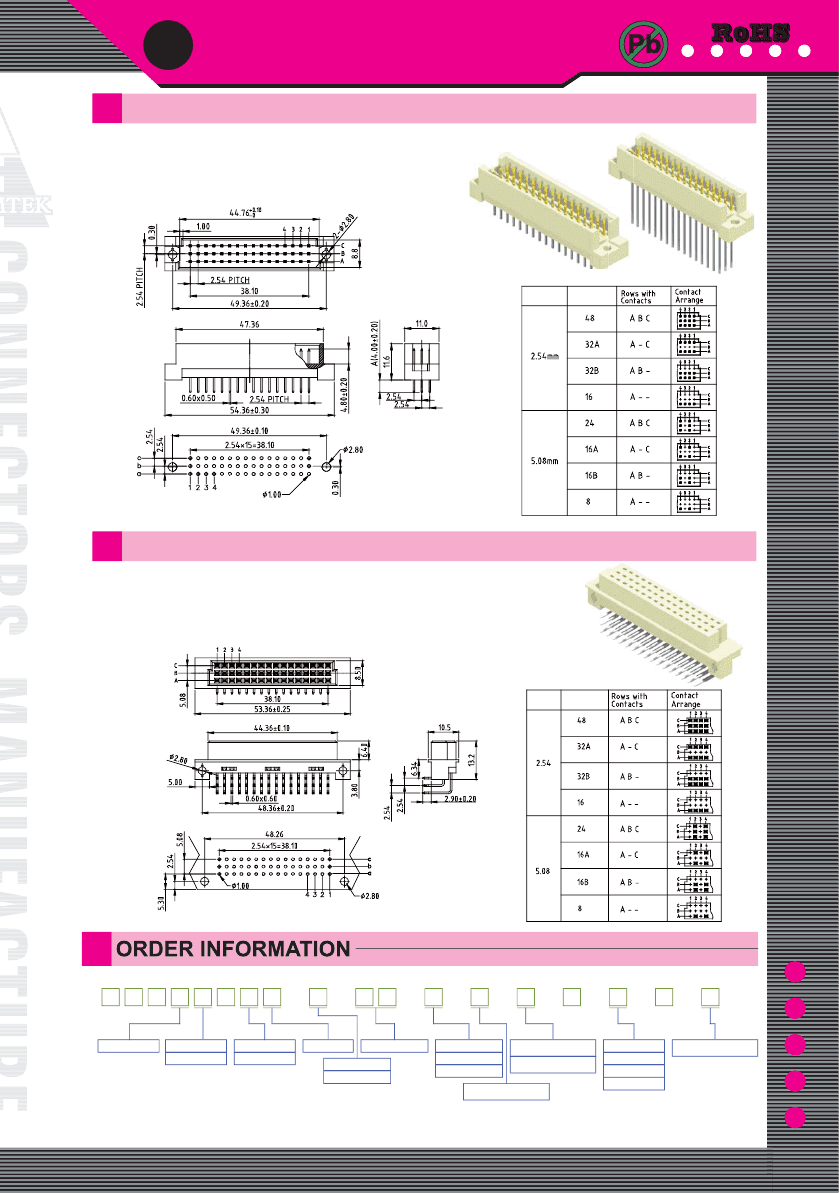

IN 41612 Conn. Series

DIN 41612 Short Body R Type Male

Specifications

Current Rate:2 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-55°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT

Terminal:Copper Alloy

Plating:Selective Gold Plating

Part No.:DINSS-M3XX-L

DIN 41612 Short Body R Type Female

Specifications

Current Rate:2 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-55°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT

Terminal:Copper Alloy

Plating:Selective Gold Plating

Part No.:DINSR-F3XX-L

I N S X

R :R ig h t A ngle

S :S traight

- X 3

M :M ale

F :F em ale

3 :3 Row s

X X

N o . o f Contacts

S :S e le ctive

S F :S e le ctive 15"

S D :S e le ctive 30u"

1 :D im . A = 4 .0

2 :D im . A = 2 .5

3:D im . A = 13.0

F o r D IN SS -M 3X X X O nly

L :R o H S + P B T

S:Short B ody

1 :W /O B oa rd lock

2 :W ith B oa rdlock

1 :P itch 2.54m m

2 :P itch 5.08m m

W :Ivo ry Insulator

Standard Recommended

www.amtek-co.com.tw

9-4
