8D021F72BN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D021F72BN

8D021F72BN: DescriptionMIL Series Connector, 8 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size335KB，2 Pages; ManufacturerEsterline Technologies Corporation

Download Datasheet Parametric Compare View All

8D021F72BN Overview

MIL Series Connector, 8 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,

8D021F72BN Parametric

Parameter Name	Attribute value
Maker	Esterline Technologies Corporation
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Environmental characteristics	ENVIRONMENT/FIRE/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	21
Termination type	CRIMP
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

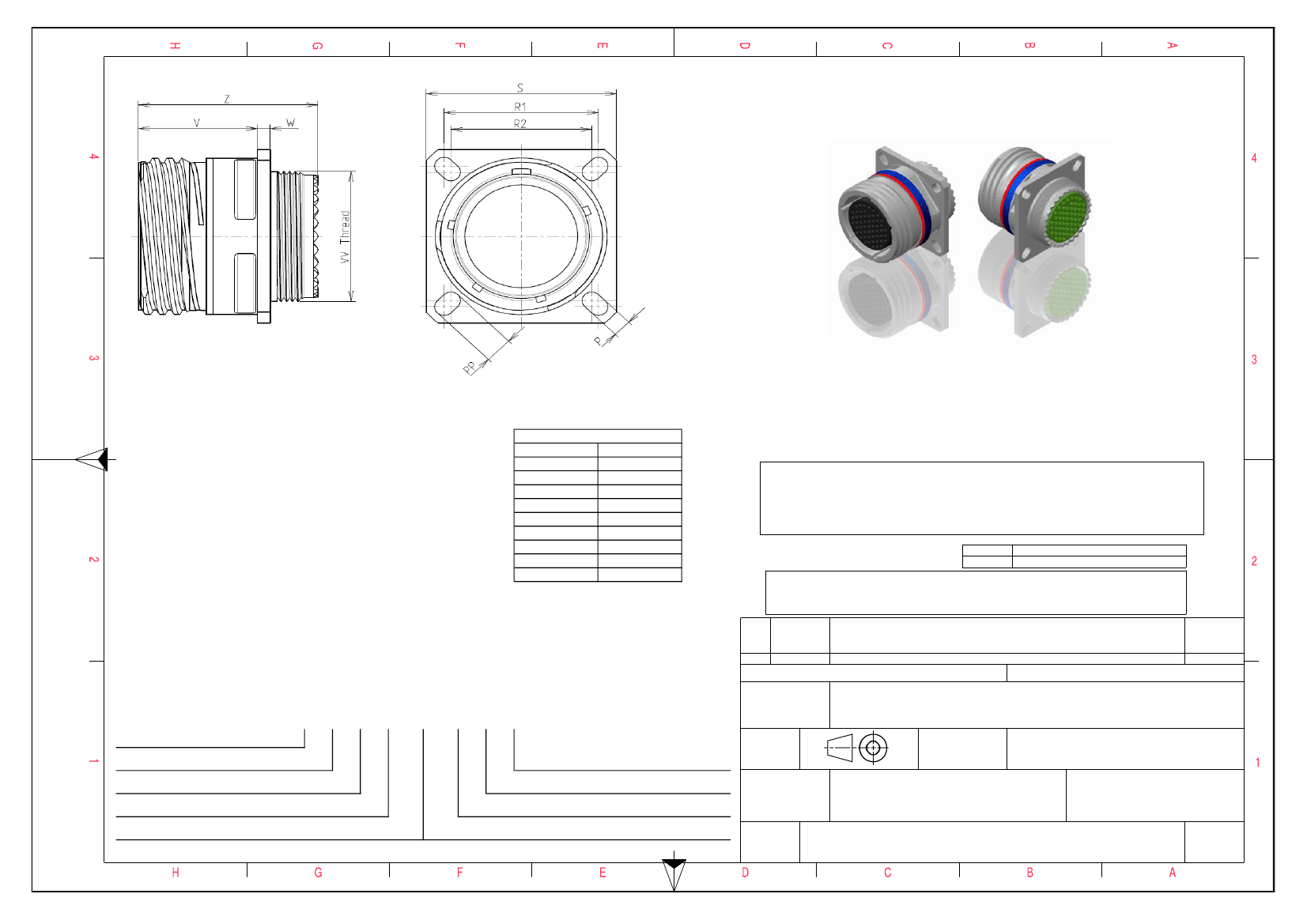

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Aluminium

: Nickel

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

3.25±0.2

4.93±0.2

31.75

29.36

39.7±0.3

20.07+0/-1.25

2.1/3.2

31.5 Max

VV THREAD

M31x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

: -65°C to +200°C

: 48 hours

PN: 8D021F72BN

ISS

02-11-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SCALE

Aluminium Receptacle 8D series

General linear

Tolerances:

±--

NPRDS / PROJECT

SHELL TYPE : Square Flange Receptacle

CONTACT TYPE

SHELL SIZE : 21

PLATING

F =

Nickel

: Standard Crimp Contact

ORIENTATION : N

CONTACT TYPE : SOCKET(500 Matings)

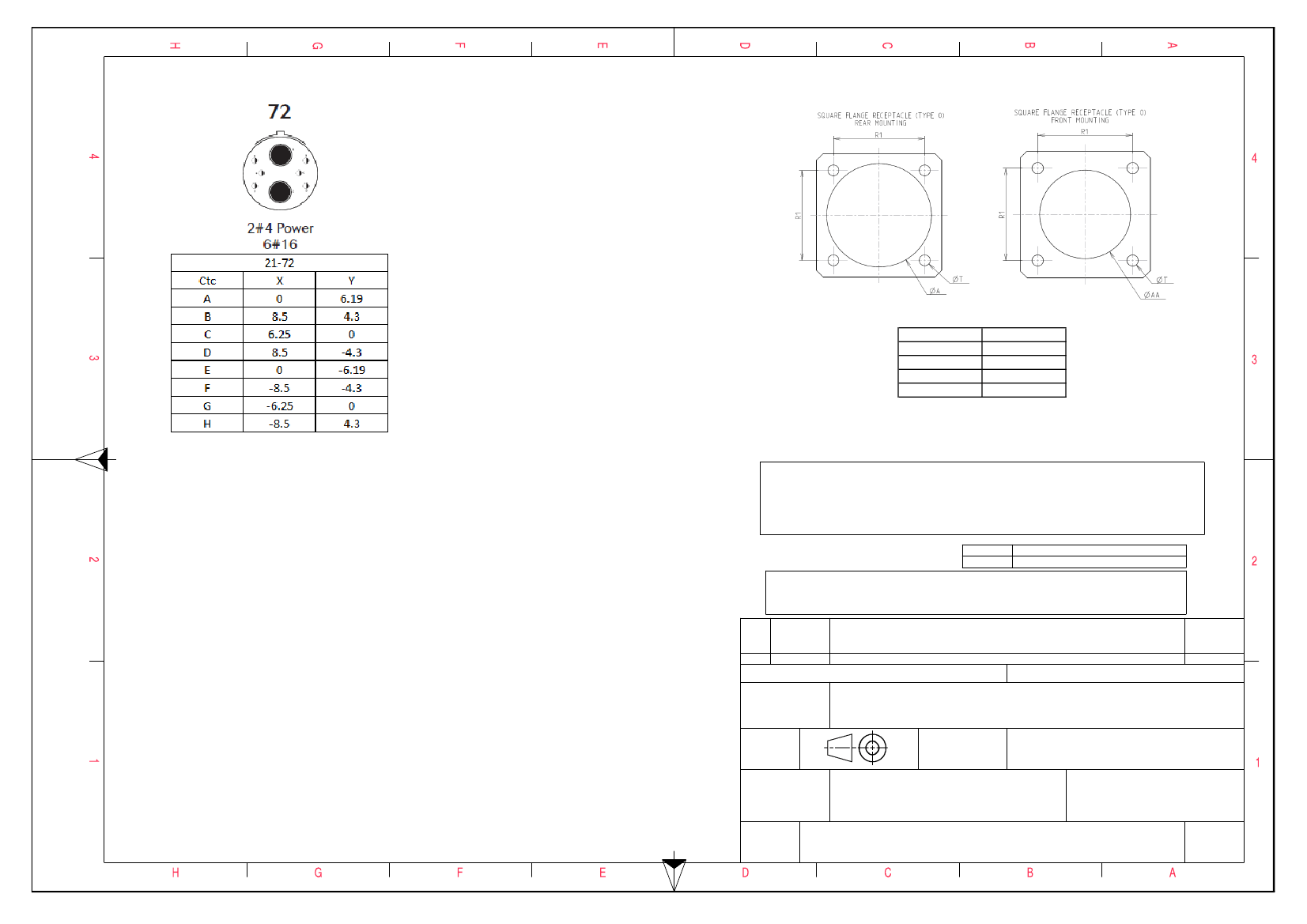

CONTACT LAYOUT : 21-72

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

FORMAT

WWW.SOURIAU.COM

SOURIAU DRG N°

8D021F72BN-C

SHEET

1/2
