5232-09TBJ: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5232-09TBJ Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

5232-09TBJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	306937912
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

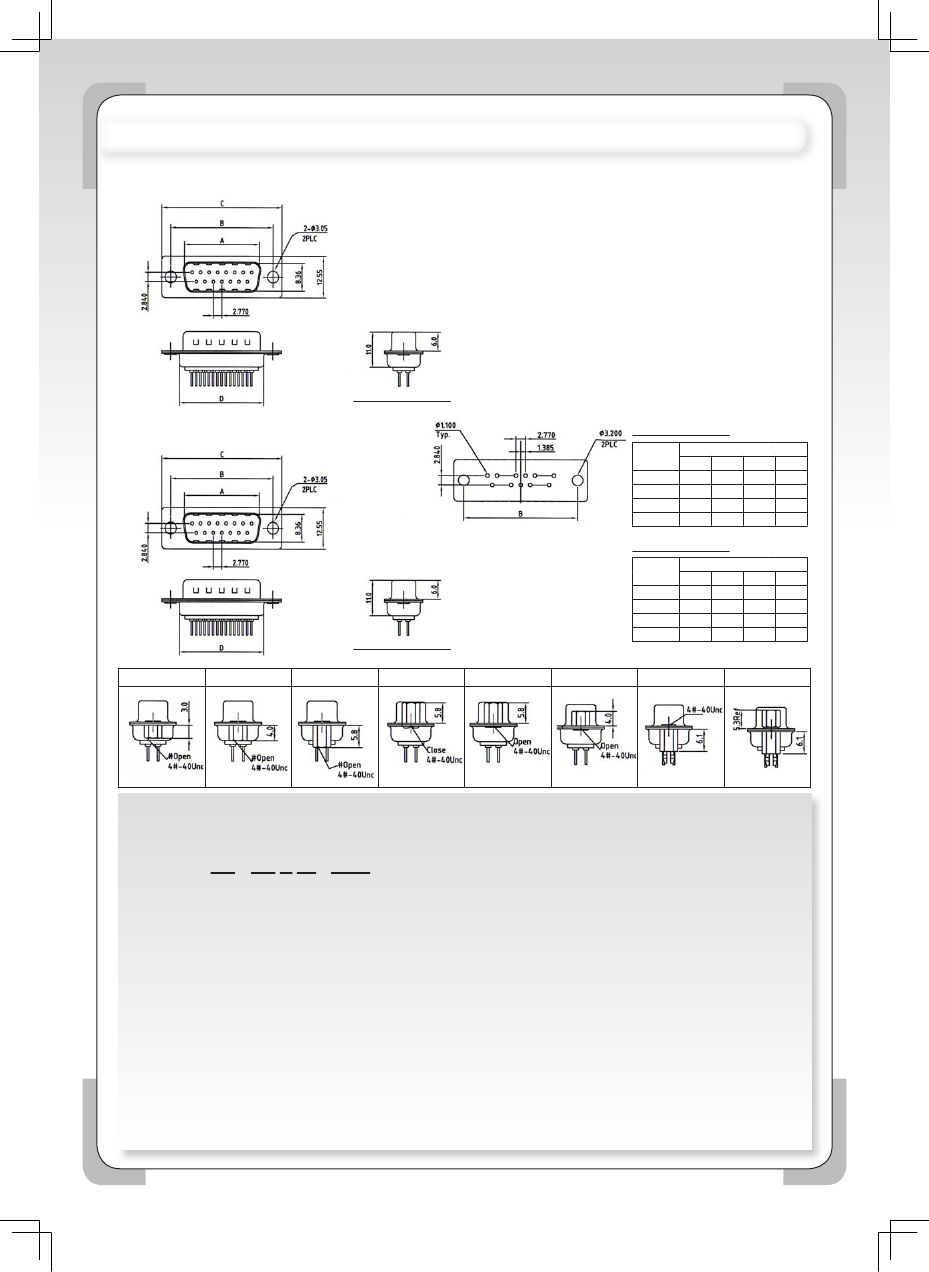

D-SUB. CONNECTOR STRAIGHT PCB MOUNT TYPE

Current Rating:

3A or 5A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

SPECIFICATIONS

MATERIALS

5231, 5233, 5235

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

5231, 5233, 5235

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

D

16.92 24.99 30.81 19.23

25.25 33.32 39.14 27.56

38.96 47.04 53.04 41.28

55.42 63.50 69.32 57.33

Recommended P.C.Board Layout

5232, 5234, 5236

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

D

16.33 24.99 30.81 19.23

24.66 33.32 39.14 27.56

38.38 47.04 53.04 41.28

54.84 63.50 69.32 57.33

5232, 5234, 5236

K3

K

K6

J

JT

J4T

BR

BRJ

ORDERING INFORMATION:

P/N 5 2 x x - x x T W / x x x

1

2 3 4

5

1. CONNECTOR TYPE:

"31" MALE WITH FULL GOLD

PLATED MACHINED CONTACTS (5A)

"32" FEMALE WITH FULL GOLD

PLATED MACHINED CONTACTS (5A)

"33" MALE WITH FULL GOLD

PLATED STAMPED CONTACTS (3A)

"34" FEMALE WITH FULL GOLD

PLATED STAMPED CONTACTS (3A)

"35" MALE WITH SELECTIVE GOLD

PLATED STAMPED CONTACTS (3A)

"36" FEMALE WITH SELECTIVE GOLD

PLATED STAMPED CONTACTS (3A)

2. NO. OF CONTACTS:

09, 15, 25, 37, 50

3. SHELL FINISH:

"T" TIN PLATED

4. INSULATOR COLOR:

"W" WHITE (STANDARD)

"B" BLACK

"U" BLUE

5. MOUNTING OPTION:

" " Ø3.05MM THROUGH HOLES

OTHERS: K, K3, K6, J, JT, J4T, BR, BRJ

C0031
