VF315BL-P-20.000MHZ datasheet, PDF

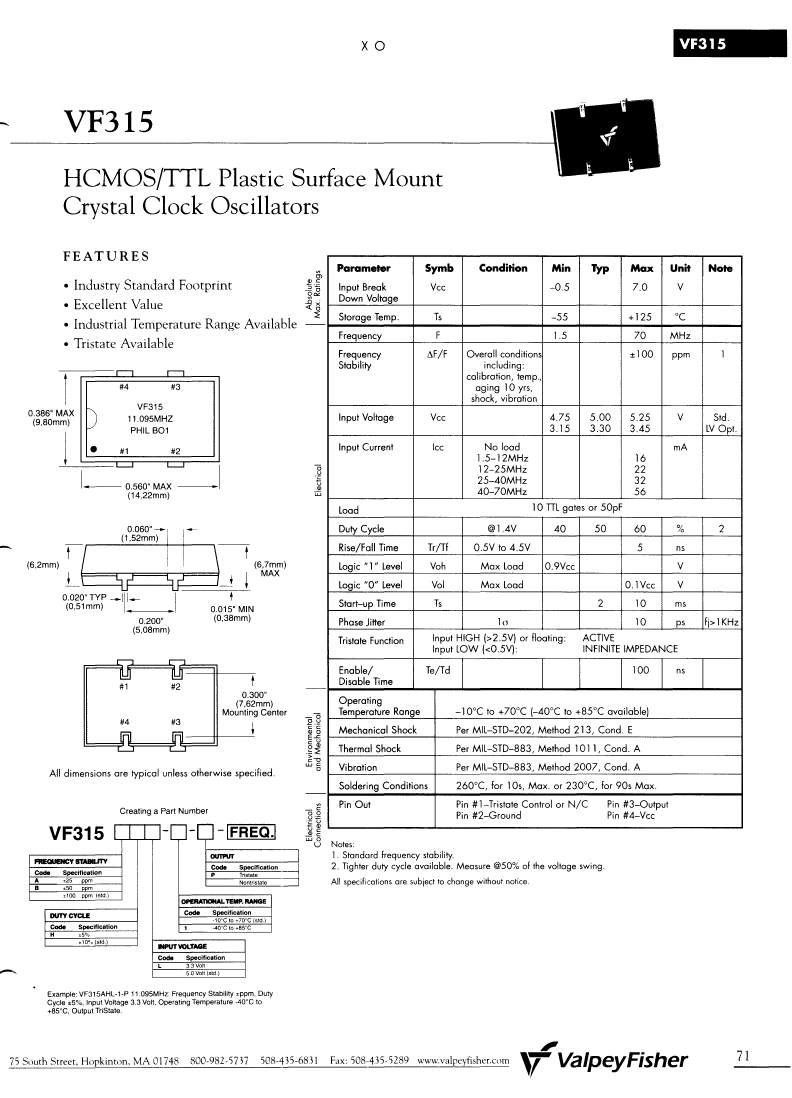

VF315BL-P-20.000MHZ: DescriptionHCMOS/TTL Output Clock Oscillator, 20MHz Nom, PLASTIC PACKAGE-4; CategoryPassive components oscillator; File Size69KB，1 Pages; ManufacturerCTS [CTS Corporation]

Download Datasheet Parametric View All

VF315BL-P-20.000MHZ Overview

HCMOS/TTL Output Clock Oscillator, 20MHz Nom, PLASTIC PACKAGE-4

Parameter Name	Attribute value
Objectid	1875026851
Reach Compliance Code	unknown
Other features	TRISTATE; ENABLE/DISABLE FUNCTION
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	VF315
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 50 pF
physical size	14.22mm x 9.8mm x 6.2mm
longest rise time	5 ns
Maximum supply voltage	3.45 V
Minimum supply voltage	3.15 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
