45E1FF: Description1 FUNCTIONS, 45 MHz, 3.75 kHz BW(delta f), CRYSTAL FILTER, CASE UM-1S, 3 PIN; CategoryAnalog mixed-signal IC filter; File Size462KB，1 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

45E1FF Overview

1 FUNCTIONS, 45 MHz, 3.75 kHz BW(delta f), CRYSTAL FILTER, CASE UM-1S, 3 PIN

45E1FF Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	2 POLE
Maximum attenuation frequency (+/- delta f)	12.5 kHz
Attenuation at maximum frequency	10 dB
Bandwidth (+/- delta f)	3.75 kHz
Center frequency or cutoff frequency (fo/fc)	45 MHz
filter type	CRYSTAL FILTER
high	8 mm
Input/output impedance	200 OHM//4
Maximum insertion loss	2 dB
length	7.8 mm
Manufacturer's serial number	45E1FF
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
physical size	L7.8XB2.6XH8.0 (mm)/L0.307XB0.102XH0.315 (inch)
width	2.6 mm
Base Number Matches	1

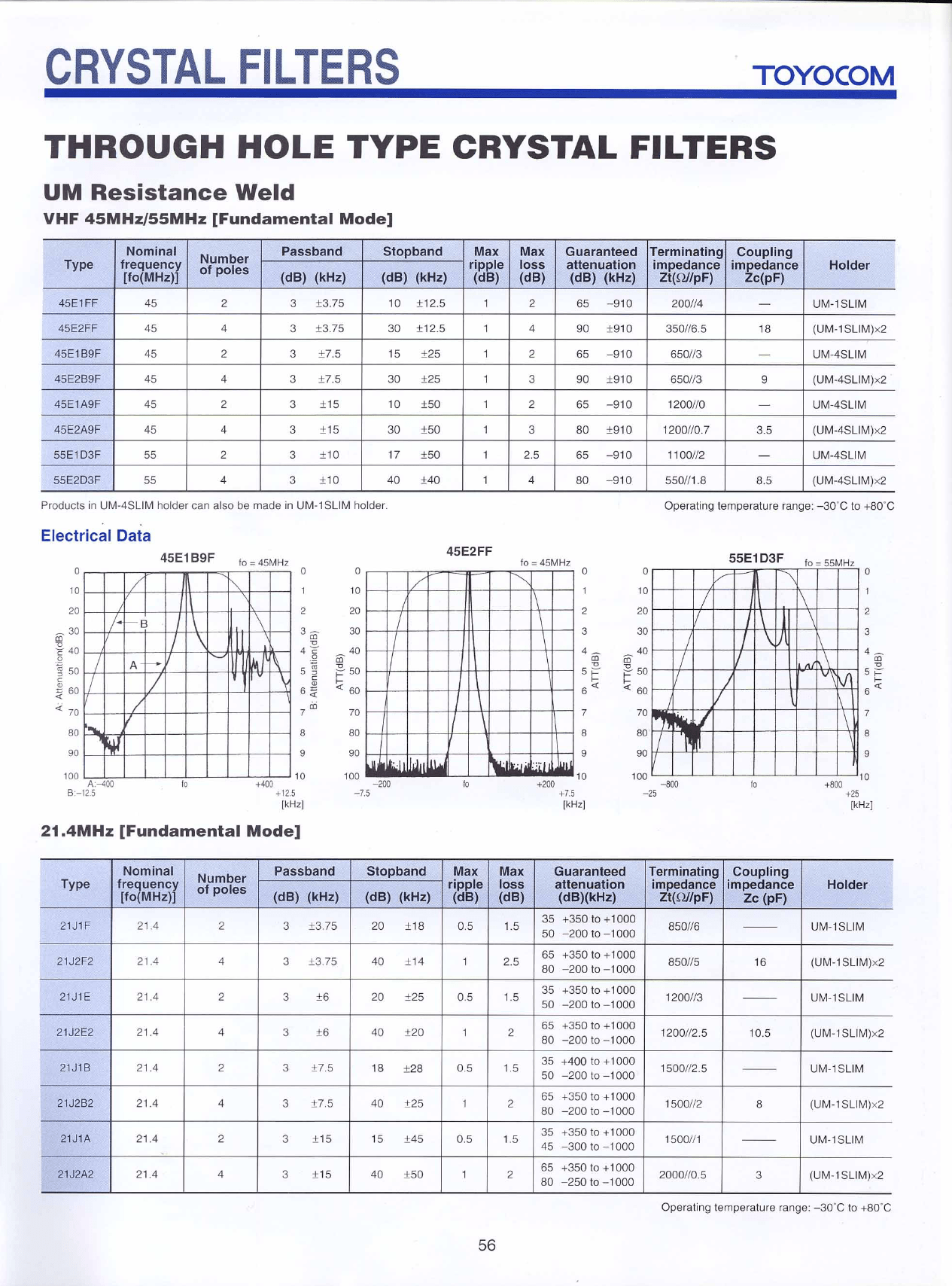

Preview

Download Datasheet

View All

45E1FF Related Products

	45E1FF	21J2A2	21J1E	21J1F	21J1B	21J2B2	45E1A9F	55E2D3F	55E1D3F
Description	1 FUNCTIONS, 45 MHz, 3.75 kHz BW(delta f), CRYSTAL FILTER, CASE UM-1S, 3 PIN	1 FUNCTIONS, 21.4 MHz, 15 kHz BW(delta f), CRYSTAL FILTER, CASE UM-1S	1 FUNCTIONS, 21.4 MHz, 6 kHz BW(delta f), CRYSTAL FILTER, CASE UM-1S	1 FUNCTIONS, 21.4 MHz, 3.75 kHz BW(delta f), CRYSTAL FILTER, CASE UM-1S	1 FUNCTIONS, 21.4 MHz, 7.5 kHz BW(delta f), CRYSTAL FILTER, CASE UM-1S	1 FUNCTIONS, 21.4 MHz, 7.5 kHz BW(delta f), CRYSTAL FILTER, CASE UM-1S	1 FUNCTIONS, 45 MHz, 15 kHz BW(delta f), CRYSTAL FILTER, CASE UM-4S, 3 PIN	1 FUNCTIONS, 55 MHz, 10 kHz BW(delta f), CRYSTAL FILTER, CASE UM-4S, 3 PIN	1 FUNCTIONS, 55MHz, 10kHz BW(delta f), CRYSTAL FILTER, CASE UM-4S, 3 PIN
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown
Other features	2 POLE	4 POLE	2 POLE	2 POLE	2 POLE	4 POLE	2 POLE	4 POLE	2 POLE
Maximum attenuation frequency (+/- delta f)	12.5 kHz	50 kHz	25 kHz	18 kHz	28 kHz	25 kHz	50 kHz	40 kHz	50 kHz
Attenuation at maximum frequency	10 dB	40 dB	20 dB	20 dB	18 dB	40 dB	10 dB	40 dB	17 dB
Bandwidth (+/- delta f)	3.75 kHz	15 kHz	6 kHz	3.75 kHz	7.5 kHz	7.5 kHz	15 kHz	10 kHz	10 kHz
Center frequency or cutoff frequency (fo/fc)	45 MHz	21.4 MHz	21.4 MHz	21.4 MHz	21.4 MHz	21.4 MHz	45 MHz	55 MHz	55 MHz
filter type	CRYSTAL FILTER	CRYSTAL FILTER	CRYSTAL FILTER	CRYSTAL FILTER	CRYSTAL FILTER	CRYSTAL FILTER	CRYSTAL FILTER	CRYSTAL FILTER	CRYSTAL FILTER
Input/output impedance	200 OHM//4	2000 OHM//0.5	1200 OHM//3	850 OHM//6	1500 OHM//2.5	1500 OHM//2	1200 OHM	550 OHM//1.8	1100 OHM//2
Maximum insertion loss	2 dB	2 dB	1.5 dB	1.5 dB	1.5 dB	2 dB	2 dB	4 dB	2.5 dB
Manufacturer's serial number	45E1FF	21J2A2	21J1E	21J1F	21J1B	21J2B2	45E1A9F	55E2D3F	55E1D3F
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Base Number Matches	1	1	1	1	1	1	1	-	-
