73JB200
73 Series Precision Potentiometer, Wire Wound Element,
Solder lug Terminals, 2 W Power Rating, 200 Ohm
Resistance Value

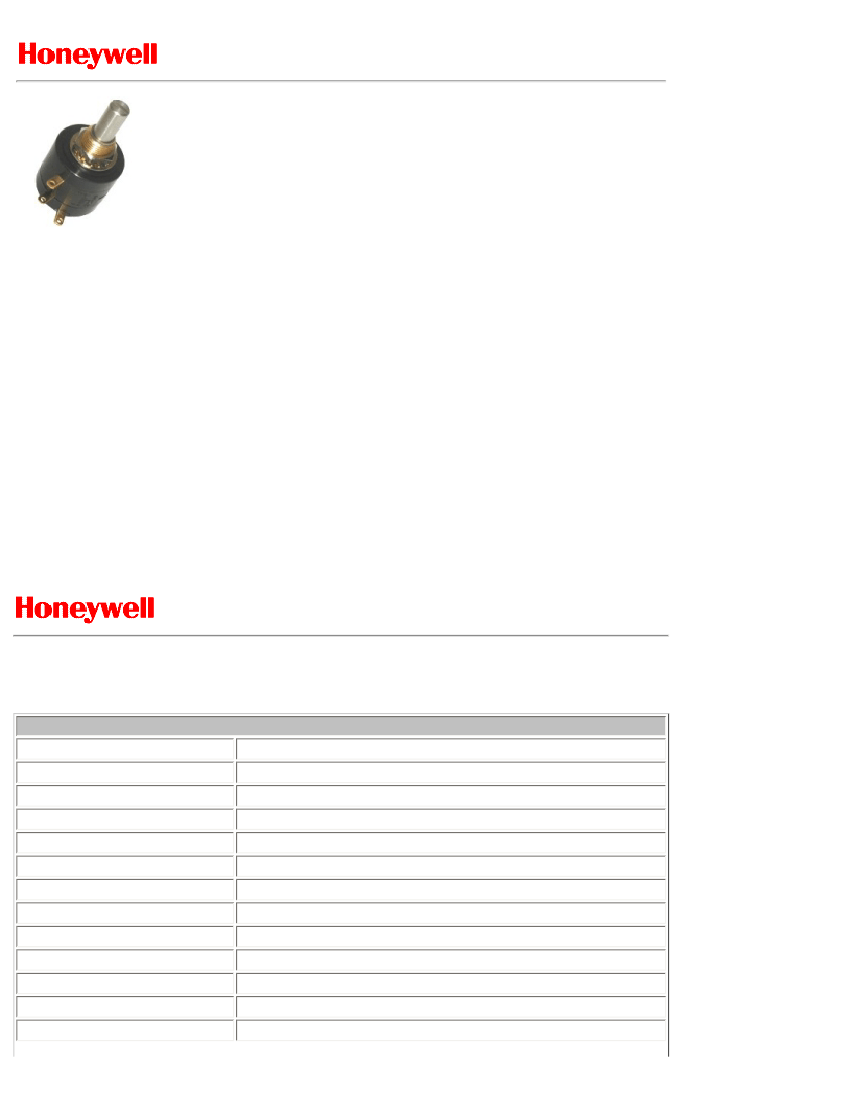

Representative
photograph, actual
product appearance
may vary.
Due to regional
agency approval
requirements, some
products may not be
available in your area.
Please contact your
regional Honeywell
office regarding your
product of choice.
Features
q
q
q
q
Plastic shaft and bushings
Wirewound element
Linear taper
10-turn construction
Typical
Applications
q
Manual controls
Description
The 73 Series is a precision type potentiometer made with a
wirewound element. It offers 10 turns for higher resolution and
accurate output. It has a power rating of 2 watts.

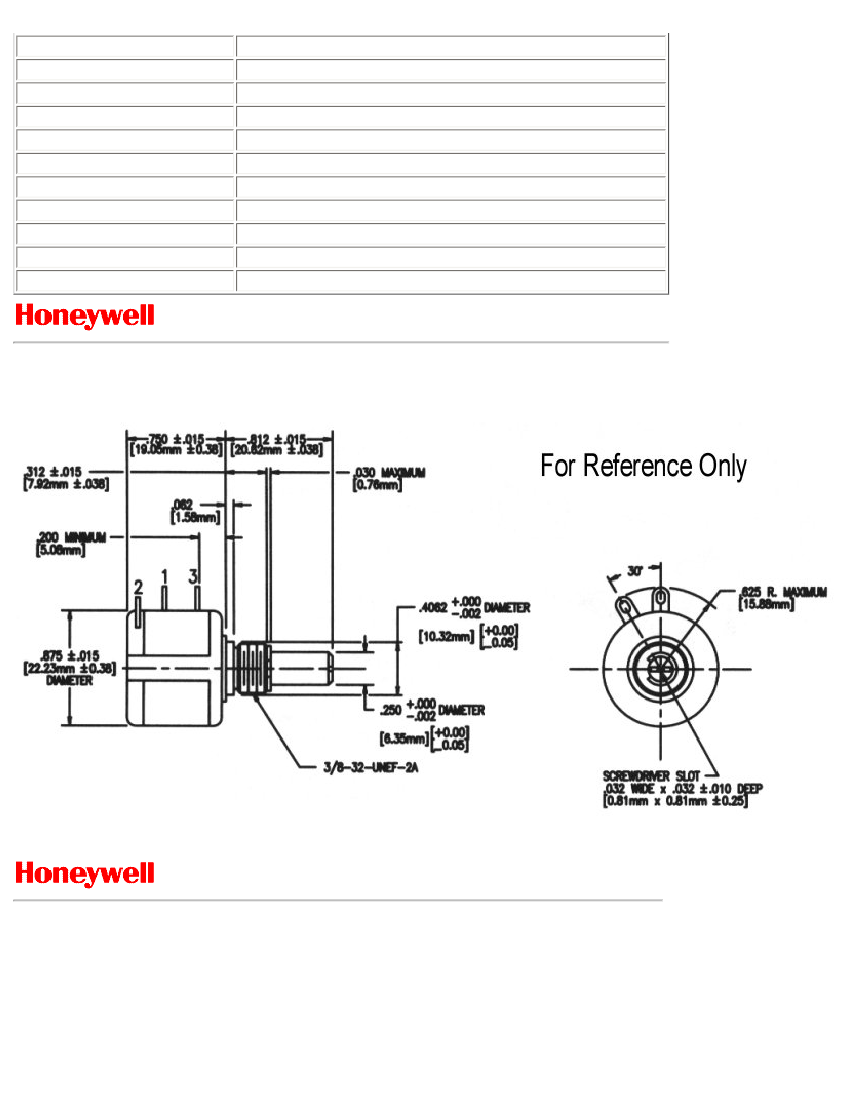

73JB200
73 Series Precision Potentiometer, Wire Wound Element, Solder lug Terminals, 2 W
Power Rating, 200 Ohm Resistance Value
Product Specifications
Potentiometer Type
Element Type
Terminal Type
Power Rating
Turns
Resistance Value
Resistance Tolerance
Linearity
Bushing Thread
Bushing length
Bushing Type
Shaft Diameter
Shaft length
Precision
Wire Wound
Solder lug
2W
10
200 Ohm
±5%
± 0.25 %
9,53 mm [0.375 in] x 32 NEF-2A
7,92 mm [0.312 in]
Standard
6,35 mm [0.25 in]
20,62 mm [0.812 in]
Shaft Ending
Body
Electrical Taper
Operating Temperature
Working Voltage (Max.)
Rotational Life
Mechanical Rotation
Availability
Series Name
UNSPSC Code
UNSPSC Commodity
Slotted
22.23 mm [0.875 in] diameter, ± 0.79 mm [0.031 in]
Linear
-40 °C to 120 °C [-40 °F to 248 °F]
500 V
50000 cycles
3600°
Global
73 Series
4111363300
4111363300 Potentiometers
73JB200
73 Series Precision Potentiometer, Wire Wound Element, Solder lug Terminals, 2 W
Power Rating, 200 Ohm Resistance Value
73JB200
73 Series Precision Potentiometer, Wire Wound Element, Solder lug Terminals, 2 W
Power Rating, 200 Ohm Resistance Value
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop devices, or in any other
application where failure of the product could result in personal injury.
Failure to comply with these instructions could result in death or serious injury.
MISUSE OF DOCUMENTATION
q
q
The information presented in this product sheet (or catalog) is for reference only.
DO NOT USE this document as product installation information.
Complete installation, operation and maintenance information is provided in the
instructions supplied with each product.
Failure to comply with these instructions could result in death or serious injury.
© Copyright Honeywell Inc.1998-2004 All rights reserved.
