02/11/2015
www.crouzet.com
0.5 Nm ovoid 1.4 and 3.2 Watts 1.4 W Part number made to order
Gearbox 0.5 Nm
Motor power max. 3.2 W
Class A EMC interference suppression (radiated)
Compatible with 6 V, 9 V or 12 V battery power supply
Optional class B interference suppression
Optional 1, 5, 12 or 48 pulses/rev encoder
Part numbers
Type
82714002
1.4 W
Type
827140
Voltage
12 V
Output speed (rpm)
186
Ratios (i)
45/2
Specifications
General characteristics
Motor
Gearbox
Maximum permitted torque from gearmotor under
continuous conditions for 1 million turns (Nm)
Axial load static (daN)
Radial load static (daN)
Max. output power (W)
Nominal output (W)
Gearbox case temperature rise (°C)
Weight (g)
82710001
810210
0,5
1
8
1,4
1
40
120
Made to order products, available on request
For more than 1000 pieces
48 pulses/rev encoder
Class B filter
Case N°2 (for other fixing points see diagram)
Gearbox shaft
Bearings for heavy radial loads
Connections
Reinforced gears
For other types please consult Crouzet

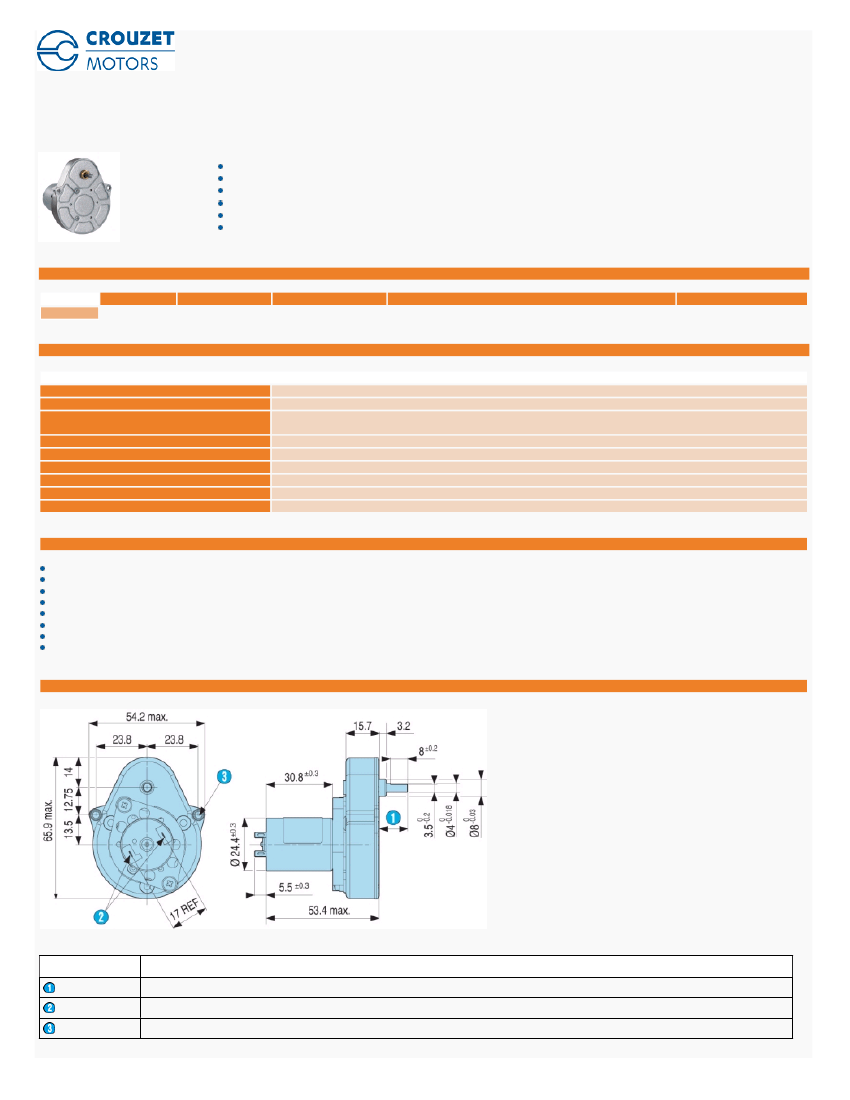

Dimensions (mm)
827140
N
o
Legend
13.2 mm max. shaft pushed-in
2 solder tags 2.8 x 0.5 mm
2 fixing holes Ø 3.2 mm
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015

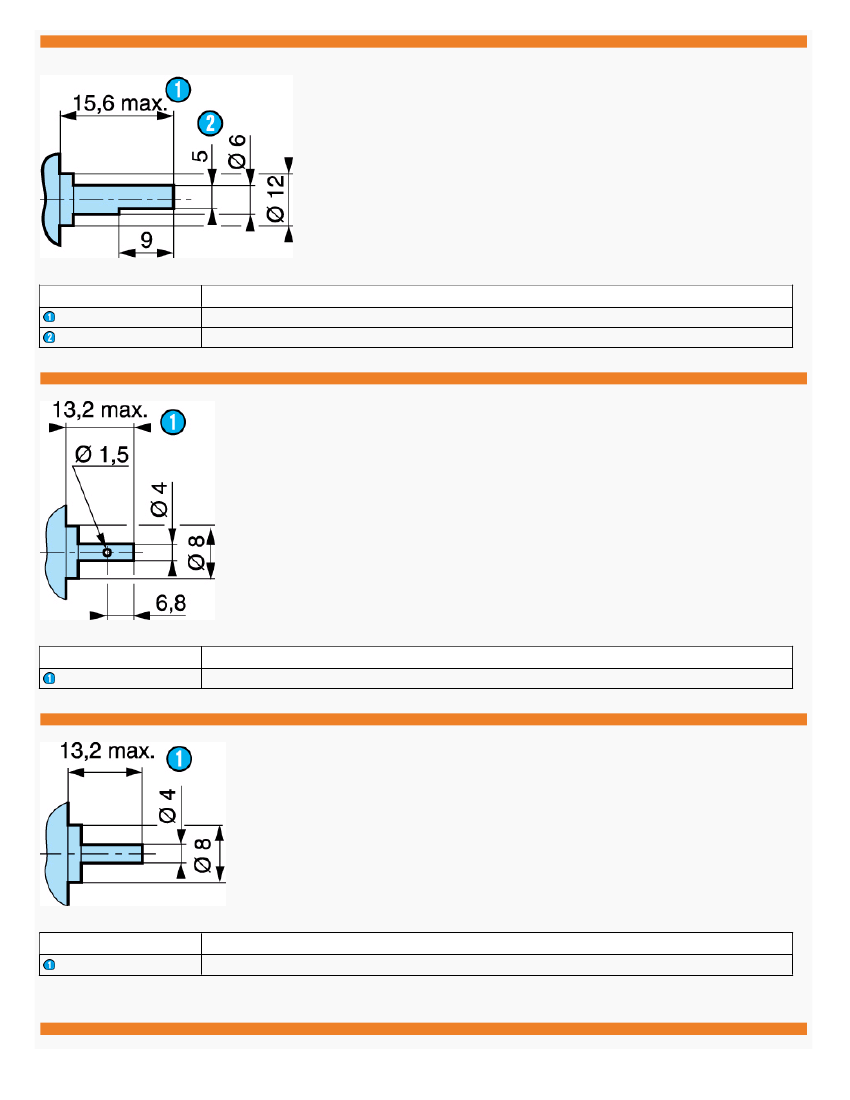

Dimensions (mm)
Shaft 70999421
SP1295.10
www.crouzet.com
N
o
Legend
Shaft pushed-in
5 across flats
Dimensions (mm)
Shaft 79200779
N
o
Legend
Shaft pushed-in
Dimensions (mm)
Shaft 79200967
N
o
Legend
Shaft pushed-in
Curves

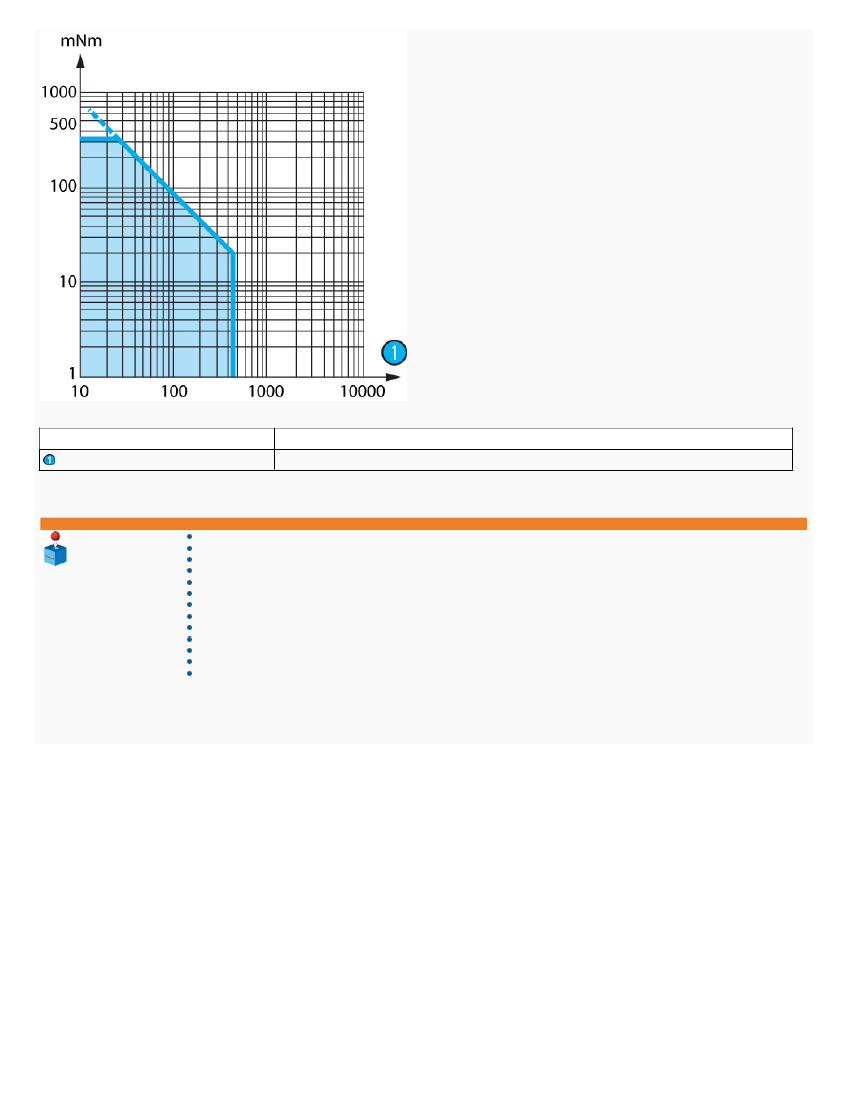

Curve : torque/nominal speed 827140
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
rpm
Product adaptations
Special supply voltage
Lead output
Special connectors
Special shaft
Special reduction ratio
Special materials for gears
Special ball bearings
Special adaptor plate
Class B EMC filter
Friction
Y system
Greasing at low temperature
Different number of pulses
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
