ADJ42105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> ADJ42105

ADJ42105: DescriptionElectromechanical Relay, SPST, 6.5VDC (Coil), Random, AC Output; CategoryMechanical and electronic products relay; File Size474KB，12 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

ADJ42105 Overview

Electromechanical Relay, SPST, 6.5VDC (Coil), Random, AC Output

ADJ42105 Parametric

Parameter Name	Attribute value
Objectid	7334367798
Reach Compliance Code	unknown
ECCN code	EAR99
body width	13 mm
body height	16 mm
Body length or diameter	29 mm
Coil operating voltage (DC)	3.5 V
Coil release voltage (DC)	3.5 V
Coil resistance	167 Ω
Maximum coil voltage (DC)	6.5 V
Nominal coil voltage	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	4000VA@250VAC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Tin Oxide
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
operating hours	20 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	29mm x 13mm x 16mm
Relay style	1 FORM A,B
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	20 ms
Terminal length	0.003500127000254001 inch
Termination type	SOLDER
weight	14 g

Preview

Download Datasheet

View All

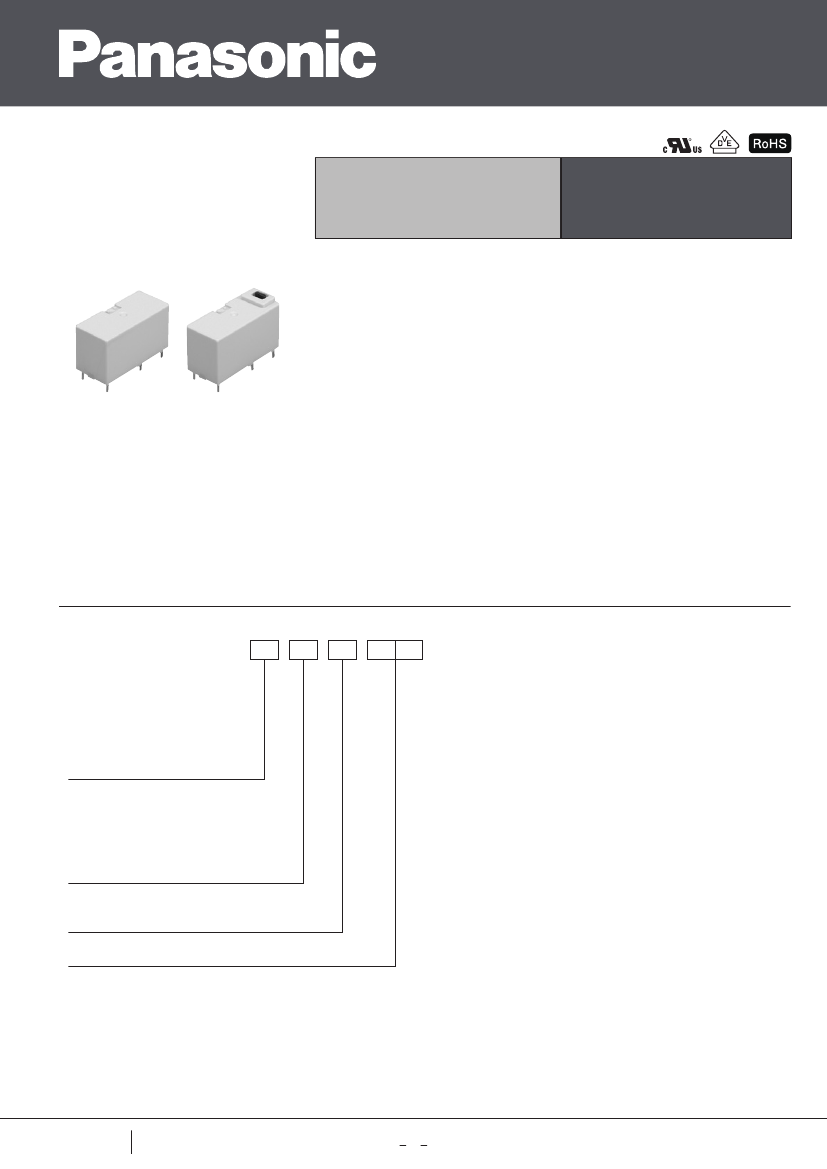

Automation Controls Catalog

1-pole/2-pole 16A

polarized power relays

DJ RELAYS

(

ADJ

)

6. With operation verification function

A test button (manual lever) type to

facilitate circuit checks is also available

(1 Form C, 1 Form A, 1 Form B types

only)

FEATURES

Without a test button

With a test button

Protective construction: Flux-resistant

type/Sealed type

1. Variety of contact arrangements

Wide lineup of 1 Form C, 1 Form A,

1 Form B, 2 Form C, 2 Form A, 2 Form

B, 1 Form A 1 Form B.

2. Latching operation

Latching via a polarized magnetic

circuit structure allows remote

operation and lower energy

consumption

3. Compact with high capacity

16A (1-pole type) contact rating in a

compact size

29×13×16.5 mm (L×W×H).

4. Low power consumption

1 coil latching: 150mW

2 coil latching, single side stable:

250mW

5. Long insulation distance

Both clearance and creepage distance

between coil and contact are at 8 mm

min.

1. FA equipment (brake circuits of

industrial machine and robots, etc.)

2. Electric power devices (remote

surveillance devices, etc.)

3. Household appliance networks

(Motor control and lighting control,

etc.)

4. Time switches

TYPICAL APPLICATIONS

ORDERING INFORMATION

ADJ

Contact arrangement

1: 1 Form C

2: 1 Form A

3: 1 Form B

4: 1 Form A 1 Form B

5: 2 Form C

6: 2 Form A

7: 2 Form B

Operating function and protective construction

1: 1 coil latching, Flux-resistant type

2: 1 coil latching, Sealed type

3: 2 coil latching, Flux-resistant type

4: 2 coil latching, Sealed type

5: Single side stable, Flux-resistant type

6: Single side stable, Sealed type

Auxiliary function

0: Without a test button

1: With a test button

Nominal coil voltage (DC)

05: 5 V, 06: 6 V, 12: 12 V, 24: 24 V, 48: 48 V

2019.03

industrial.panasonic.com/ac/e/

ASCTB176E 201903
