SERIES 70 R
SERIES 70 R
BEAU Terminal Blocks
BEAU

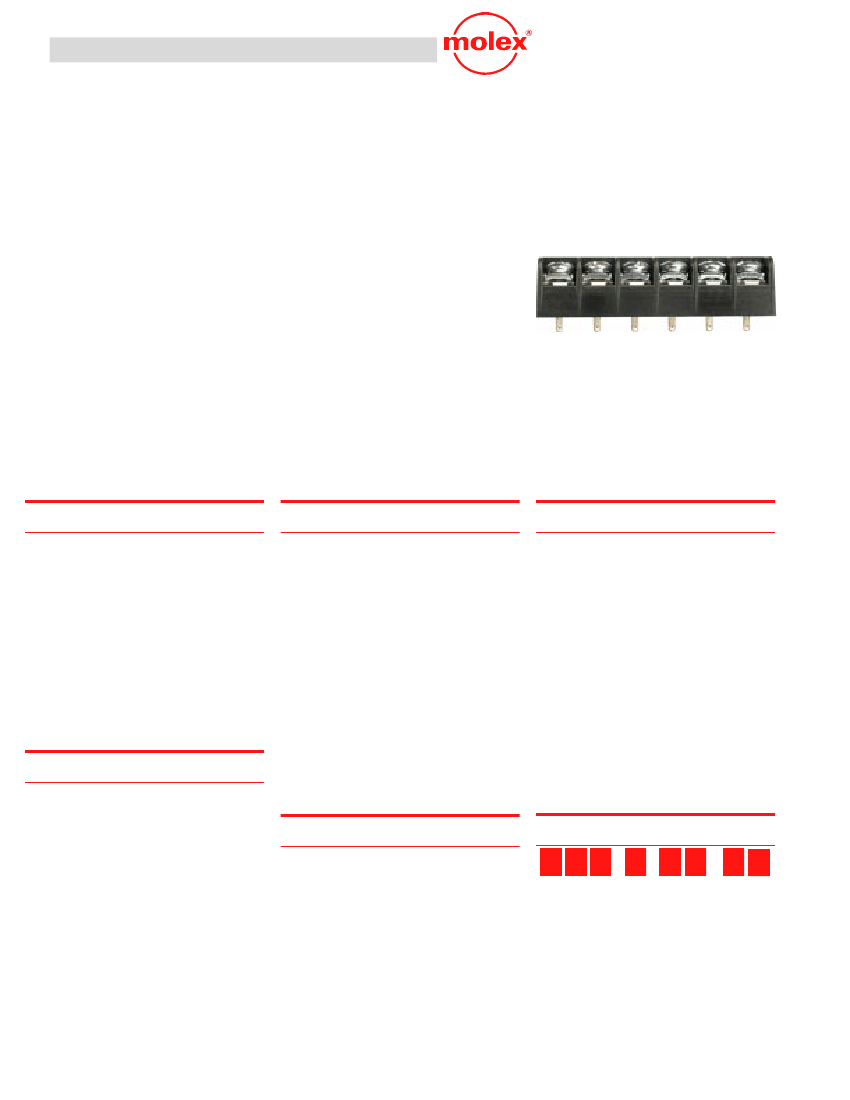

.325" PCB Barrier Terminal Strip (closed side)
Description
The series 70R PCB terminal strip brings
the benefits of tri-barrier construction to
one of the most widely used terminal block
products today. The .325" terminal pitch
and the #6-32 screw offers the user excel-
lent density and durability characteristics.
Unlike other tri-barrier designs, the 70R
has the same footprint as our standard series
70 PCB terminal strip, allowing the user to
offer the benefits of the tri-barrier construc-
tion without redesigning their PCB.
Made in the USA, all Beau terminal
blocks embody the highest quality stan-
dards in the industry-using the finest
materials and world class manufacturing
processes. They meet or exceed all appli-
cable industry standards.
Features
•
Strength and density,
the .325" pitch
series 70R is our smallest product to
use the #6-32 screw.
Robust and durable,
screw terminals
are ultrasonically welded into the
thermoplastic insulator, eliminating
terminal twisting and associated
solder joint failure.
Wide array of options.
Our series
70R product options can fulfill
virtually any application demand.
Only Beau gives you a captivated
screw rated to a minimum 6 in-lbs. of
back out torque.
Prevents shorting.
The tri-barrier
construction surrounds the connec-
tion on three sides providing maxi-
mum circuit isolation.
•
•
•
PRODUCT RATINGS
#6-32 PAN HEAD SCREW
UL
Class B
15 Amps @ 300 V 14 AWG
Class C
15 Amps @ 150 V 14 AWG
CSA
Class B
Class D
15 Amps @ 150 V 14 AWG
10 Amps @ 300 V 14 AWG
TECHNICAL SPECIFICATIONS
ELECTRICAL
DWV
IR
MECHANICAL
Tightening torque
Maximum torque
Wire strip length
Wire range
OPTIONS
-45
-47
-49
-50
-58
-59
-C
-P
-T
-V
Slotted screw
Screws up, wire ready
Brass, phillips/slotted screw
Clamp washer, phillips/slotted screw
No screws, barrier only
Screws supplied unassembled
No mounting ends
.040" standoff pads
Captive screws
130°C insulator
8500 VDC
>5000 Megohms
12 in-lbs.
13 in-lbs.
5/16"
12 to 22 AWG
#6-32 WIRE CLAMP SCREW
UL
Class B
20 Amps @ 300 V 12 AWG
Class C
20 Amps @ 150 V 12 AWG
CSA
Class B
Class D
15 Amps @ 150 V 14 AWG
10 Amps @ 300 V 14 AWG
ENVIRONMENTAL
Continuous Use Temp
RTI electrical
RTI mechanical w/o impact
110
o
C
110
o
C
AGENCY LISTINGS
UL
CSA
File No. E48521
Guide No. XCFR2
File No. 025562
MATERIALS
Insulator
Terminal
Screws
Thermoplastic,
UL94V-0, black
Brass, tin-lead plate
#6-32, phillips/slotted, steel,
zinc chromate plate

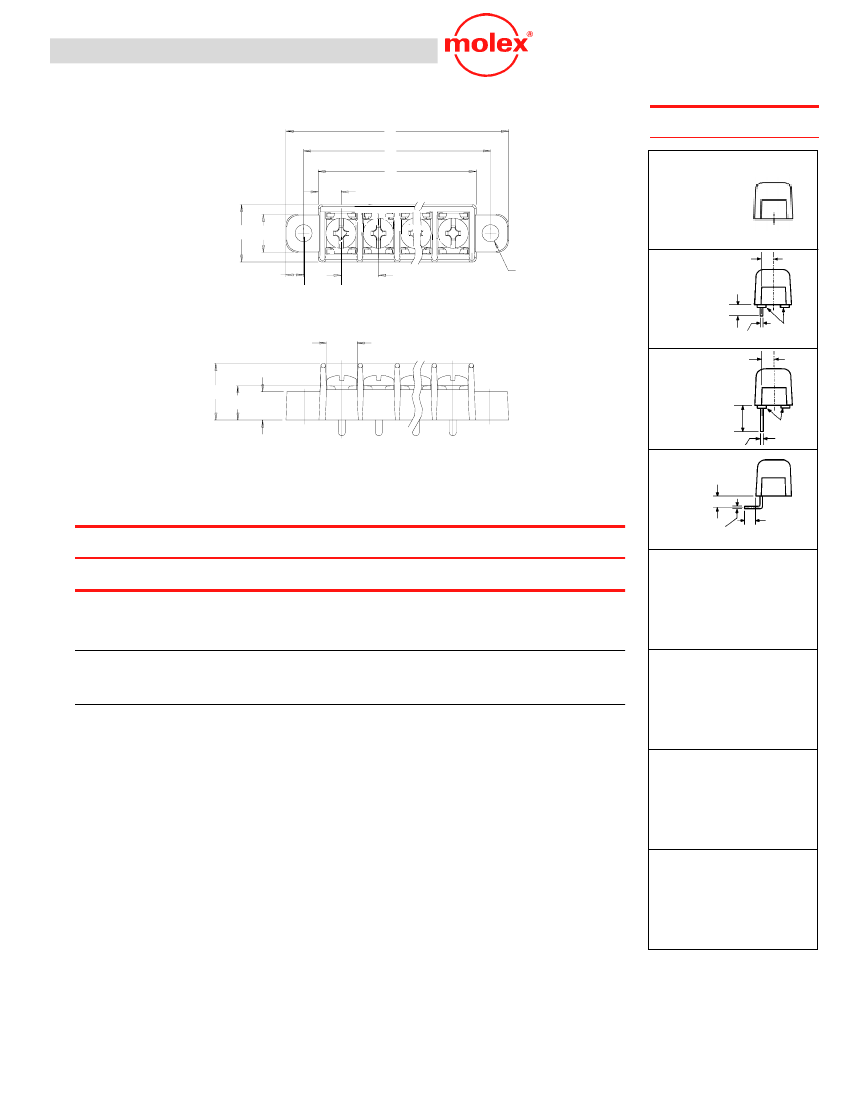

HOW TO ORDER
7 0 R
SERIES
X
TERMINAL
STYLE
1
7
5
8
X X
NO. OF
POLES
2 to 12
X X
OPTIONS
(Dash #s above
and
opposite page)
*Consult factory for combinations of screw options.
Molex Industrial Division
New England Operations
Gilford, NH 03246-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
Internet www.beauint.com
