RM2012A-102/202-PBVP50 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RM2012A-102/202-PBVP50

RM2012A-102/202-PBVP50: DescriptionArray/Network Resistor, Bussed, Metal Film, 0.1W, 25V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size784KB，8 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

RM2012A-102/202-PBVP50 Overview

Array/Network Resistor, Bussed, Metal Film, 0.1W, 25V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT

RM2012A-102/202-PBVP50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1597135754
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.5
structure	Rectangular
Component power consumption	0.05 W
The first element resistor	1000 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	BUSSED
Number of components	2
Number of functions	1
Number of terminals	4
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.45 mm
Package length	2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.25 mm
method of packing	TR
Rated power dissipation(P)	0.1 W
Rated temperature	85 °C
Guideline	AEC-Q200
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	2000 Ω
size code	0805
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Temperature coefficient tracking	5 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.1%

Preview

Download Datasheet

View All

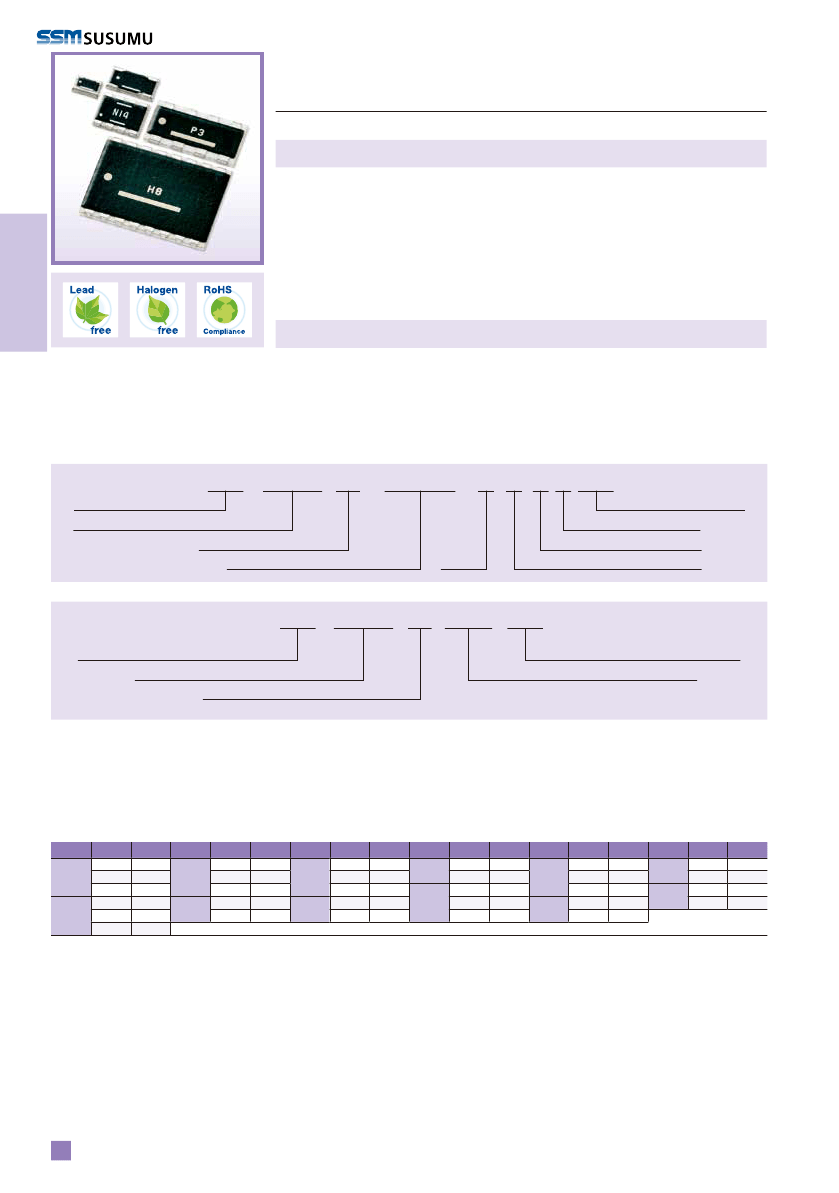

Metal thin film chip resistor

networks

■RM

series

Features

・

Relative resistance tolerance and relative TCR definable among multiple resistors

within package.

Thin film surface mount resistors

AEC-Q200 Compliant

・

Relative resistance tolerance: ±0.01%, relative TCR: ±1ppm/°C

・

Number of resistors in package: 2 or higher, standard and custom circuits designs

available

・

RG series equivalent reliability and long term stability: less than ±0.1% drift after

10000 hour stress test.

・

RoHS compliant, 100% lead free

Applications

・

Precision measurement instrumentation, medical electronics, automotive electronics

・

Voltage divider and amplification circuits that require very precise relative resistance

tolerance and TCR

・

Multi step precision amplification circuits for minute signals

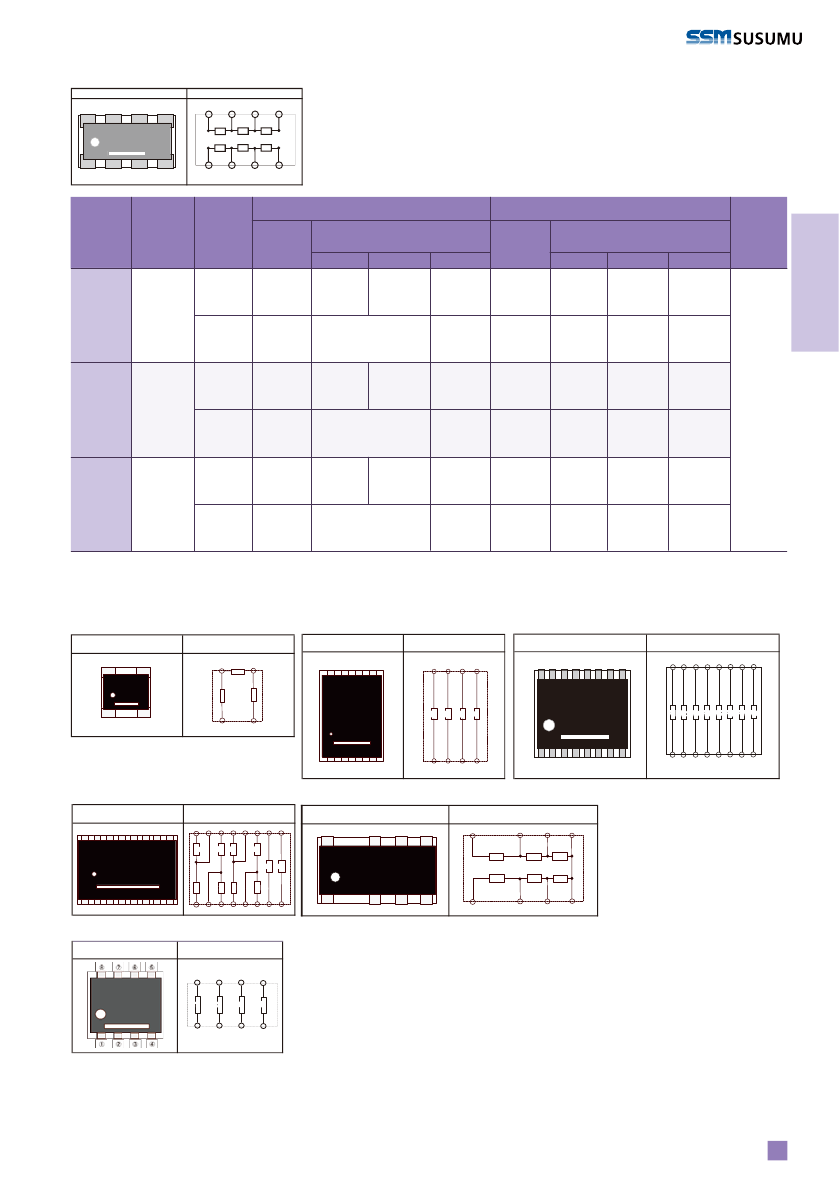

RM series

◆Part

numbering system

RM 2012 A - ***/*** - P W X L 10

Series code

Size: RM2012, RM3216, RM3225

circuits

Nominal Resistance Value(R1/R2)

Absolute

TCR

Packaging quantity:

10(1,000pcs), 50(5,000pcs)

Relative resistance tolerance

Relative TCR

Absolute resistance tolerance

RM 3216 C - *** - 10

Series code

Size: RM3216, RM3225, RM6432

circuits

Packaging quantity:

10(1,000pcs), 50(5,000pcs)

Custom part number (e.g.)N10

※

Please contact our sales office regarding custom products including resistance, resistance combination, number of elements, circuit,

and others.

※

Standard quantity / reel is 1000 and 5000. Please contact our sales office for custom product's quantity / reel.

※

Standard resistance value pairings are shown as below

(Standard products are 2element circuit typeA & typeB only.)

◆Standard

resistance value pairings

Ratio R1

Ω）R2 Ω）

Ratio R1

Ω）R2 Ω）

Ratio R1

Ω）R2 Ω）

Ratio R1

Ω）R2 Ω）

Ratio R1

Ω）R2 Ω）

Ratio R1

Ω）R2 Ω）

（

1:1

1:2

10k

100k

10k

100k

10k

100k

20k

200k

1:3

1:4

10k

100k

10k

30k

300k

40k

1:5

1:6

10k

50k

60k

1:9

1 : 10

10k

90k

10k

20k

100k

1 : 20

1 : 25

20k

40k

100k

25k

50k

1 : 50

1 : 100

50k

100k

200k
