DMR-15P6-M: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size46KB，2 Pages; ManufacturerOn-Shore Technology ( OST ); Websitehttp://www.on-shore.com

Download Datasheet Parametric Compare View All

DMR-15P6-M Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal

DMR-15P6-M Parametric

Parameter Name	Attribute value
Maker	On-Shore Technology ( OST )
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	DMR
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

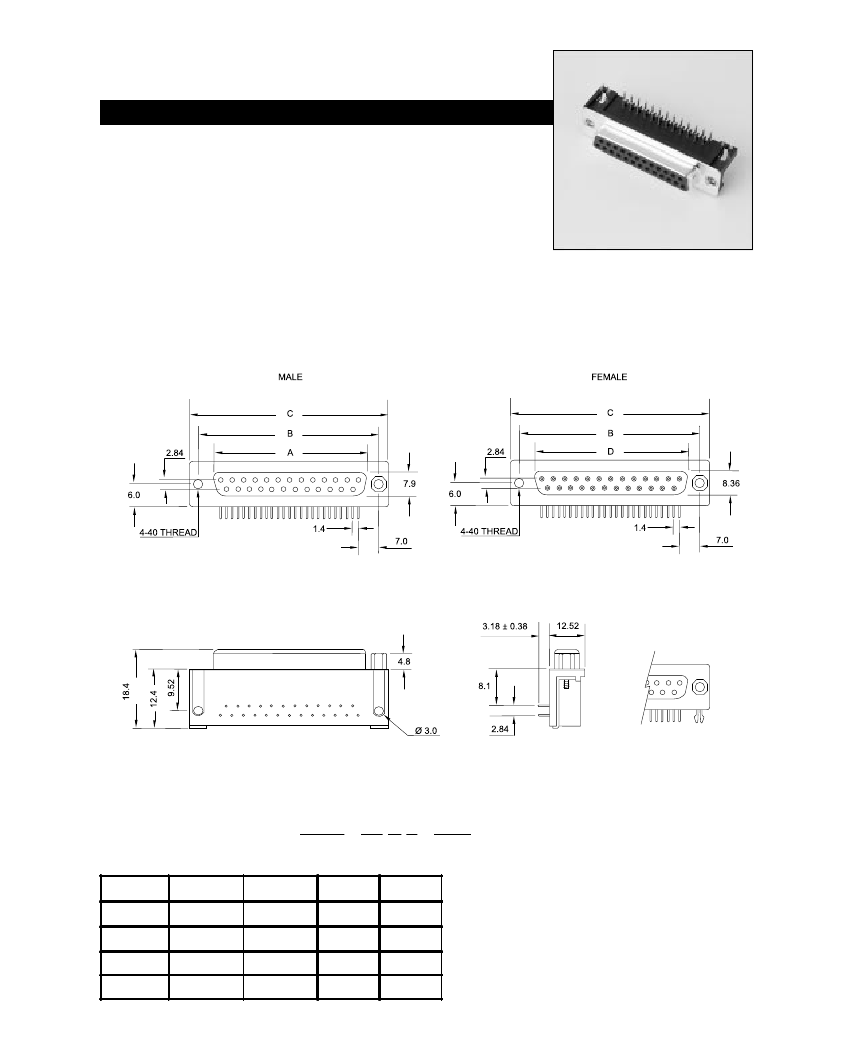

Series: DMR

Right Angle .318 D-Sub

Series options:

A = 4-40 Jack screws assembled on connector

B = Board locks

F = Ferrite

G = Grounding straps

J = 4-40 Jack screws (bulk packed)

T = Threaded inserts

MALE

FEMALE

C

B

2.84

B

D

2.84

A

7.9

6.0

8.36

4-40 THREAD

1.4

7.0

4-40 THREAD

1.4

7.0

3.18 ± 0.38

12.52

4.8

18.4

9.52

12.4

8.1

Ø 3.0

2.84

Ordering example:

Positions

09

15

25

37

A

16.92

25.25

38.96

55.42

B

24.99

33.32

47.04

63.50

DMR - 25 P 1 - BJT

C

30.81

39.10

53.10

69.32

D

16.33

24.66

38.38

54.84

DMR-15P6-M Related Products

	DMR-15P6-M	DMR-25P6-M	DMR-15S1-J	DMR-09S7-G	DMR-15P7-M	DMR-09S6-J	DMR-25P7-M	DMR-25S6-A
Description	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	FEMALE	FEMALE	MALE	FEMALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	3/B	2/A	1/E	2/A	1/E	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	25	15	9	15	9	25	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	-
