5962-8862001CA datasheet, PDF - EEWORLD Datasheet

5962-8862001CA: DescriptionAND Gate, CMOS, CDIP14; Categorylogic logic; File Size478KB，11 Pages; ManufacturerDefense Logistics Agency

Download Datasheet Parametric Compare View All

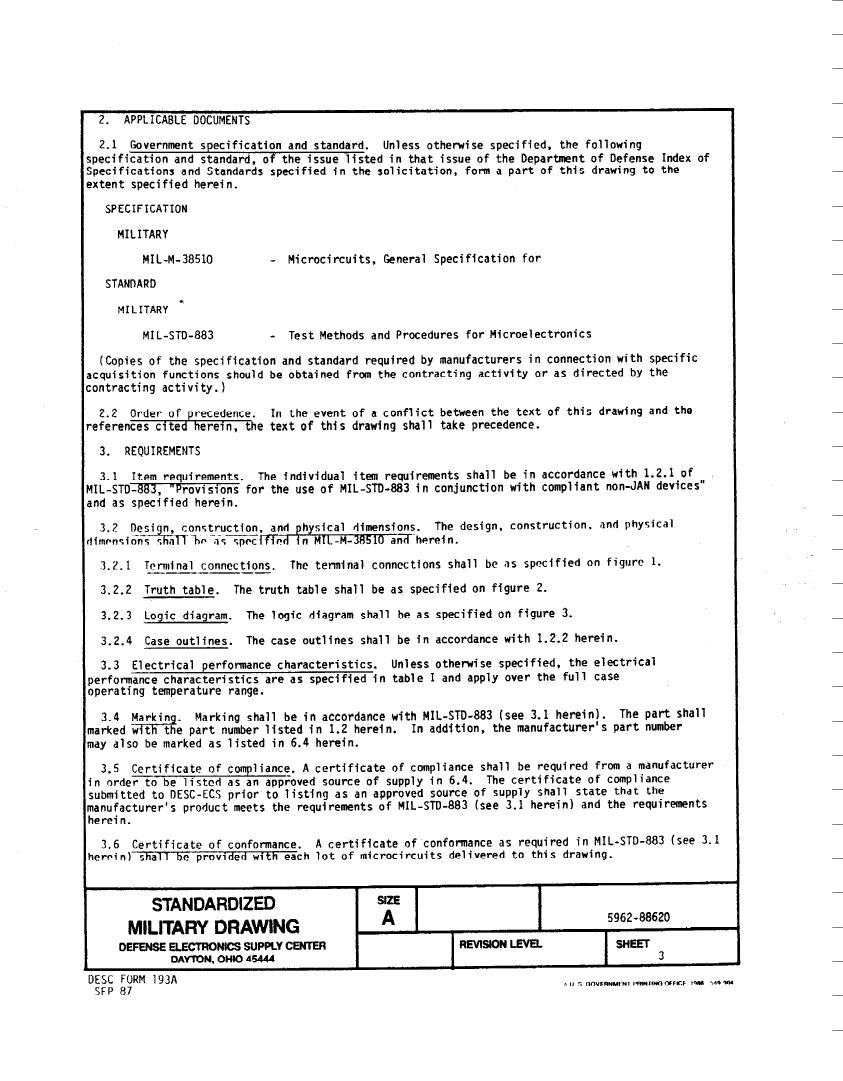

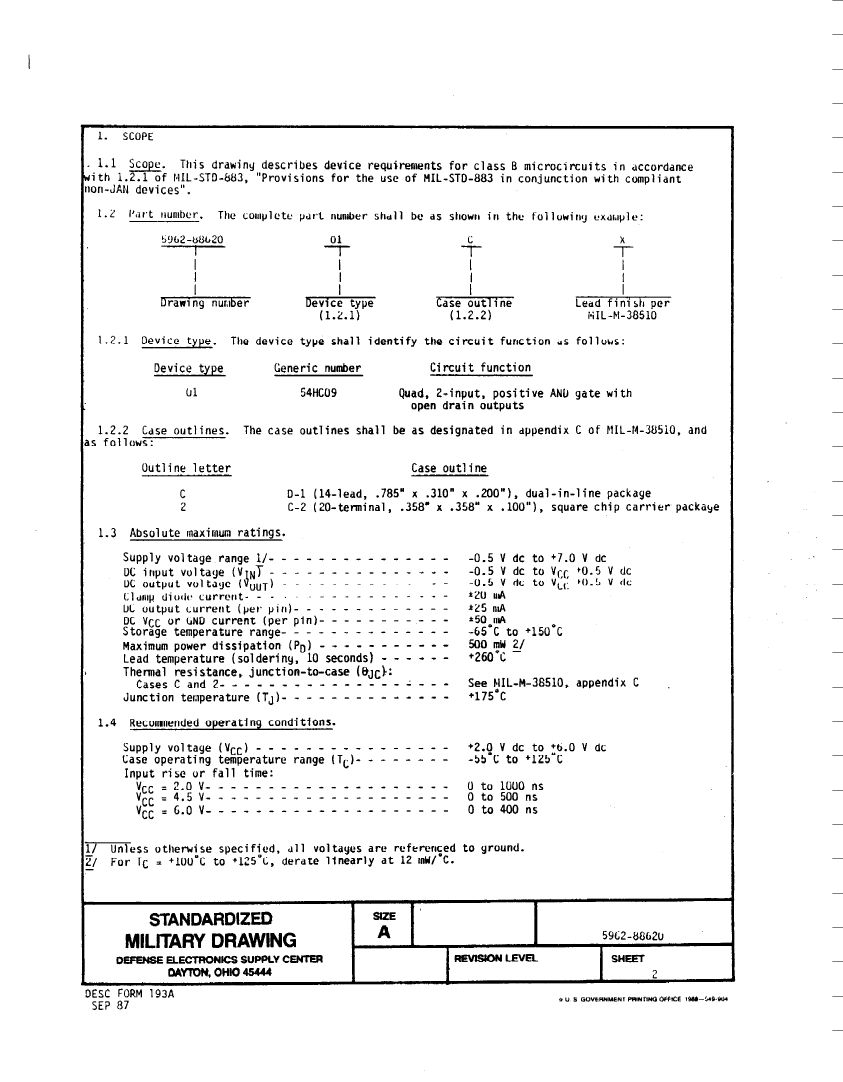

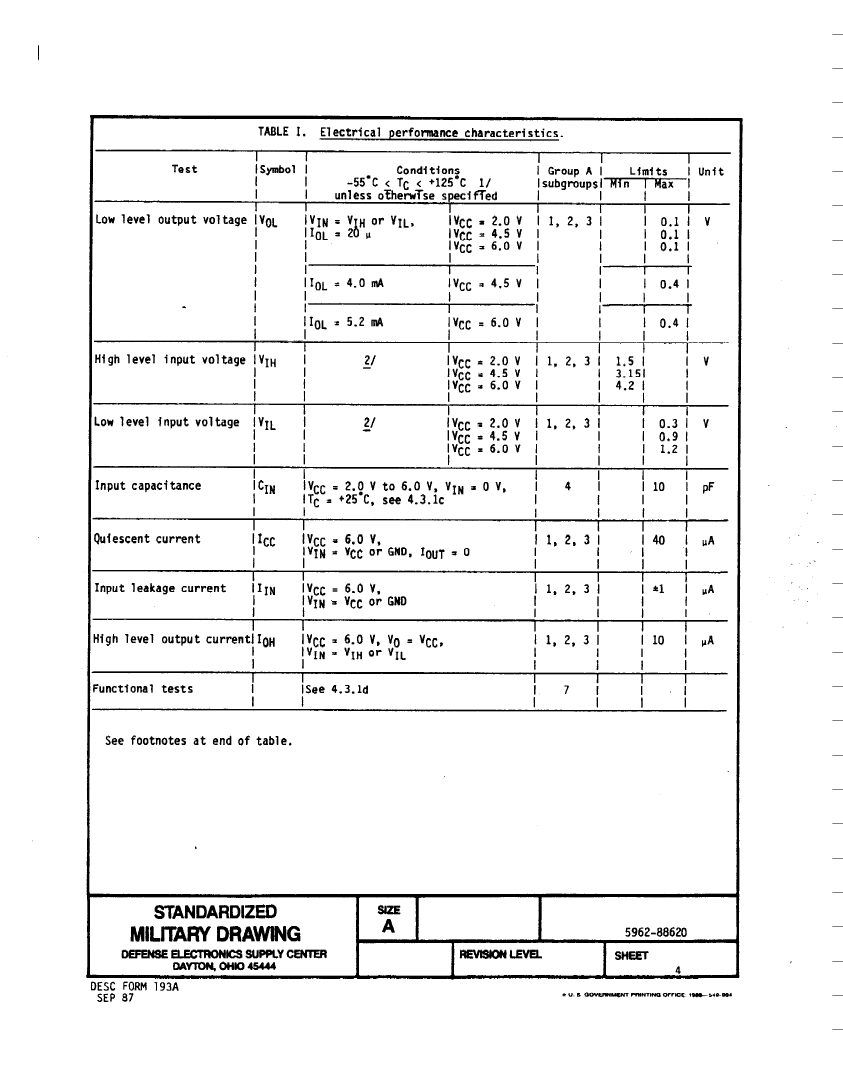

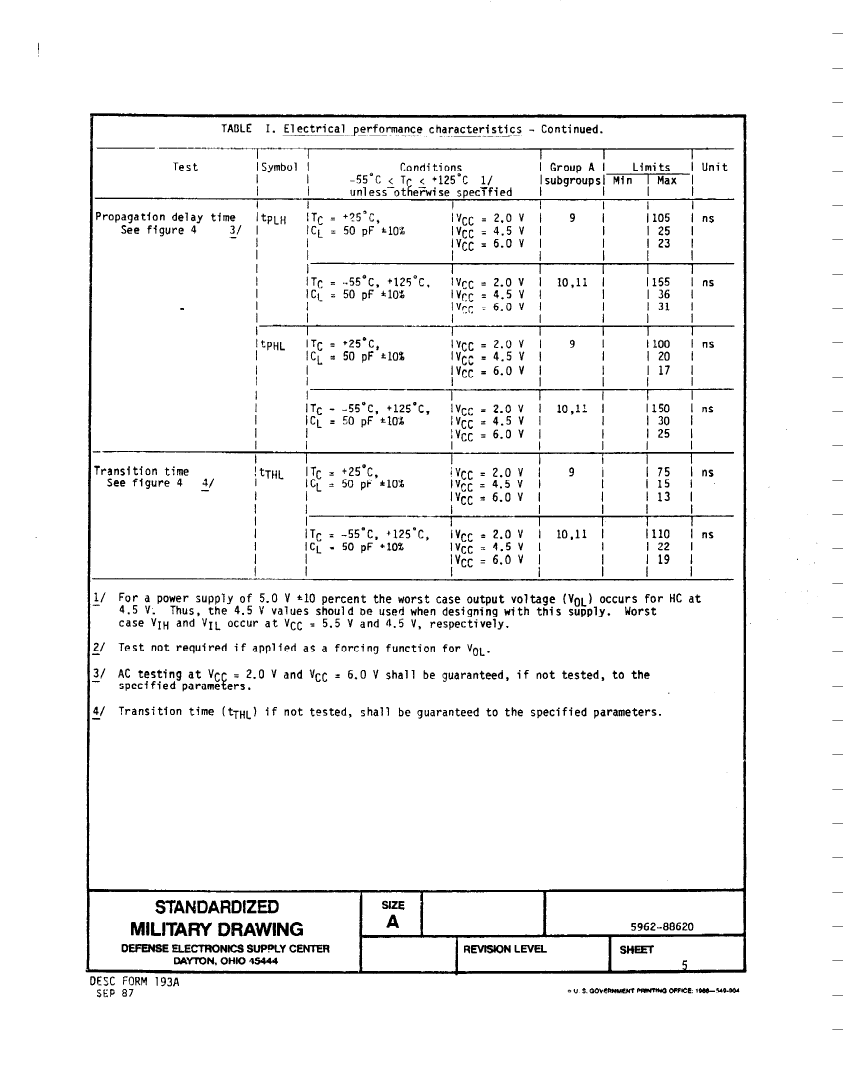

5962-8862001CA Overview

AND Gate, CMOS, CDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	AND GATE
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-DRAIN
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	5962-8862001CA	5962-88620012A
Description	AND Gate, CMOS, CDIP14	AND Gate, CMOS, CQCC20
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP14,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown
JESD-30 code	R-XDIP-T14	S-XQCC-N20
JESD-609 code	e0	e0
Logic integrated circuit type	AND GATE	AND GATE
Number of terminals	14	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN
Encapsulate equivalent code	DIP14,.3	LCC20,.35SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
power supply	2/6 V	2/6 V
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Base Number Matches	1	1
