593049-4 datasheet, PDF - EEWORLD Datasheet

593049-4: Description37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, CRIMP, RECEPTACLE; CategoryThe connector The connector; File Size217KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

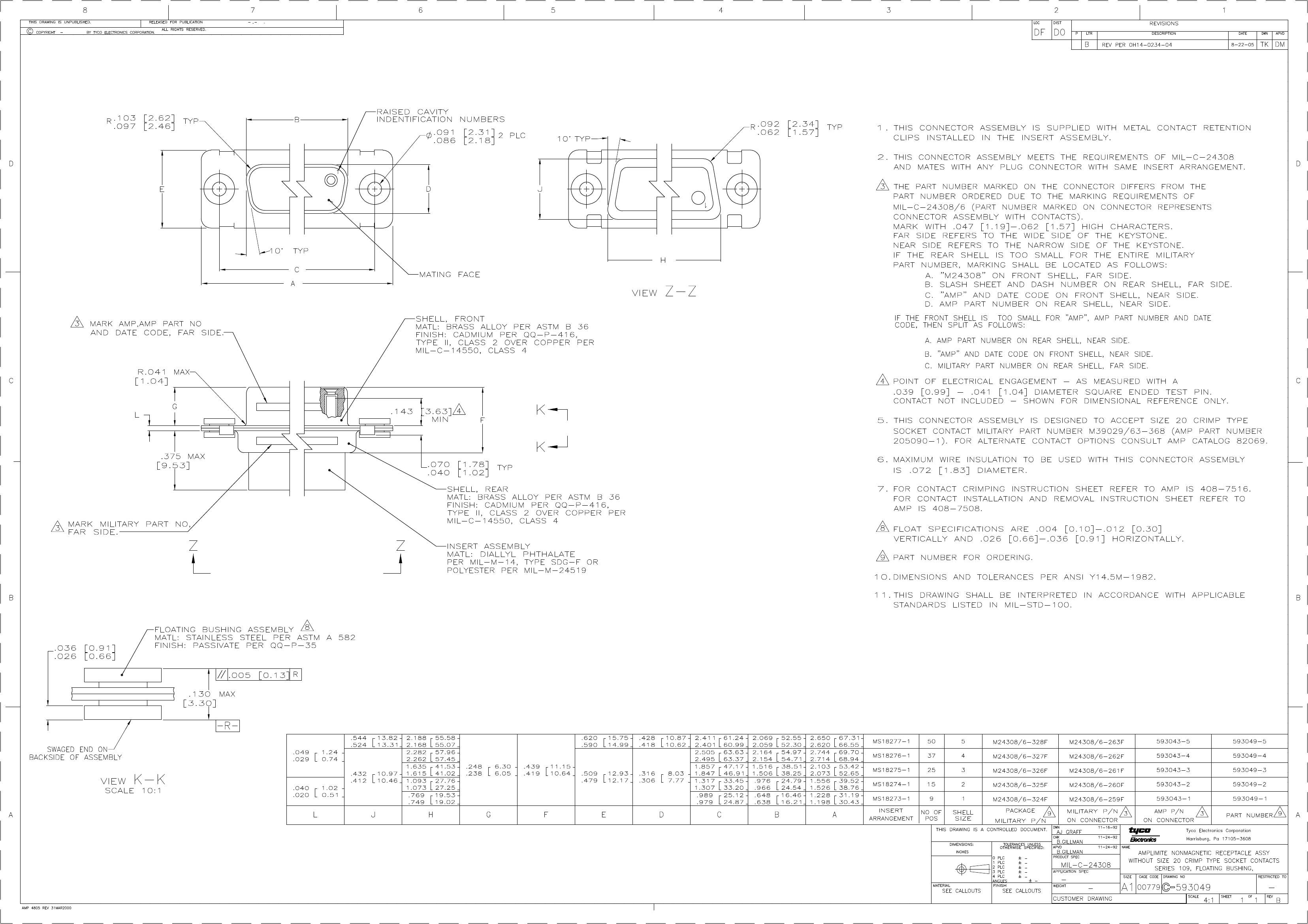

593049-4 Overview

37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, CRIMP, RECEPTACLE

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-24308
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	593049
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	BRASS
Housing size	4/C
Termination type	CRIMP
Total number of contacts	37
Base Number Matches	1

	593049-4	593049-2	593049-1
Description	37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, CRIMP, RECEPTACLE	15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, CRIMP, RECEPTACLE	9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, CRIMP, RECEPTACLE
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown
Other features	STANDARD: MIL-C-24308	STANDARDS: MIL-C-24308, MIL-C-39029	STANDARDS: MIL-C-24308, MIL-C-39029
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
empty shell	YES	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	YES	YES	YES
Manufacturer's serial number	593049	593049	593049
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM	CADMIUM	CADMIUM
Shell material	BRASS	BRASS	BRASS
Housing size	4/C	2/A	1/E
Termination type	CRIMP	CRIMP	CRIMP
Total number of contacts	37	15	9
Base Number Matches	1	1	1
