BSW-104-04-S-S-S-S: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size135KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

BSW-104-04-S-S-S-S Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

BSW-104-04-S-S-S-S Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.35 inch
body length	0.43 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	BSW
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	2.224 N
Base Number Matches	1

Preview

Download Datasheet

View All

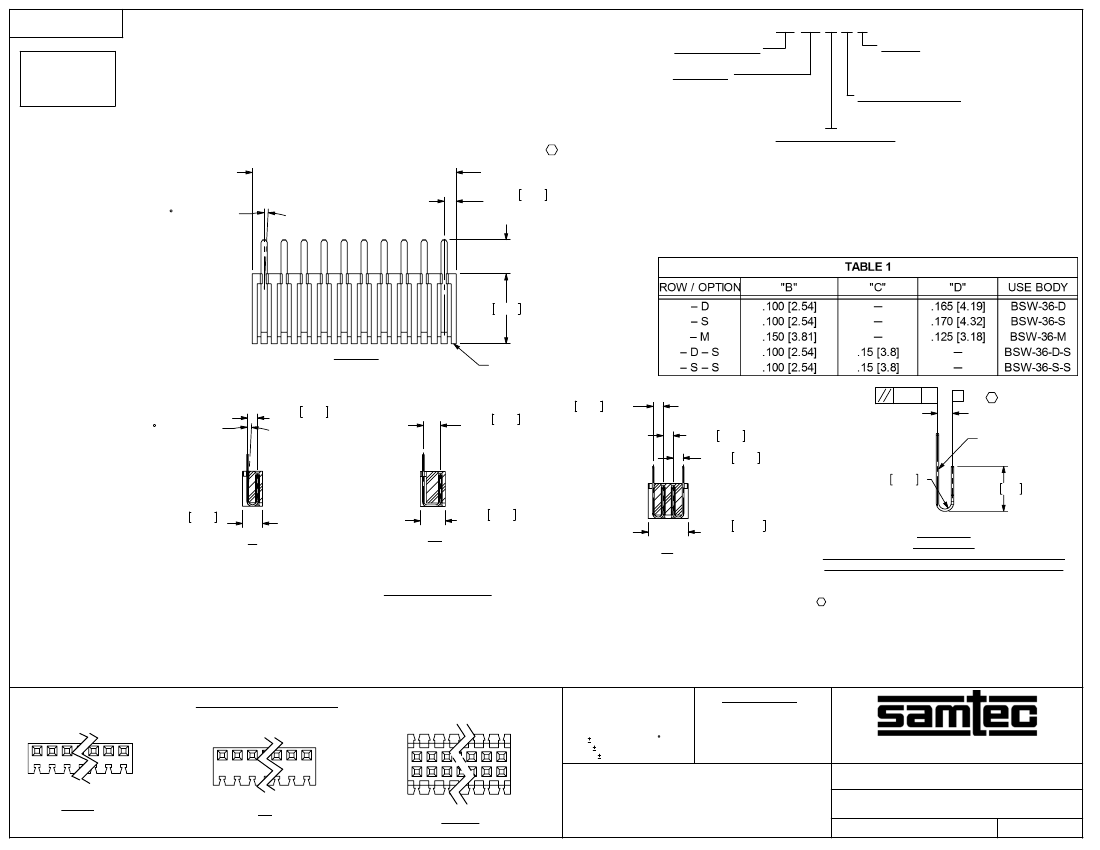

REVISION AK

DO NOT

SCALE FROM

THIS PRINT

BSW-1XX-X4-X-X-X

No OF POSITIONS

-02 THRU -36 (PER ROW)

LEAD STYLE

-04: C-8-5-X

(STANDARD I/W FORCES)

-24: C-17-5-X

(LOW I/W FORCES)

OPTION

-S: STANDOFFS

(USE BSW-36-X-S,

SEE TABLE 1)

ROW SPECIFICATION

SEE TABLE 1

((No OF POS x .10[2.5])

+.02[.5])

2 MAX SWAY

(EITHER DIRECTION)

.060 1.52

(SEE NOTE 4)

PLATING SPECIFICATION

-G: 20µ" GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL

-T: MATTE TIN CONTACT AND TAIL (STYLE -04 ONLY)

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL

-H: 30µ" HEAVY GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL

(STYLE -04 ONLY)

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL

"D"±.010

.350 8.89 REF

-D/-S/-M

BSW-36-X-X

C C

L L

C C

L L

2 MAX SWAY

(EITHER DIRECTION)

.100 2.54

REF

.170 4.32

REF

.100 2.54 REF

L L

.005 A

.100 2.54 REF

R.042 1.07

"B"

(SEE TABLE 1)

C-08-5-X or

C-17-5-X

.30 7.6

.200 5.08

REF

-S

-M

.250 6.35

REF

-D

.400 10.16

REF

CONTACT

SCALE 1.5:1

CRITICAL 1 DIMMENSION MUST BE VERIFIED AT

BEGINNING, MIDDLE, AND END OF EACH LOT

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSHOUT FORCE: 3lbs.

3. MAXIMUM ALLOWABLE BOW: T/B .003[.08] INCH/INCH,

S/S .008[0.20] INCH/INCH AFTER ASSEMBLY.

4. "END WALLS" AFTER CUTTING SHOULD BE .023[.58]

5. MAXIMUM CUT FLASH: .010[.25].

6. THE IDENTIFICATION SIDE IS TO BE DOWN OR AGAINST

THE FORM TOOLING.

FINAL ASSEMBLY

POSITION NUMBER LAYOUT

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

-S/-S-S

-M

-D/-D-S

MATERIAL:

INSULATOR: PET, UL 94 VO, COLOR: BLACK

CONTACT: PHOS BRONZE

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

.100 BOTTOM MOUNT SOCKET ASSEMBLY

BSW-1XX-X4-X-X-X

03/31/1998

SHEET

F:\DWG\MISC\MKTG\BSW-1XX-X4-X-X-X-MKT.SLDDRW

BY:

PURVIS
