DV74ACT132N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74ACT132N

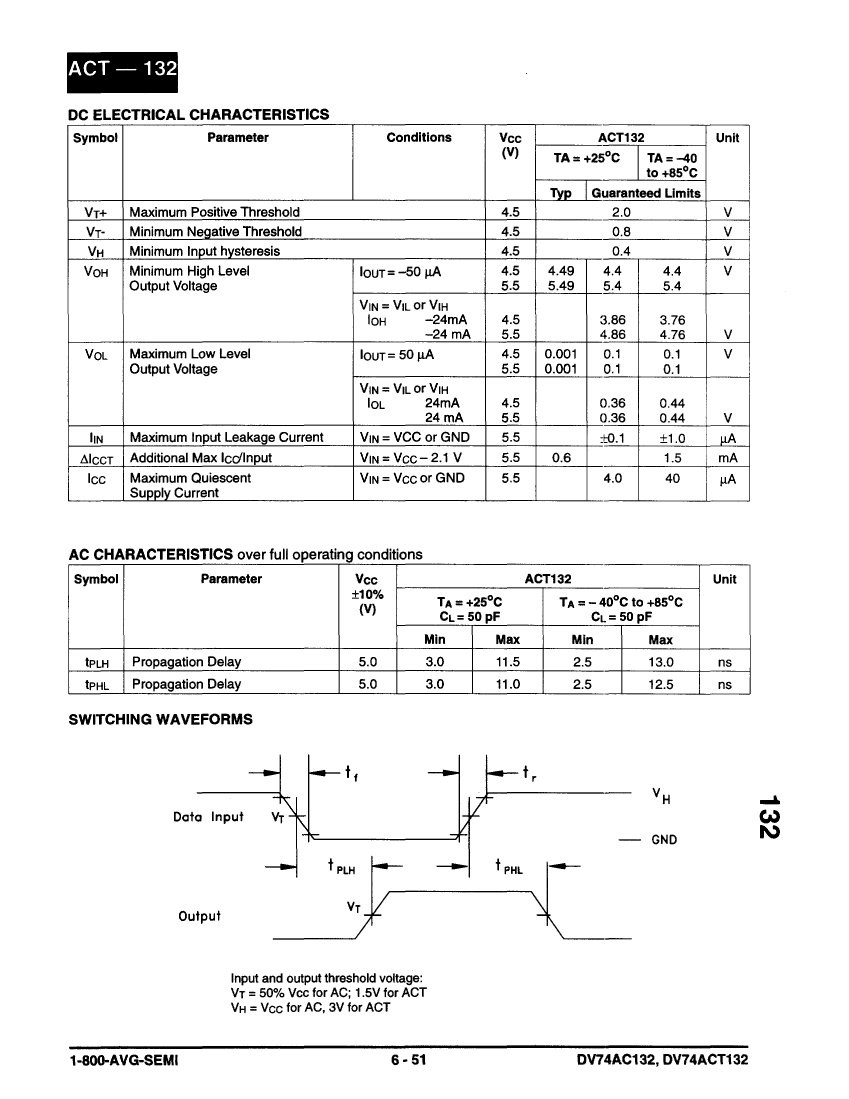

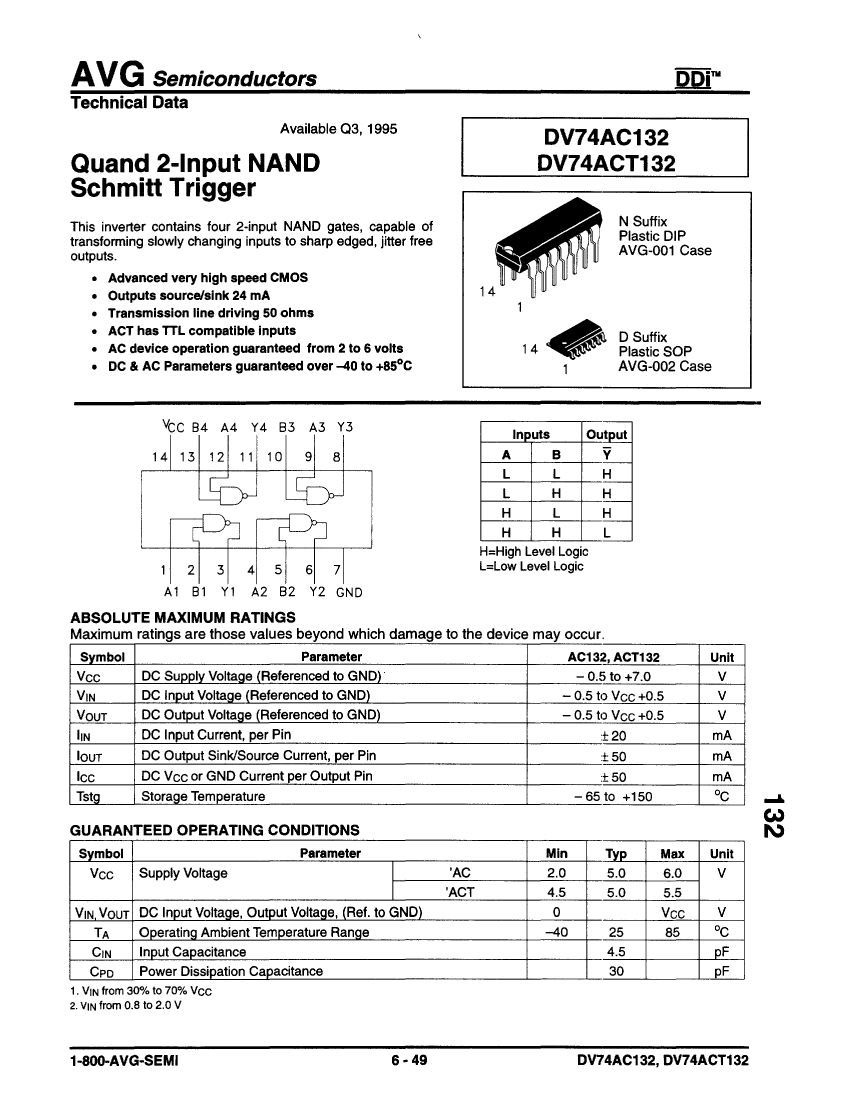

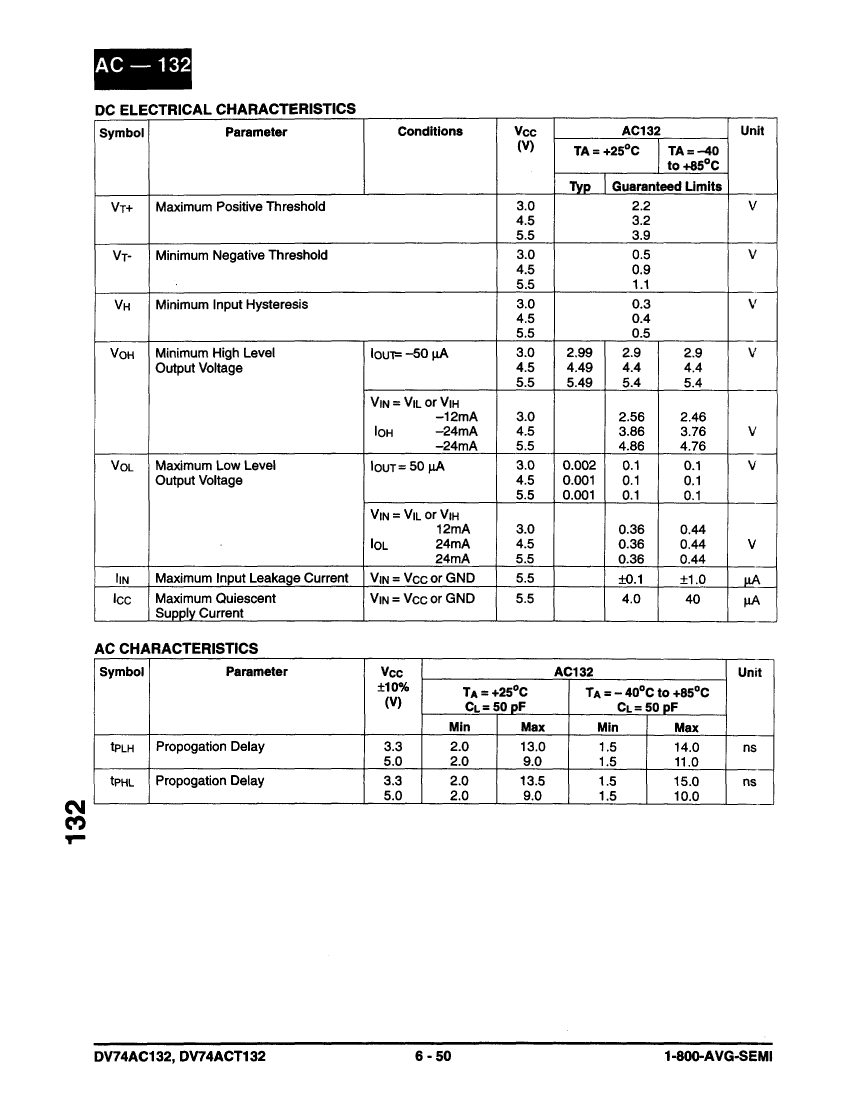

DV74ACT132N: DescriptionNAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size143KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74ACT132N Overview

NAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14

DV74ACT132N Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	13 ns
Certification status	Not Qualified
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DV74ACT132N Related Products

	DV74ACT132N	DV74ACT132D	DV74AC132D	DV74AC132N
Description	NAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	NAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14	NAND Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14	NAND Gate, AC Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	SOIC	SOIC	DIP
package instruction	DIP,	SOP,	SOP,	DIP,
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	ACT	ACT	AC	AC
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
length	18.86 mm	8.65 mm	8.65 mm	18.86 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4	4
Number of entries	2	2	2	2
Number of terminals	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	13 ns	13 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.69 mm	1.75 mm	1.75 mm	4.69 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	6 V	6 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	3.9 mm	3.9 mm	7.62 mm
Base Number Matches	1	1	1	-
