3-216869-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-216869-4

3-216869-4: Description34 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-216869-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-216869-4	-	-	View	Buy Now

3-216869-4 Overview

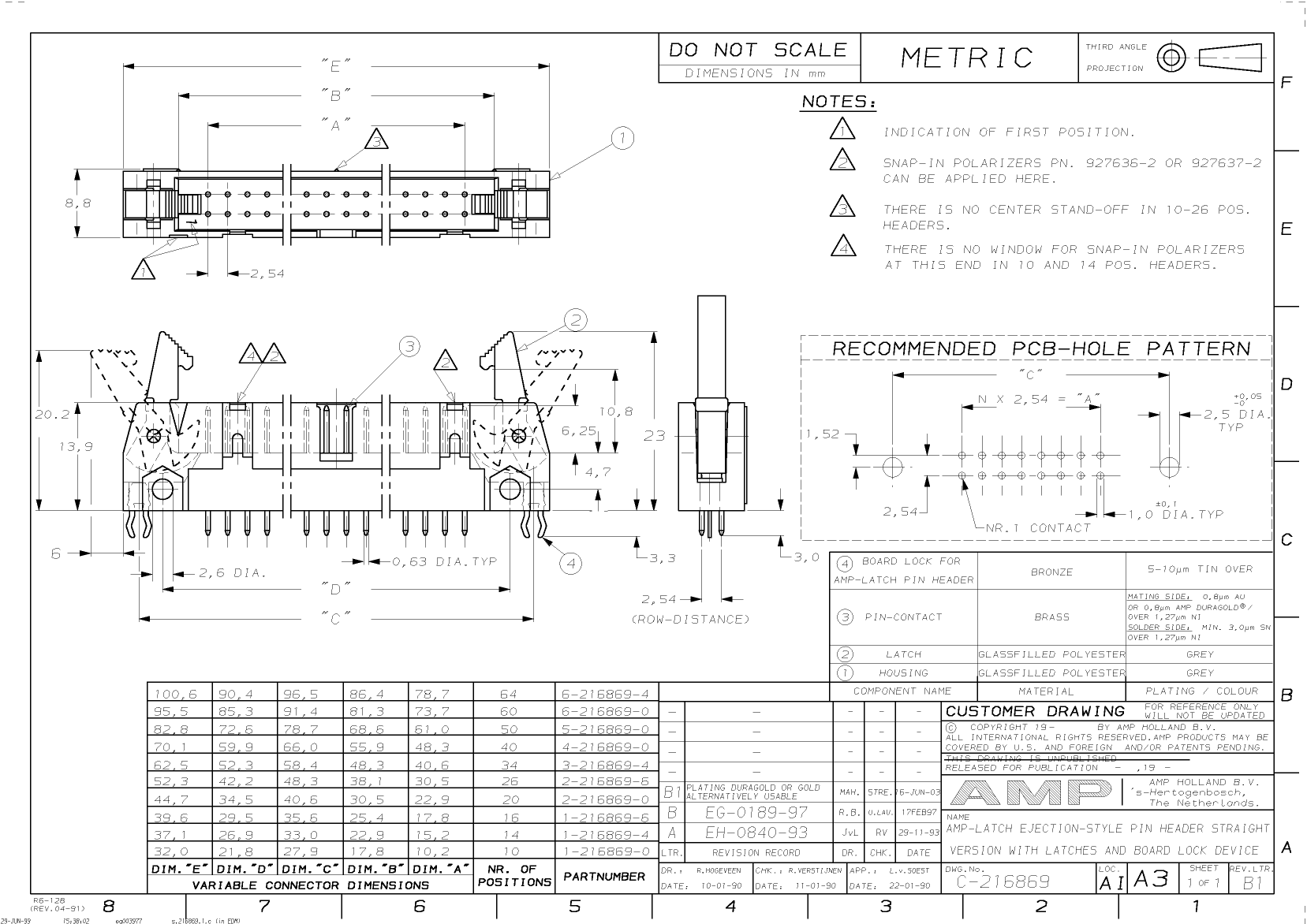

34 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

3-216869-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2118294395
Reach Compliance Code	compliant
Other features	AMP-LATCH, LATCHED, POLARIZATION AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34

Preview

Download Datasheet

View All

3-216869-4 Related Products

	3-216869-4	2-216869-0	2-216869-6	4-216869-0	6-216869-0	5-216869-0	M80-4T1160500-08-322-02-321	M80-4T11605F1-03-321-07-322	M80-4T11605F1-11-321-06-321	6-216869-4
Description	34 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	20 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	60 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	64 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	unknow	compli	unknown	unknown	unknown	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD (30) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	AU	AU	AU	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	TIN	Tin (Sn)	TIN	TIN	TIN	Gold (Au)	Gold (Au)	Gold (Au)	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BRASS
JESD-609 code	e3	e3	e3	e3	e3	e3	e4	e4	e4	e3
Mixed contacts	NO	NO	NO	NO	NO	NO	YES	YES	YES	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Objectid	2118294395	-	-	-	2071447800	2060524972	308652174	308653791	308655450	-
Other features	AMP-LATCH, LATCHED, POLARIZATION AVAILABLE	AMP-LATCH, LATCHED, POLARIZATION AVAILABLE	AMP-LATCH, LATCHED, POLARIZATION AVAILABLE	AMP-LATCH, LATCHED, POLARIZATION AVAILABLE	SHROUDED, AMP-LATCH	AMP-LATCH, LATCHED, POLARIZATION AVAILABLE	-	-	-	POLARISED, AMP LATCH
DIN compliance	NO	NO	NO	NO	NO	NO	-	-	-	NO
Filter function	NO	NO	NO	NO	NO	NO	-	-	-	NO
IEC compliance	NO	NO	NO	NO	NO	NO	-	-	-	NO
MIL compliance	NO	NO	NO	NO	NO	NO	-	-	-	NO
Number of rows loaded	2	2	2	2	2	2	-	-	-	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	-	2.54 mm
Total number of contacts	34	20	26	40	60	50	-	-	-	64
Manufacturer's serial number	-	216869	-	4-216869-0	216869	5-216869-0	M80	M80	M80	216869
