54LS266/BDAJC datasheet, PDF - EEWORLD Datasheet

54LS266/BDAJC: DescriptionIC,LOGIC GATE,QUAD 2-INPUT XNOR,LS-TTL,FP,14PIN,CERAMIC; Categorylogic logic; File Size112KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

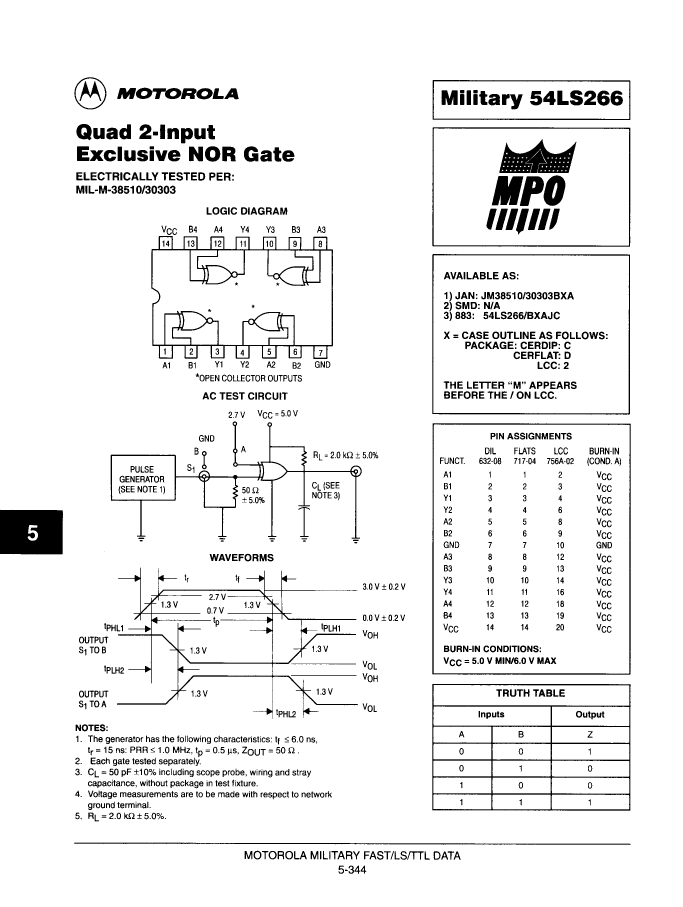

54LS266/BDAJC Overview

IC,LOGIC GATE,QUAD 2-INPUT XNOR,LS-TTL,FP,14PIN,CERAMIC

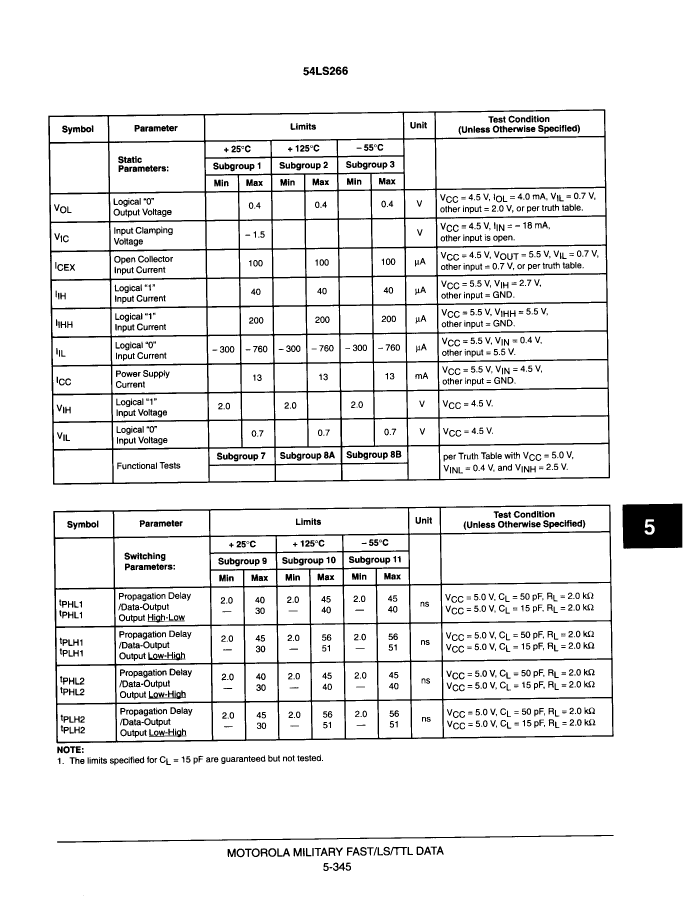

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	XNOR GATE
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	56 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1
