DB978H65S-KL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DB978H65S-KL

DB978H65S-KL: DescriptionBase Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size1MB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB978H65S-KL Overview

Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth

DB978H65S-KL Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
application	CELLULAR
Beam Width-E	6.5 deg
Beamwidth-H	65 deg
front to back ratio	25 dB
Gain	17.6 dB
Omnidirectional	NO
Maximum operating frequency	1880 MHz
Minimum operating frequency	1710 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	250 W
Maximum voltage standing wave ratio	1.4
Commentary	165 mph
Base Number Matches	1

Preview

Download Datasheet

View All

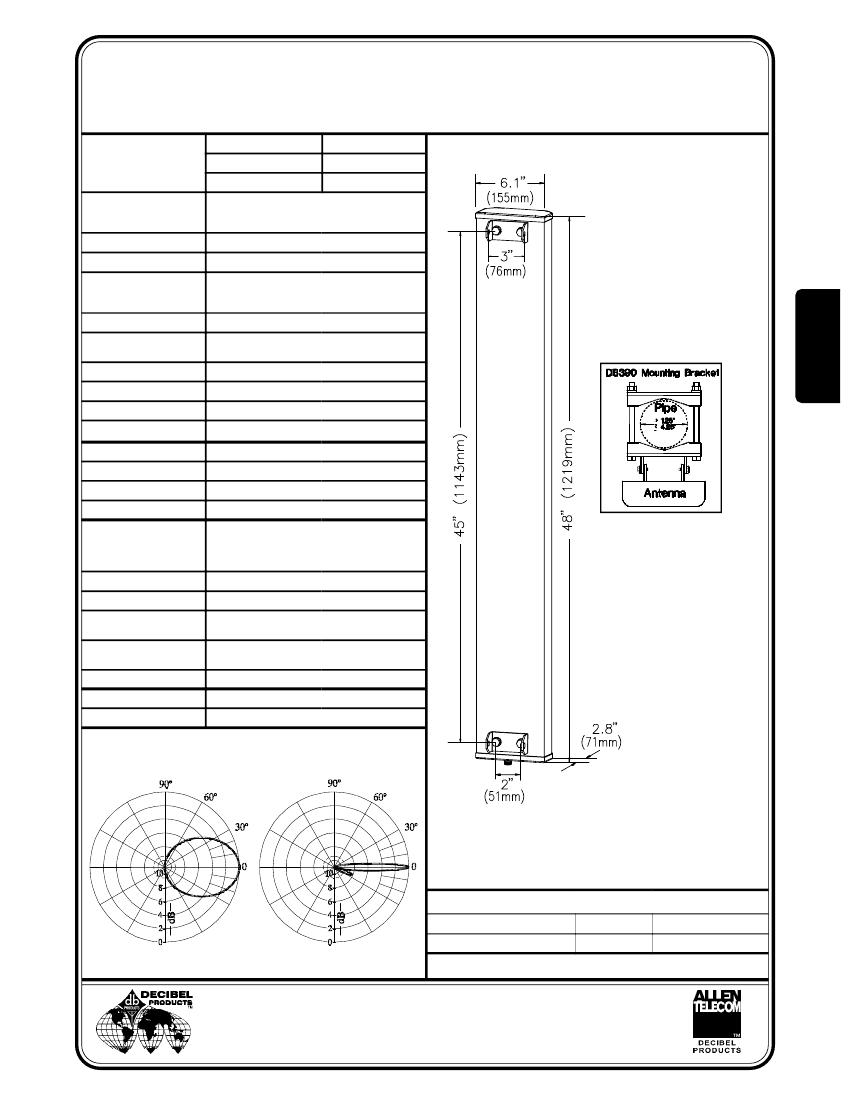

DB978H65(E/N/A/B/R/S)-KL

65°, 15.5 dBd Directional Antenna

1710-1880 MHz

Model Number

DB978H65E-KL

DB978H65A-KL

DB978H65R-KL

Connector Options

Bottom: E = 7-16 DIN

Back: A = 7-16 DIN

Top: R = 7-16 DIN

DB978H65N-KL

DB978H65B-KL

DB978H65S-KL

N = Type N Female

B = Type N Female

S = Type N Female

Frequency Range

Gain

Null Fill

1710 - 1880 MHz

15.5 dBd (17.6 dBi)

First lower null is less than 18 dB down

from max. First upper side lobe

suppressed.

< 1.4:1

Horizontal:

Vertical:

> 65°

> 7°

VSWR

Beamwidth

(3dB from max)

Front to Back Ratio

Polarization

Max. Input Power

Application

Weight

Wind Area

Wind Load

Max. Wind Speed

Material

65°

> 25 dB

Vertical

250 Watts

PCN, PCS, DCS1800

7.1 lbs (3.2 kg)

2.0 ft² (.19 m²)

80 lbf (356N) 35.9 kp (at 100 mph)

165 mph (266 km/h)

Reflector Screen:

Radiators:

Radome:

Mtg. Hardware:

Normal: Gray

DB390 pipe mount kit, included.

DB5098

Fully protected by backplate and radome.

All metal parts grounded.

53" x 7" x 6" (135 x 18 x 15 cm)

11 lbs (5 kg)

Pass. Aluminum

Brass

PVC, UV Resistant

Galvanized Steel

Color

Mounting

Downtilt Brackets

(Optional)

Weather Protection

Lightning Protection

15.5 dBd (17.6 dBi) Gain

Directional Antenna with

65° horizontal 3 dB

beamwidth for 1710-1880

MHz.

Packing Size

Shipping Weight

Antenna Patterns

Electrical Downtilt (T) Option

Model Number

978H65T2E/N-KL

Horizontal

Vertical

Specifications are for reference only.

Downtilt

2°

Gain (Main Lobe)

15.5 dB

099050-007-E 11/99

DECIBEL

Allen Telecom Inc.

PRODUCTS

A Division of

8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610

214 / 631-0310 • Fax: 214 / 631-4706

DB978H65S-KL Related Products

	DB978H65S-KL	DB978H65N-KL	DB978H65B-KL	DB978H65R-KL	978H65T2N-KL	978H65T2E-KL	DB978H65E-KL	DB978H65A-KL
Description	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 17.6dB Gain, 65deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
application	CELLULAR	CELLULAR	CELLULAR	CELLULAR	CELLULAR	CELLULAR	CELLULAR	CELLULAR
Beam Width-E	6.5 deg	6.5 deg	6.5 deg	6.5 deg	6.5 deg	6.5 deg	6.5 deg	6.5 deg
Beamwidth-H	65 deg	65 deg	65 deg	65 deg	65 deg	65 deg	65 deg	65 deg
front to back ratio	25 dB	25 dB	25 dB	25 dB	25 dB	25 dB	25 dB	25 dB
Gain	17.6 dB	17.6 dB	17.6 dB	17.6 dB	17.6 dB	17.6 dB	17.6 dB	17.6 dB
Omnidirectional	NO	NO	NO	NO	NO	NO	NO	NO
Maximum operating frequency	1880 MHz	1880 MHz	1880 MHz	1880 MHz	1880 MHz	1880 MHz	1880 MHz	1880 MHz
Minimum operating frequency	1710 MHz	1710 MHz	1710 MHz	1710 MHz	1710 MHz	1710 MHz	1710 MHz	1710 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	250 W	250 W	250 W	250 W	250 W	250 W	250 W	250 W
Maximum voltage standing wave ratio	1.4	1.4	1.4	1.4	1.4	1.4	1.4	1.4
Commentary	165 mph	165 mph	165 mph	165 mph	165 mph	165 mph	165 mph	165 mph
Maker	CommScope Inc	-	-	-	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc
Base Number Matches	1	1	1	1	1	1	-	-
