HL01R12D05Z/H datasheet, PDF - EEWORLD Datasheet

HL01R12D05Z/H: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, SMD-24/13; CategoryPower/power management The power supply circuit; File Size111KB，3 Pages; ManufacturerC&D

Download Datasheet Parametric View All

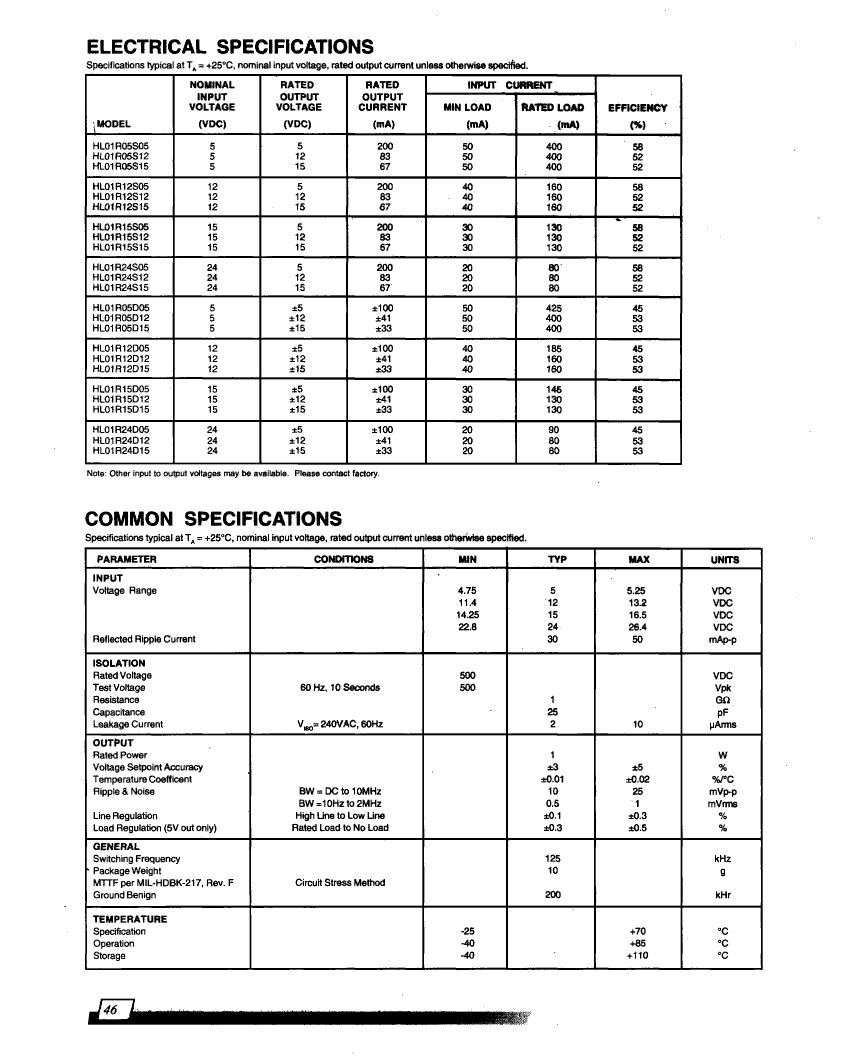

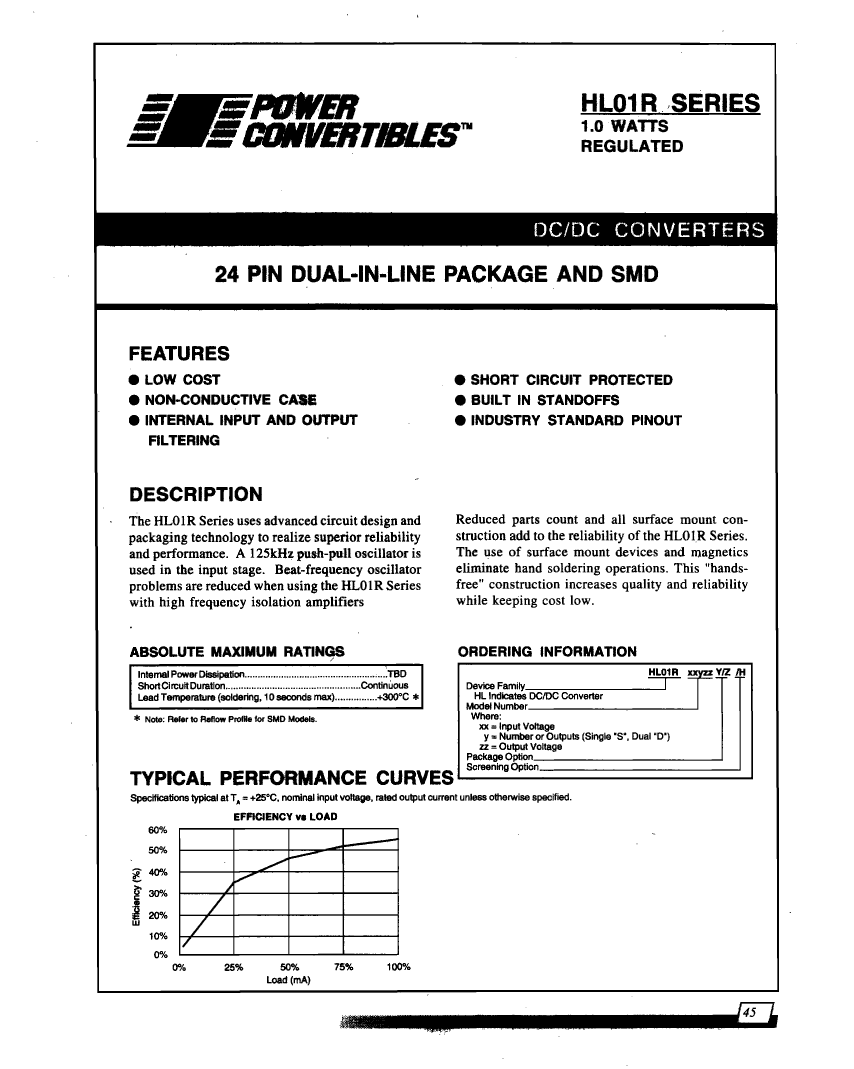

HL01R12D05Z/H Overview

DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, SMD-24/13

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	C&D
Parts packaging code	MODULE
package instruction	SOP, GWDIP24,.7
Contacts	24/13
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	11.4 V
Nominal input voltage	12 V
JESD-30 code	R-XDSO-G13
JESD-609 code	e0

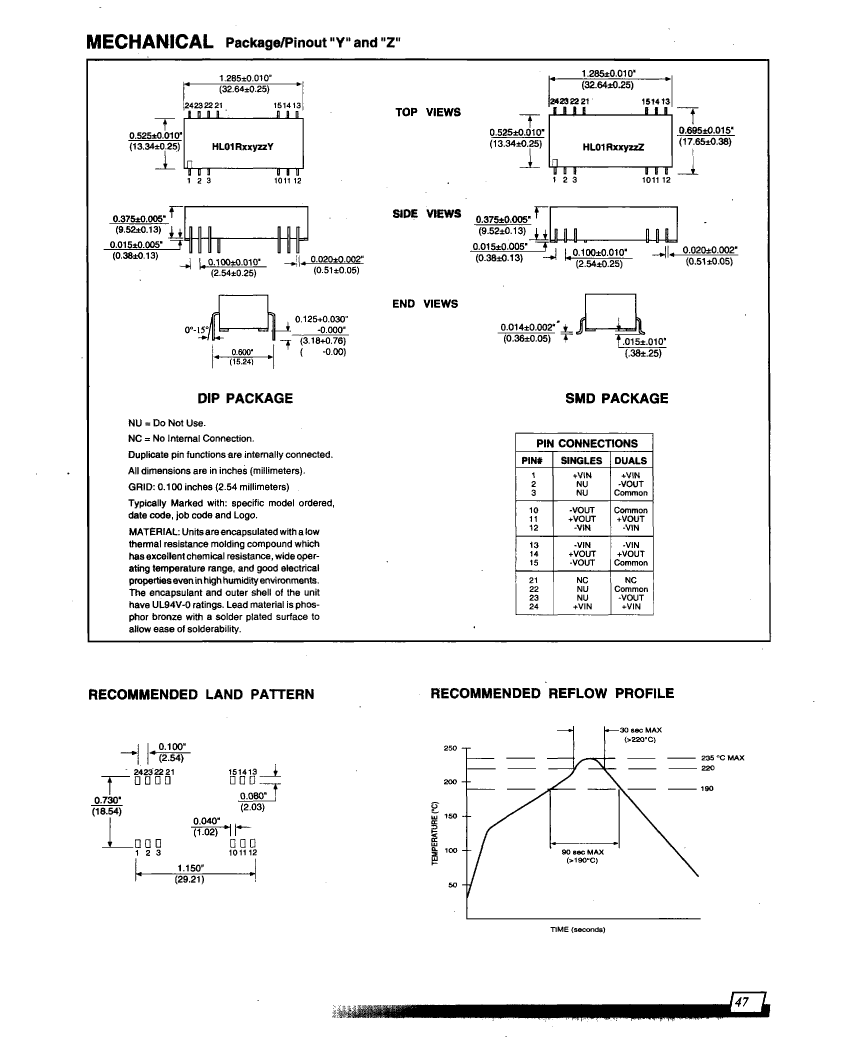

length	32.64 mm
Maximum load regulation	0.5%
Number of functions	1
Output times	2
Number of terminals	13
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Maximum output current	0.1 A
Maximum output voltage	5.25 V
Minimum output voltage	4.75 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
encapsulated code	SOP
Encapsulate equivalent code	GWDIP24,.7
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Certification status	Not Qualified
Maximum seat height	10.16 mm
surface mount	YES
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
width	13.34 mm
Base Number Matches	1
