P13
www.vishay.com
Vishay Sfernice
Fully Sealed Container Cermet Potentiometer
Military and Professional Grade
FEATURES
• High power rating 1.5 W at 70 °C
• Product qualification:
According to CECC 41 301-001 (A, B, C)
•
•
•
•
•
•
•
Test according to CECC 41000 or IEC 60393-1
GAM T1
Cermet element
Fully sealed case
Tight temperature coefficient (± 75 ppm/°C typical)
Mechanical strength
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Their excellent performances are due to the use of a
cermet-track sealed in a large case.
P13 interchangeability with RV6, combined with the
excellent stability of its rated characteristics make it fully
acceptable for military and professional uses.

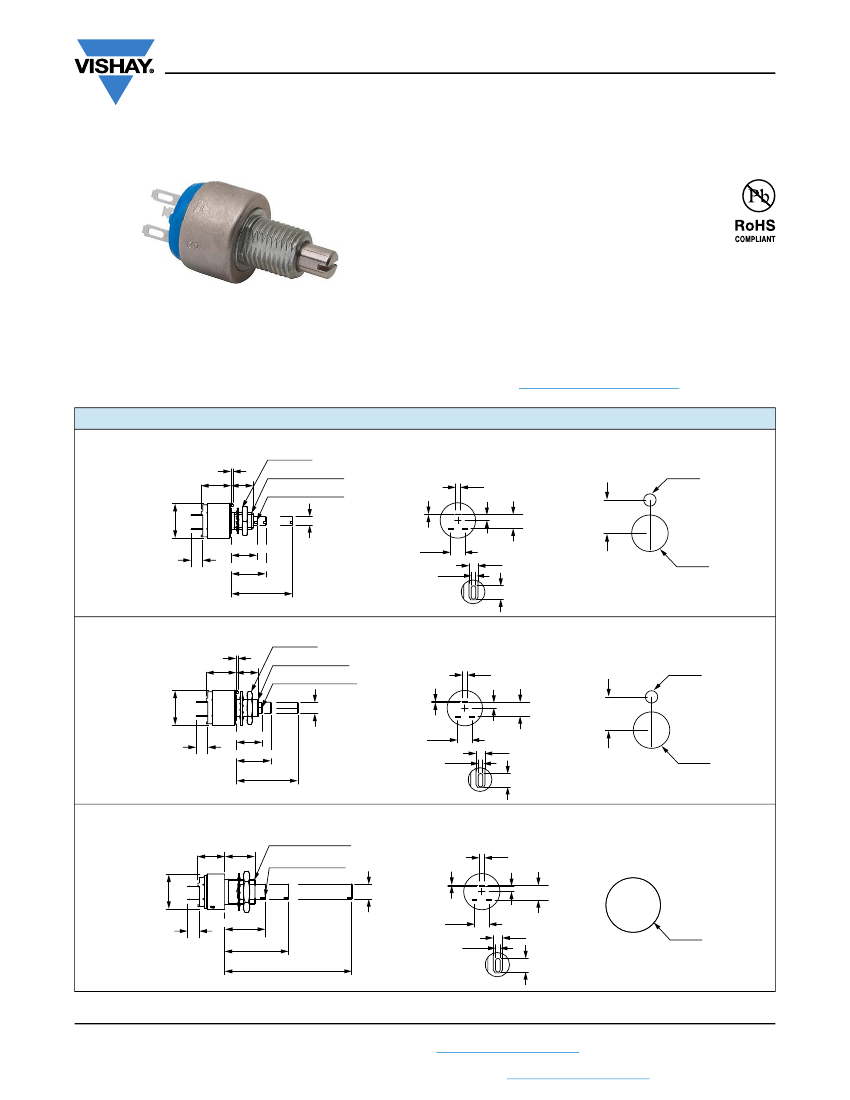

DIMENSIONS
in millimeters (± 0.5)
P13T-(PC32) A
10 wrench
0.7
10.5 max.
8
Thread M6 x 0.75
Slot 0.6 x 1 deep
Ø 12.6
AA = 9.5
5
AB = 12.5
AJ = 22
Ø3
0.3
c
5.08
0.8
2.4
a
1.6
Ø 6.5
b
2 5.08
5.9 ± 0.2
1.6
Panel Cutout
Ø 2.2
P13Q-B
10 wrench
0.7
10.5 max.
8
Thread M7 x 0.75
Slot 0.8 x 1.4 deep
Ø 12.6
EA = 9.5
5
EB = 12.5
EJ = 22
Ø4
0.3
c
5.08
0.8
2.4
a
1.6
Ø 7.5
1.6
b
2 5.08
5.9 ± 0.2
Ø 2.2
Panel Cutout
P13L-(PC33) C
Thread M10 x 0.75
10.5 max.
12
Slot 1 x 1.8 deep
Ø 14
FG = 16
FL = 25
FR = 50
Ø6
0.3
c
5.08
0.8
2.4
a
1.6
Ø 10.5
b
2 5.08
1.6
Panel Cutout
5
Revision: 10-Dec-15
Document Number: 51034
1
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P13
www.vishay.com
Vishay Sfernice
ELECTRICAL SPECIFICATIONS
Resistive element
Electrical travel
Resistance Range
Standard series e3
Tolerance
Standard
On request
100
Cermet
270° ± 10°
Linear taper
Logarithmic taper
22
to 10 M
1 k to 2.2 M
1, 2.2, 4.7 and on request 1, 2, 5
± 20 %
± 10 % to ± 5 %
% TOTAL RESISTANCE
80
60
40
20
0
F
A
L
Taper
0
20
40
60
80
100
% CLOCKWISE SHAFT ROTATION
a
c
(3)
b
(2)
cw
Circuit diagram
(1)
1.5
LIN. TAPER A
POWER IN W
Power rating
Linear
1.5 W at 70 °C
Logarithmic
0.75 W at 70 °C
1
0.5
LOG. TAPER
L and F
0
0
20
40
60 70 80
100
120 140
AMBIENT TEMPERATURE IN °C
Temperature coefficient (typical)
Limiting element voltage (linear law)
Contact resistance variation
End resistance (typical)
Dielectric strength (RMS)
Insulation resistance (300 V
DC
)
Independent linearity (typical)
± 150 ppm/°C
For values
100
and in temperature range +20 °C to +70 °C,
the typical temperature coefficient is ± 75 ppm/°C
350 V
3 % Rn or 3
1
2000 V
10
6
M
±5%
Revision: 10-Dec-15
Document Number: 51034
2
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P13
www.vishay.com
Vishay Sfernice
LOG. TAPER
MAX. CUR.
THROUGH
WIPER
mA
261
177
122
82.6
56.5
38.7
26.1
17.9
12.2
8.26
5.65
3.5
1.6
0.74
0.35
0.16
0.074
0.035
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.56
0.26
0.12
0.05
27
40
59
87
128
187
273
350
350
350
350
27
18
12
8.7
5.8
3.9
2.7
1.6
0.74
0.35
0.16
± 150
MAX.
POWER
AT 70 °C
W
MAX.
WORKING
VOLTAGE
V
MAX. CUR.
THROUGH
WIPER
mA
STANDARD RESISTANCE ELEMENT DATA
STANDARD
RESISTANCE
VALUES
22
47
100
220
470
1K
2.2K
4.7K
10K
22K
47K
100K
220K
470K
1M
2.2M
4.7M
10M
LINEAR TAPER
MAX.
POWER
AT 70 °C
W
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.22
0.56
0.26
0.12
0.05
0.026
0.012
MAX.
WORKING
VOLTAGE
V
5.74
8.4
12.2
18.2
26.5
38.7
57.5
84
122.5
182
265
350
350
350
350
350
350
350
TYPICAL
TCR
-55 °C
+125 °C
ppm/°C
MECHANICAL SPECIFICATIONS
Mechanical travel
Operating torque (typical)
End stop torque
Style T, Q
Style L
Tightening torque of mounting nut
Style T, Q
Style L
Unit weight
Terminals
150 Ncm max.
250 Ncm max.
6 g to 18 g
e3: pure Sn
13.3 lb inch max.
22.1 lb inch max.
0.22 oz. to 0.64 oz.
35 Ncm max.
80 Ncm max.
3.1 lb inch max.
7.1 lb inch max.
2 Ncm
300° ± 5°
2.85 oz. inch
ENVIRONMENTAL SPECIFICATIONS
Temperature range
Climatic category
Sealing
-55 °C to +125 °C
55 / 125 / 56
Fully sealed - container IP67
Revision: 10-Dec-15
Document Number: 51034
3
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P13
www.vishay.com
Vishay Sfernice

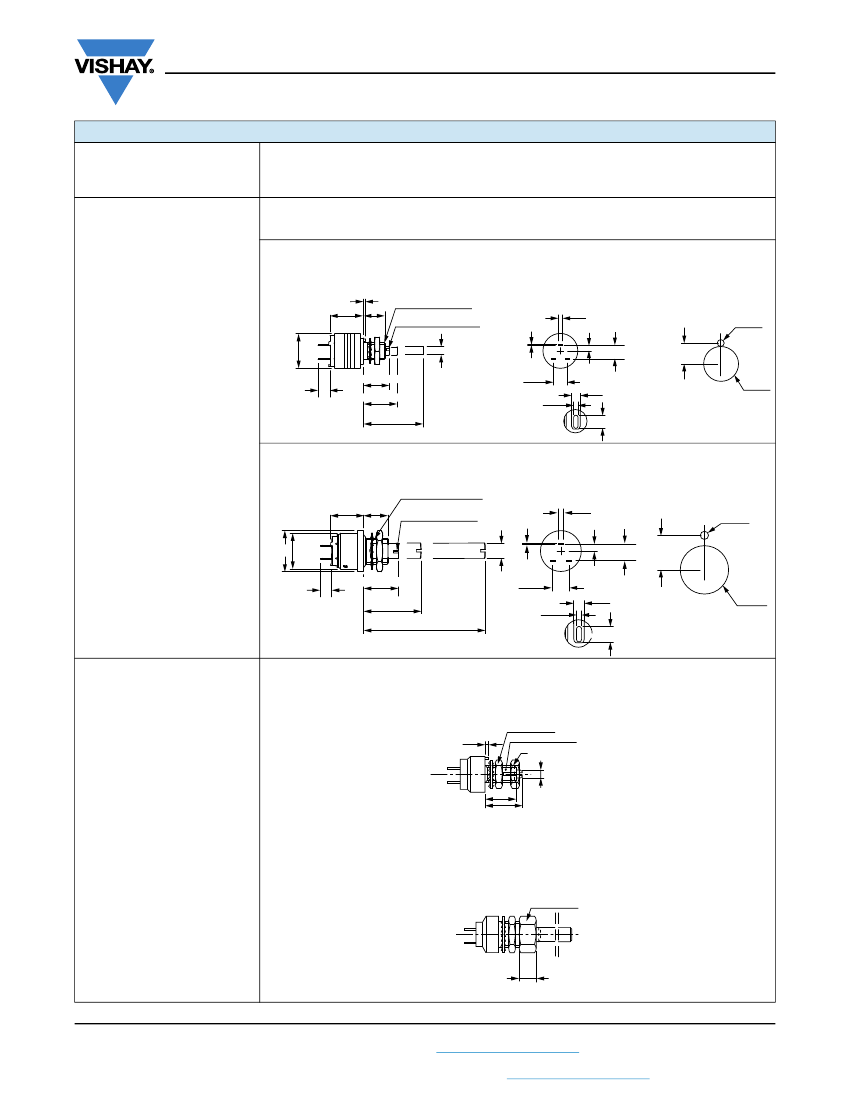

OPTIONS
Special feature command shaft
Length is measured from the mounting surface to the free end of the shaft. The screwdriver slot is
aligned with the wiper within ± 10°. Special shafts are available, in accordance to drawings supplied
by customers. We recommend that customers should not machine tool shafts, in order to avoid
damage. Bending or torsion of terminals should also be avoided.
Potentiometers P13T and P13L can be fitted with a device providing sealing between the threaded
bushing and the front panel. Their designation is P13P and P13N respectively or with a locating peg
P13P...E and P13N...E.
Panel sealed version
P13P
P13P...E: Including locating peg
0.7
13.2 max.
8
Panel Cutout
Thread M6 x 0.75
Slot 0.6 x 1 deep
1.6
Ø 1.5
0.3
5.08
1.6
0.8
2.4
2 5.08
3.9 ± 0.2
Ø 6.5
Ø 12.6
AA = 9.5
5
AB = 12.5
AJ = 22
Ø3
Panel sealing
Panel sealed version
P13N
P13N...E: Including locating peg
Thread M10 x 0.75
13.5 max. 9.5
1.6
Slot 1 x 1.8 deep
0.3
Ø6
FE = 13.5
FK = 22.5
FQ = 47.5
5.08
2
Panel Cutout
Ø 1.5
Ø 16 Ø 14
5.08
6.9 ± 0.2
5
1.6
0.8
2.4
Ø 10.5
On potentiometers equipped with a 3 mm Ø shaft, shaft locking can be obtained:
• Either by a taper nut tightening a slotted bushing. Ask for P13O type. These devices are normally
equipped with an AB type shaft (12.5 mm with a slot).
P13O
0.7
10 wrench
Slotted bushing
Thread M6 x 0.75
8 wrench
Ø3
11
AB = 12.5
Shaft locking
• Or by a tightening nut locked by a screw. Ask for ES1 type. On potentiometers equipped with a
Ø 6 mm shaft, locking can be obtained by a taper nut applying pressure on a slotted notched washer.
This device is supplied in a box as an accessory. Ask for DBAN.
These devices are ordered separately. Please consult Vishay Sfernice.
P13L DBAN
12 wrench
6.5
No locking on shaft Ø 4 mm.
Revision: 10-Dec-15
Document Number: 51034
4
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P13
www.vishay.com
Vishay Sfernice
OPTIONS
Product in conformity with RN6/MIL-R-94/3G
P13T-F55
45°
18.5 max.
1.1
1/4 x 32 NEF 2A
Ø 6.35 x 32
threads per inch
2
RV6
(P13T-F55)
0.
1
Ø 12.6
± 0.1
Ø 3.17 ± 0.03
6.3 ± 0.4
13.5 max.
±
3
6.
±
1
0.
MARKING
Printed:
• Vishay trademark
• Part number (including ohmic value code, tolerance code and taper)
• Manufacturing date
• Marking of terminals a
PACKAGING
• In box
PERFORMANCE
REQUIREMENTS
TESTS
Electrical
endurance
Climatic
sequence
CONDITIONS
1000 h at rated power
90’/30’ - ambient temp. 70 °C
Phase A dry heat 125 °C
Phase B damp heat
Phase C cold -55 °C
Phase D damp heat 5 cycles
56 days
40 °C, 93 % HR
5 cycles
-55 °C at +125 °C
25 000 cycles
50
g‘s
at 11 ms
3 successive shocks
in 3 directions
10 Hz to 55 Hz
0.75 mm or 10
g‘s
during 6 h
R
T
/R
T
(%)
± 10 %
R
1-2
/R
1-2
(%)
-
OTHER
Contact res. variation:
< 7 % Rn
-
Dielectric strength:
250 V
Insulation resistance:
> 100 M
-
Contact res. variation:
< 7 % Rn
-
TYPICAL VALUES AND DRIFTS
R
T
/R
T
(%)
±1%
R
1-2
/R
1-2
(%)
-
OTHER
Contact res. variation:
< 3 % Rn
-
Dielectric strength:
1000 V
Insulation resistance:
> 10
4
M
-
Contact res. variation:
< 2 % Rn
-
± 10 %
± 10 %
± 0.5 %
±1%
Damp heat,
steady state
Change of
temperature
Mechanical
endurance
Shock
± 10 %
± 10 %
± 0.5 %
±1%
±3%
± 10 %
±2%
-
-
-
± 0.5 %
±3%
± 0.1 %
-
-
± 0.2 %
Vibration
±2%
-
-
± 0.1 %
-
V
1-2
/V
1-3
< ± 0.2 %
Note
• Nothing stated herein shall be construed as a guarantee of quality or durability.
