M39015/2-004PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> M39015/2-004PM

M39015/2-004PM: DescriptionTrimmer, Wire Wound, 0.75W, 1000ohm, 5% +/-Tol, -50,50ppm/Cel, 25 Turn(s), 5050; CategoryPassive components The resistor; File Size207KB，6 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

M39015/2-004PM Overview

Trimmer, Wire Wound, 0.75W, 1000ohm, 5% +/-Tol, -50,50ppm/Cel, 25 Turn(s), 5050

M39015/2-004PM Parametric

Parameter Name	Attribute value
Maker	Bourns
package instruction	PCB Mount, 5050
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Sealed
Lead diameter	0.71 mm
Lead length	13.33 mm
Manufacturer's serial number	M39015/2
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	25
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	5.59 mm
Package length	12.7 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	12.7 mm
method of packing	TUBE
Rated power dissipation(P)	0.75 W
Rated temperature	85 °C
Guideline	MIL-R-39015
resistance	1000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	9000 deg
series	M39015/2 SERIES
size code	5050
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	-50,50 ppm/°C
Terminal shape	WIRE
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

DI TH AIL

ST RO AB

RI U LE

BU GH

Features

Multiturn / Wirewound / Sealed

Listed on the QPL for style RT22 per

MIL-R-27208 and RTR22 per

High-Rel MIL-R-39015

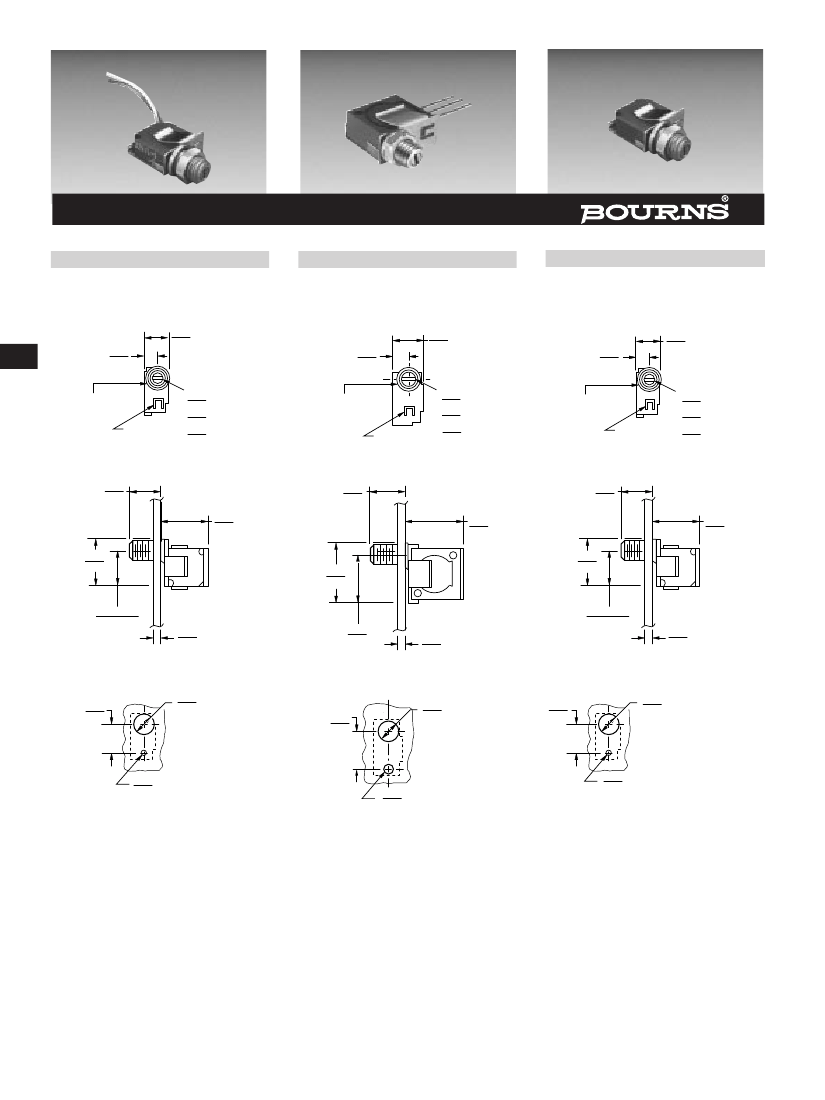

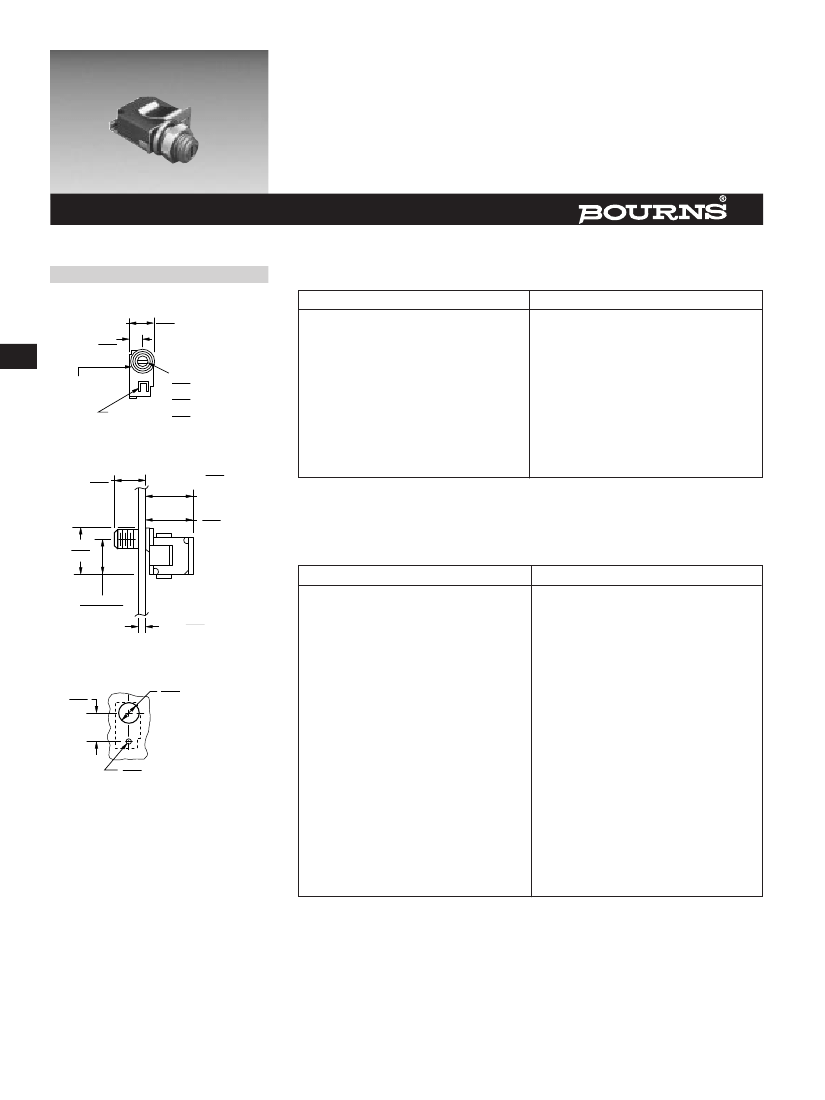

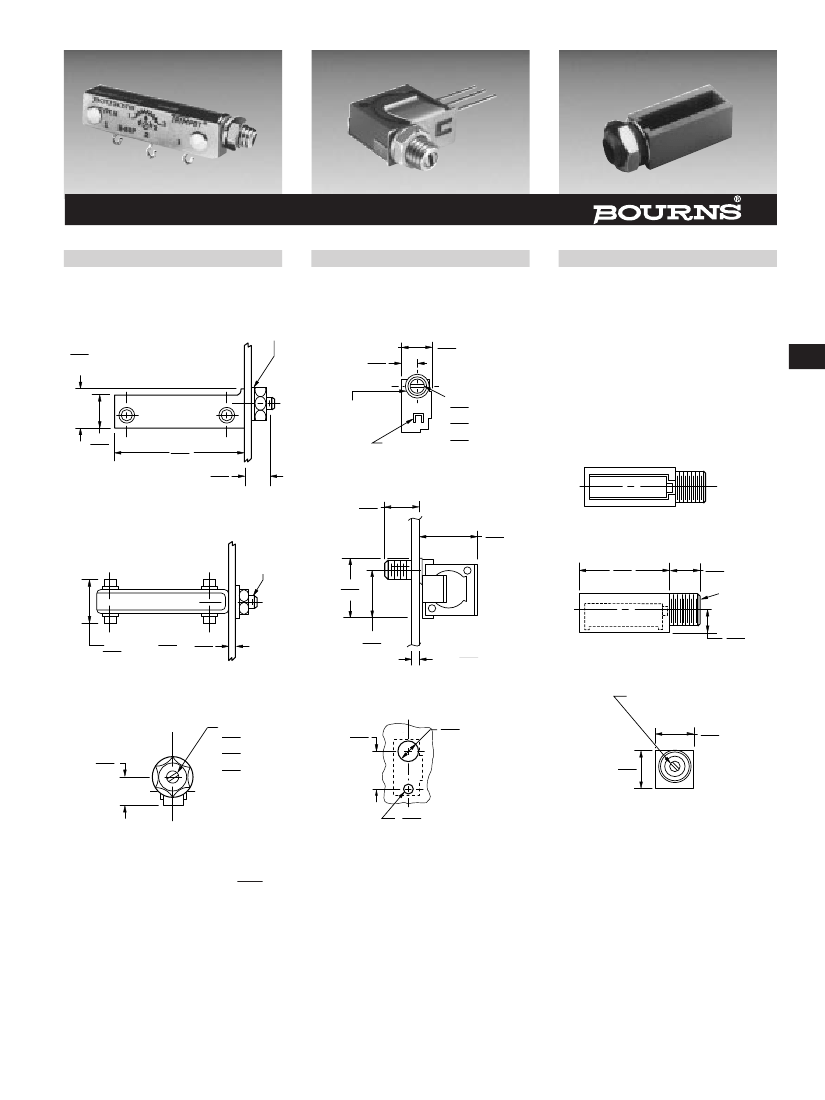

Panel Mount option available

(see following pages for details)

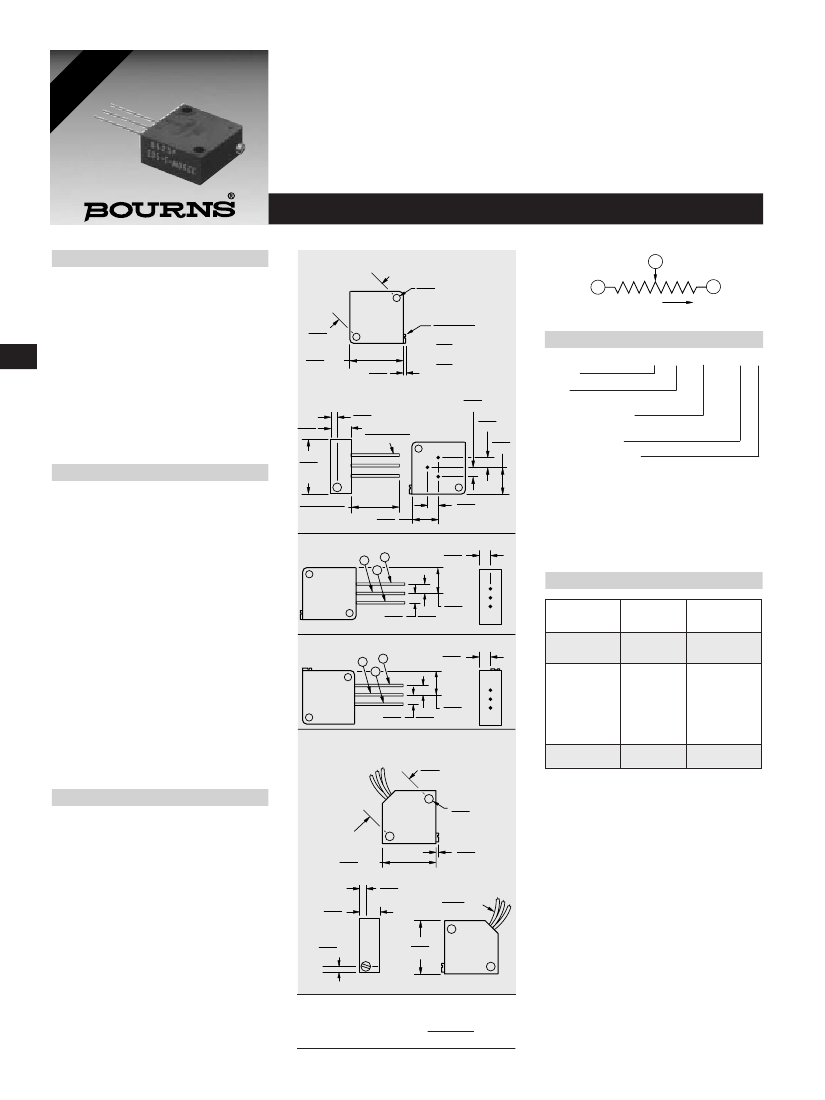

3250/RT22/RTR22 - 1/2” Square Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

3250 .....................................10 to 50K ohms

RT22.....................................50 to 20K ohms

RTR22 ................................500 to 20K ohms

(see standard resistance table)

Resistance Tolerance........................±5% std.

(tighter tolerance available)

Absolute Minimum Resistance

......0.1% or 1 ohm max. (whichever is greater)

Noise ..............................100 ohms ENR max.

Resolution .....................See Resistance Table

Insulation Resistance.........................500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level .......................................1,000 vac

80,000 Feet .......................................400 vac

Adjustment Travel......................25 turns nom.

3250P/RT22/RTR22 Common Dimensions

(Pin Styles)

1.98 DIA. THRU

(.078) (2 PLACES)

ADJ. SLOT

2.03

.38

(.080

.015) DIA.

.64

WIDE

(.024)

3.1

DEEP

(.122)

2.54

(.100)

2.54

(.100)

6.35

(.250)

YELLOW

CCW

RED

WIPER

CLOCKWISE

GREEN

13.21

TYP.

(.520)

12.7

TYP.

(.500)

How To Order

3250 L - 1 - 103 M

Model

Style

Standard or Modified

Product Indicator

-1 = Standard Product

Resistance Code

Optional Suffix Letter

M = Panel Mount

(Factory Installed)

.89

(.035)

TYP.

5.59

(.220)

12.7

(.500)

TYP.

13.33

.64

(.525

.025)

1.78

TYP.

(.070)

.71

.08

(.028

.003) DIA. TYP.

Environmental Characteristics

Power Rating @ 85°C

3250..................................................1.0 watt

RT22/RTR22 ...................................0.75 watt

Power Rating @ 150°C ..........................0 watt

Temperature Range ..............-65°C to +150°C

Temperature Coefficient

3250 ............................................±50ppm/°C

RT22/RTR22................................±50ppm/°C

Seal Test.......85°C Fluorinert* (pin styles only)

Humidity ................MIL-STD-202 Method 106

3250..................(2%

∆TR;

100 Megohms IR)

RT22 ...................(1%

∆TR;

10 Megohms IR)

RTR22...............(1%

∆TR;

100 Megohms IR)

Vibration ....................................................30G

(1%

∆TR;

0.5% + resolution

∆VR)

Shock ......................................................100G

(1%

∆TR;

0.5% + resolution

∆VR)

Load Life

3250 ...............1,000 hours 1.0 watt @ 85°C

(2%

∆TR;

500 ohms ENR)

RT22 .............1,000 hours 0.75 watt @ 85°C

(2%

∆TR;

2% + resolution

∆VR)

RTR22 ........10,000 hours 0.75 watt @ 85°C

(3%

∆TR;

2% + resolution

∆TR)

Rotational Life ................................200 cycles

3250 .....................(2%

∆TR;

500 ohms ENR)

RT22/RTR22 ...................................(2%

∆TR)

6.35

(.250)

2.54

(.100)

See next page for RT22/RTR22 ordering

information.

Consult factory for other available options.

3250W/RT22/RTR22

2.79

(.110)

Standard Resistance Table

2.54

(.100)

3250W-66/RT22X/RTR22X

6.35

2.54 (.250)

(.100)

2.79

(.110)

2.54

(.100)

"L" Flex Lead Type

RT22 has mounting slots

RTR22 has mounting holes

6.35

2.54 (.250)

(.100)

13.21

TYP.

(.520)

Resistance

(Ohms)

100

200

500

1,000

2,000

5,000

10,000

20,000

25,000

50,000

Nominal

Resistance

Code

100

200

500

101

201

501

102

202

502

103

203

253

503

Resolution

(Percent)

1.30

1.00

0.80

0.90

0.70

0.60

0.40

0.30

0.25

0.19

0.16

0.14

0.13

Physical Characteristics

Torque ......................................5.0 oz-in. max.

Mechanical Stops ..........................Wiper idles

Terminals

3250 .............Solderable printed circuit pins

Flexible leads (7 strands of 30 AWG)

RT22/RTR22.......MIL-STD-202; Method 208

Weight .................................................0.06 oz.

Machine Screw Mounting

Torque .....................................12 oz-in. max.

Marking

3250 ....................Manufacturer’s trademark,

resistance code, terminal numbers,

date code, manufacturer’s model

number and style

RT22/RTR22 ..............Mil-spec part number

Wiper........................................Set at CW end

Flammability ...................................U.L. 94V-0

Standard Packaging

P&W Styles .........................25 pcs. per tube

L Style ..................................25 pcs. per bag

Adjustment Tool .......................................H-90

2.36 DIA. THRU

(.093) (2 PLACES)

Popular values listed in boldface. Special

resistances available.

SHADED AREAS TYPICALLY NOT STOCKED BY

DISTRIBUTORS AND NOT RECOMMENDED FOR NEW

DESIGNS.

12.70

TYP.

(.500)

1.40

(.055)

4.75

(.187)

1.52

(.060) TYP.

.89

TYP.

(.035)

152.4

LENGTH (6.00) MIN.

12.7

(.500)

TOLERANCES: ± 0.25 (.010) EXCEPT WHERE NOTED

DIMENSIONS ARE:

METRIC

(INCHES)

Specifications are subject to change without notice.

*”FLUORINERT” IS A REGISTERED TRADEMARK OF 3M CO.
