DS1007(DIE)-5 datasheet, PDF - EEWORLD Datasheet

DS1007(DIE)-5: DescriptionSilicon Delay Line, 7-Func, 1-Tap, True Output, CMOS, DIE; Categorylogic logic; File Size128KB，5 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric View All

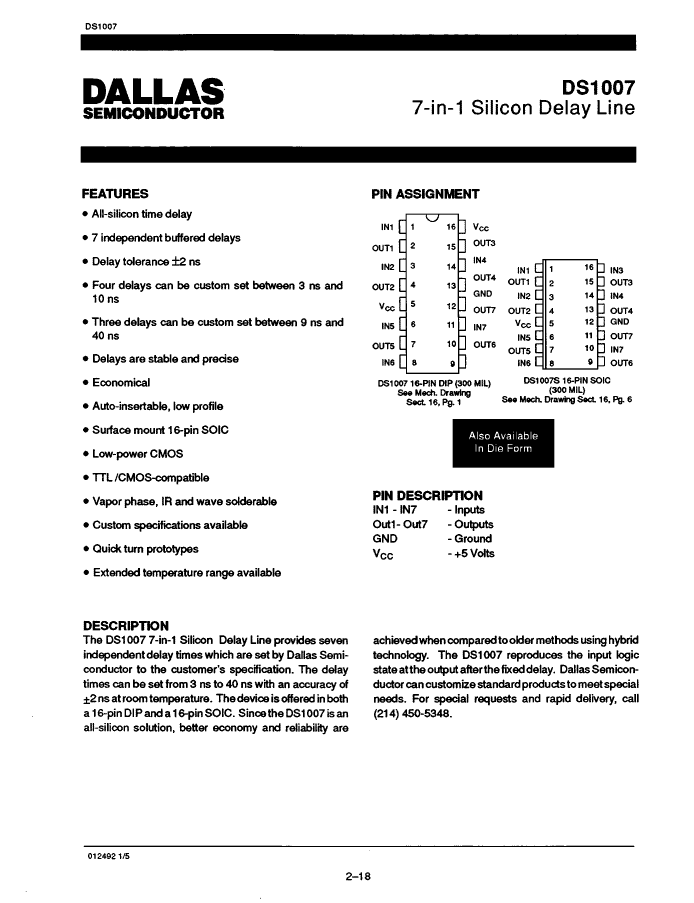

DS1007(DIE)-5 Overview

Silicon Delay Line, 7-Func, 1-Tap, True Output, CMOS, DIE

Parameter Name	Attribute value
Maker	DALLAS
package instruction	DIE
Reach Compliance Code	unknown

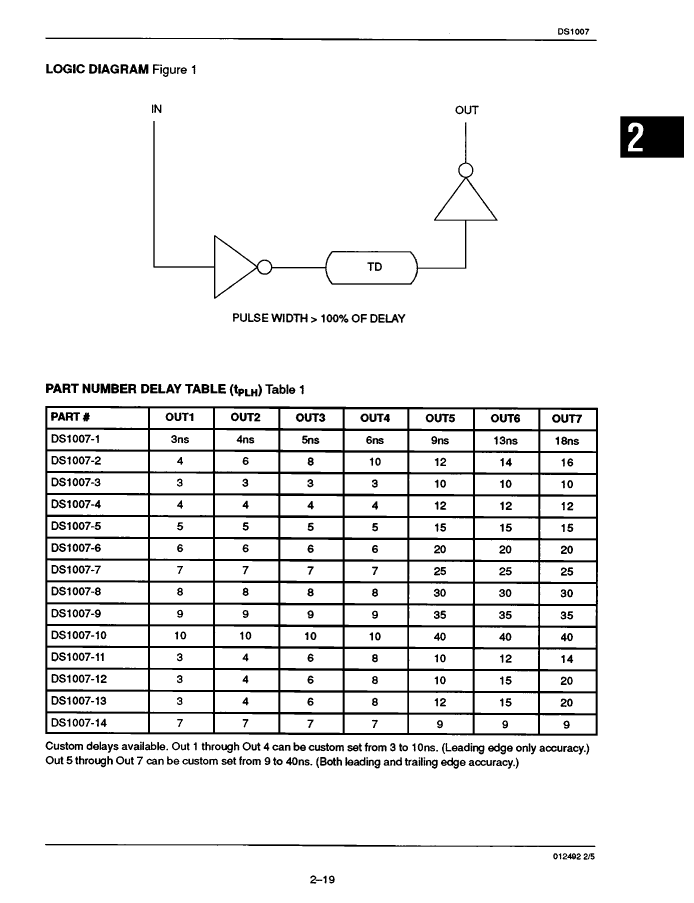

Other features	7 INDEPENDENT BUFFERED DELAYS DELAY[NS] = 5,5,5,5,15,15,15
series	CMOS/TTL
Input frequency maximum value (fmax)	22.2222 MHz
JESD-30 code	X-XUUC-N
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	7
Number of taps/steps	1

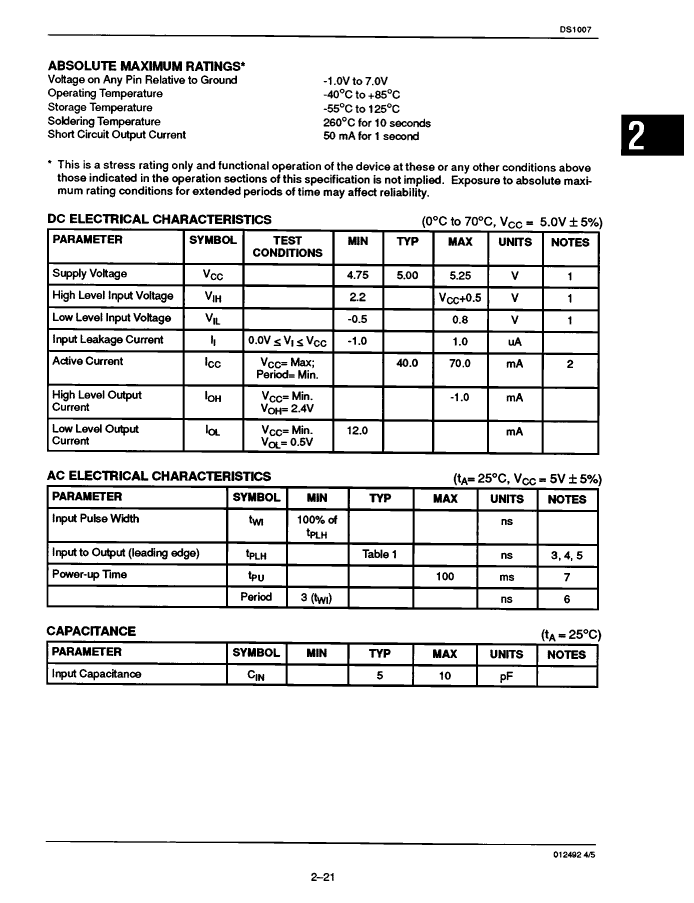

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
programmable delay line	NO
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal location	UPPER
Total delay nominal (td)	15 ns
Base Number Matches	1
