For more information, please visit the
product page.
rev.
page
date
1 of 7
10/2008
PART NUMBER:
EPA160025-P5-SZ
DESCRIPTION:
linear adapter
SPECIFICATIONS
output voltage
rated input voltage
primary rated voltage
primary exciting current
secondary rated voltage & current
temperature rise of primary winding
insulation resistance
HI-POT test
(full load)
16 V ac at 250 mA
120 V ac
120 V ac 60 Hz 8 W
40 mA rms max.
no load voltage (max.)
full load voltage (250 mA)
70°C max. using resistance method
>= 100 M Ohm at 500 Vdc
primary to secondary
primary to secondary
primary winding to secondary winding
primary winding to core
secondary winding to core
19.1 V
16 V ±5%
1240 V ac at 2 mA for 1 minute
1600 V ac at 2 mA for 1 second
1600 V ac at 2 mA for 1 second
1600 V ac at 2 mA for 1 second
750 V ac at 2 mA for 1 second
safety standard
weight
RoHS compliant
test conditions
adapter color
UL/cUL
218 g
yes
ambient temp
humidity
case
cord
plug top
40±2°C
90~95% 96 hours at Full Load
black
black
black (insulation chip)
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2383
For more information, please visit the
product page.
rev.
page
date
2 of 7
10/2008
PART NUMBER:
EPA160025-P5-SZ
DESCRIPTION:
linear adapter
LABEL
R2.5*4
AC ADAPTOR
CLASS 2 TRANSFORMER
P/N:EPA160025-P5-SZ
INPUT: AC 120V 60Hz 8W
OUTPUT : A C 16V 250 mA
E140898
88Y3
material: pvc polyester
color: black on silver base
remarks: YYWW X
YY=production year
WW=production week
X=production location
RoHS
FOR VERTICAL OR FLOOR
MOUNT USE ONLY
EFFICIENCY LEVEL
IV
115V
MODEL : 41A-16-250
EIA 363 YYWW X
MADE IN CHINA
29.4+0/-0.2
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2383
34.5+0/-0.2
1.6mm

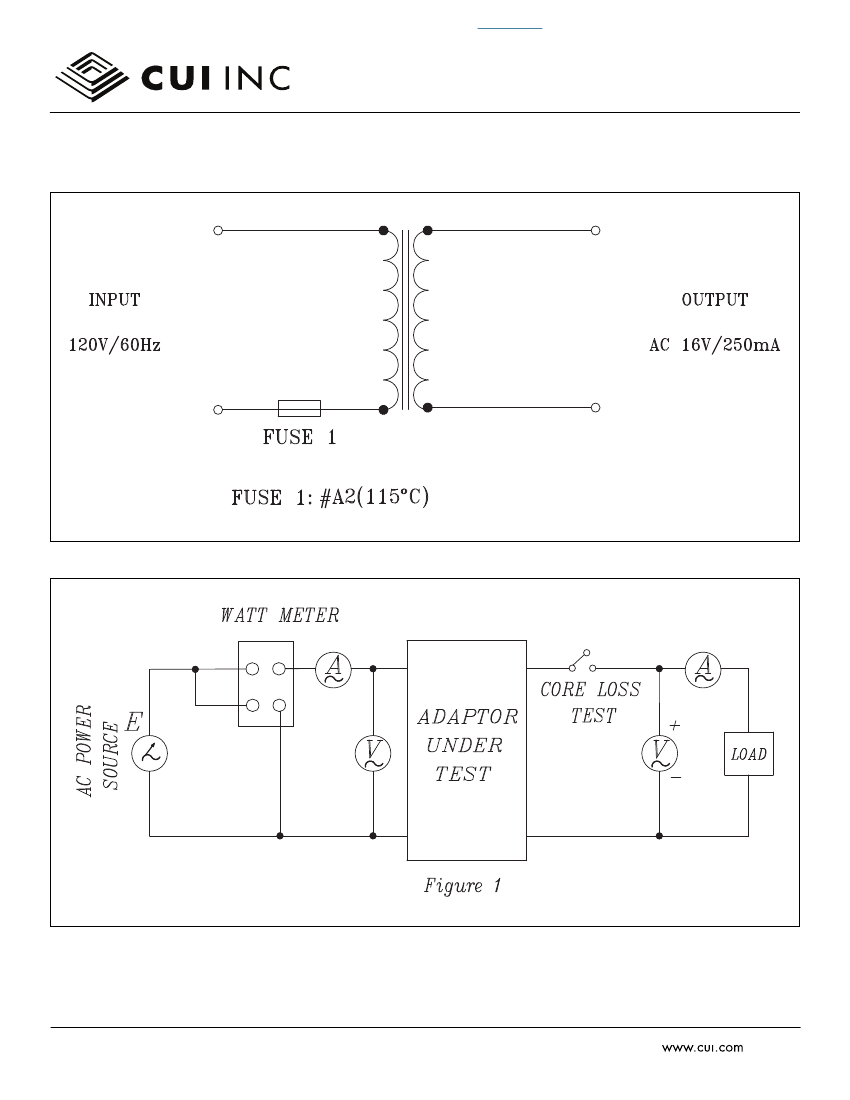

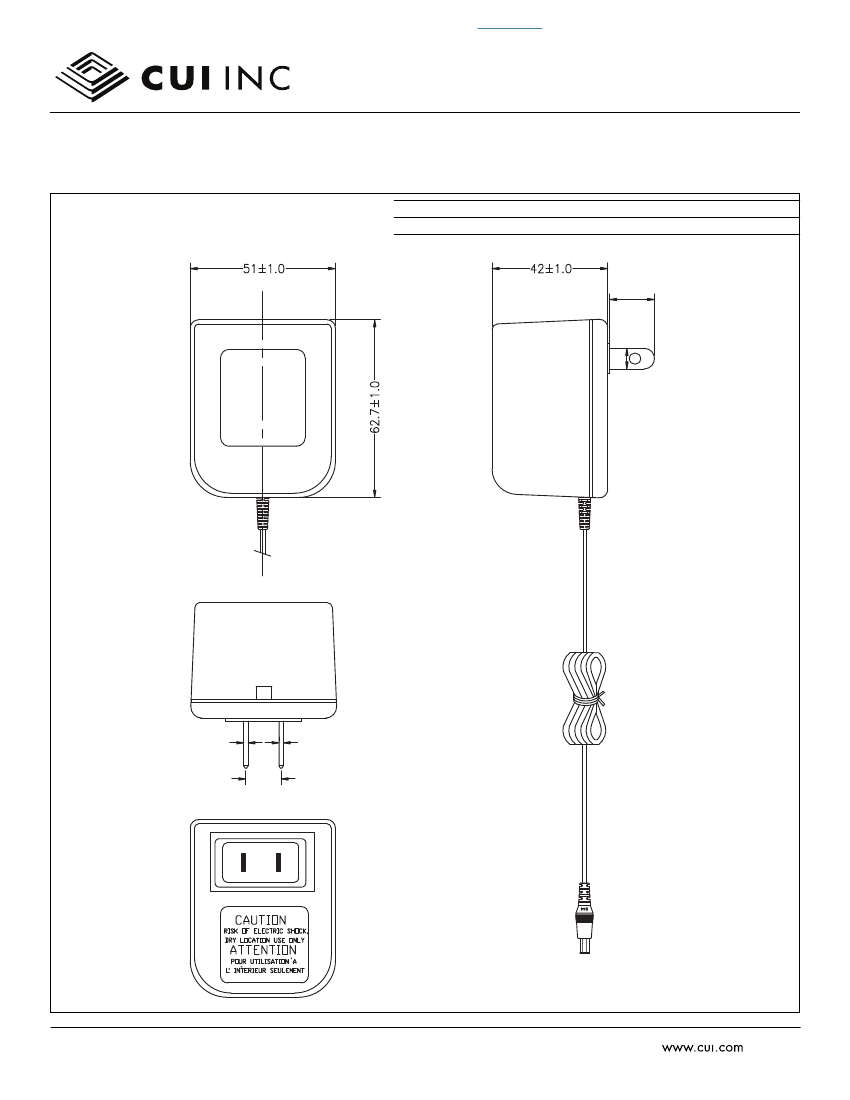

For more information, please visit the
product page.
rev.
page
date
5 of 7
10/2008
PART NUMBER:
EPA160025-P5-SZ
DESCRIPTION:
linear adapter

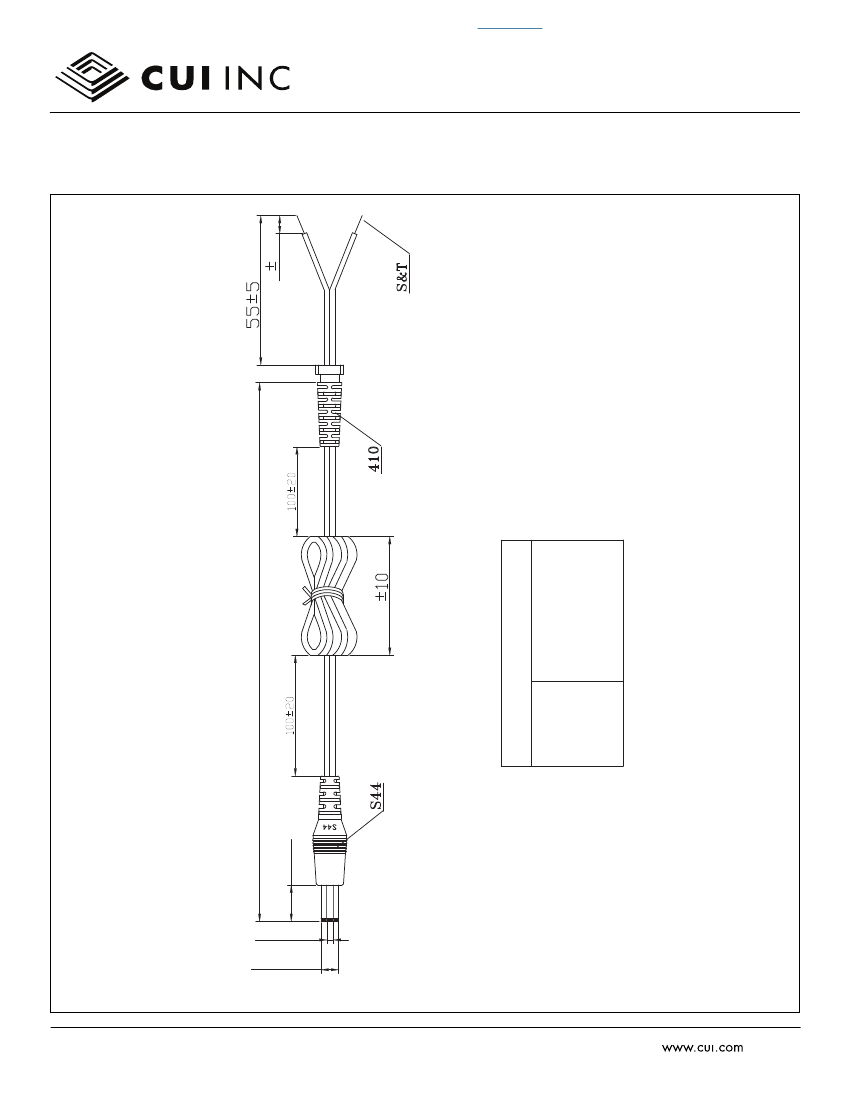

DC CORD
9 2
HAVE ON WORD WIRE IN OUTER, NO WORD WIRE IN INNER
Parameter request
+150
1830-0
#24AWG X2C UL2468
12±0.5
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2383
WIRE OD:
Ø 1.5X3.0
VIBRATION
TEST
c. 40 ROUND/MINUTE
a. ±60°
b. WEIGHT 200g
d. OVER 1000 COUNT MIN
65
Ø2.1±0.1
Ø5.5±0.1
