VF-S320-48A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> VF-S320-48A

VF-S320-48A: Descriptionpwr supply 320w 48v U-frame; CategoryPower/power management The power supply circuit; File Size361KB，5 Pages; ManufacturerCUI; Websitehttp://www.cui.com; Environmental Compliance

Download Datasheet Parametric View All

VF-S320-48A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VF-S320-48A	-	-	View	Buy Now

VF-S320-48A Overview

pwr supply 320w 48v U-frame

VF-S320-48A Parametric

Parameter Name	Attribute value
Brand Name	CUI Inc
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CUI
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Certification	CB, CE, TUV, UL
Efficiency (main output)	83%
high	38.1 mm
Maximum input voltage	264 V
Minimum input voltage	90 V
length	152.4 mm
Maximum grid adjustment rate	1%
Maximum load regulation	1%
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	6.67 A
Nominal output voltage	48 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Ripple voltage (main output)	0.16968 Vrms
Maximum total power output	320 W
width	101.6 mm

Preview

Download Datasheet

View All

For more information, please visit the

product page.

date

page

04/23/2013

1 of 5

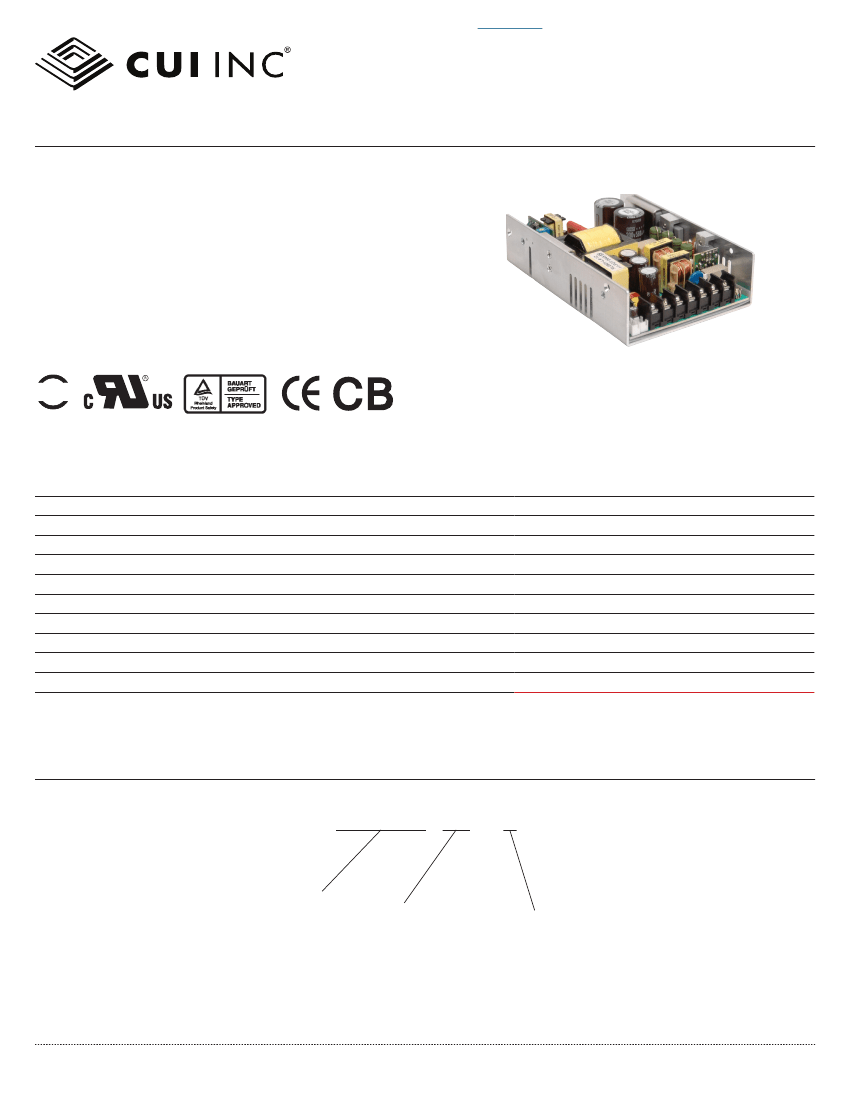

SERIES:

VF-S320-XXA

│

DESCRIPTION:

AC-DC POWER SUPPLY

FEATURES

• up to 320 W continuous power w/ 22 CFM forced air

• 700 W peak power within 500 µs duty duration

• passive power factor correction

• power good signal

• 3,000 Vac isolation voltage

• over load, over voltage, over temperature, and short circuit protections

• UL, cUL, and TUV 60950-1 safety approvals

• efficiency up to 83%

RoHS

MODEL

VF-S320-05A

VF-S320-09A

VF-S320-12A

VF-S320-15A

VF-S320-18A

VF-S320-24A

VF-S320-28A

VF-S320-36A

VF-S320-48A

VF-S320-54A

Notes:

output

voltage

(Vdc)

output

current

max

(A)

max w/

airflow

(A)

output

power

max

(W)

max w/

airflow

(W)

ripple and

noise

3,4

max

(mVp-p)

efficiency

typ

(%)

27.28

16.37

7.5

6.43

3.75

3.33

29.1

26.67

21.33

17.78

13.33

11.43

8.89

6.67

5.93

136

147

180

225

262

320

120

150

180

240

280

360

480

540

75%

83%

80%

83%

1. Maximum power must not exceed 180 W with convection cooling or 320 W for forced air.

2. With external 22 CFM fan.

3. 1% minimum load is required to maintain the ripple and regulation.

4. Ripple and noise is measured from 10 KHz to 20 MHz at output terminals with a 0.1 μF ceramic capacitor and a 22 μF electrolytic capacitor in parallel.

PART NUMBER KEY

VF - S320 -

A -

Base Number

Output Voltage

Input/Output connector:

“blank” = Terminal block input / Terminal block output

1 = Molex input / Molex output

2 = Molex input / Terminal block output

3 = Terminal block input / Molex output

cui.com
