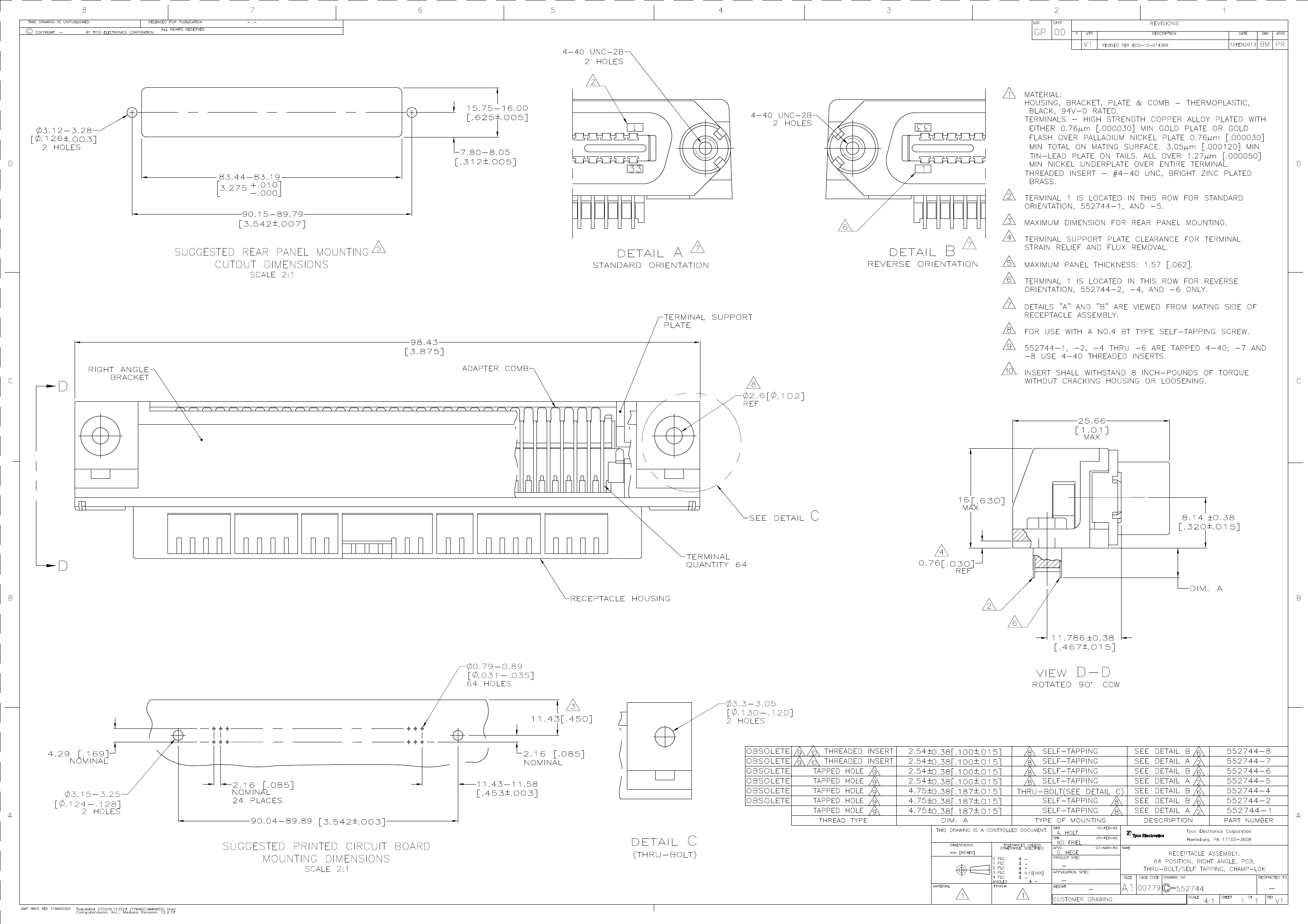

Preview

552744-1: Description64 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

552744-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	552744-1	-	-	View	Buy Now

552744-1 Overview

64 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE

552744-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Other features	CHAMP, PANEL MOUNT
body width	0.63 inch
subject depth	0.685 inch
body length	3.875 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	552744
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Terminal length	0.187 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

552744-1 Related Products

	552744-1	552744-2
Description	64 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	64 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	compliant	unknown
Other features	CHAMP, PANEL MOUNT	CHAMP, PANEL MOUNT
body width	0.63 inch	0.63 inch
subject depth	0.685 inch	0.685 inch
body length	3.875 inch	3.875 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insulator color	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	552744	552744
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	4.2926 mm
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell material	POLYETHYLENE	POLYETHYLENE
Terminal length	0.187 inch	0.187 inch
Terminal pitch	2.159 mm	2.159 mm
Termination type	SOLDER	SOLDER
Total number of contacts	64	64
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
