DATA SHEET
GENERAL PURPOSE CHIP RESISTORS
RC0603
5%, 1%, 0.5%, 0.1%
RoHS compliant
Product specification – June 25, 2014 V.5
Supersedes Date of Mar. 06, 2003
Product specification
Chip Resistor Surface Mount
RC
SERIES
0603 (RoHS Compliant)
2
9
SCOPE
This specification describes
RC0603 series chip resistors
with lead-free terminations made
by thick film process.
APPLICATIONS
All general purpose application
FEATURES
RoHS compliant
-
ORDERING INFORMATION - GLOBAL PART NUMBER & 12NC
Both part numbers are identified by the series, size, tolerance, packing
type, temperature coefficient, taping reel and resistance value.
YAGEO BRAND ordering code
GLOBAL PART NUMBER
(
PREFERRED
)
RC0603
X R - XX XXXX L
(1) (2) (3) (4)
(5)
(6)
(1) TOLERANCE
D = ± 0.5%
B = ± 0.1%
D = ± 0.5%
F = ± 1%
J = ± 5% (for Jumper ordering, use code of J)
Products with lead free
terminations meet RoHS
requirements
Pb-glass contained in electrodes,
resistor element and glass are
exempted by RoHS
-
(2) PACKAGING TYPE
R = Paper / PE taping reel
Reducing environmentally
hazardous wastes
High component and equipment
reliability
Saving of PCB space
None forbidden-materials used
in products/production
Halogen Free Epoxy
(3) TEMPERATURE COEFFICIENT OF RESISTANCE
– = Base on spec
(4) TAPING REEL
07 = 7 inch dia. Reel
13 = 13 inch dia. Reel
(5) RESISTANCE VALUE
There are 2~4 digits indicated the resistor value. Letter R/K/M is decimal point, no need
to mention the last zero after R/K/M, e.g.1K2, not 1K20.
Detailed resistance rules show in table of “Resistance rule of global part number”.
(6) DEFAULTCODE
Letter L is the system default code for ordering only.
(Note)
Resistance rule of global part
number
Resistance code rule
Example
0R
XRXX
(1 to 9.76
Ω)
XXRX
(10 to 97.6
Ω)
XXXR
(100 to 976
Ω)
XKXX
(1 to 9.76 KΩ)
XMXX
(1 to 9.76 MΩ)
0R = Jumper
1R = 1
Ω
1R5 = 1.5
Ω
9R76 = 9.76
Ω
10R = 10
Ω
97R6 = 97.6
Ω
100R = 100
Ω
1K = 1,000
Ω
9K76 = 9760
Ω
1M = 1,000,000
Ω
9M76= 9,760,000
Ω
O
RDERING EXAMPLE
The ordering code of a RC0603
chip resistor, value 56
X
with
± 1% tolerance, supplied in 7-inch
tape reel is: RC0603FR-0756RL.
NOTE
1. All our RSMD products meet RoHS
compliant. "LFP" of the internal 2D reel
label mentions "Lead Free Process"
2. On customized label, "LFP" or specific
symbol printed and the optional "L" at
the end of GLOBAL PART NUMBER /
12NC can be added (both are on
customer request)
www.yageo.com
Jun. 25, 2014 V.5
Product specification
Chip Resistor Surface Mount
RC
SERIES
0603 (RoHS Compliant)
3
9
PHYCOMP BRAND ordering codes
Both GLOBAL PART NUMBER (preferred) and 12NC (traditional) codes are acceptable to order Phycomp
brand products.
GLOBAL PART NUMBER
(
PREFERRED
)
For detailed information of GLOBAL PART NUMBER and ordering example, please refer to page 2.
12NC
(1)
CODE
2322 / 2350
XXX XXXXX L
(2)
(3)
(4)
Last digit of 12NC
Resistance decade
(3)
PAPER / PE TAPE ON REEL (units)
(2)
5,000
702 60xxx
704 6xxxx
522 10xxx
702 96001
10,000/not preferred
702 70xxx
704 7xxxx
-
702 97001
20,000
702 81xxx
704 8xxxx
-
702 92002
Last digit
0
7
8
9
1
2
3
4
5
6
TYPE/ START TOL. RESISTANCE
0603 IN
(1)
(%) RANGE
RC21
RC22
2322
2322
± 5% 1 to 10 MΩ
± 1% 1 to 10 MΩ
± 5% 11 to 22 MΩ
-
0
Ω
0.01 to 0.0976
X
0.1 to 0.976
X
1 to 9.76
X
10 to 97.6
X
100 to 976
X
1 to 9.76 K
X
10 to 97.6 K
X
100 to 976 K
X
1 to 9.76 M
X
10 to 97.6 M
X
Example:
0.02
X
0.3
X
1
X
33 K
X
10 M
X
=
=
=
=
=
HRC21
2350
Jumper
2322
(1) The resistors have a 12-digit ordering code starting with 2322 / 2350.
(2) The subsequent 4 or 5 digits indicate the resistor tolerance and
packaging.
(3) The remaining 4 or 3 digits represent the resistance value with the
last digit indicating the multiplier as shown in the table of
“Last digit of 12NC”.
(4) "L" is optional symbol
(Note)
.
O
RDERING EXAMPLE
The ordering code of a RC22 resistor, value 56
X
with ± 1% tolerance,
supplied in tape of 5,000 units per reel is: 232270465609(L) or
RC0603FR-0756R(L).
NOTE
0200 or 200
3007 or 307
1008 or 108
3303 or 333
1006 or 106
1. All our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"
2. On customized label, "LFP" or specific symbol printed and the optional "L" at the end of GLOBAL PART NUMBER / 12NC can be added
(both are on customer request)
www.yageo.com
Jun. 25, 2014 V.5
Product specification
Chip Resistor Surface Mount
RC
SERIES
0603 (RoHS Compliant)
4
9

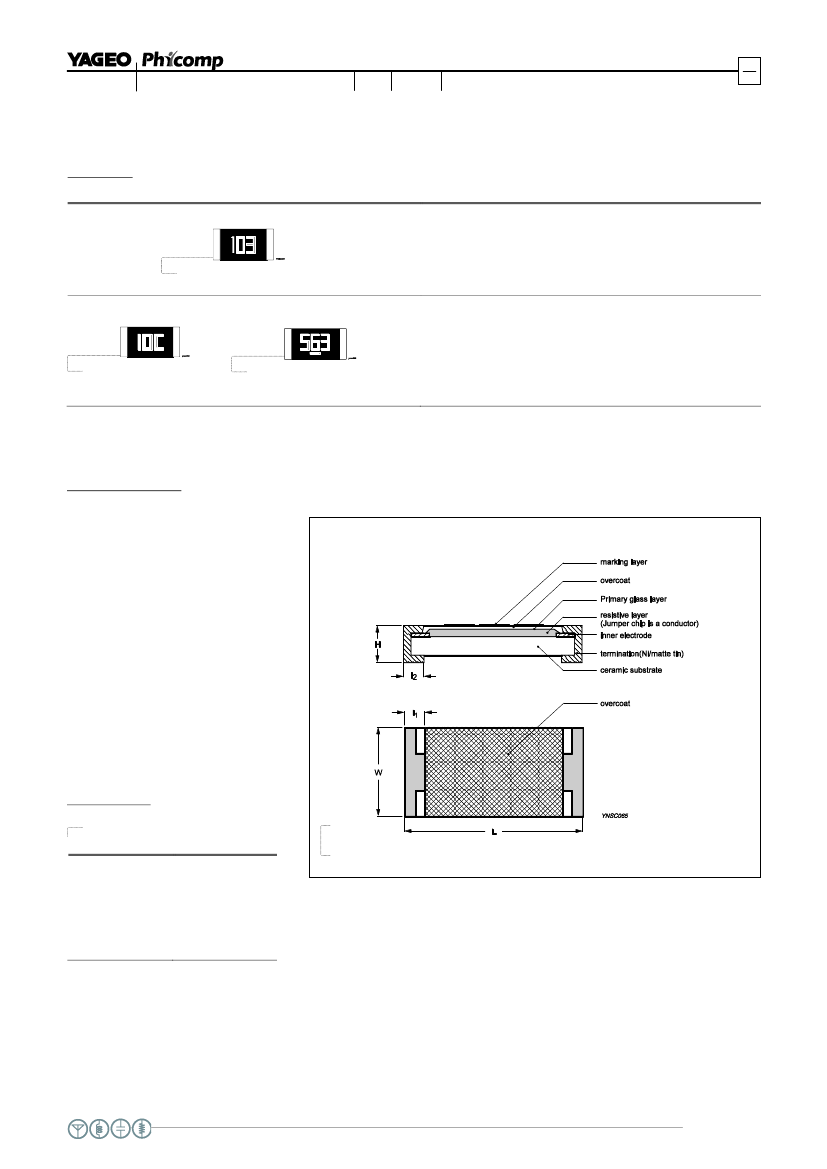

MARKING
RC0603
E-24 series: 3 digits
Fig. 1
Value = 10 KΩ
First two digits for significant figure and 3rd digit
for number of zeros
E-96 series: 3 digits for 0603 ± 1% EIA-96 marking
method
Fig. 2
Value = 12.4 KΩ
Fig. 3
E-24 1% Value = 56 KΩ
For 0603 ± 1% E-24 series, one short bar under
marking letter
For further marking information, please see special data sheet “Chip resistors marking”.
CONSTRUCTION
The resistor is constructed on top
of a high-grade ceramic body.
Internal metal electrodes are added
on each end to make the contacts to
the thick film resistive element. The
composition of the resistive element
is a noble metal imbedded into a
glass and covered by a second glass
to prevent environment influences.
The resistor is laser trimmed to the
rated resistance value. The resistor
is covered with a protective epoxy
coat, finally the two external
terminations (matte tin on Ni-
barrier) are added. See fig.4
OUTLINES
For dimension see Table 1
DIMENSIONS
Table 1
TYPE
L (mm)
W (mm)
H (mm)
I
1
(mm)
I
2
(mm)
RC0603
1.60 ± 0.10
0.80 ± 0.10
0.45 ± 0.10
0.25 ± 0.15
0.25 ± 0.15
Fig. 4
Chip resistor outlines
www.yageo.com
Jun. 25, 2014 V.5
Product specification
Chip Resistor Surface Mount
RC
SERIES
0603 (RoHS Compliant)
5
9
ELECTRICAL CHARACTERISTICS
Table 2
CHARACTERISTICS
Operating Temperature Range
Maximum Working Voltage
Maximum Overload Voltage
Dielectric Withstanding Voltage
RC0603 1/10 W
–55 °C to +155 °C
75 V
150 V
100 V
5% (E24) 1
Ω
to 22 MΩ
1% (E24/E96) 1
Ω
to 10 MΩ
0.i%, 0.5% (E24/E96) 10
Ω
to 1 MΩ
Zero Ohm Jumper < 0.05
Ω
1
Ω
≤ R ≤ 10Ω
± 200 ppm/°C
± 200 ppm/°C
± 100 ppm/°C
1.0 A
2.0 A
FOOTPRINT AND SOLDERING
PROFILES
For recommended footprint and
soldering profiles, please see the
special data sheet “Chip resistors
mounting”.
Resistance Range
Temperature Coefficient
10 MΩ < R ≤ 22 MΩ
10
Ω
< R ≤ 10 MΩ
Rated Current
Maximum Current
Jumper Criteria
PACKING STYLE AND PACKAGING QUANTITY
Table 3
Packing style and packaging quantity
PRODUCT TYPE
RC0603
PACKING STYLE
Paper Taping Reel (R)
REEL DIMENSION
7" (178 mm)
13" (330 mm)
QUANTITY PER REEL
5,000 units
20,000 units
NOTE
1. For paper tape and reel specification/dimensions, please see the special data sheet “Chip resistors packing”.
FUNCTIONAL DESCRIPTION
POWER RATING
RC0603 rated power at 70°C is 1/10 W
R
ATED VOLTAGE
The DC or AC (rms) continuous working voltage
corresponding to the rated power is determined by
the following formula:
V=√(P X R)
or max. working voltage whichever is less
Where
V=Continuous rated DC or
AC (rms) working voltage (V)
P=Rated power (W)
R=Resistance value (X)
Fig. 5
Maximum dissipation (P) in percentage of rated power as a
function of the operating ambient temperature (T
amb
)
